2 - 5 Tons High Efficiency Air Handlers

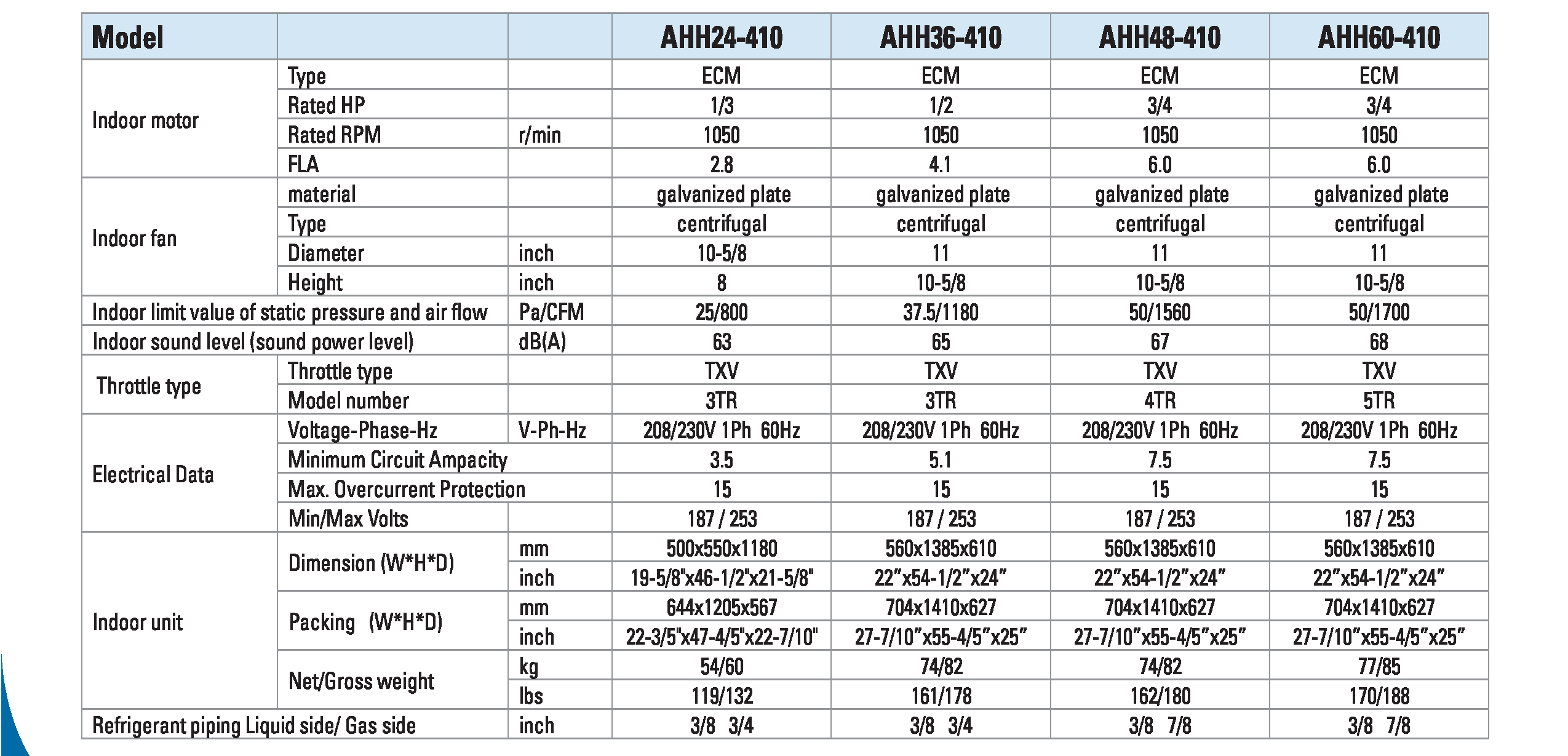

Four Air Handlers Models

  • AHH24-410
  • AHH48-410
  • AHH36-410
  • AHH60-410

Product Quick Find

Features:

  • Drain pan – Durable non-corrosive plastic drain pans.
  • Coil – “A” shape coils, constructed with copper tubing and enhanced aluminum fins.
  • Cabinet – Galvanized steel, with powder paint on all _ panels.
  • Expansion device – Use TXV as expansion device.
  • Motor – ECM motor with high energy efficiency and low noise.
  • Multi position installation – Versatile 4-way convertible design for vertical up airflow, horizontal right airflow.
  • Filter optional – Detachable air filter for cleaning or renewal.
  • Control – 24V control, time delay relay, fan relay and transformer included.
  • Certificate – Certified in accordance with AH RI 210/240 standards, ETL listed for electrical safety.

18 SHEER

60HZ

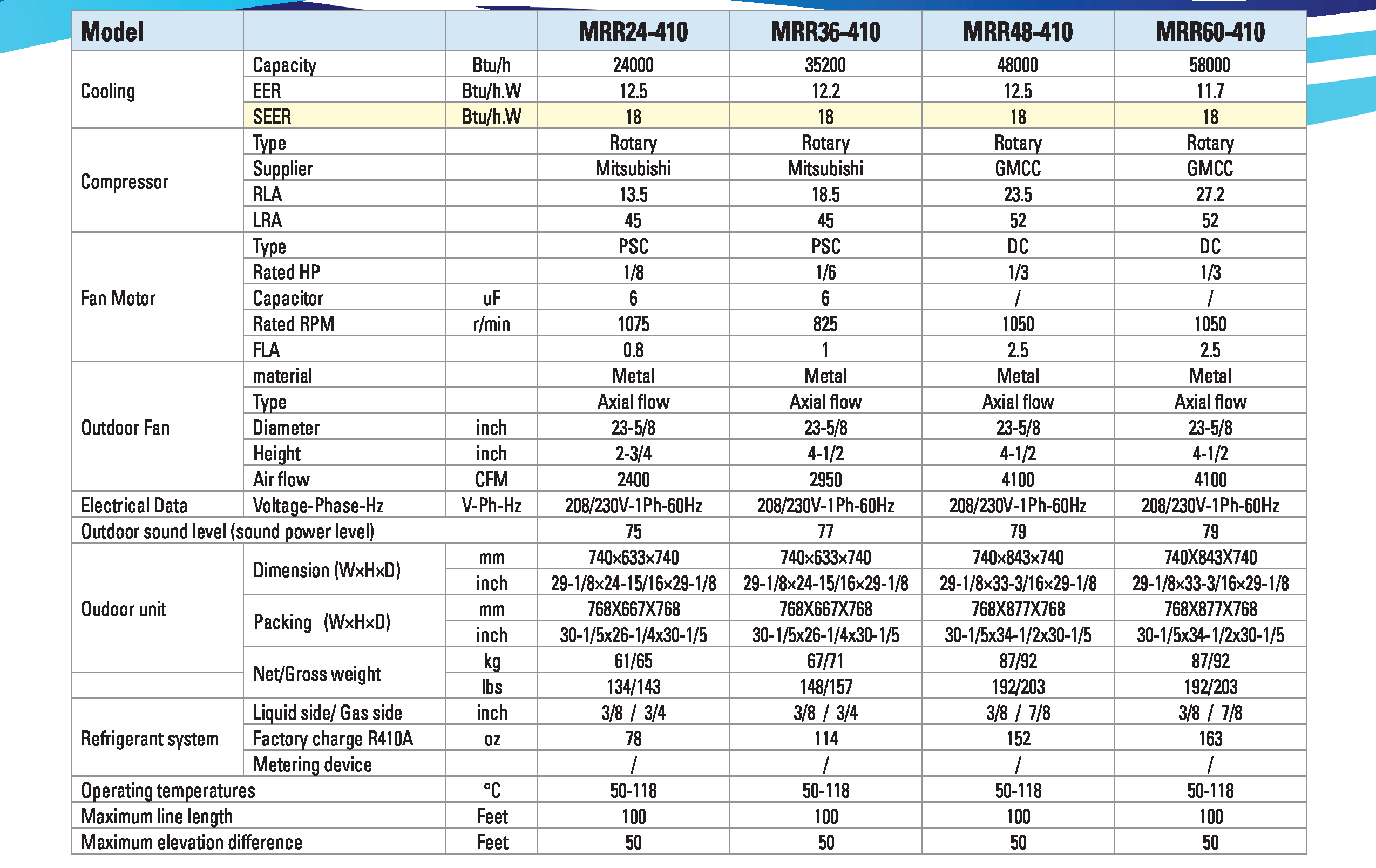

4 Cooling and Heating Models

  • MRR24-410
  • MRR36-410
  • MRR48-410
  • MRR-60-410

Features:

  • R-41 OA environmentally friendly refrigerant.
  • Painted galvanized steel cabinet.
  • Metal coil guard.
  • 24V low voltage control
  • AHRI Certified & ETL Listed.
  • Wide operation temperature range: 5° F -118° F.
  • Mitsubishi Twin-rotary DC compressor
    reliable quality.
  • Condenser coils constructed with copper tubing and enhanced aluminum fins.
  • 24K&36K use AC motor.
    48K&60K use DC motor.
  • Intelligent defrost programs, unit will choose different defrost program according
    to real condition.
