CPH3 Series

CENTRAL HEAT PUMP 24 VOLT SYSTEM | UP TO 19 SEER2

indoor units

CPH3 Series

CENTRAL HEAT PUMP 24 VOLT SYSTEM | UP TO 19 SEER2

indoor units

  • Replaces existing R410A heat pump systems without needing to alter or replace current line sets or wiring: This feature allows for a seamless upgrade to newer technology without the hassle and expense of modifying existing infrastructure, making it convenient for homeowners and installers alike.
  • Refrigerant Leak Detection: Integrated leak detection enhances safety and efficiency by identifying refrigerant leaks early, preventing potential damage to the system and ensuring optimal performance.
  • Operates efficiently in low ambient temperatures down to -22°F: This capability ensures reliable heating performance even in extremely cold conditions, making it suitable for regions with harsh winters and providing consistent comfort for users.
  • The 24-volt control allows this condensing unit to connect with any indoor unit managed by any heat pump thermostat: This versatility simplifies installation and compatibility, allowing users to integrate the system with their existing thermostats and indoor units without requiring special equipment.
  • Operates at a sound level as low as 55 DBA: With its quiet operation, this unit minimizes noise pollution, ensuring that it maintains a peaceful indoor environment without disturbing daily activities or sleep.
  • Features a 50% smaller footprint than a standard condensing unit: The compact design of this unit makes it ideal for properties with limited space, allowing for easier installation in tight areas while still delivering powerful performance.
  • Multiposition Options: Upflow, Downflow, Horizontal Left, Horizontal Right.
  • Size: Exceptionally compact compared to other brands.
  • Controls: Highly versatile; can be managed using any 24-volt thermostat or Wi-Fi.
  • Static Pressure: Automatically adjusts for optimal performance.
  • Refrigerant Line Compatibility: Works with existing refrigerant line sets; no insulation needed for both lines.
  • Heating: Optional auxiliary electric heating element kits available, ranging from 5 to 20 kW.
  • UV Light: Equipped with a dedicated wiring port.
  • Humidifier: Also features a dedicated wiring port.
  • Maintenance: Designed for easy upkeep.
  • Field-Installed Heater Kits: Available in sizes from 5 to 20kW.
  • Temperature Consistency: Maintains a stable room temperature.
  • Airflow Adjustment: Features automatic airflow modulation.
  • Fault Code Checking: Simplified fault code diagnostics.
  • Nitrogen Charge: Includes a leakage check valve for easy maintenance.
  • Compatibility: Works with existing line, wiring, and thermostat setups.
  • Control Options: Compatible with Comfortstar wireless remote, programmable wired control, central control, Wi-Fi control, and remote on/off capabilities.

RESOURCES

  • Replaces existing R410A heat pump systems without needing to alter or replace current line sets or wiring: This feature allows for a seamless upgrade to newer technology without the hassle and expense of modifying existing infrastructure, making it convenient for homeowners and installers alike.
  • Refrigerant Leak Detection: Integrated leak detection enhances safety and efficiency by identifying refrigerant leaks early, preventing potential damage to the system and ensuring optimal performance.
  • Operates efficiently in low ambient temperatures down to -22°F: This capability ensures reliable heating performance even in extremely cold conditions, making it suitable for regions with harsh winters and providing consistent comfort for users.
  • The 24-volt control allows this condensing unit to connect with any indoor unit managed by any heat pump thermostat: This versatility simplifies installation and compatibility, allowing users to integrate the system with their existing thermostats and indoor units without requiring special equipment.
  • Operates at a sound level as low as 55 DBA: With its quiet operation, this unit minimizes noise pollution, ensuring that it maintains a peaceful indoor environment without disturbing daily activities or sleep.
  • Features a 50% smaller footprint than a standard condensing unit: The compact design of this unit makes it ideal for properties with limited space, allowing for easier installation in tight areas while still delivering powerful performance.

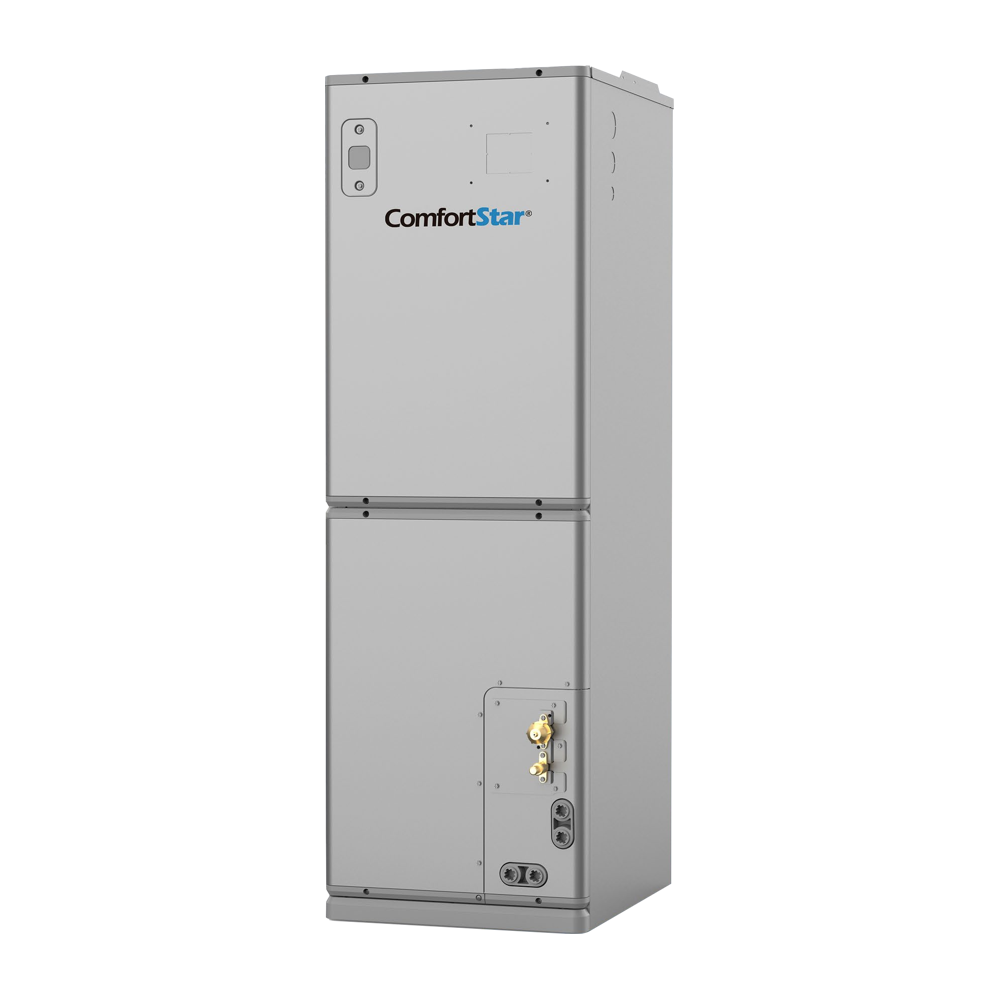

  • Slim and the same width as the common gas furnace, so it can easily fit in the existing space.
  • Enables Direct Replacement of Gas Furnace With Dual Voltage, 115V & 208/230V all in one, automatically identifying the required voltage, no need for manual conversion, Eliminating the hassle of rewiring.
  • Easy to Enjoy Top-Level Whole Home Comfort:
    • Innovative filtration module compatible with 1″ to 4″ filters
    • Smart functions including OTA & iCheck
    • Optional auxiliary heat kit
    • Demand response capability
    • Large & Consistent Airflow for Different Ductwork Conditions
  • The upgraded Computational Constant Airflow technology also offers flexibility to adjust the setting CFM according to the customers’ personal needs.
  • Precise Temperature Control
    The advanced GA control adapts to the multi-temperature needs, enables an accurate compressor output and reduces temperature difference.
  • Quiet Cooling
    As low as 37 dBA with a 1.5 ton air handling unit;
    As low as 56.5 dBA with a 1.5 ton inverter heat pump

RESOURCES

  • Replaces existing R410A heat pump systems without needing to alter or replace current line sets or wiring: This feature allows for a seamless upgrade to newer technology without the hassle and expense of modifying existing infrastructure, making it convenient for homeowners and installers alike.
  • Refrigerant Leak Detection: Integrated leak detection enhances safety and efficiency by identifying refrigerant leaks early, preventing potential damage to the system and ensuring optimal performance.
  • Operates efficiently in low ambient temperatures down to -22°F: This capability ensures reliable heating performance even in extremely cold conditions, making it suitable for regions with harsh winters and providing consistent comfort for users.
  • The 24-volt control allows this condensing unit to connect with any indoor unit managed by any heat pump thermostat: This versatility simplifies installation and compatibility, allowing users to integrate the system with their existing thermostats and indoor units without requiring special equipment.
  • Operates at a sound level as low as 55 DBA: With its quiet operation, this unit minimizes noise pollution, ensuring that it maintains a peaceful indoor environment without disturbing daily activities or sleep.
  • Features a 50% smaller footprint than a standard condensing unit: The compact design of this unit makes it ideal for properties with limited space, allowing for easier installation in tight areas while still delivering powerful performance.
  • Compact-Size Wall-Mounted AHU
    – Smoothly Fits Into Any Existing Installation Space.
  • Easy-to-Access Design: Just remove 2 screws for access to the error code display.
  • Slide-Out Design: One action to push in or take out the filter.
  • Control Box: The electric control box is fixed by only two screws and can be easily pulled out.
  • Fan Motor: Dissemble the top cover, then easily take out the fan and motor assembly without the need to disassemble the evaporator.
  • Slide-Track Design: There are no side screws, so the evaporator coil can be easily pulled out through the slide track from the front side.

RESOURCES

  • Replaces existing R410A heat pump systems without needing to alter or replace current line sets or wiring: This feature allows for a seamless upgrade to newer technology without the hassle and expense of modifying existing infrastructure, making it convenient for homeowners and installers alike.
  • Refrigerant Leak Detection: Integrated leak detection enhances safety and efficiency by identifying refrigerant leaks early, preventing potential damage to the system and ensuring optimal performance.
  • Operates efficiently in low ambient temperatures down to -22°F: This capability ensures reliable heating performance even in extremely cold conditions, making it suitable for regions with harsh winters and providing consistent comfort for users.
  • The 24-volt control allows this condensing unit to connect with any indoor unit managed by any heat pump thermostat: This versatility simplifies installation and compatibility, allowing users to integrate the system with their existing thermostats and indoor units without requiring special equipment.
  • Operates at a sound level as low as 55 DBA: With its quiet operation, this unit minimizes noise pollution, ensuring that it maintains a peaceful indoor environment without disturbing daily activities or sleep.
  • Features a 50% smaller footprint than a standard condensing unit: The compact design of this unit makes it ideal for properties with limited space, allowing for easier installation in tight areas while still delivering powerful performance.
  • The ECM fan motor of the EASY-FIT ceiling-mounted air handler has up to 0.8″ static pressure to overcome the static loss due to ductwork design, thus ensuring sufficient airflow delivery regardless of existing duct length.
  • Easy to Replace Any Old Unit.
  • Easy to Maintain: The electric control box can be accessed from the bottom of the unit and the cover of electric control box is easy to take off .
  • The fan and motor can be also taken out assembly to maintain.

RESOURCES

  • Replaces existing R410A heat pump systems without needing to alter or replace current line sets or wiring: This feature allows for a seamless upgrade to newer technology without the hassle and expense of modifying existing infrastructure, making it convenient for homeowners and installers alike.
  • Refrigerant Leak Detection: Integrated leak detection enhances safety and efficiency by identifying refrigerant leaks early, preventing potential damage to the system and ensuring optimal performance.
  • Operates efficiently in low ambient temperatures down to -22°F: This capability ensures reliable heating performance even in extremely cold conditions, making it suitable for regions with harsh winters and providing consistent comfort for users.
  • The 24-volt control allows this condensing unit to connect with any indoor unit managed by any heat pump thermostat: This versatility simplifies installation and compatibility, allowing users to integrate the system with their existing thermostats and indoor units without requiring special equipment.
  • Operates at a sound level as low as 55 DBA: With its quiet operation, this unit minimizes noise pollution, ensuring that it maintains a peaceful indoor environment without disturbing daily activities or sleep.
  • Features a 50% smaller footprint than a standard condensing unit: The compact design of this unit makes it ideal for properties with limited space, allowing for easier installation in tight areas while still delivering powerful performance.
  • Durable Painted Cabinets – Heavy-duty, corrosion-resistant paint finish for long-lasting appearance and protection.
  • Standard Widths – Available in multiple widths to match most industry-standard furnaces for faster, easier installation.
  • Optimized for R-454B Refrigerant – Engineered specifically for the latest generation of low-GWP refrigerants, offering higher efficiency and eco-friendly performance.

RESOURCES

The Easy Fit System Thermostats & Controls

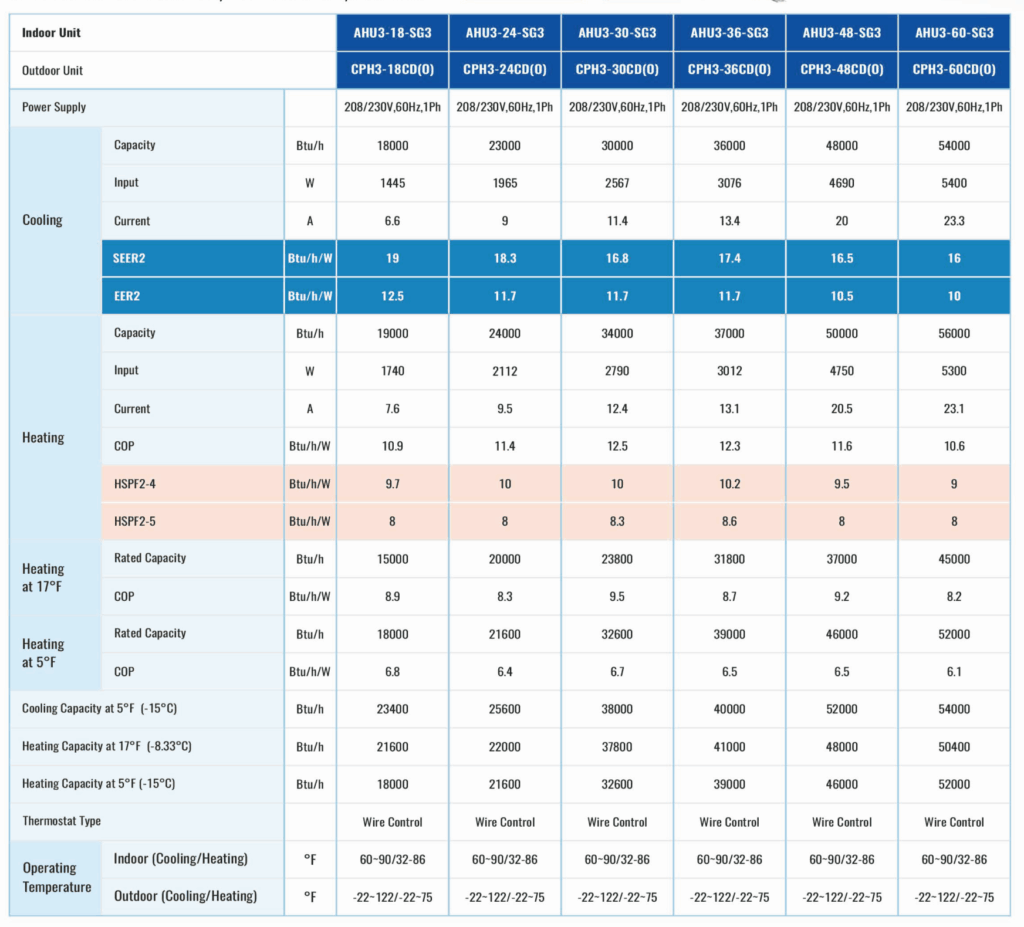

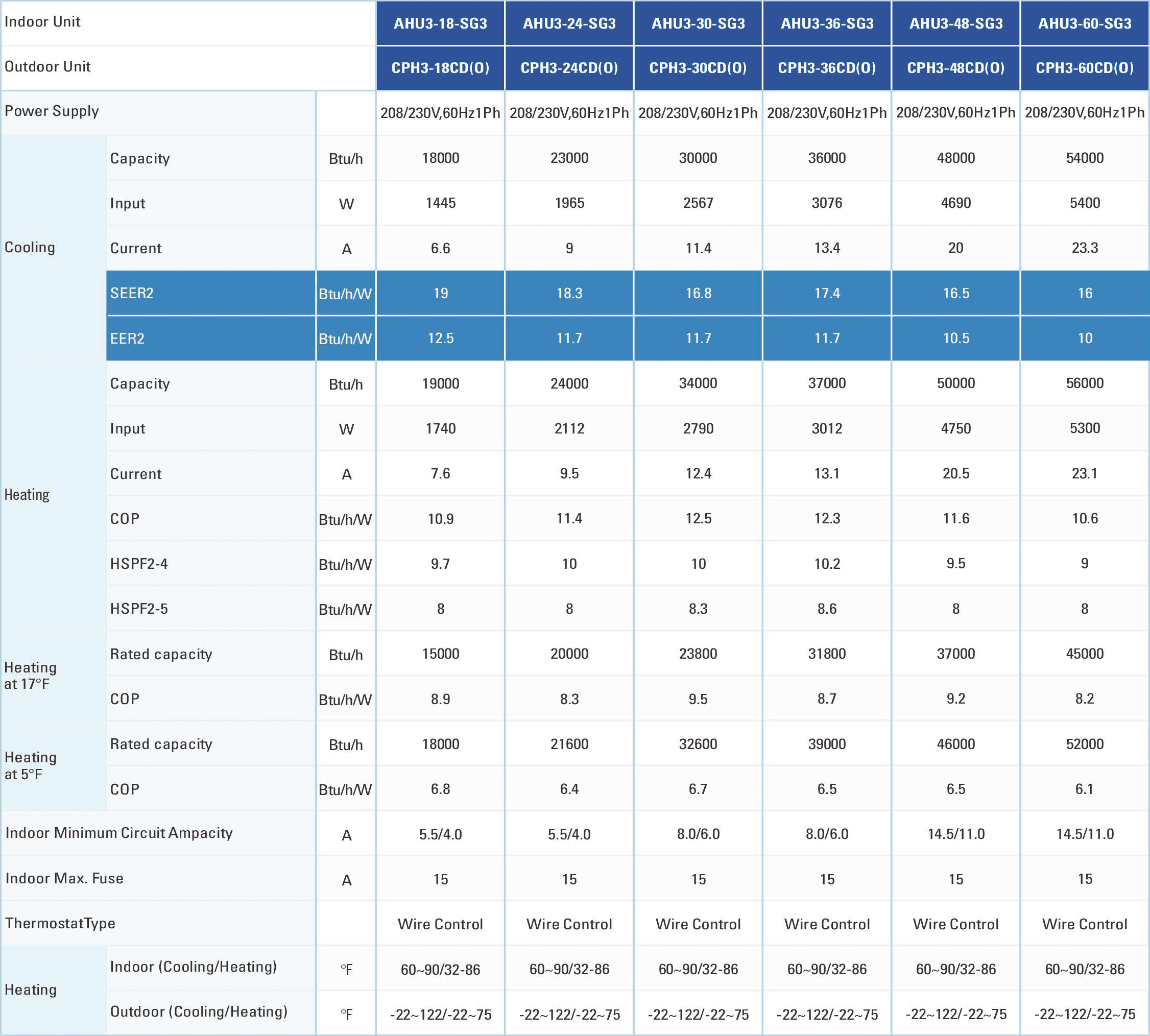

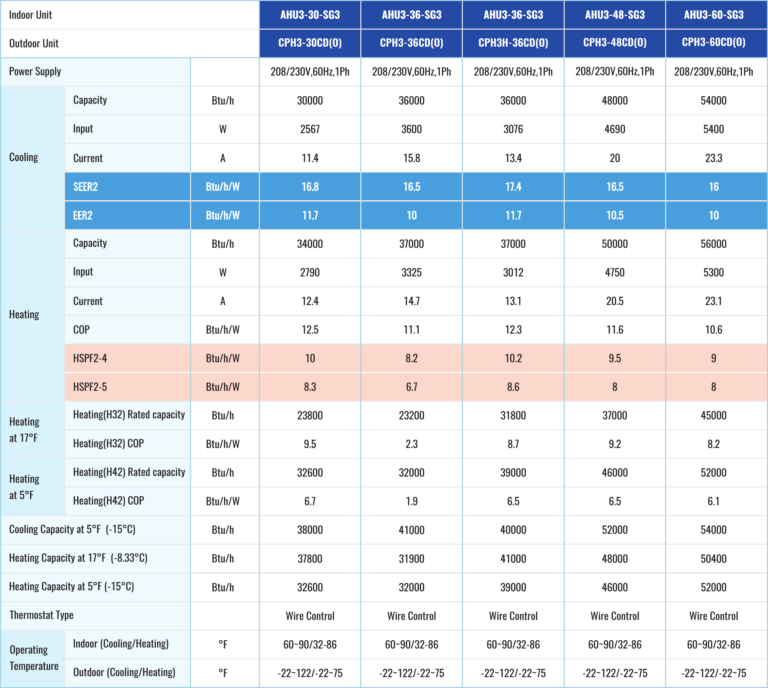

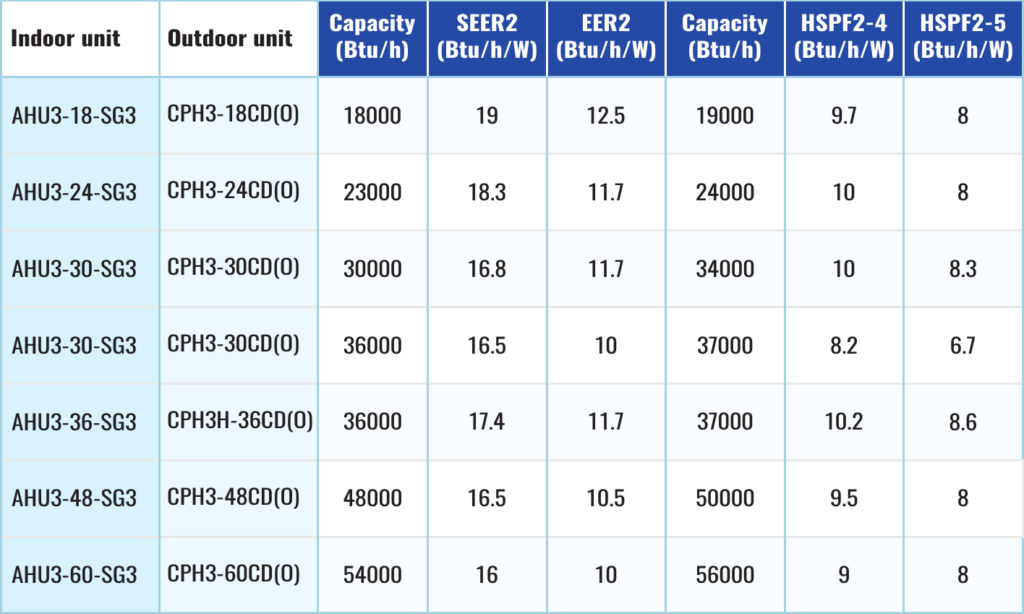

CPH3 + AHU3-SG3 Combination Specifications

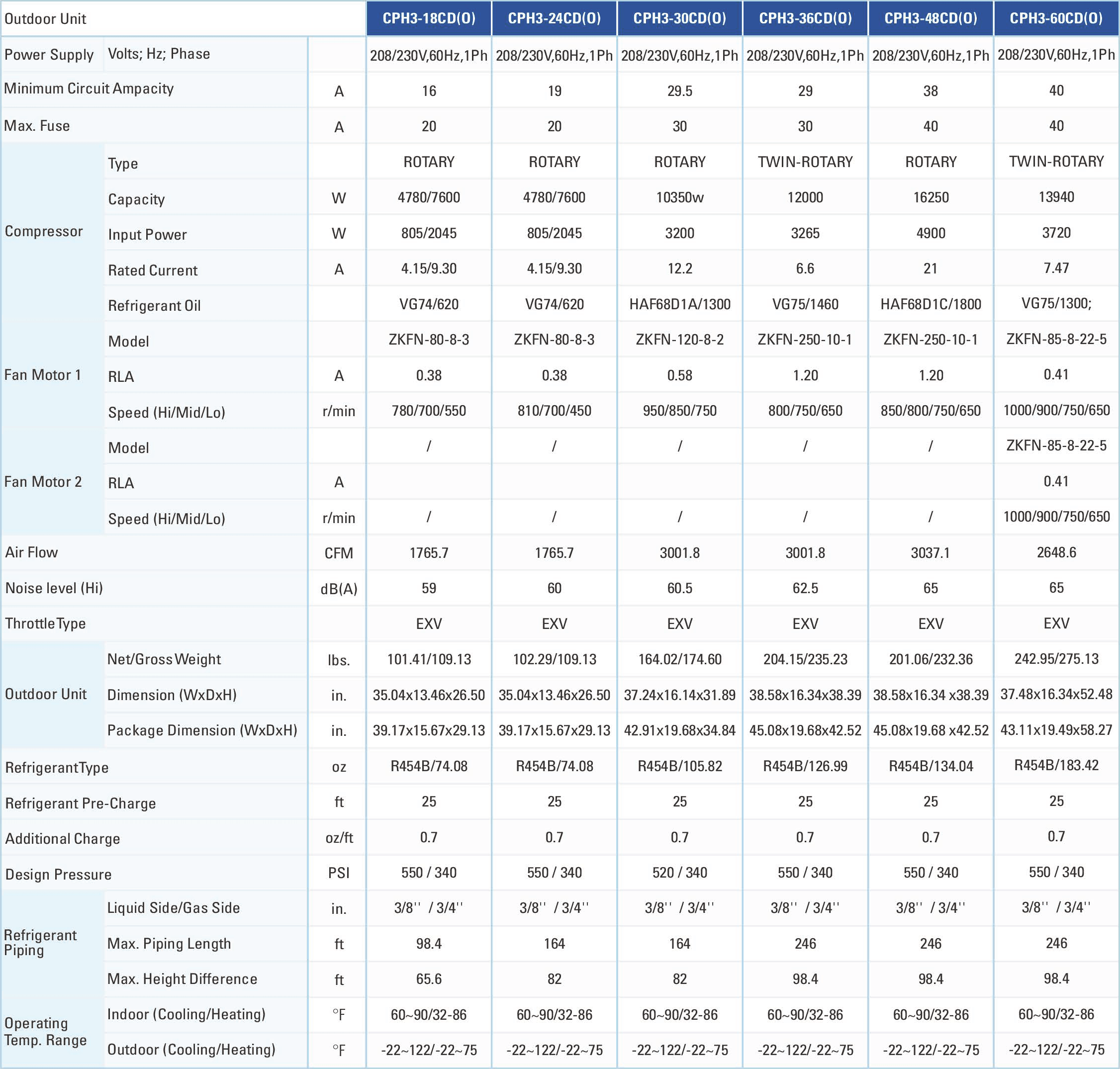

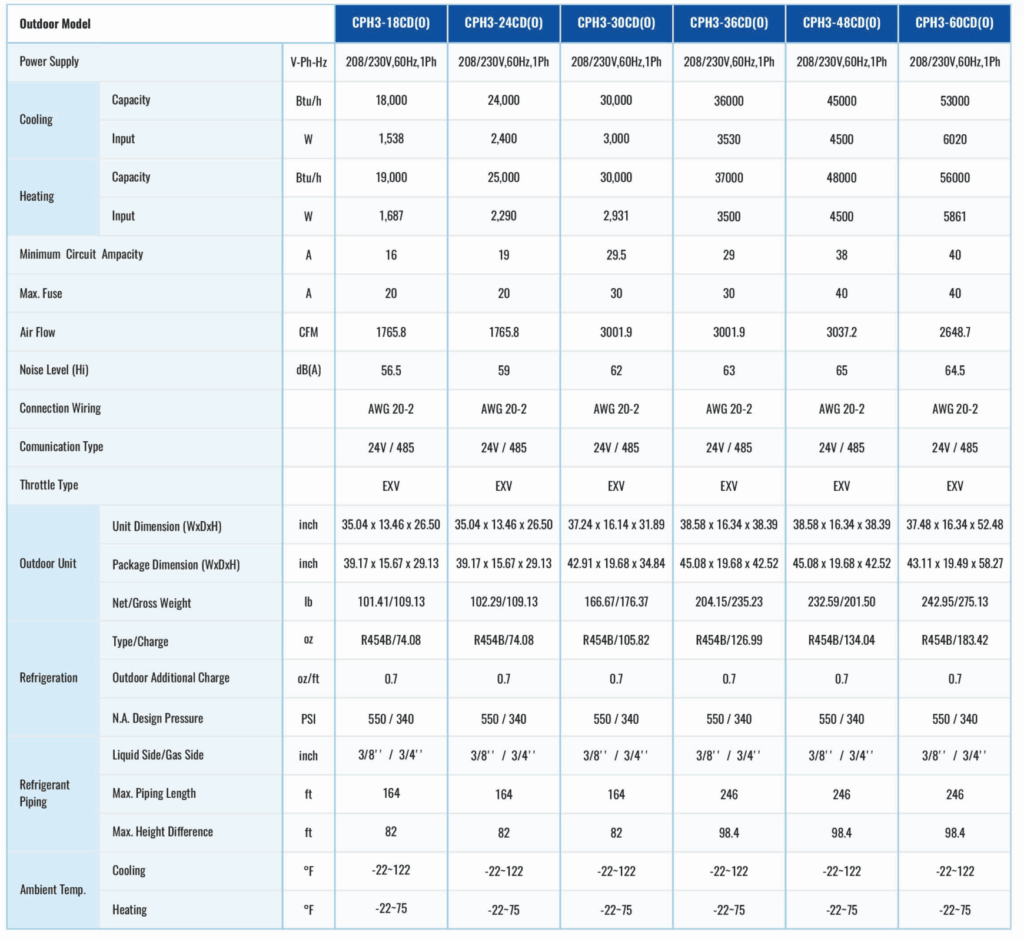

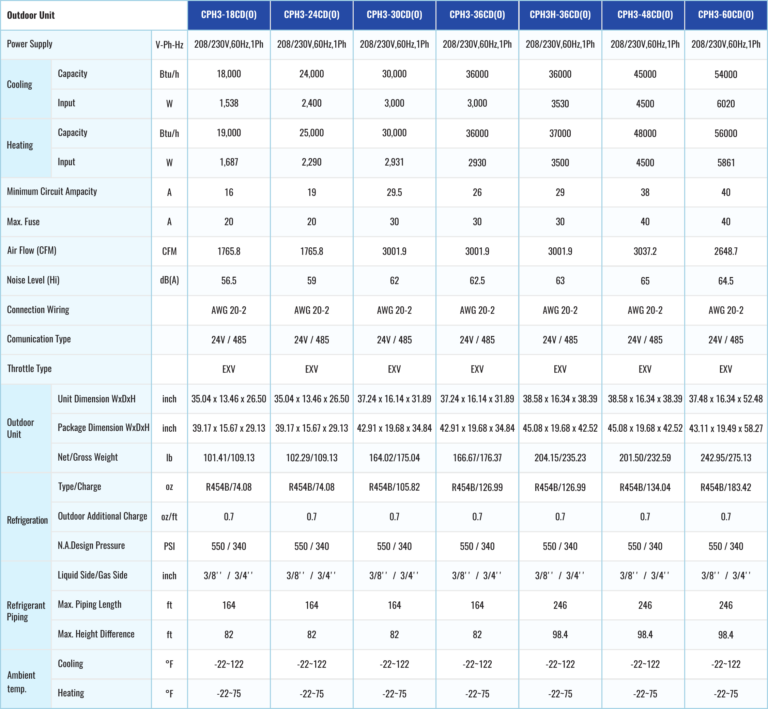

cpH3 SERIES Specifications

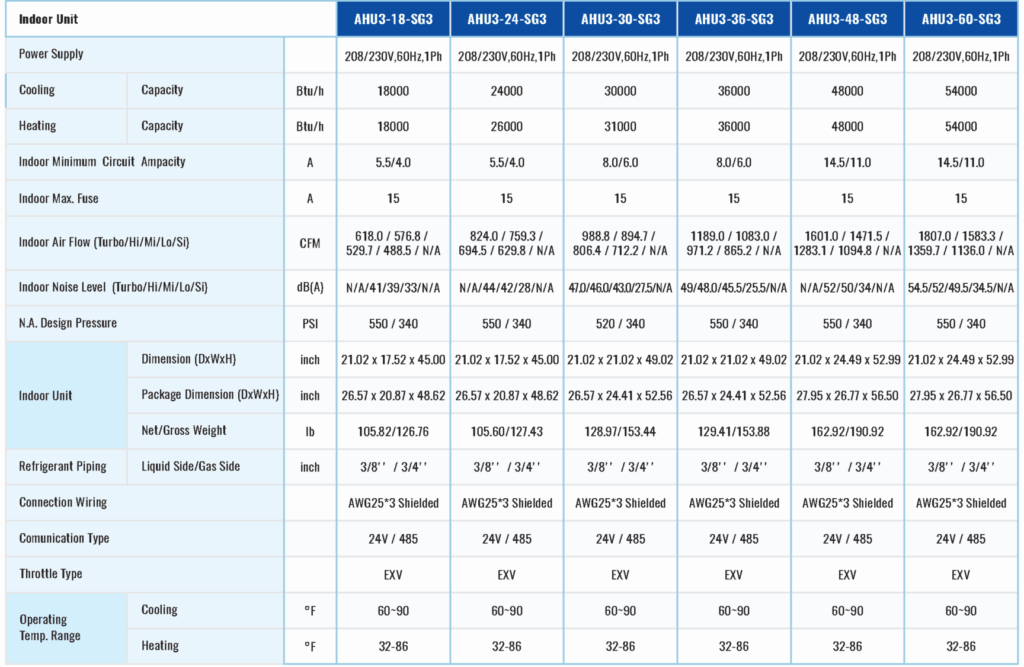

AHU3-SG3 Series Specifications

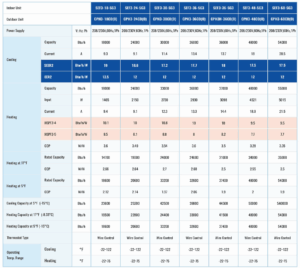

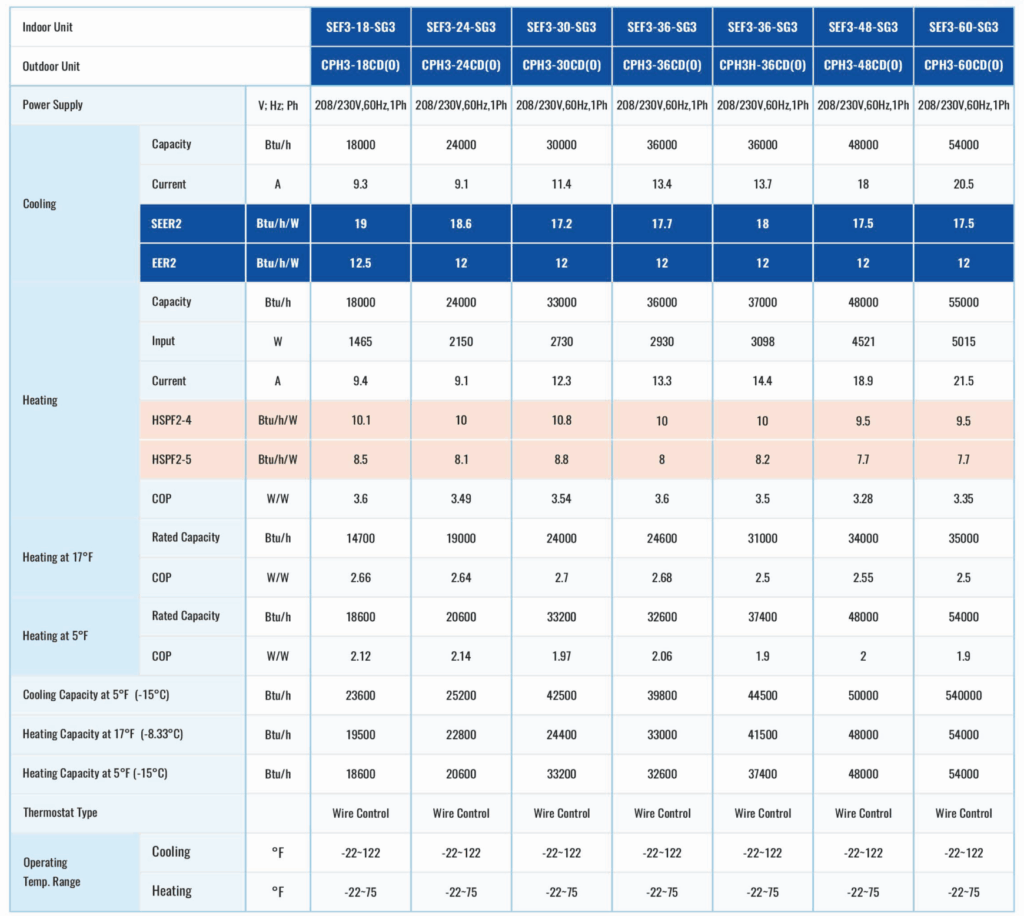

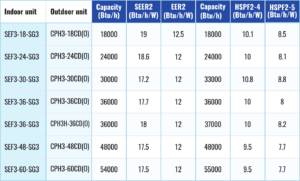

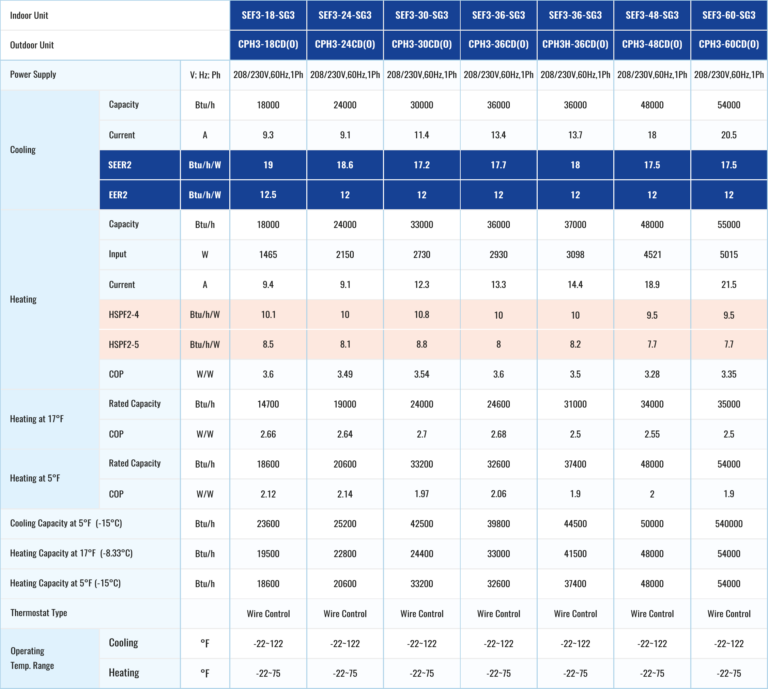

CPH3 + SEF3-SG3 Combination Specifications

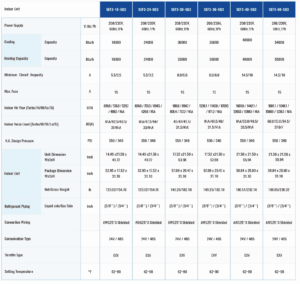

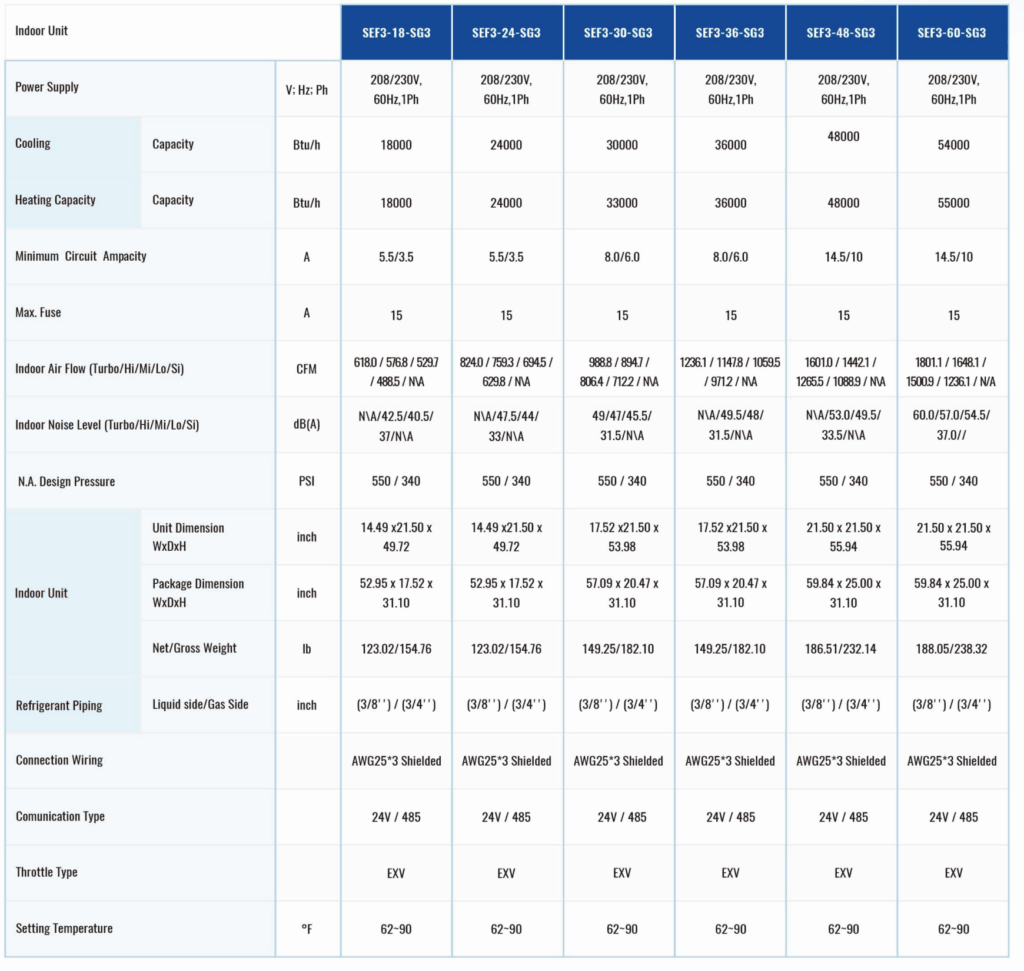

SEF3-SG3 Series Specifications

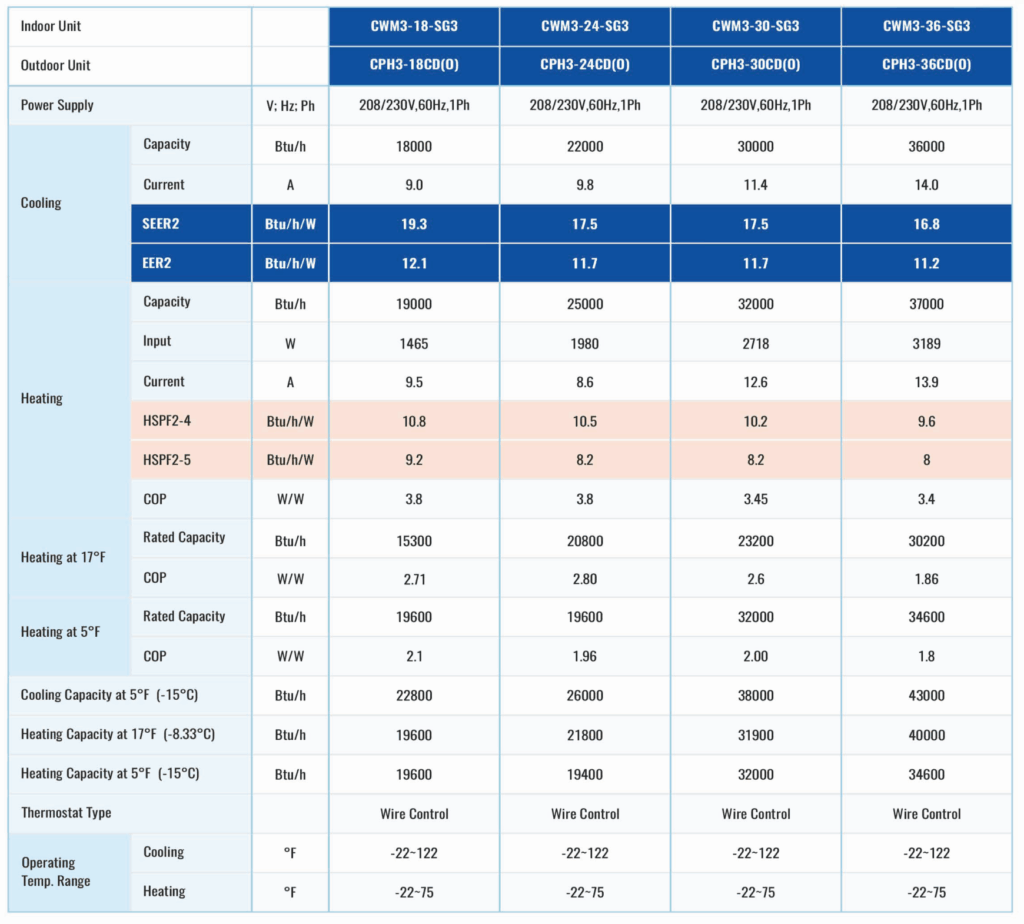

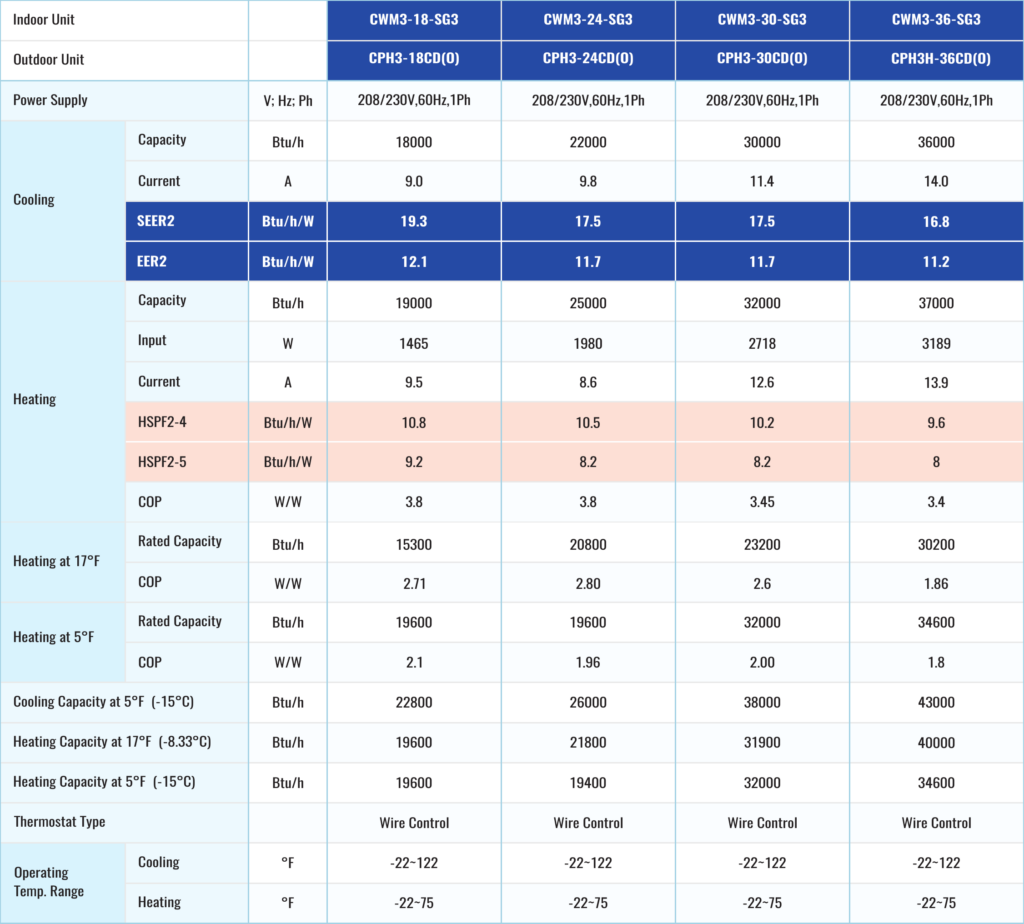

CPH3 + CWM3-SG3 Combination Specifications

CWM3-SG3 Series Specifications

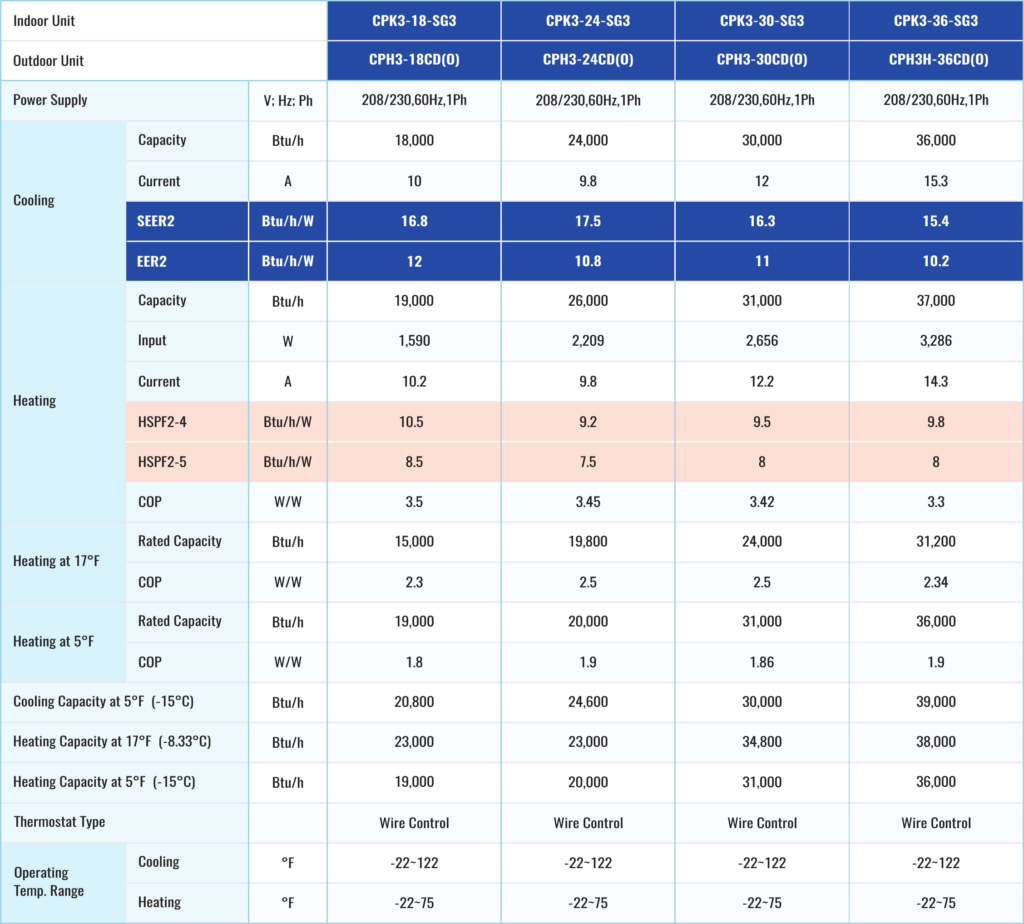

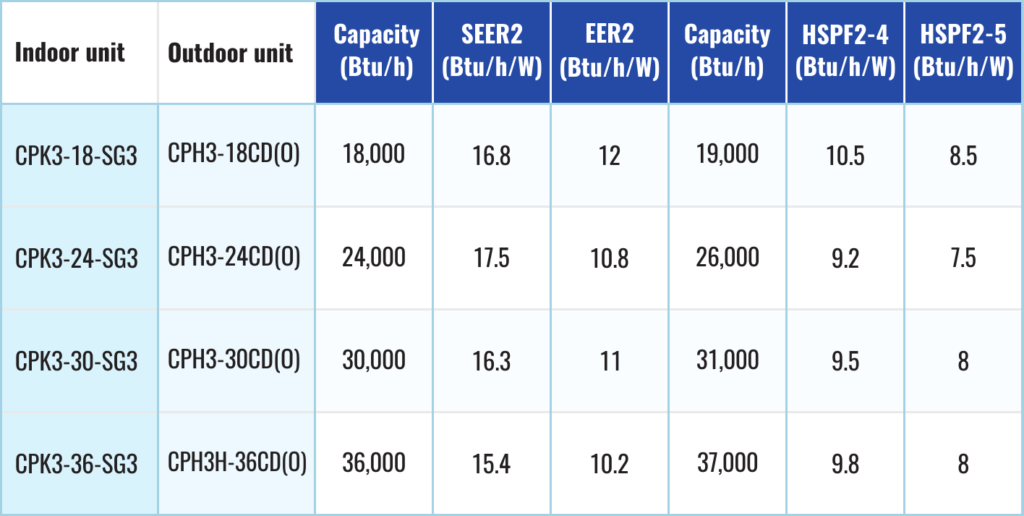

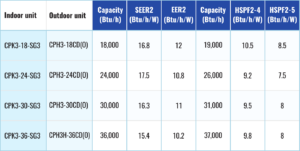

CPH3 + CPK3-SG3 Combination Specifications

CPK3-SG3 Series Specifications

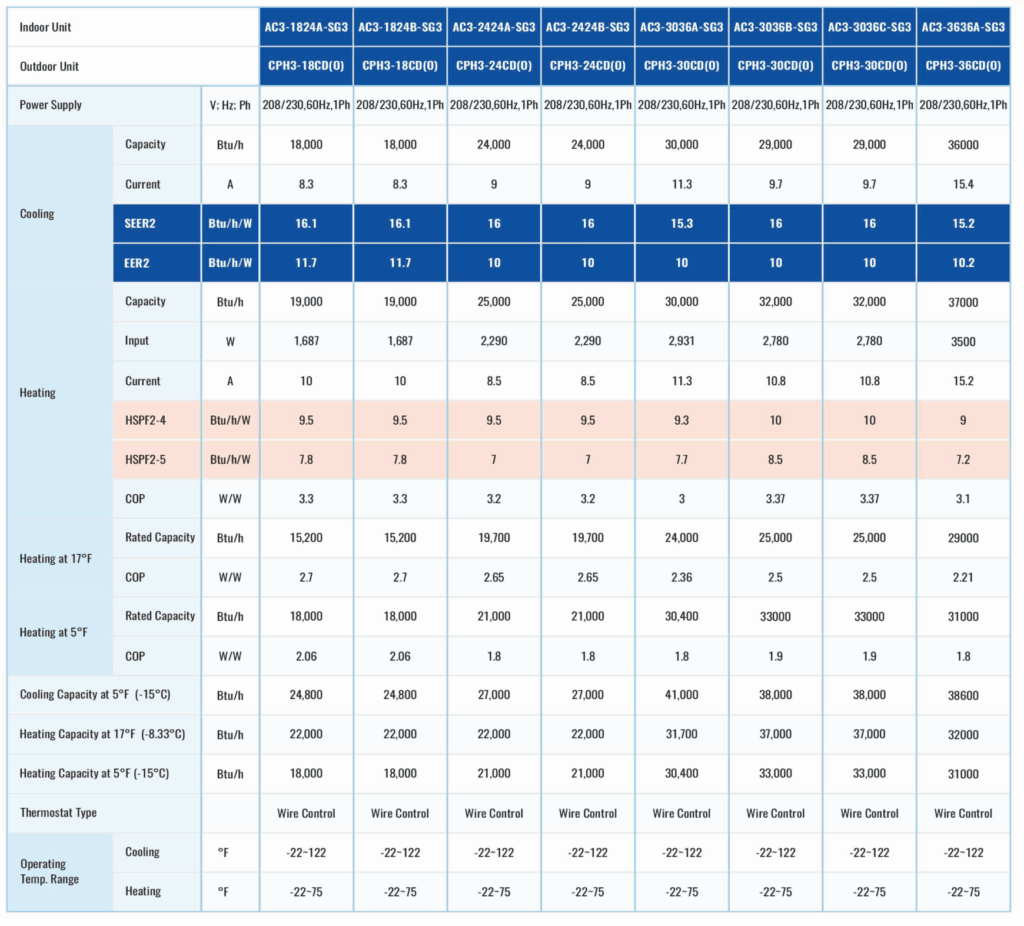

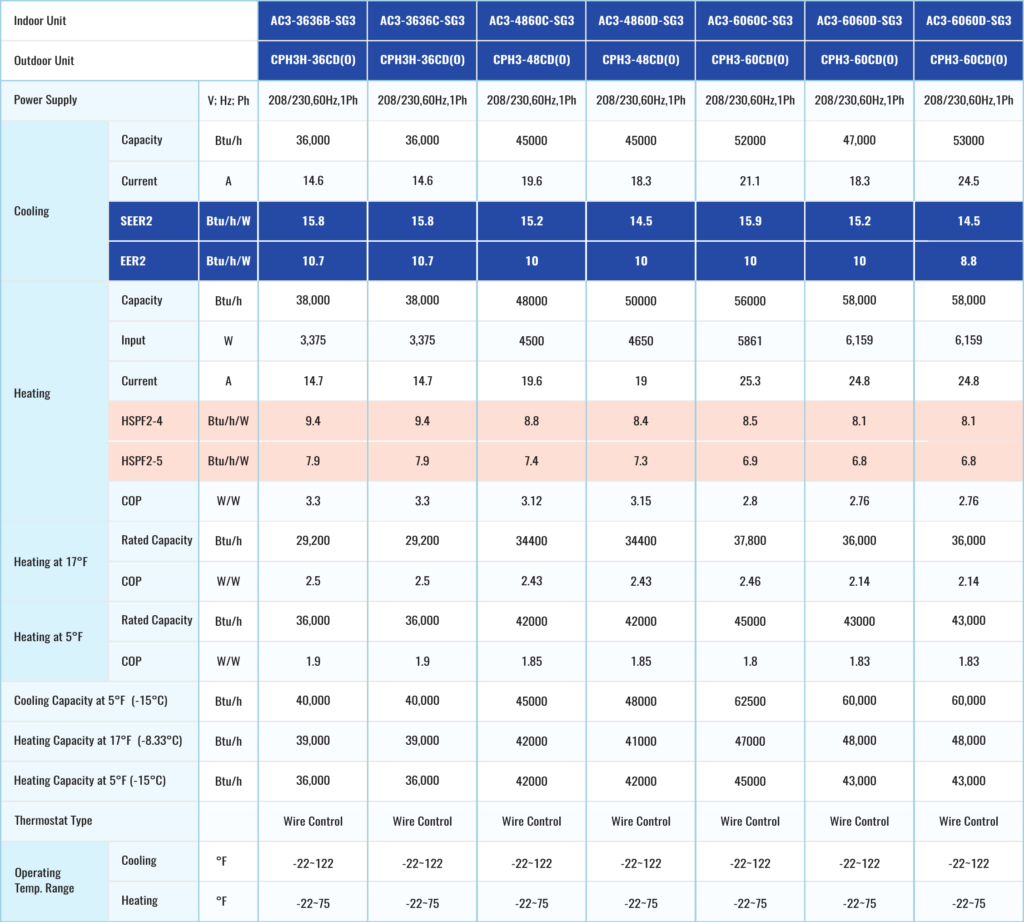

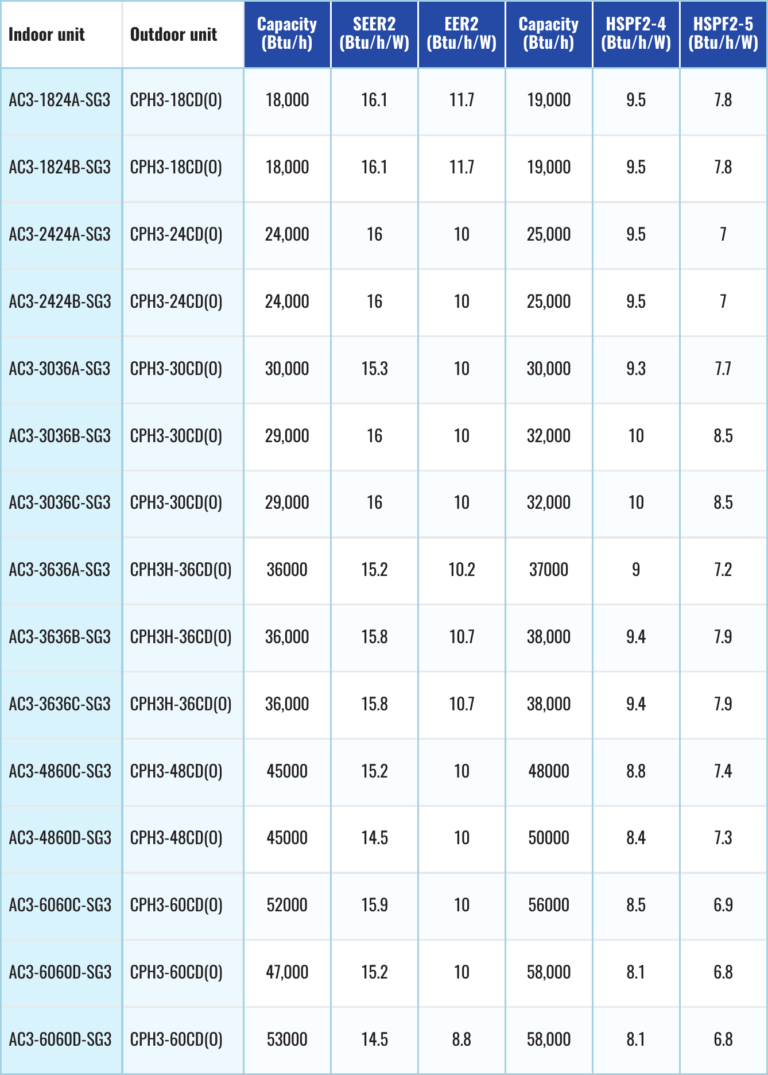

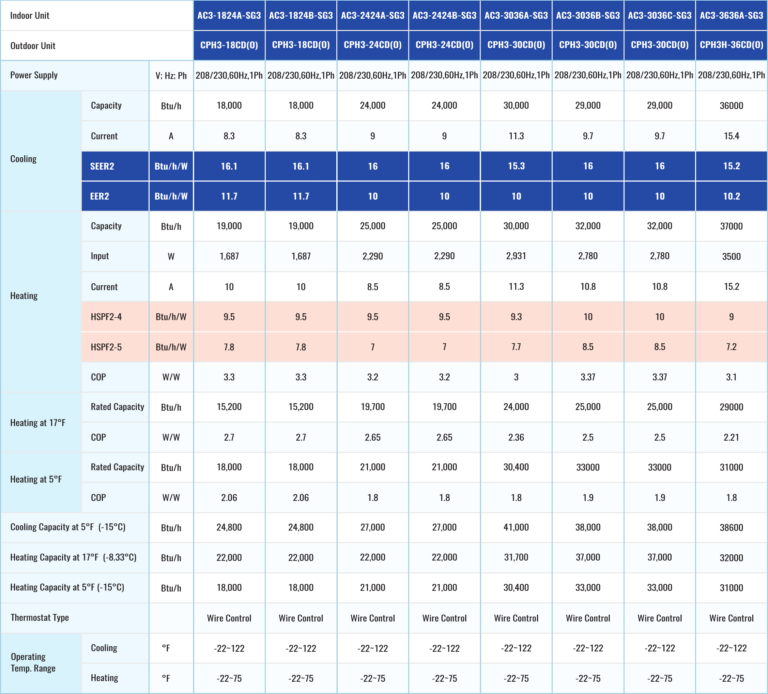

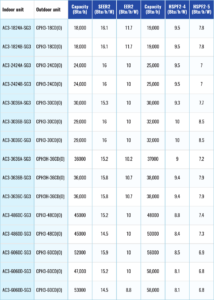

CPH3 + AC3-SG3 Combination Specifications

AC3-SG3 Series Specifications
