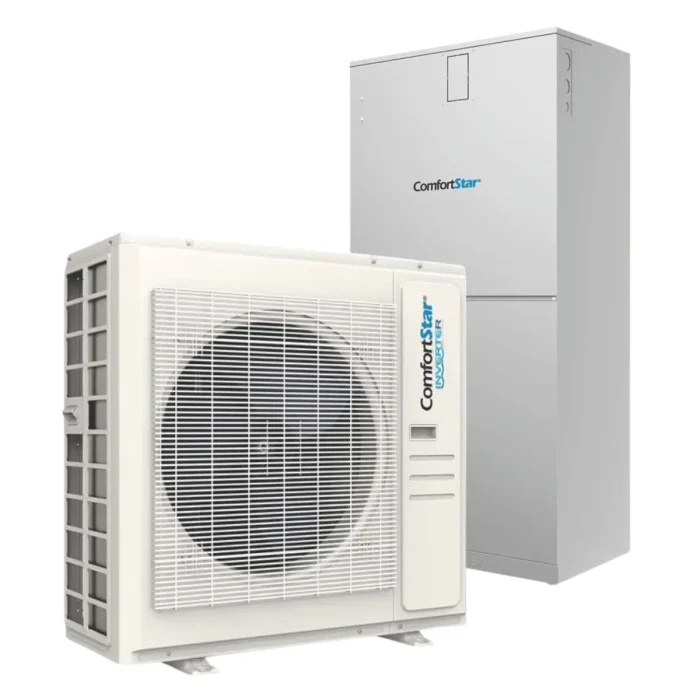

CPR3 Series

Central Heat Pump 24 Volt System | Up to 18.8 SEER2

Features:
  • Replaces existing R410A heat pump systems without needing to alter or replace current line sets or wiring: This feature allows for a seamless upgrade to newer technology without the hassle and expense of modifying existing infrastructure, making it convenient for homeowners and installers alike.
  • Refrigerant Leak Detection: Integrated leak detection enhances safety and efficiency by identifying refrigerant leaks early, preventing potential damage to the system and ensuring optimal performance.
  • Operates efficiently in low ambient temperatures down to -13°F: This capability ensures reliable heating performance even in extremely cold conditions, making it suitable for regions with harsh winters and providing consistent comfort for users.
  • The 24-volt control allows this condensing unit to connect with any indoor unit managed by any heat pump thermostat: This versatility simplifies installation and compatibility, allowing users to integrate the system with their existing thermostats and indoor units without requiring special equipment.
  • Operates at a sound level as low as 55 DBA: With its quiet operation, this unit minimizes noise pollution, ensuring that it maintains a peaceful indoor environment without disturbing daily activities or sleep.
  • Features a 50% smaller footprint than a standard condensing unit: The compact design of this unit makes it ideal for properties with limited space, allowing for easier installation in tight areas while still delivering powerful performance.

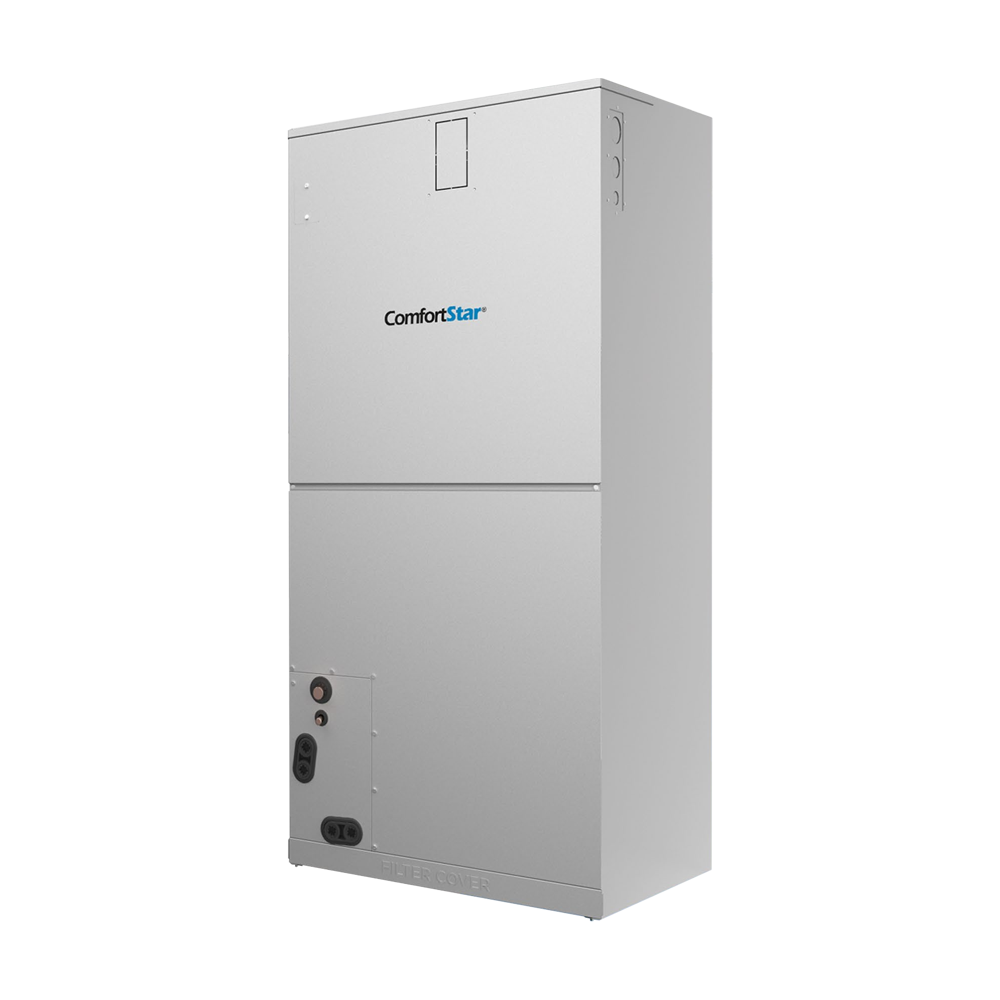

CPR3 SERIES + AHU3-SG3 SERIES​

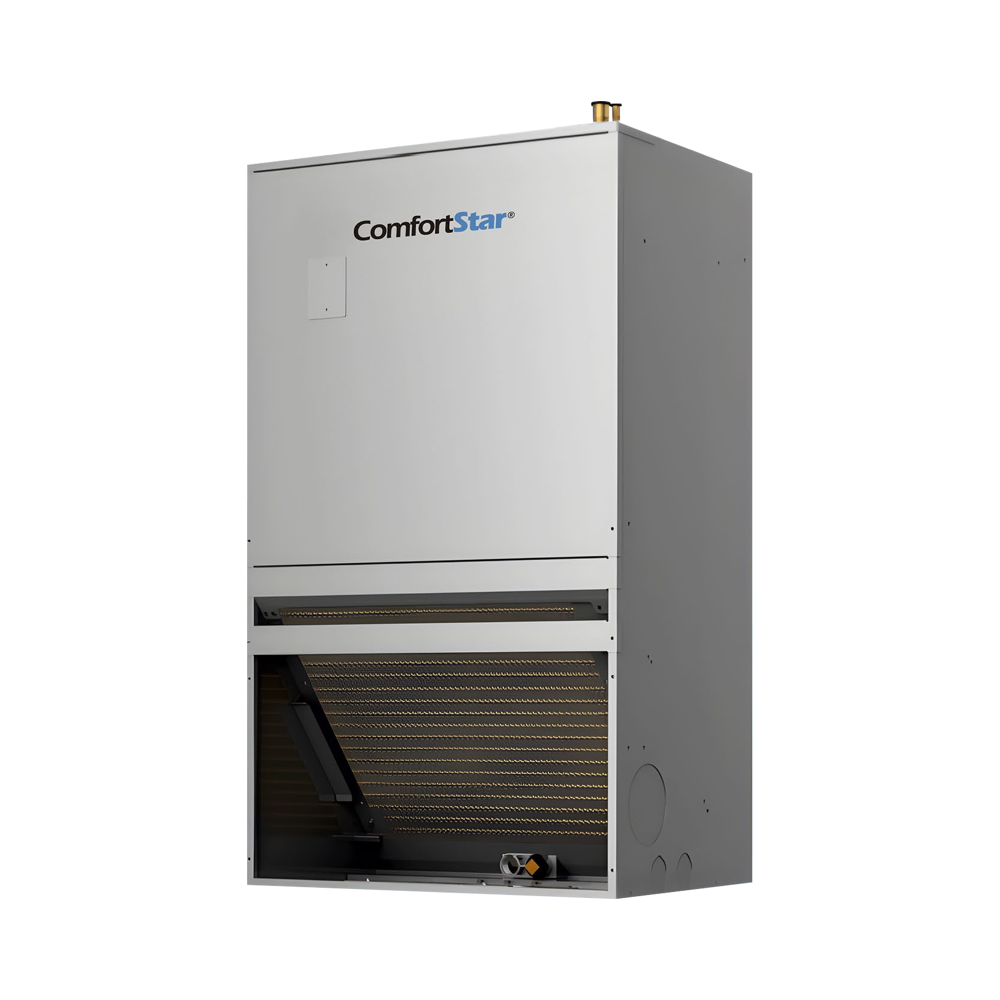

CPR3 SERIES + CWM3-SG3 SERIES​

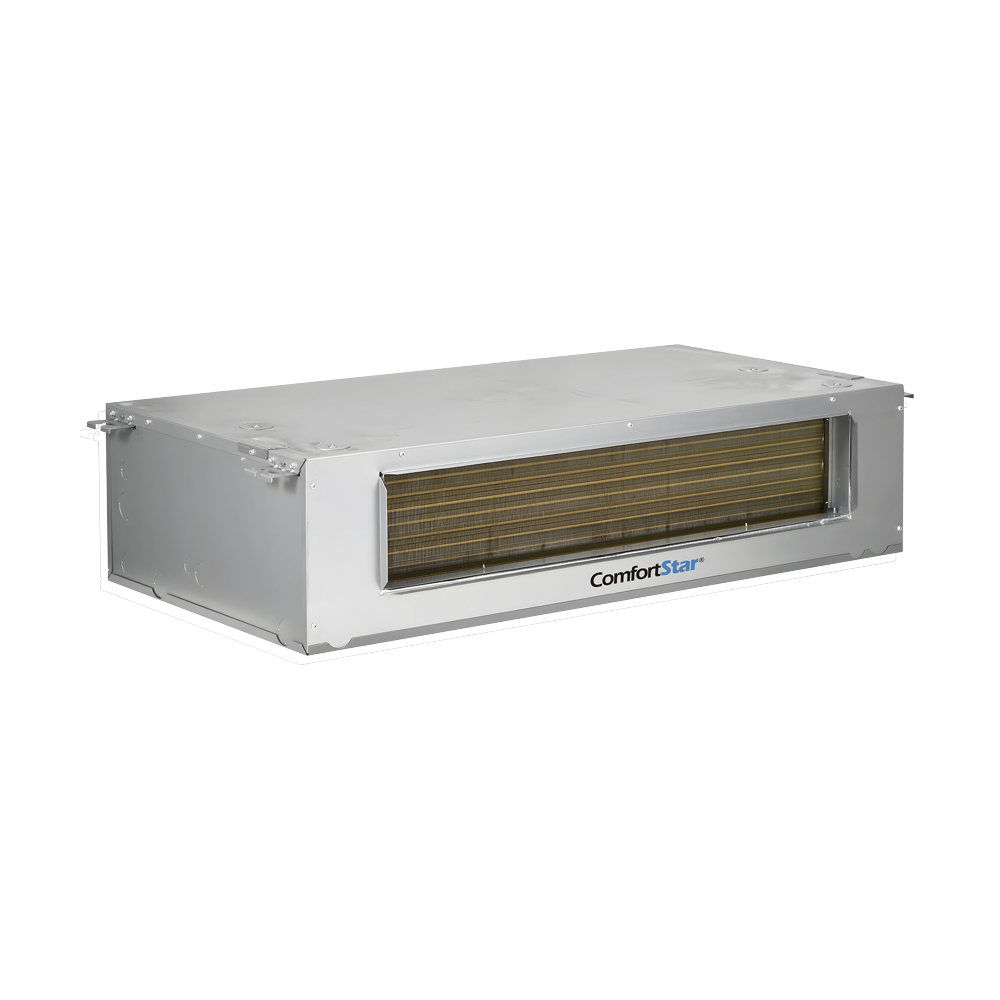

CPR3 SERIES + CPK3-SG3 SERIES​

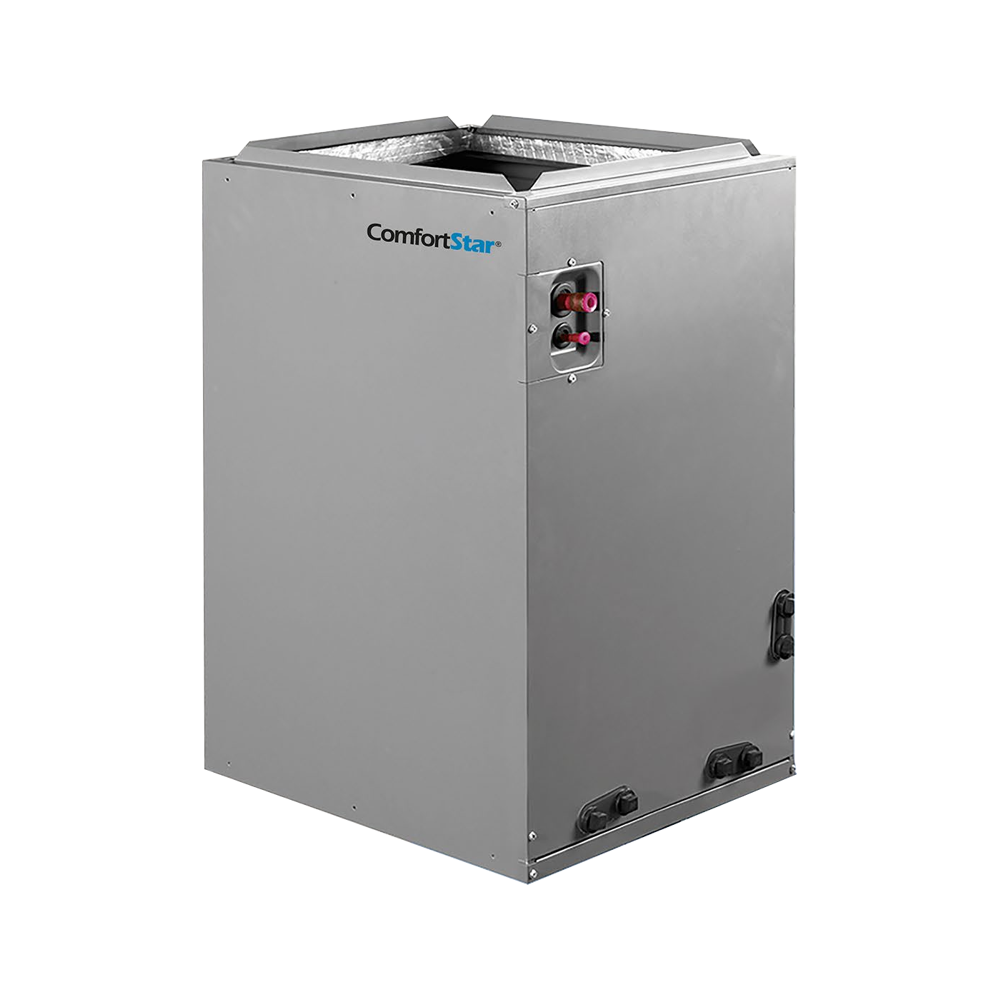

CPR3 SERIES + AC3-SG3 SERIES​

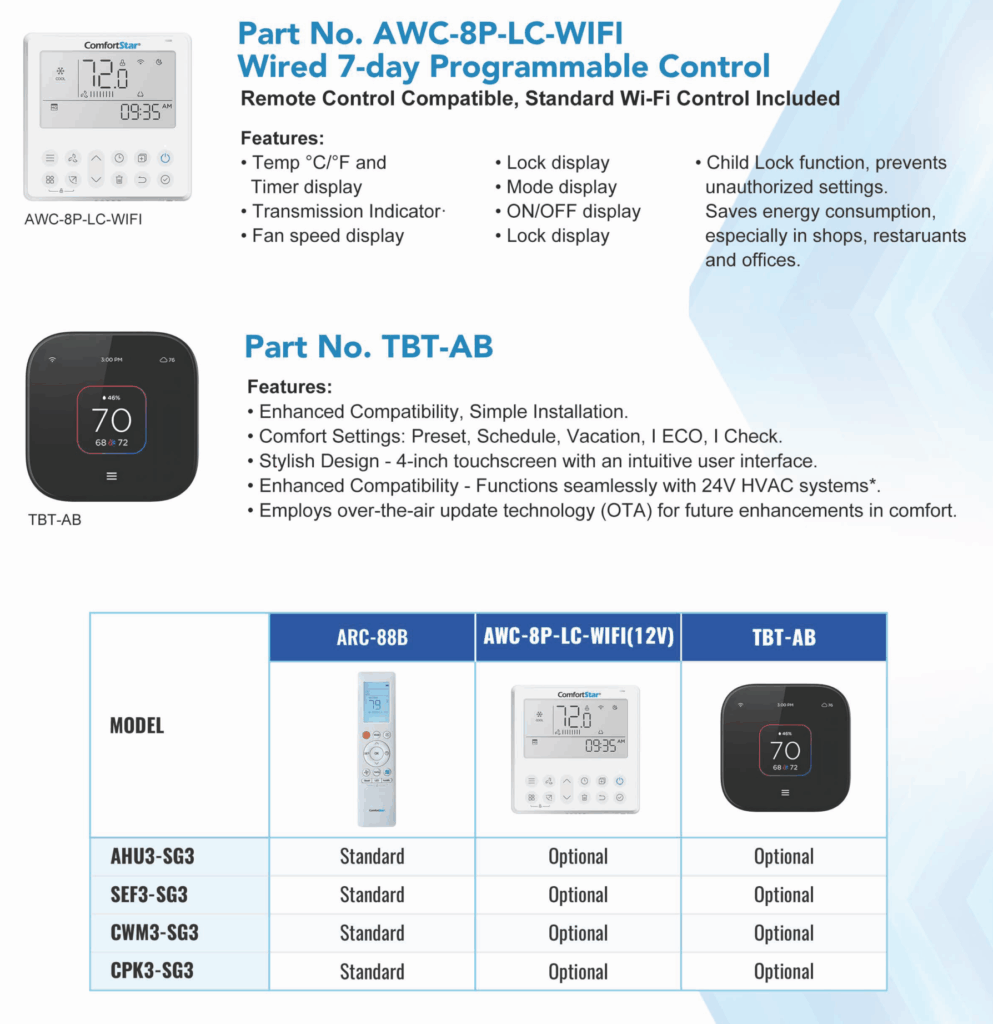

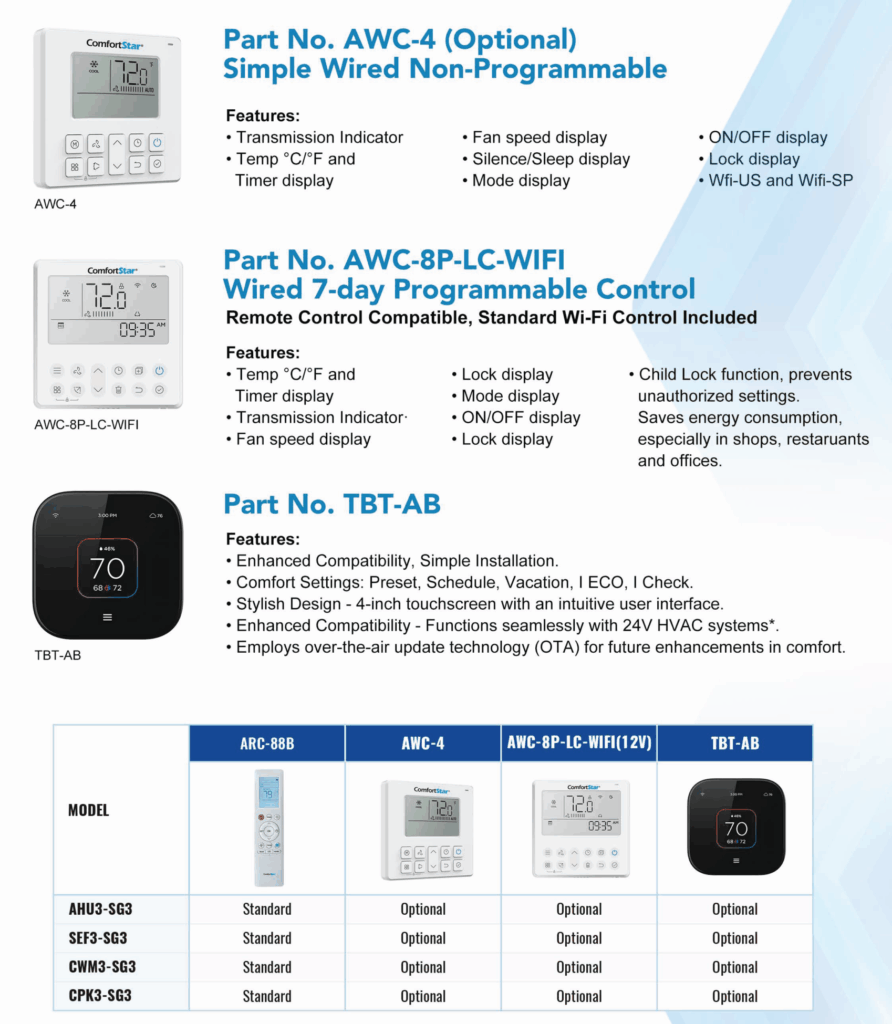

The Easy Fit System Thermostats & Controls

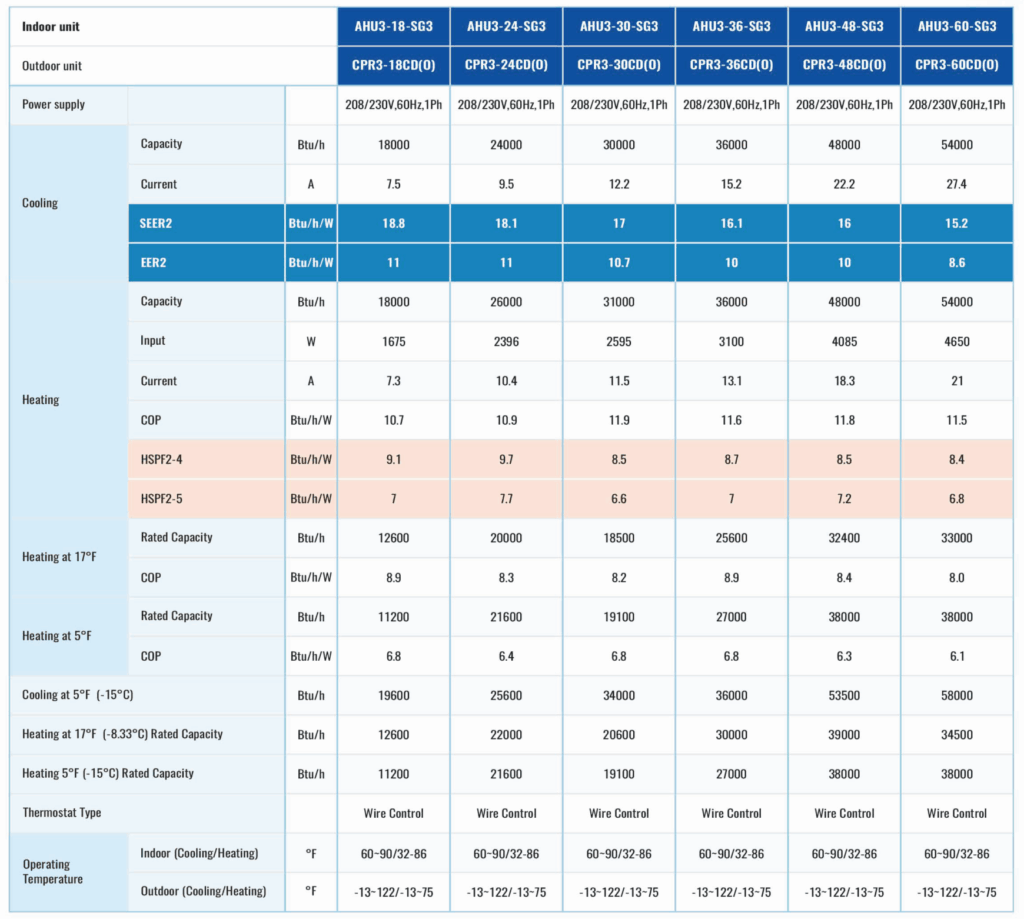

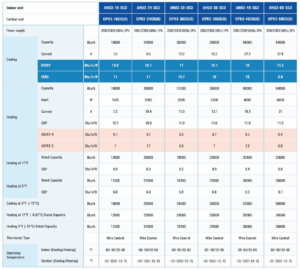

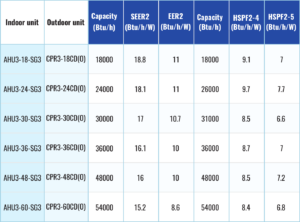

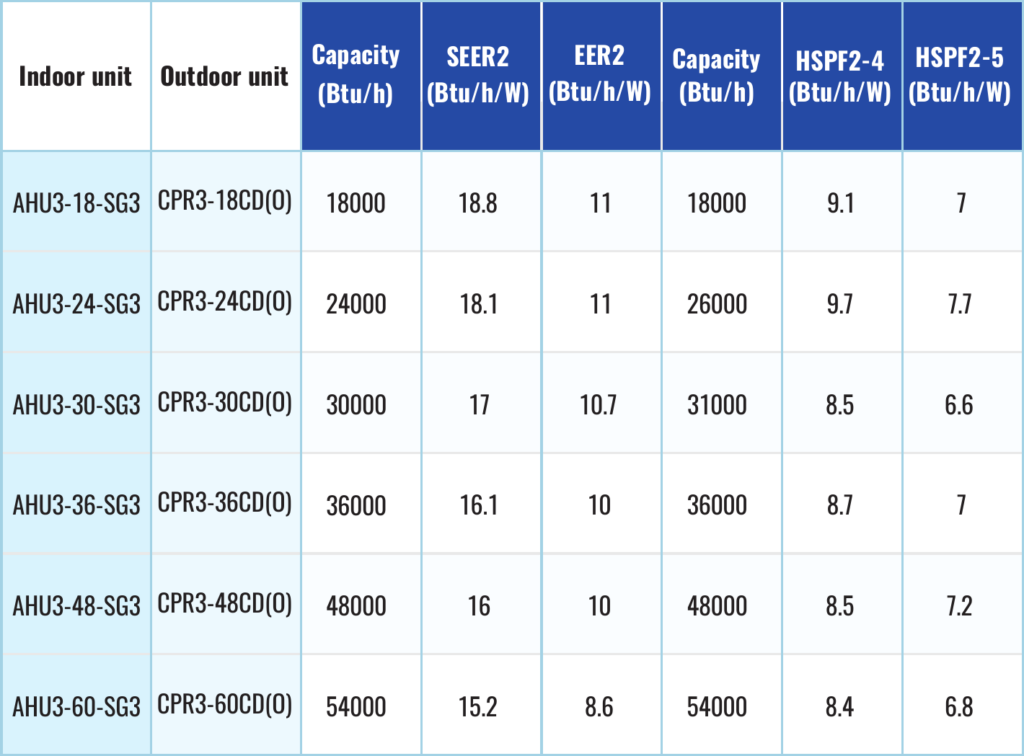

CPR3 + AHU3-SG3 Combination Specifications

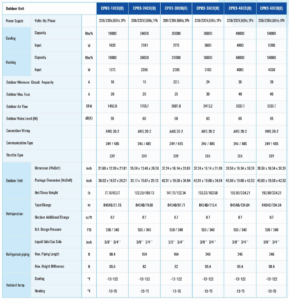

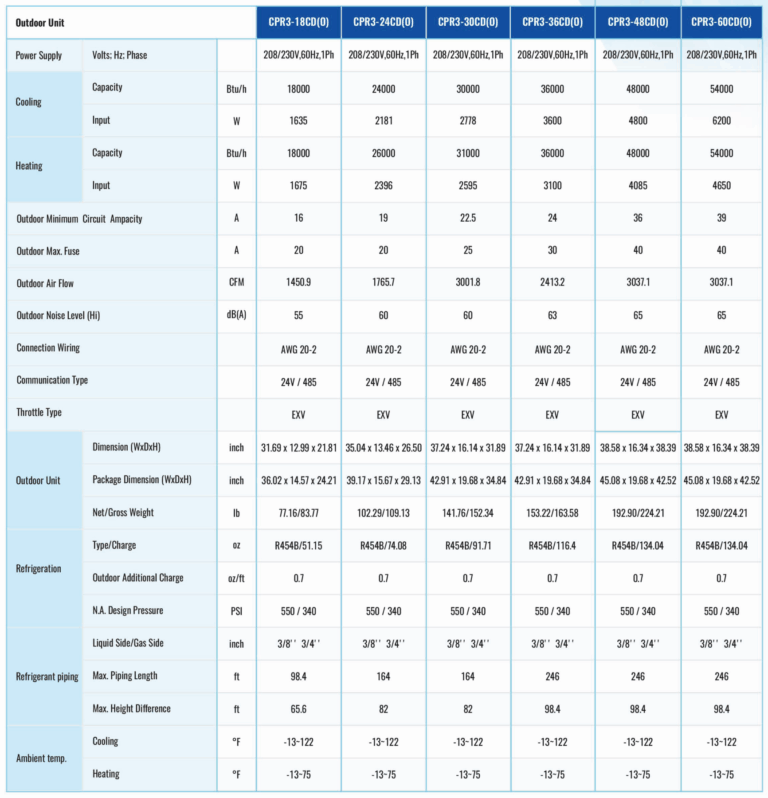

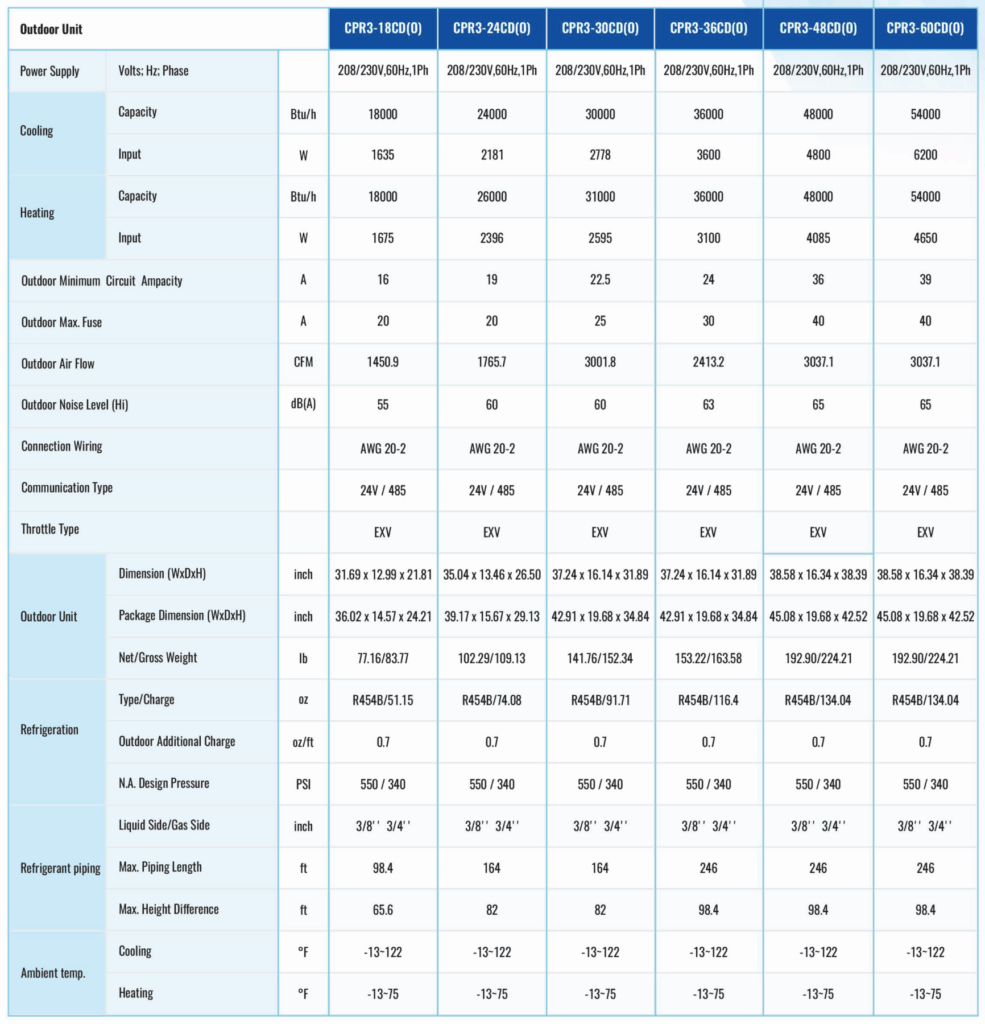

cpr3 SERIES Specifications

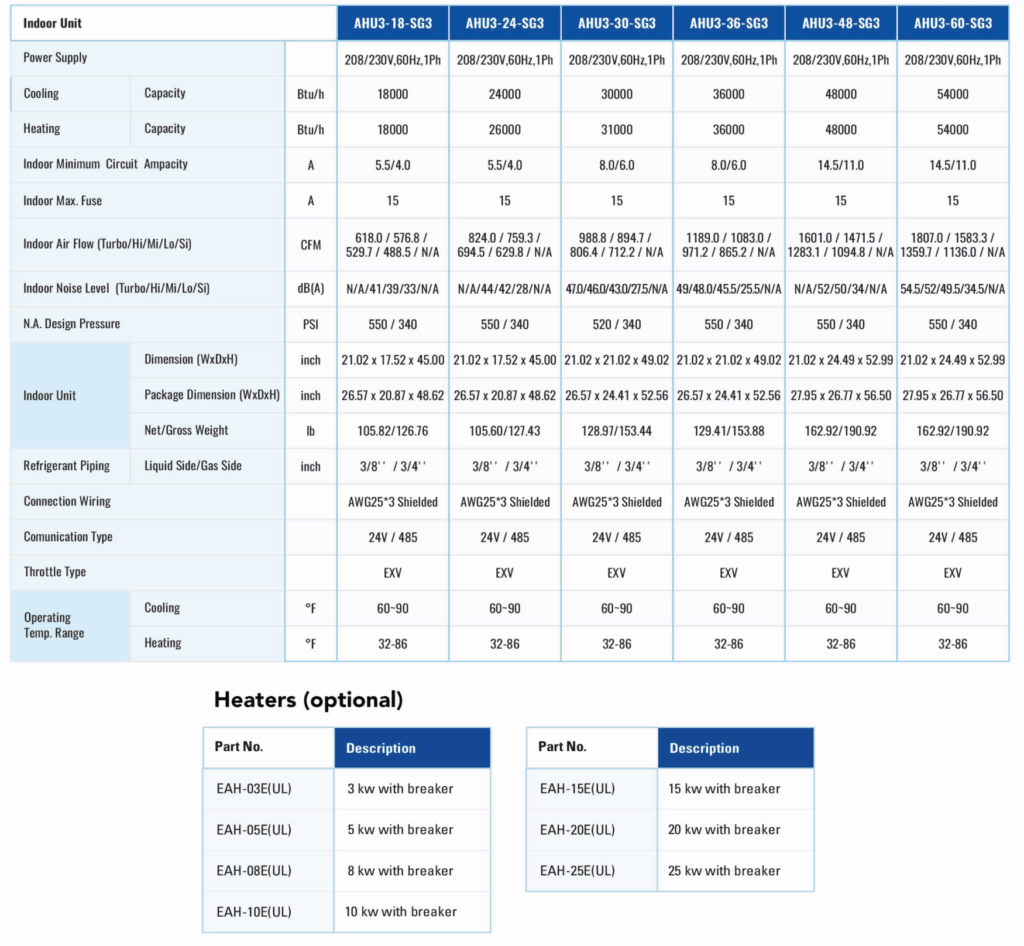

AHU3-SG3 Series Specifications

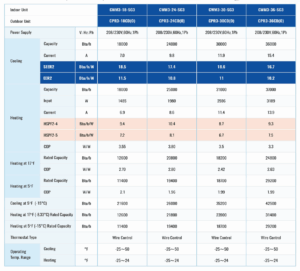

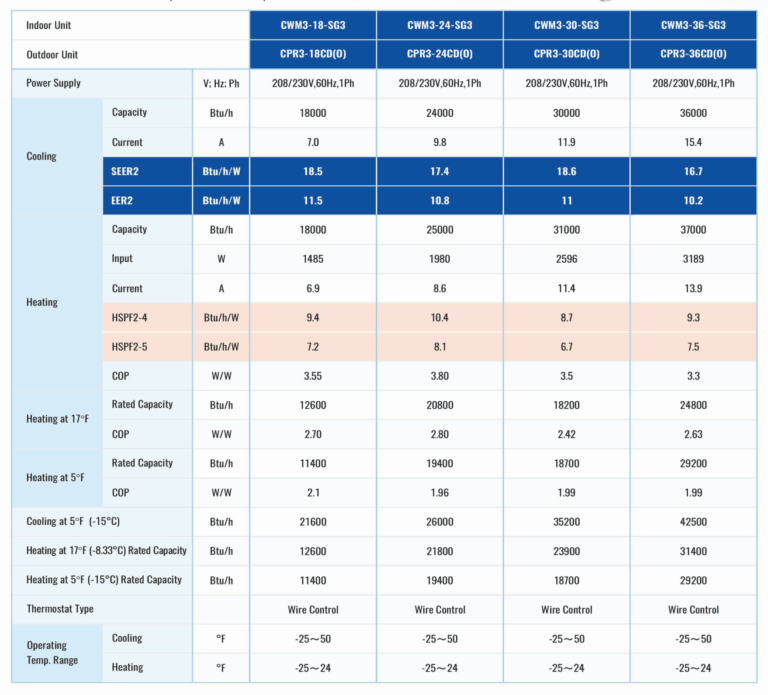

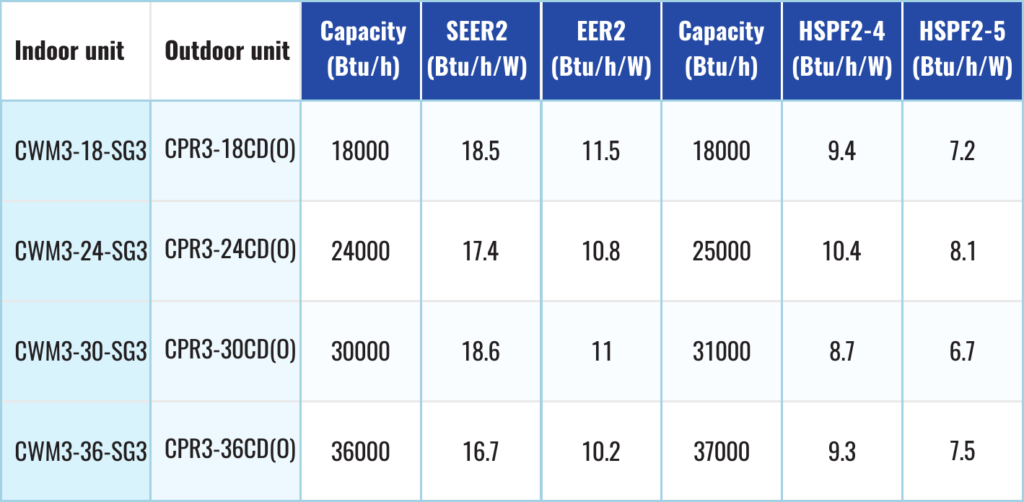

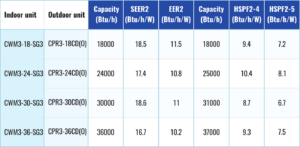

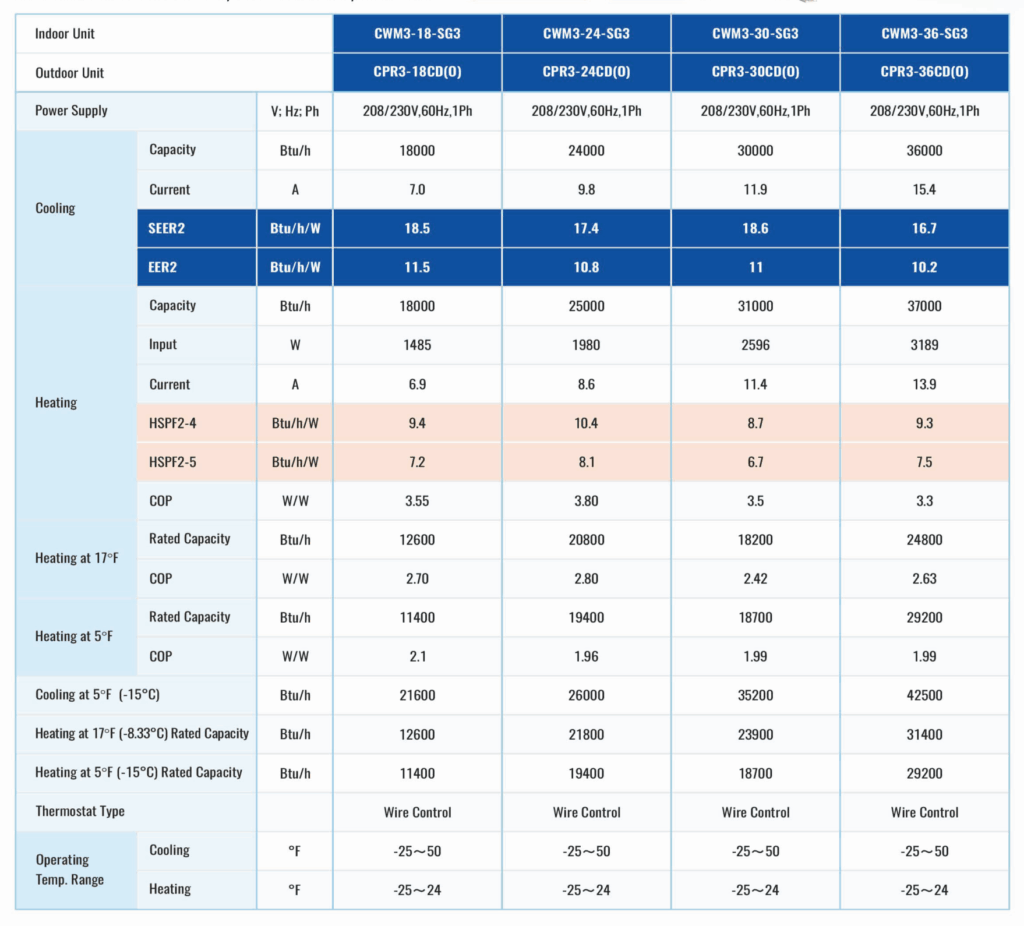

CPR3 + CWM3-SG3 Combination Specifications​

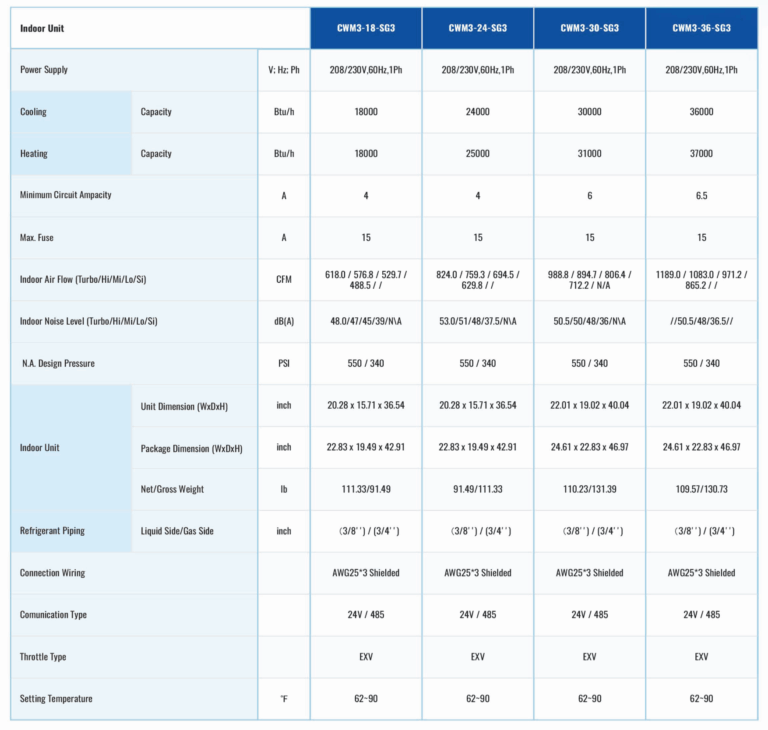

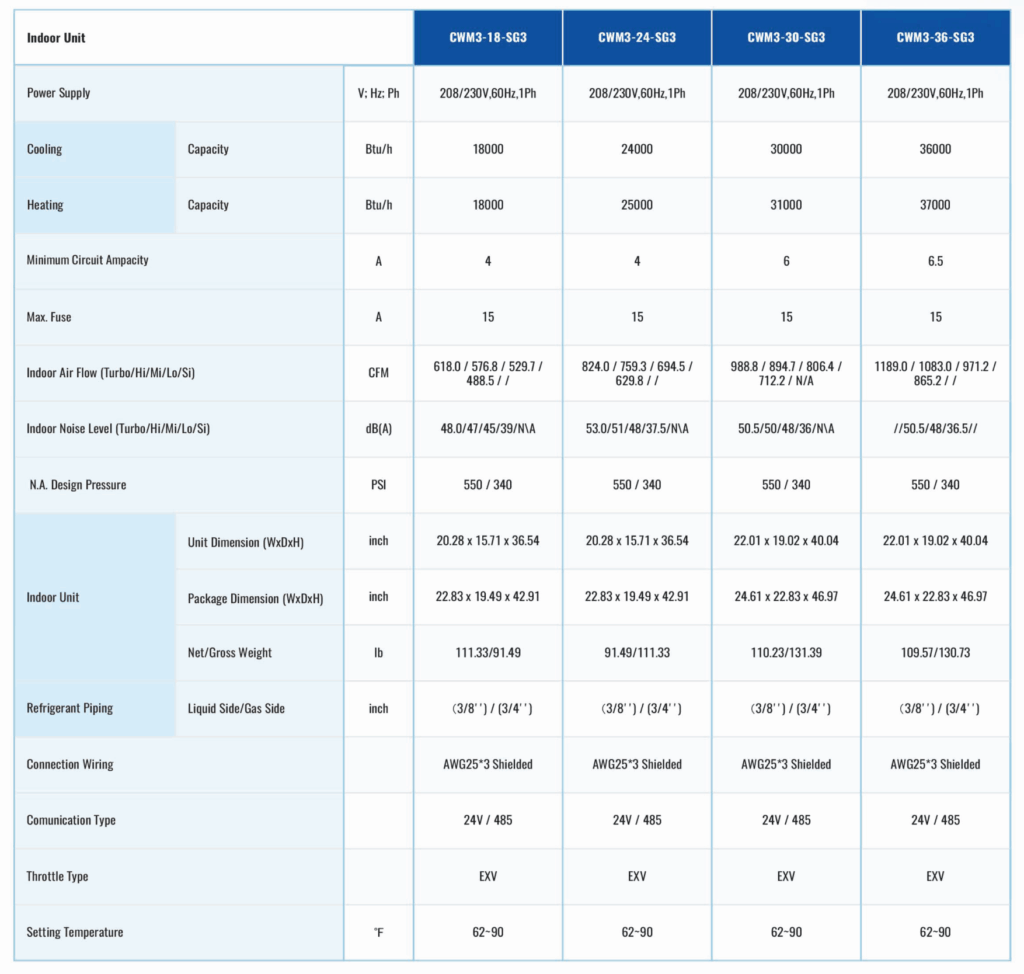

CWM3-SG3 Series Specifications

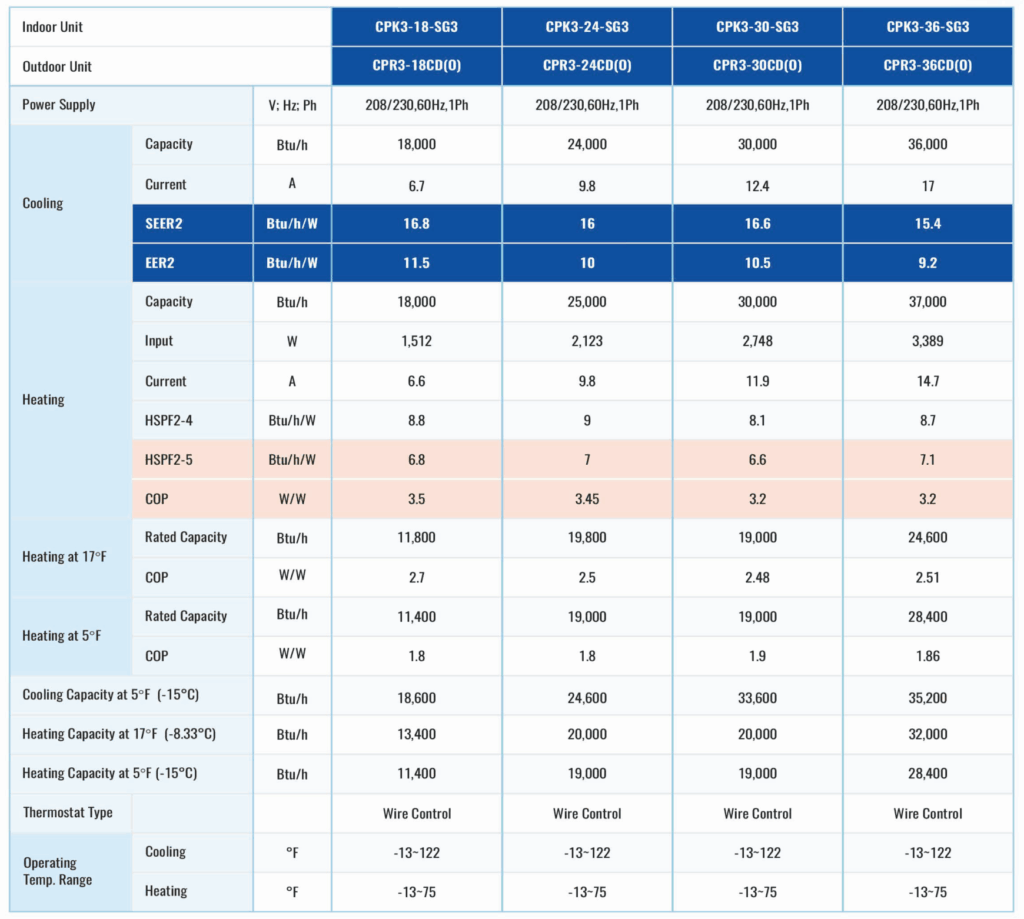

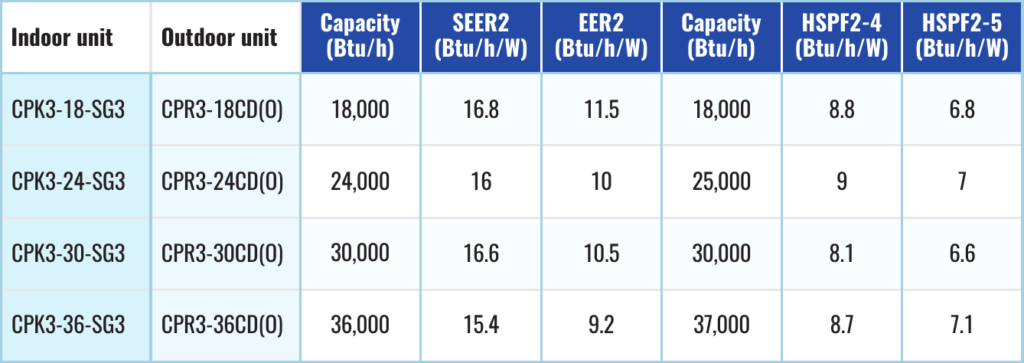

CPR3 + CPK3-SG3 Combination Specifications

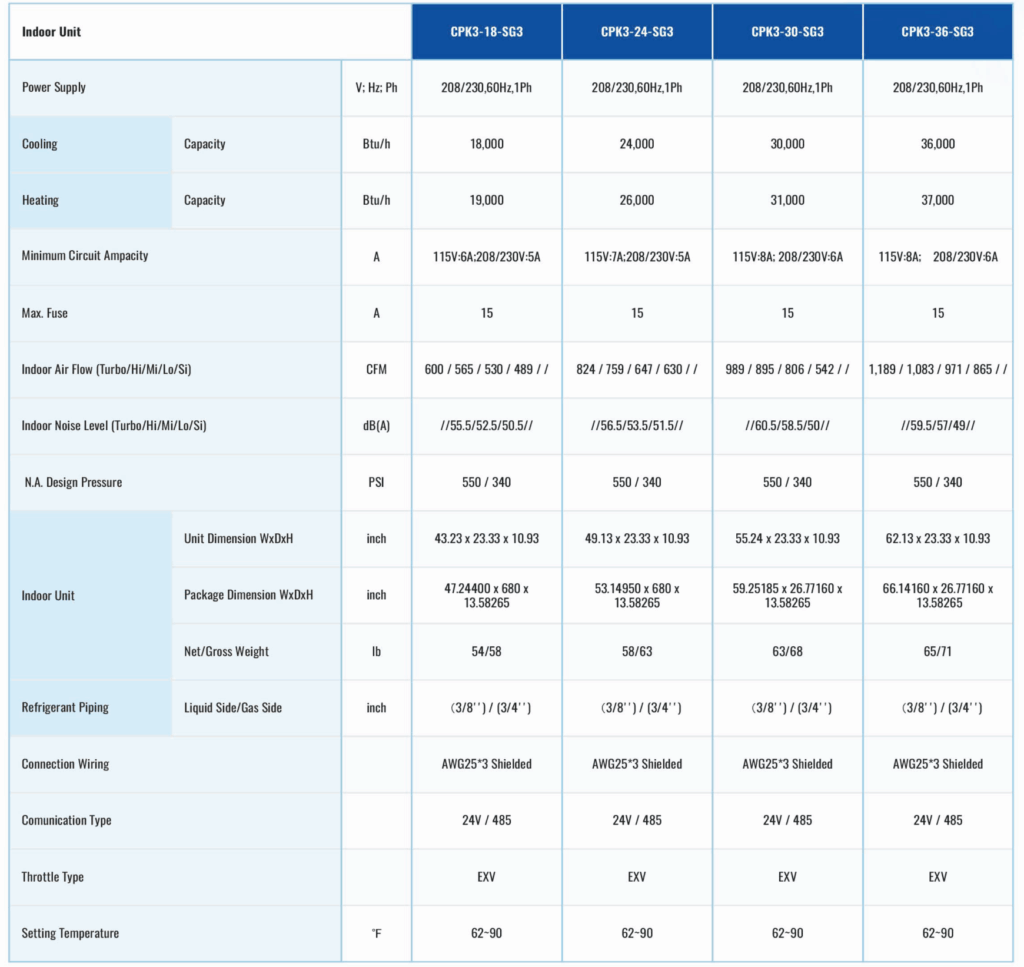

CPK3-SG3 Series Specifications

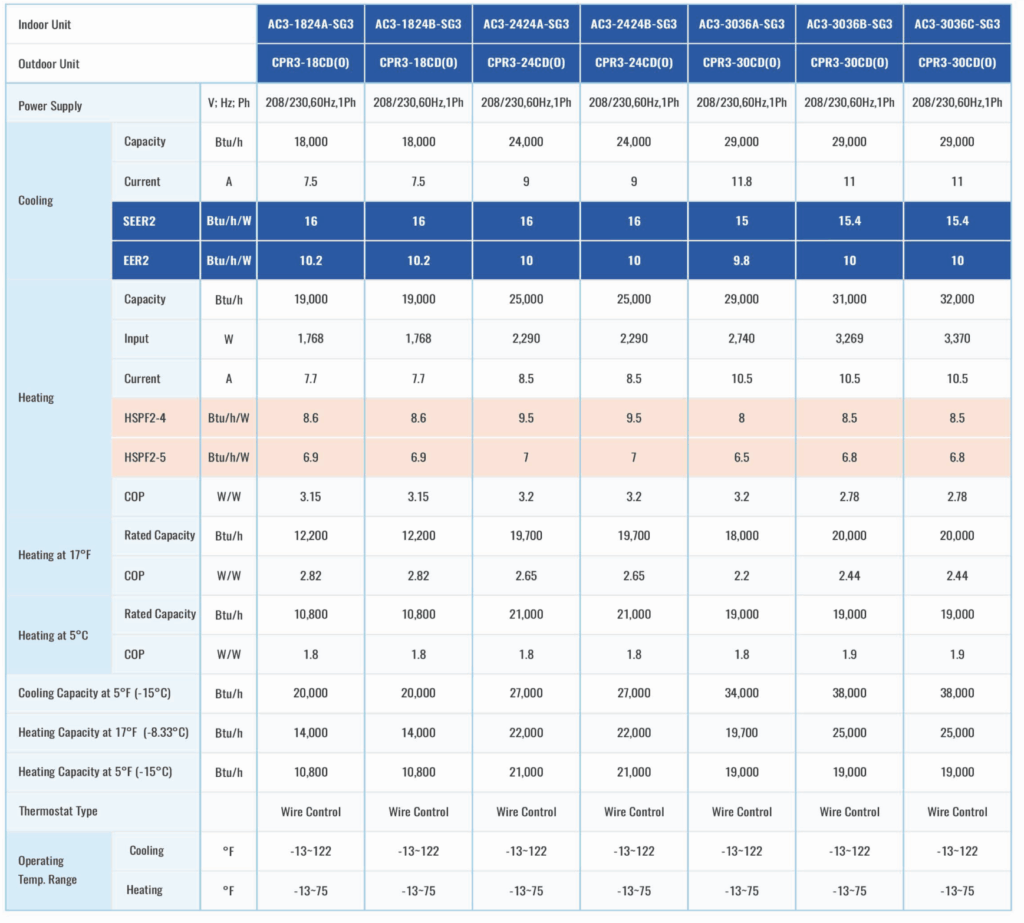

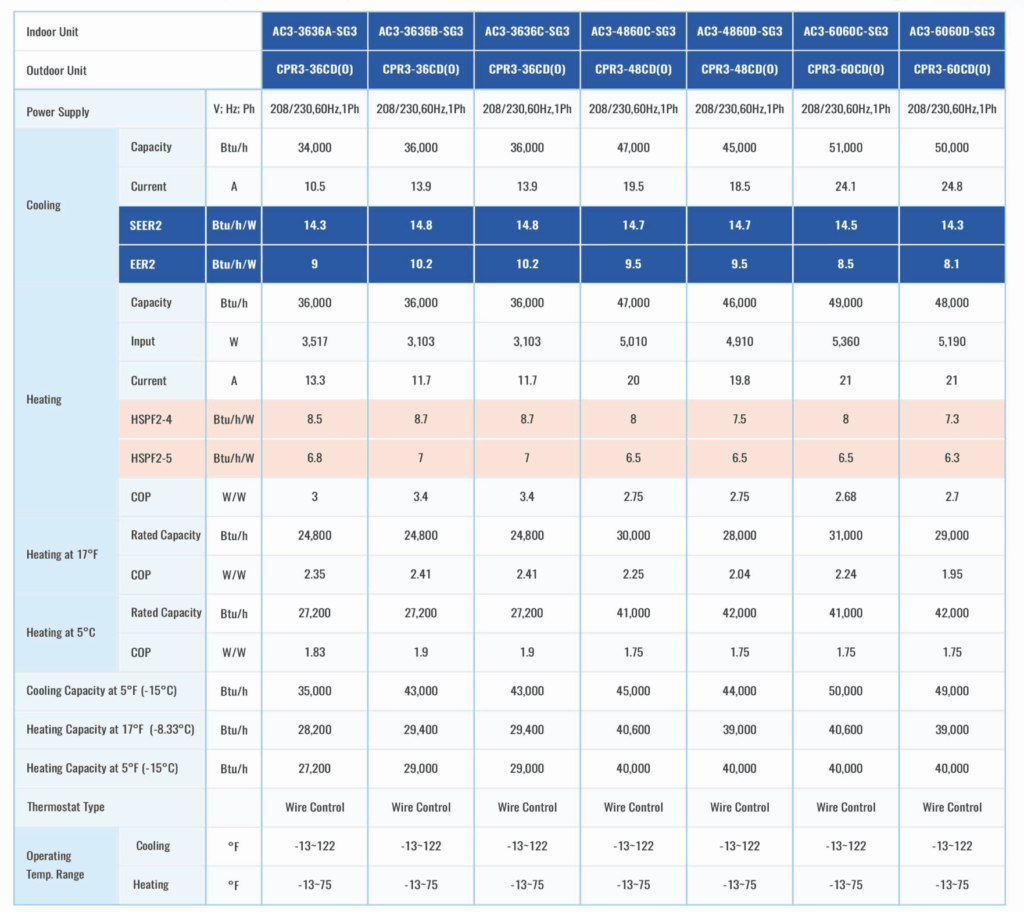

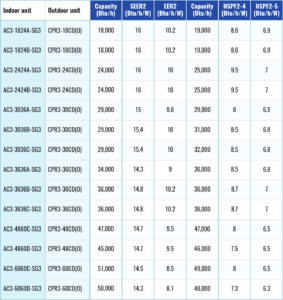

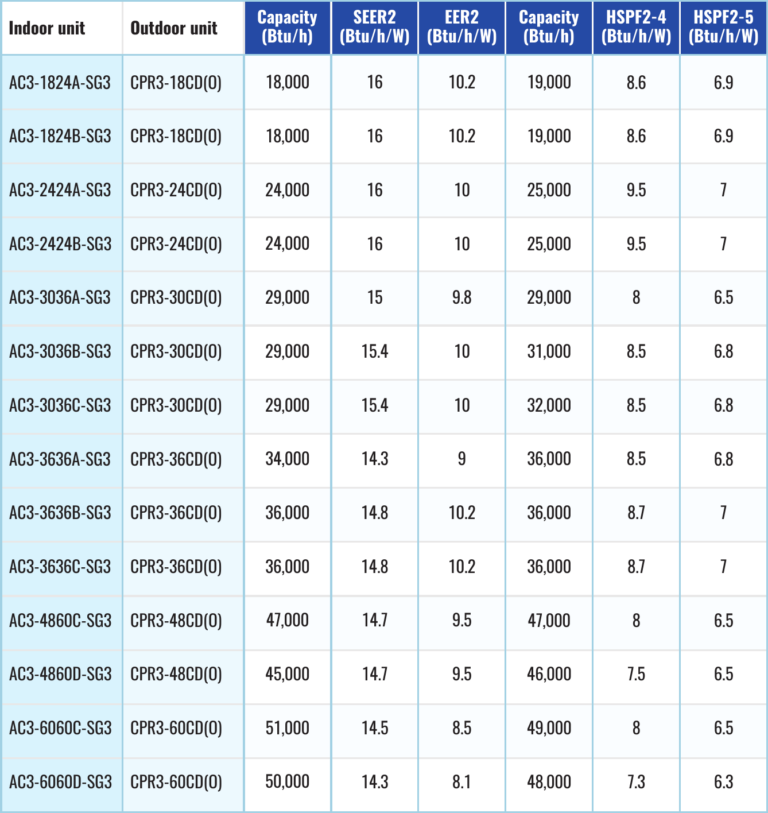

CPR3 + AC3-SG3 Combination Specifications

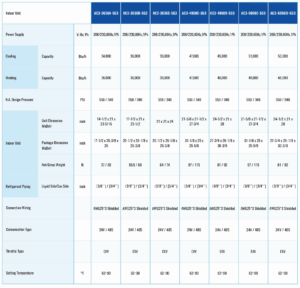

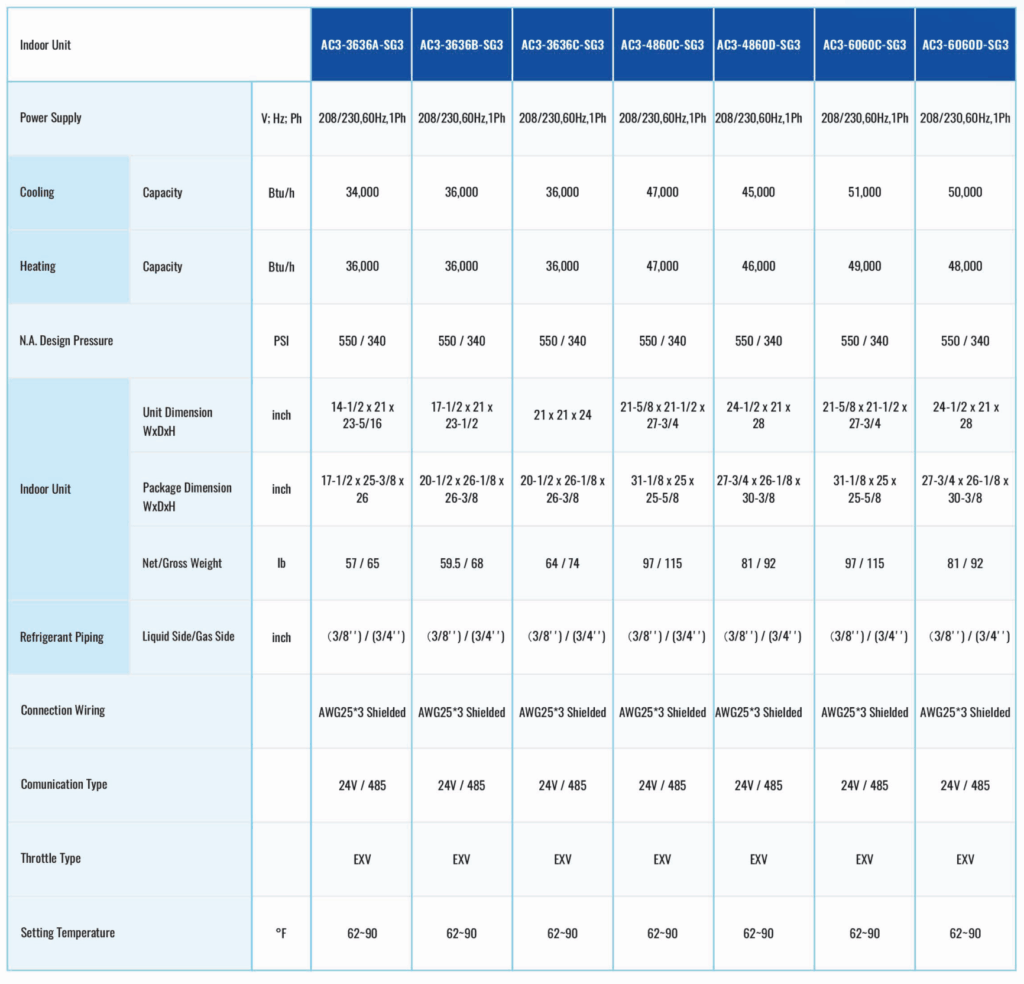

AC3-SG3 Series Specifications
