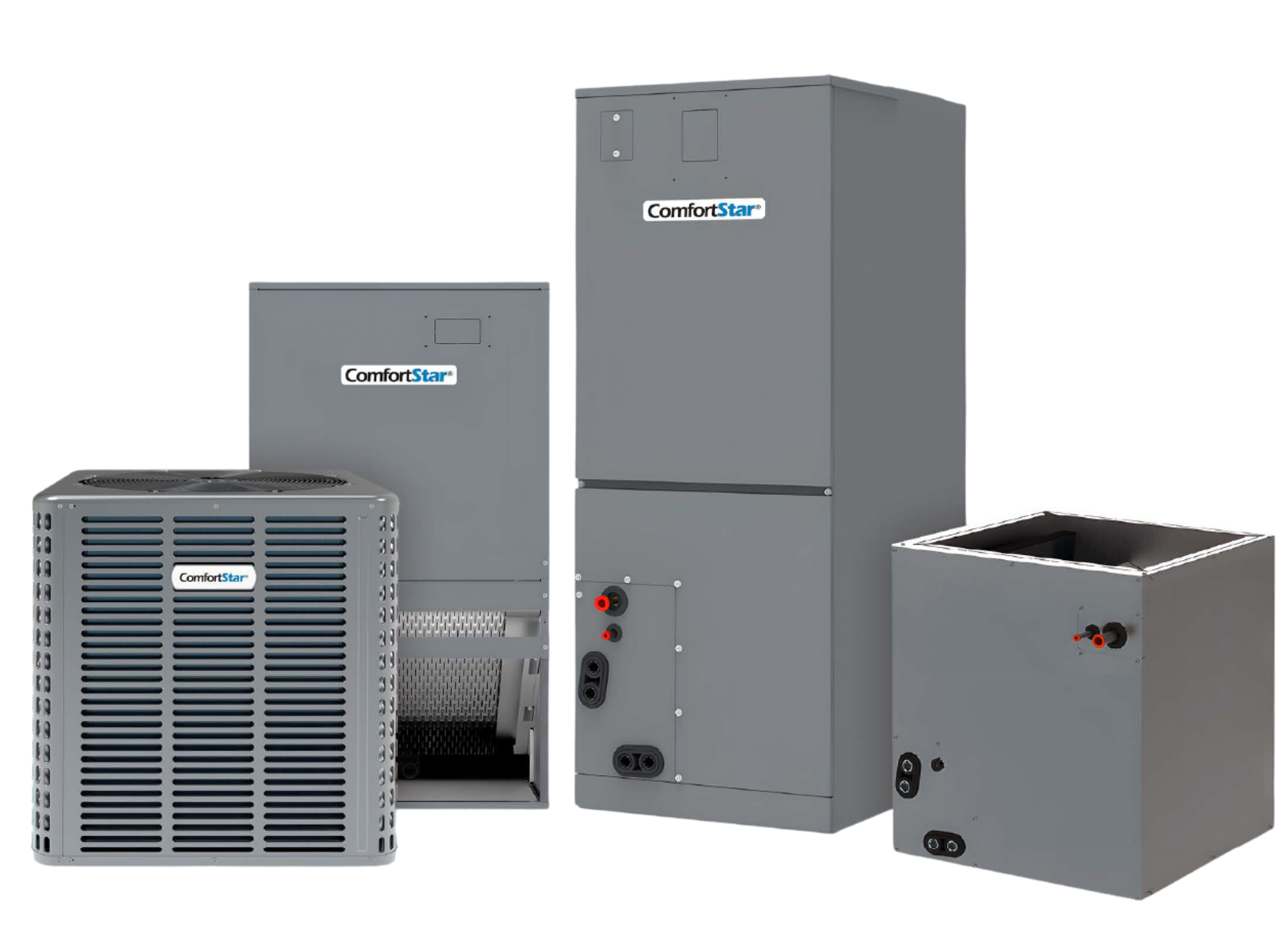

BAR17 Series

Cooling Only Top Discharge Condensing Unit | 14.3 SEER2

Features:

  • High-Efficiency Rotary Compressor: Engineered for reliable performance and consistent cooling across 1.5 to 3 ton capacities.
  • Advanced Brushless DC Outdoor Fan Motor: Delivers improved energy efficiency, quieter operation, and extended service life under demanding conditions.
  • Integrated Refrigerant Leak Detection System: Enhances safety by proactively identifying refrigerant leaks and helping protect system components.
  • Refrigerant-Cooled PCB Design: Optimizes heat dissipation for improved electronic stability, durability, and long-term system reliability.
  • Precision Temperature Control with Low Noise Operation: Maintains consistent indoor comfort while minimizing operating sound levels.
  • Flexible Control Options: Compatible with standard 24VAC thermostats, with optional wired control and Wi-Fi connectivity for enhanced installation and user convenience.

BAR17 SERIES + LUC17 SERIES

BAR17 SERIES + CWM17 SERIES

BAR17 SERIES + AC32 SERIES

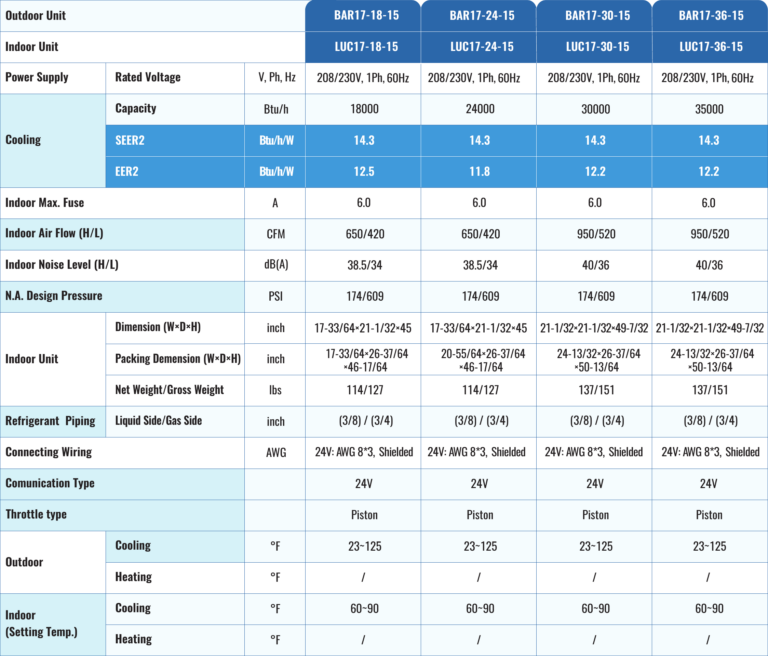

BAR17 + LUC17 SERIES COMBINATION SPECIFICATIONS

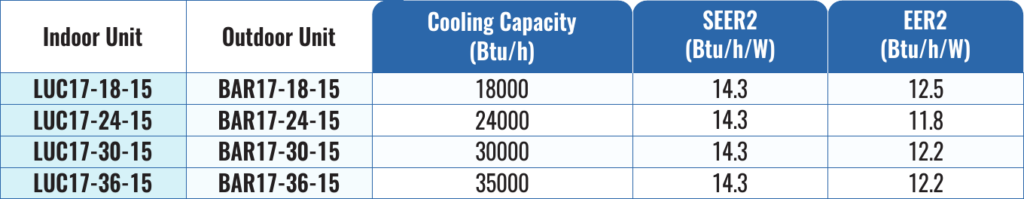

BAR17 Series + LUC17 SERIES MATCHUP

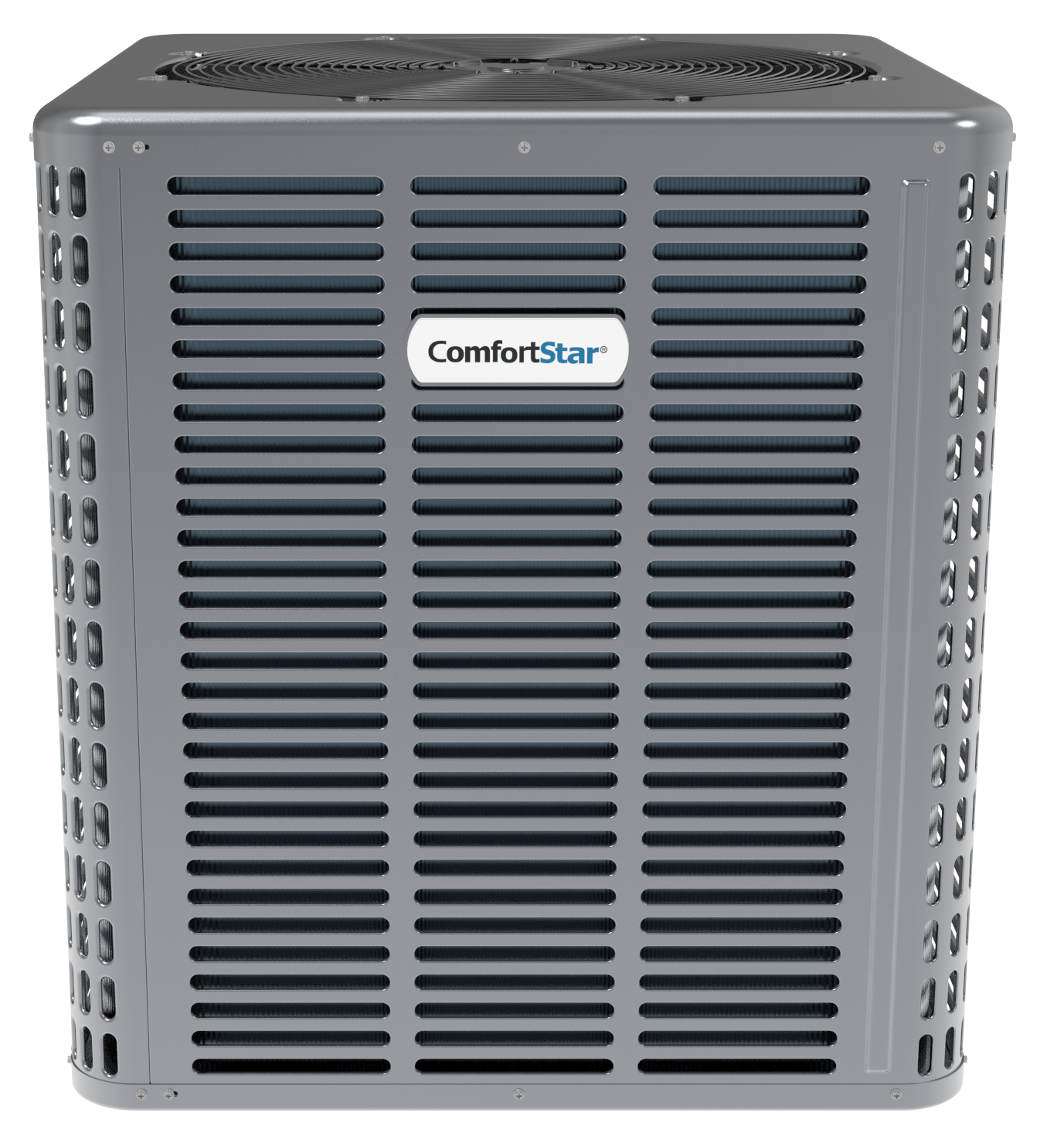

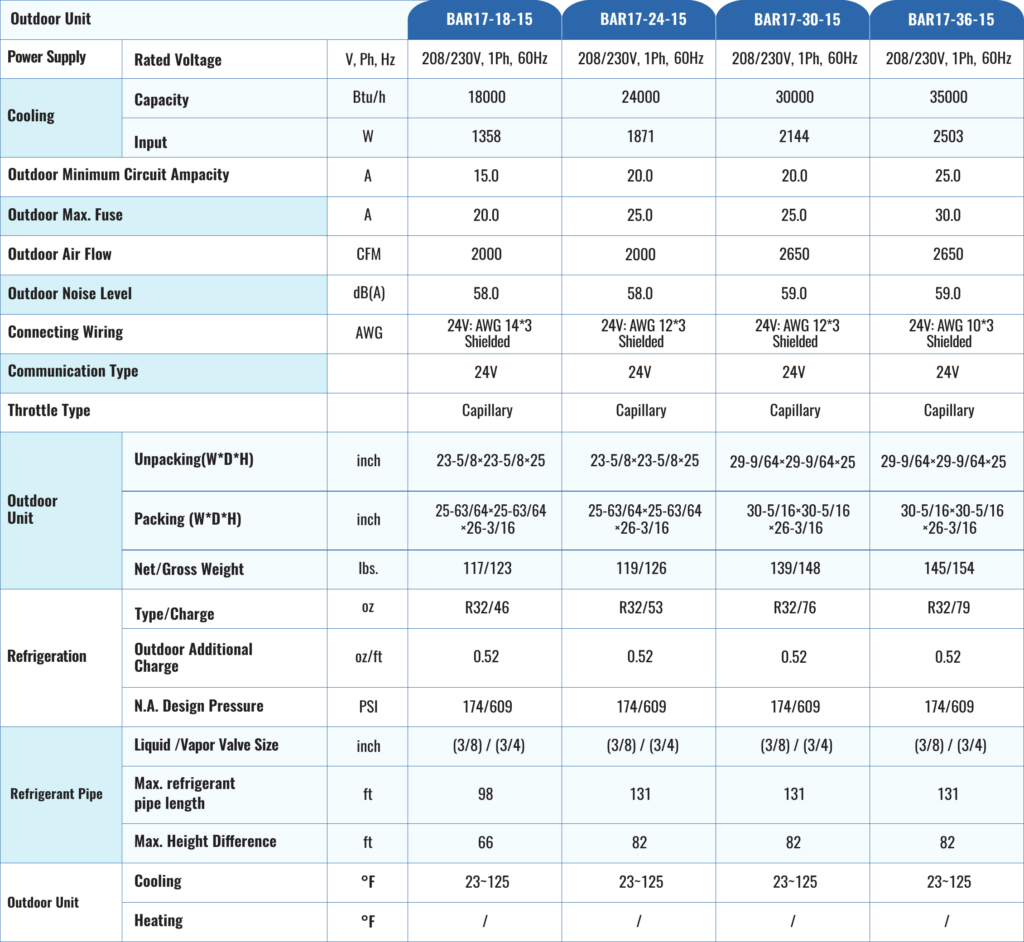

BAR17 SERIES SPECIFICATIONS

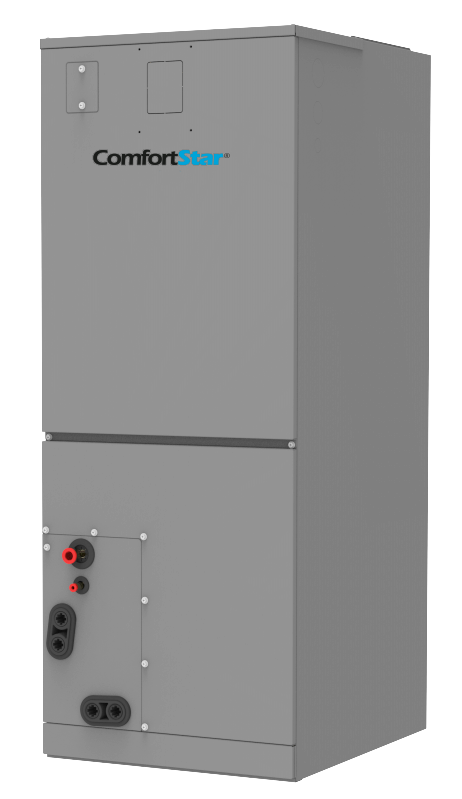

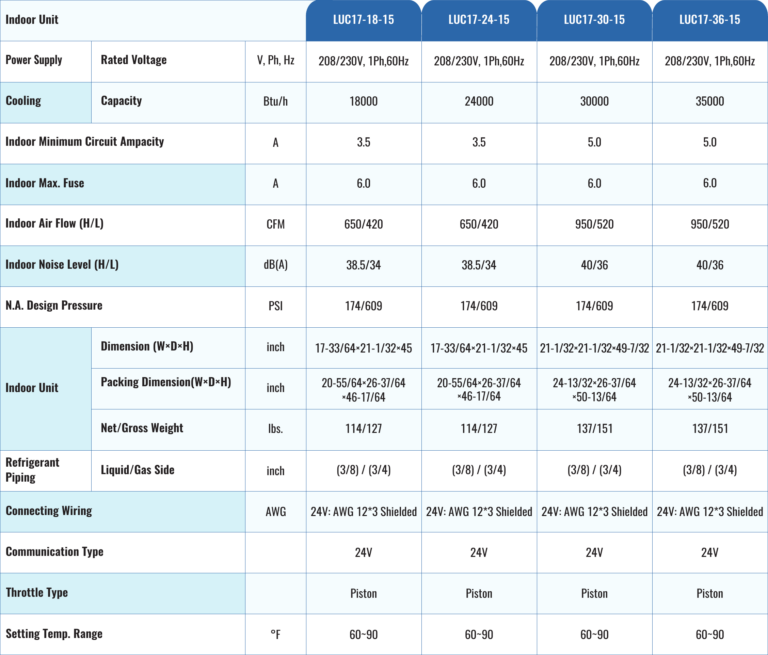

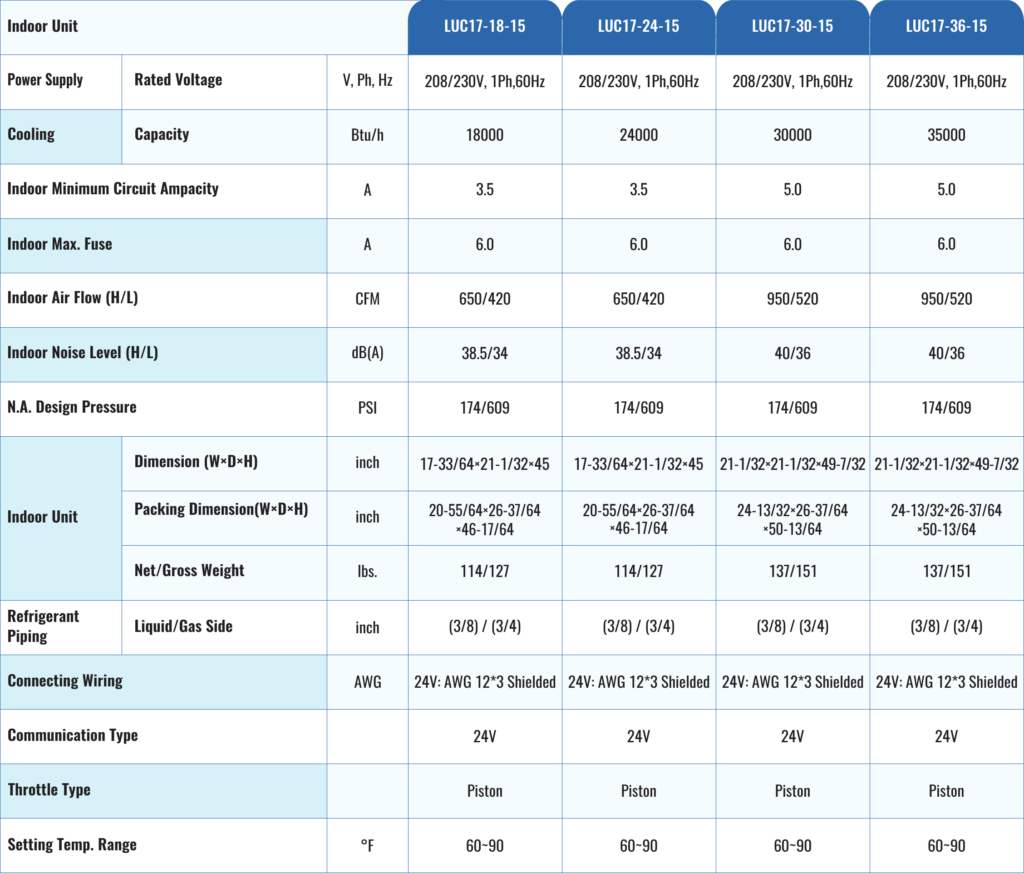

LUC17 SERIES SPECIFICATIONS

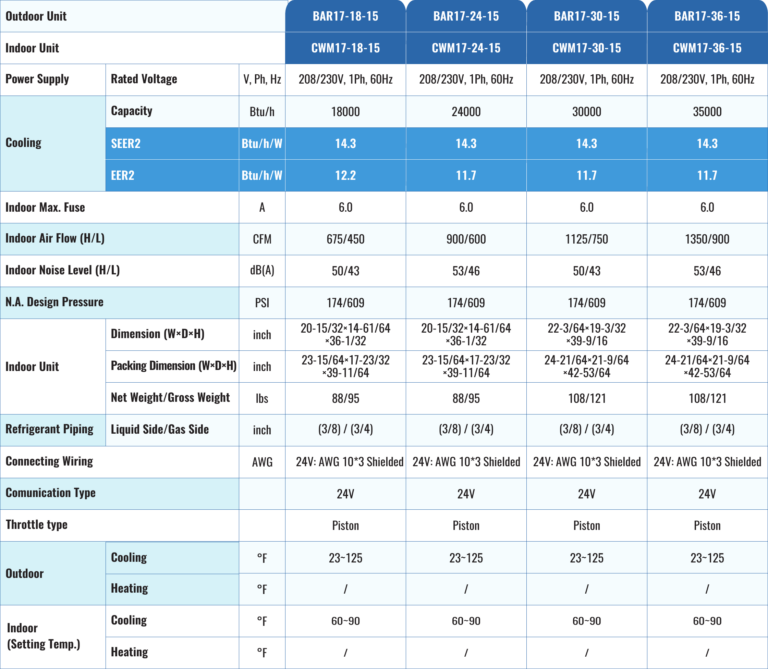

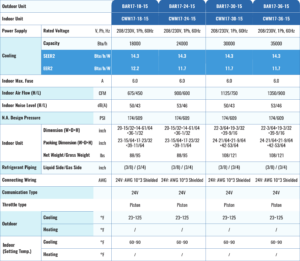

BAR17 + CWM17 SERIES COMBINATION SPECIFICATIONS

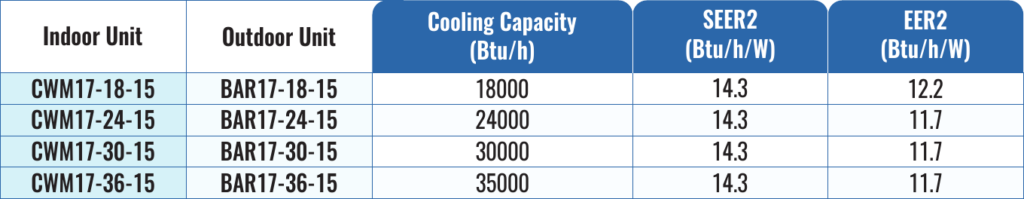

BAR17 Series + CWM17 SERIES MATCHUP

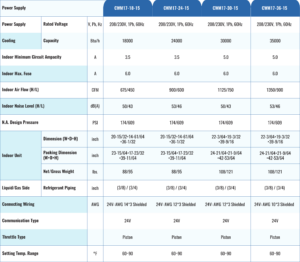

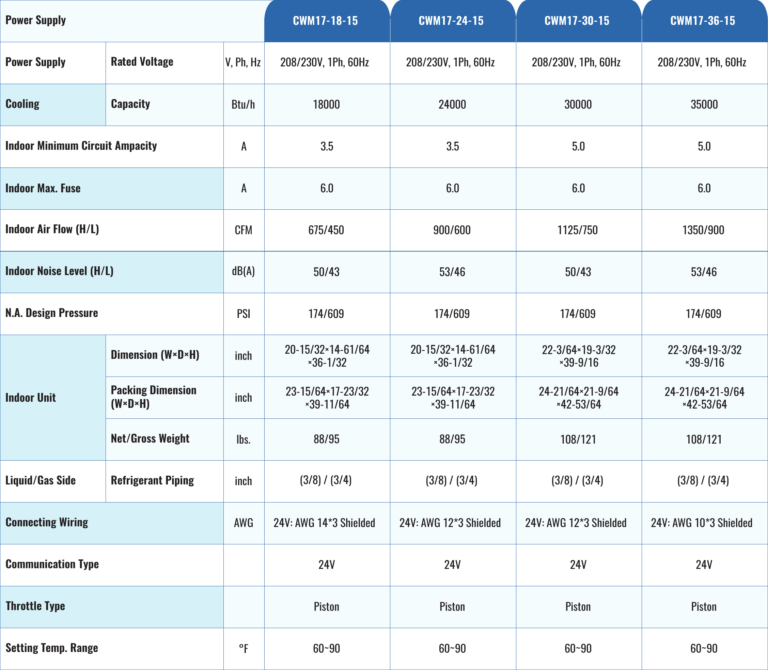

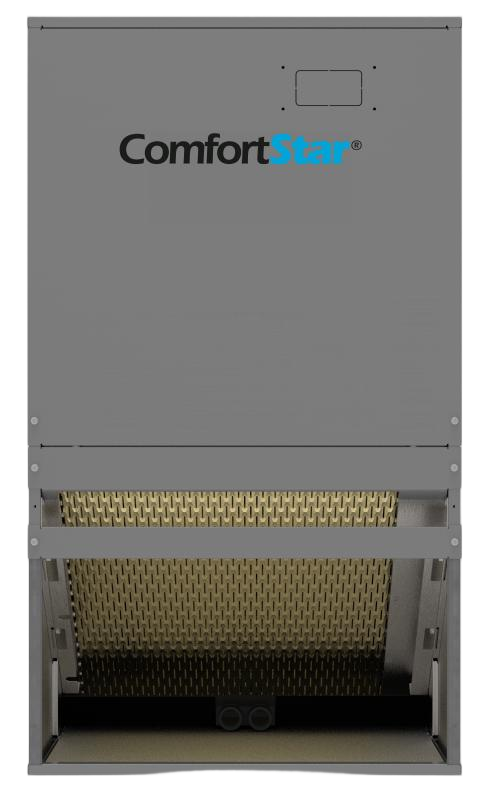

CWM17 SERIES SPECIFICATIONS

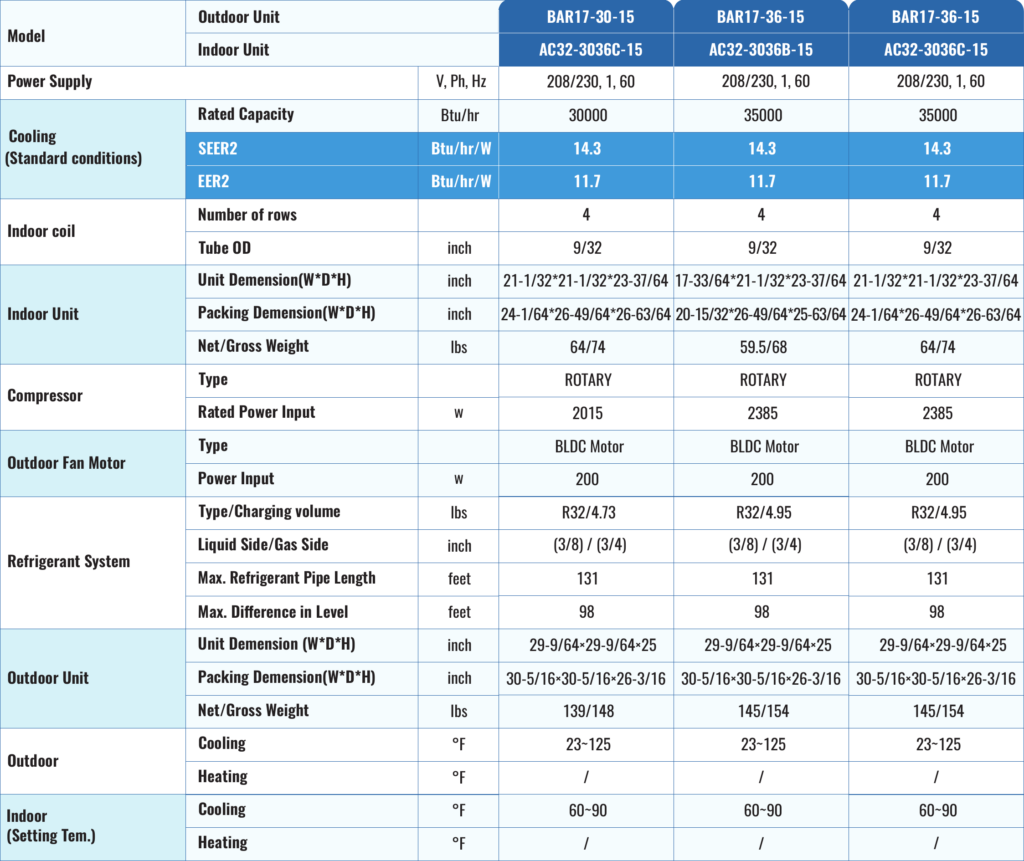

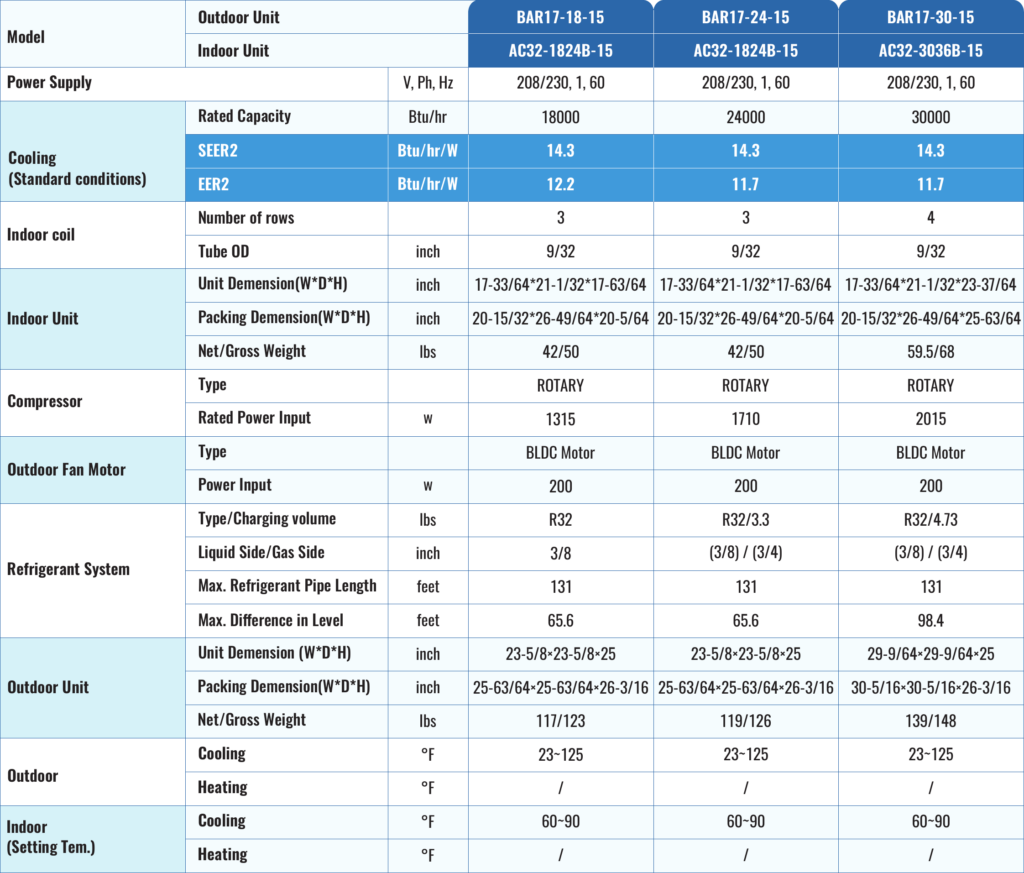

BAR17 + AC32 SERIES COMBINATION SPECIFICATIONS

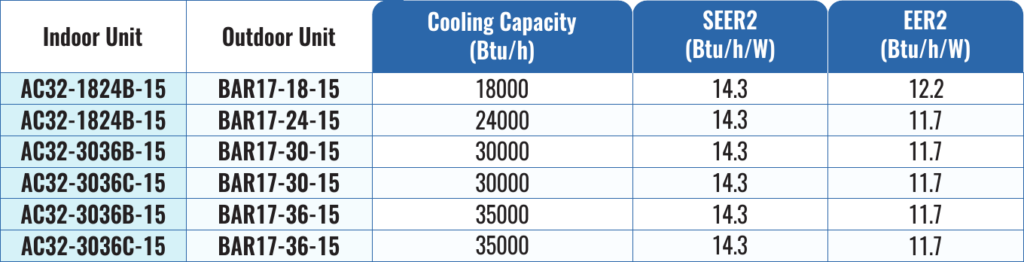

BAR17 Series + AC32 SERIES MATCHUP

BAR17 SERIES SPECIFICATIONS

CWM17 SERIES SPECIFICATIONS
