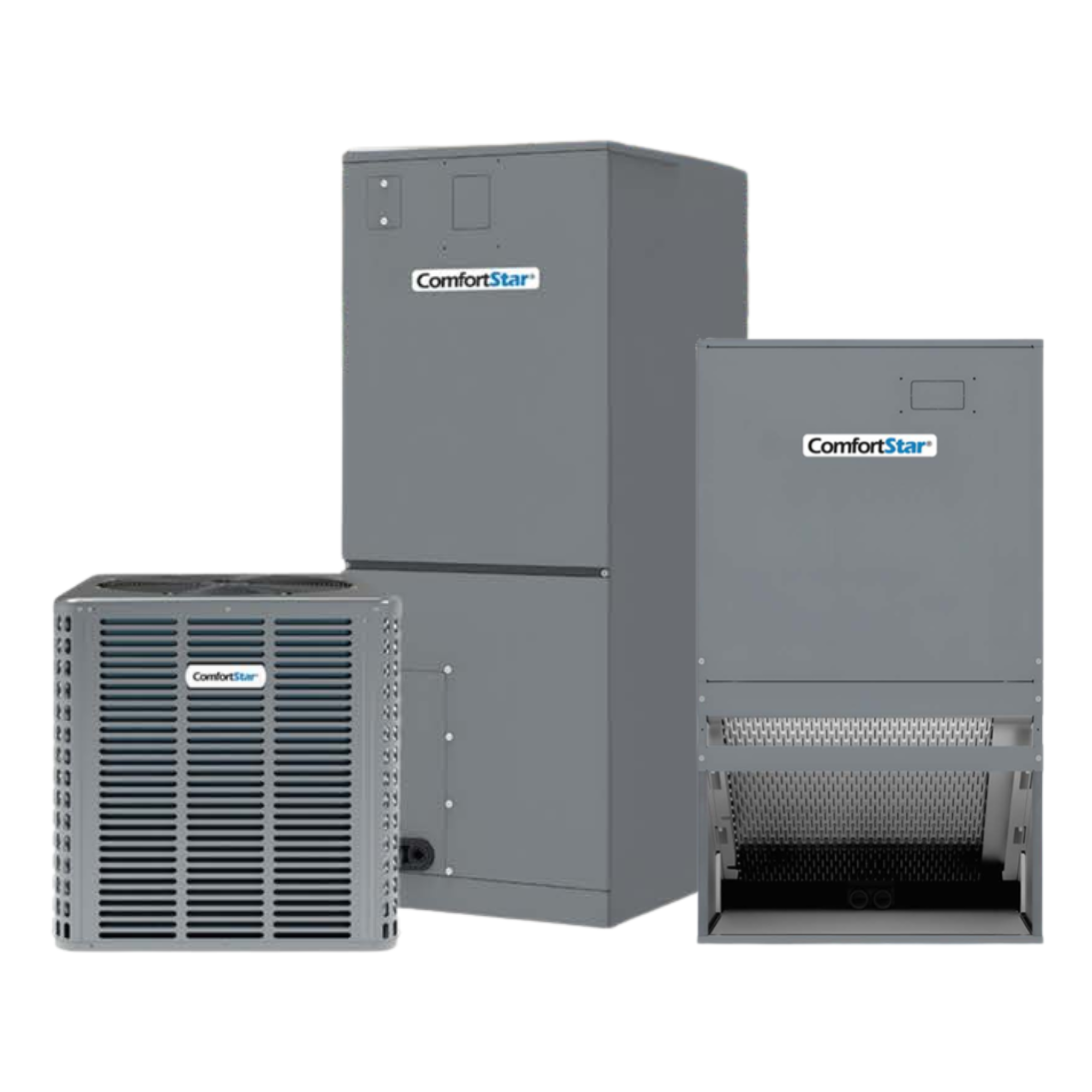

BAH17 Series

Heat Pump Top Discharge Condensing Unit | 14.3 SEER2​​

Features:

  • Rotary Compressor: Designed to deliver reliable and efficient cooling performance with smooth operation and dependable long-term reliability.
  • Integrated Refrigerant Leak Detection System: Enhances safety and system protection by identifying refrigerant leaks and supporting reliable operation.
  • Refrigerant-Cooled PCB Design: Provides superior heat dissipation to improve electronic component reliability and ensure long-term durability.
  • Precision Room Temperature Control: Maintains accurate indoor comfort levels with low operating noise for an enhanced occupant experience.
  • Flexible Control Compatibility: Supports standard 24VAC thermostat integration and offers optional wired control and Wi-Fi control for greater convenience and installation flexibility.
  • Advanced Brushless DC Outdoor Fan Motor: Improves system efficiency while reducing energy consumption and extending equipment service life.

BAH17 SERIES + LUC17 SERIES

BAH17 SERIES + CWM17 SERIES

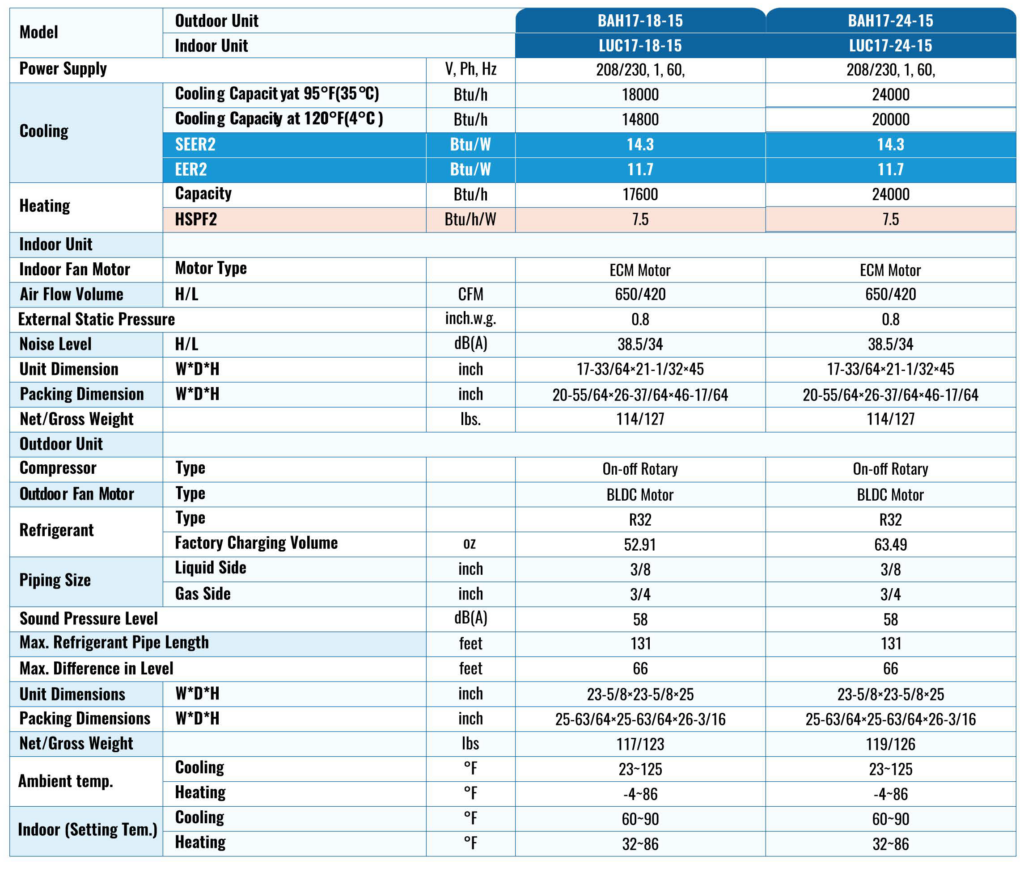

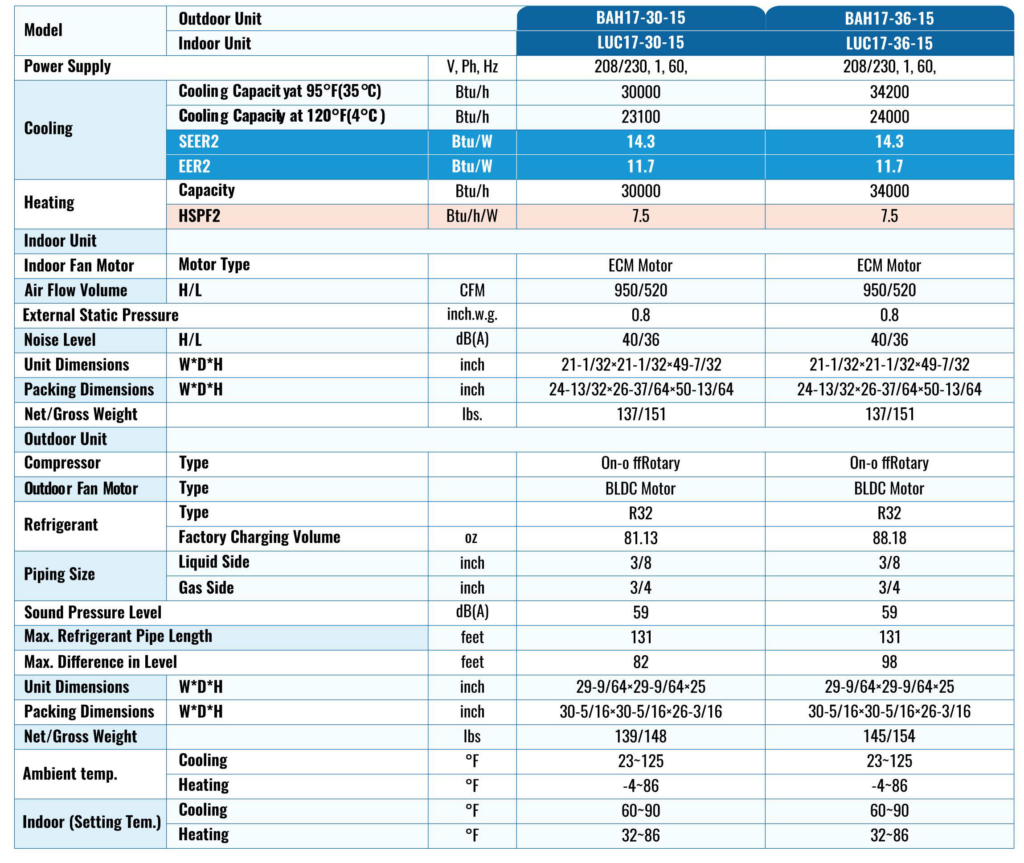

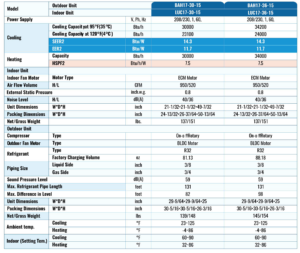

BAH17 + LUC17 SERIES COMBINATION SPECIFICATIONS

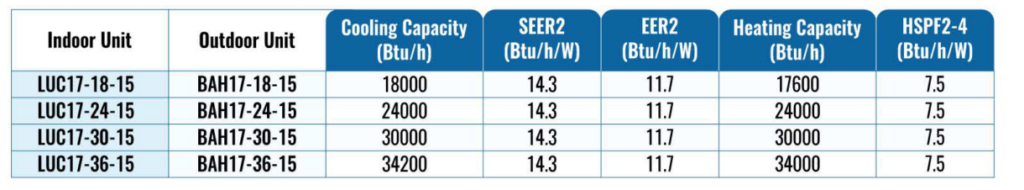

BAH17 Series + LUC17 SERIES MATCHUP

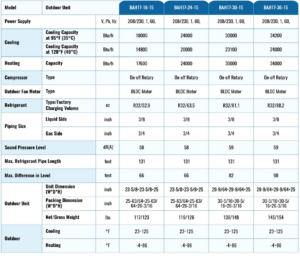

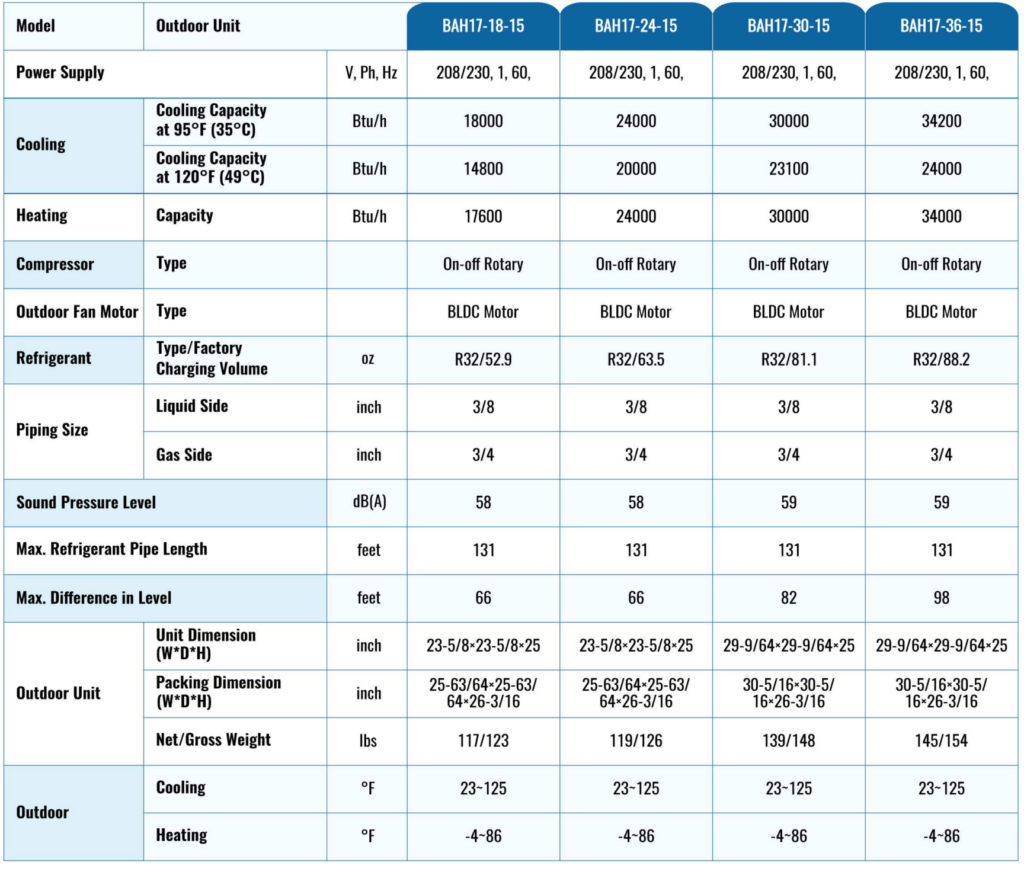

BAH17 SERIES SPECIFICATIONS

LUC17 SERIES SPECIFICATIONS

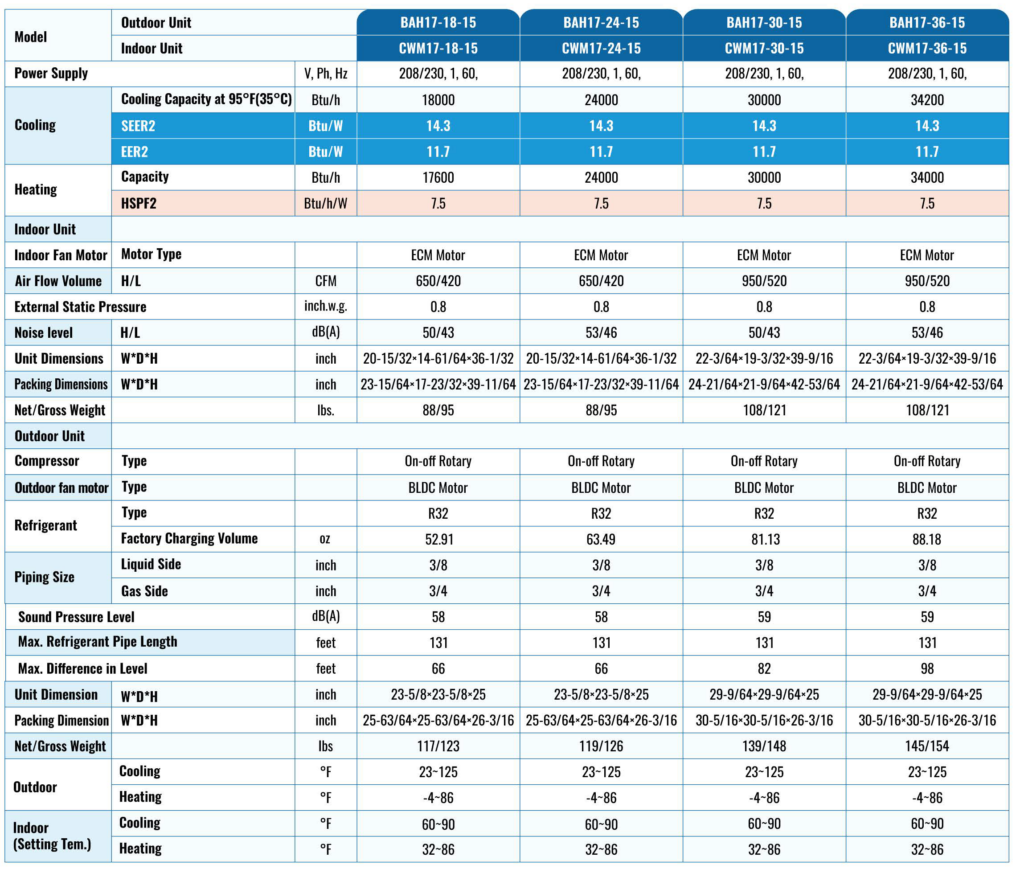

BAH17 + CWM17 SERIES COMBINATION SPECIFICATIONS

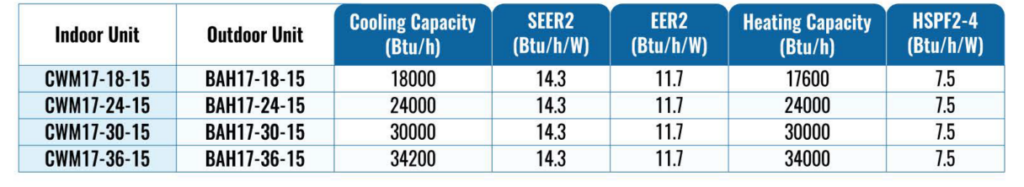

BAH17 Series + CWM17 SERIES MATCHUP

CWM17 SERIES SPECIFICATIONS
