Comfort, it's in our name.

intertek-etl

10 years warranty compressor

10 years warranty parts

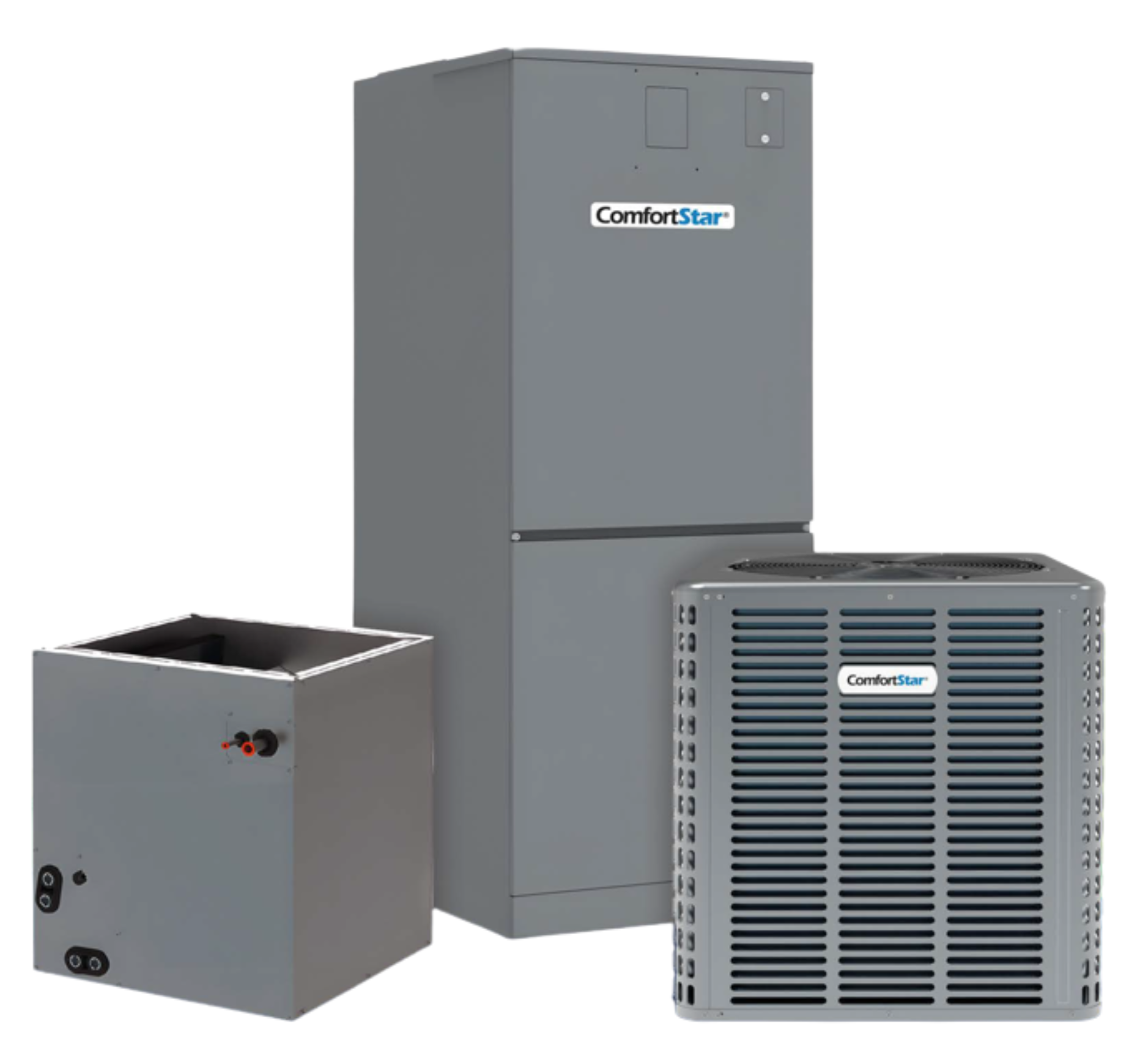

BAR10 Series

Cooling Only Top Discharge Condensing Unit | 14.3 SEER2

Features:

  • High-Performance Scroll Compressor: Designed for dependable, efficient operation across 3.5 to 5 ton capacities, delivering enhanced cooling performance for larger applications.
  • Advanced Brushless DC Outdoor Fan Motor: Improves energy efficiency while reducing operational noise and extending overall service life.
  • Integrated Refrigerant Leak Detection System: Provides an added layer of system protection by detecting refrigerant leaks early and supporting safer operation.
  • Refrigerant-Cooled PCB Design: Ensures effective heat management, enhancing electronic stability and long-term component durability.
  • Precision Temperature Control with Quiet Operation: Maintains consistent indoor comfort with minimal noise output for improved occupant experience.
  • Flexible Control Compatibility: Supports standard 24VAC thermostats, with optional wired control and Wi-Fi control for greater installation flexibility and remote accessibility.

BAR10 SERIES + LUC17 SERIES

BAR10 SERIES + AC32 SERIES

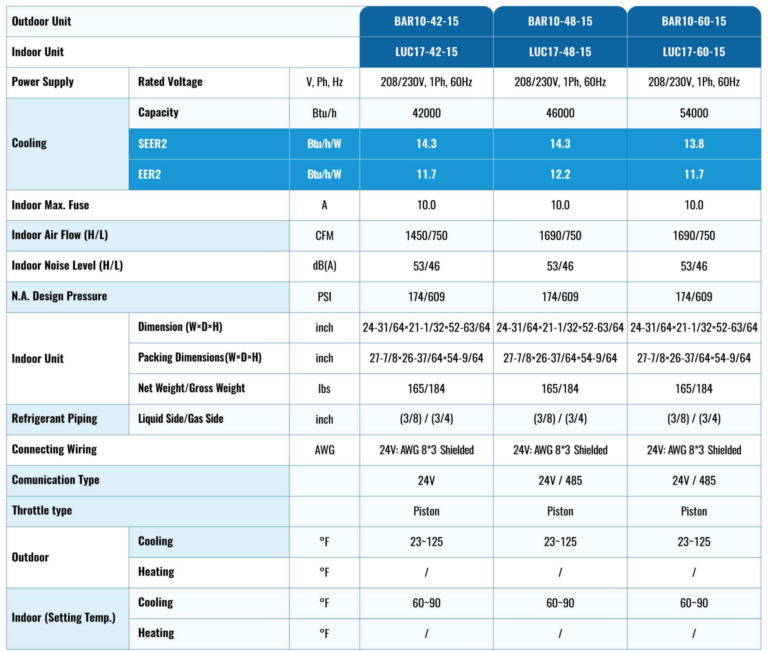

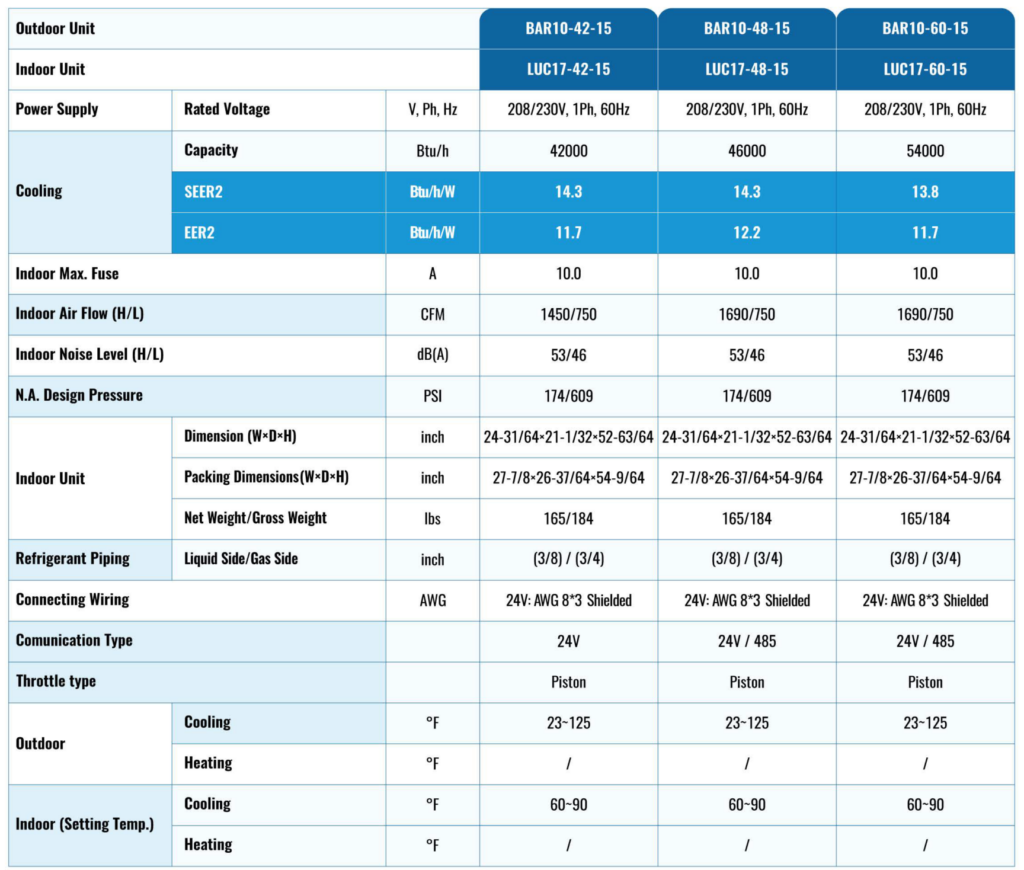

BAR10 + LUC17 SERIES COMBINATION SPECIFICATIONS

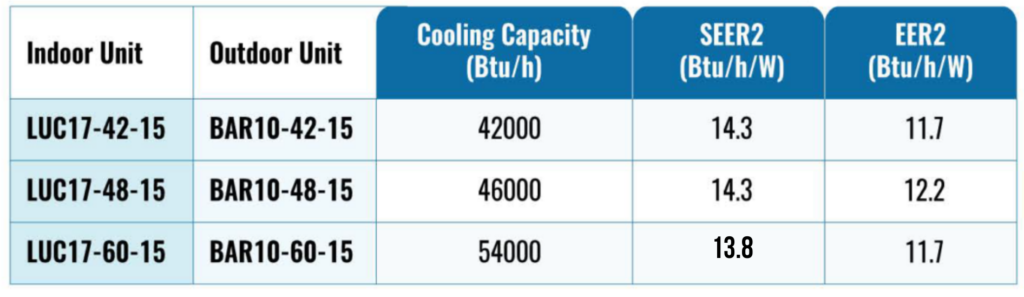

BAR10 + LUC17 SERIES MATCHUP

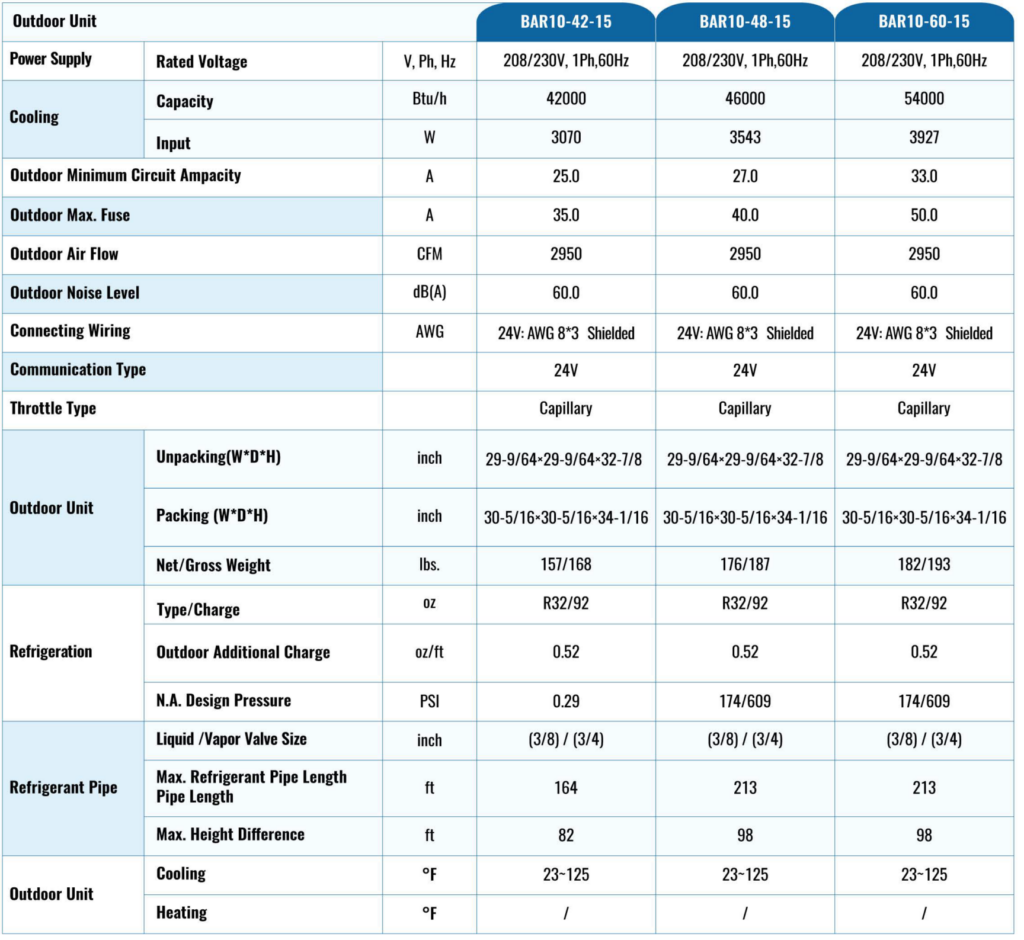

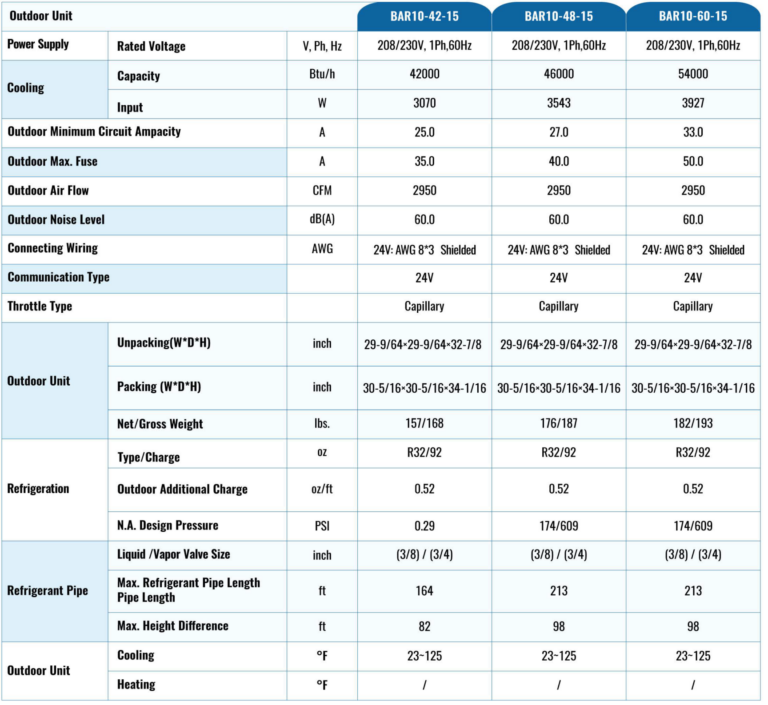

BAR10 SERIES SPECIFICATIONS

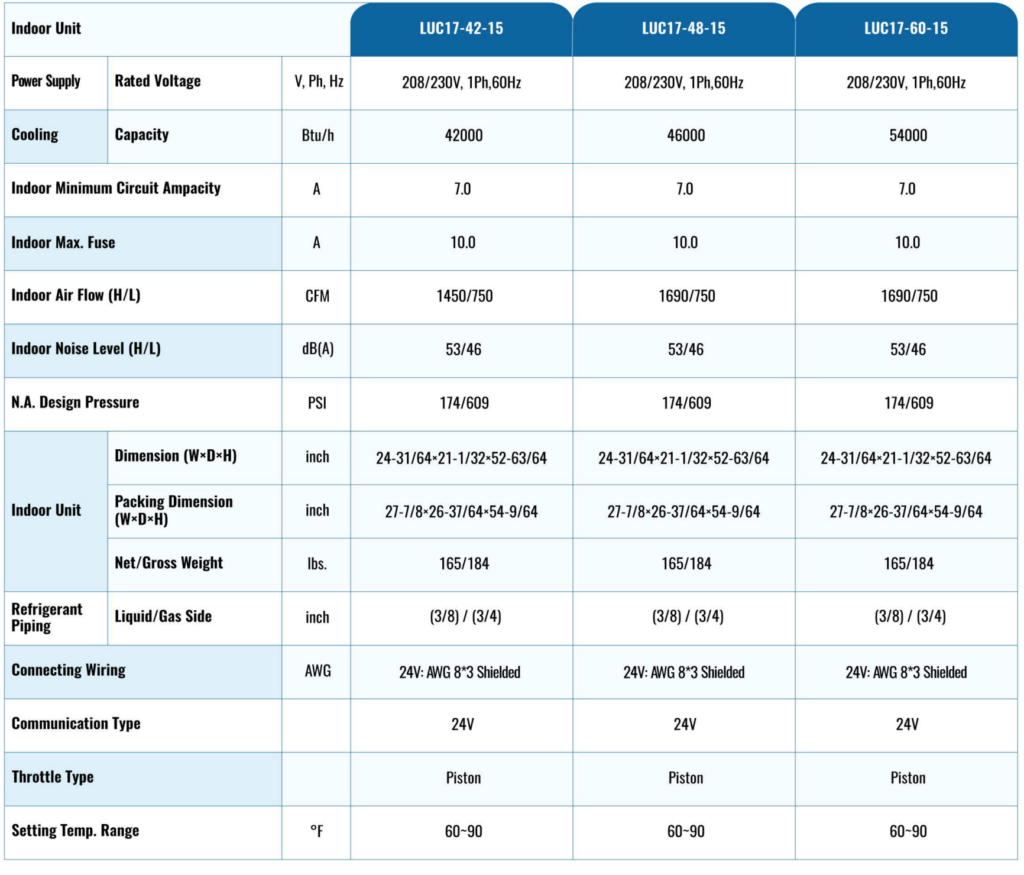

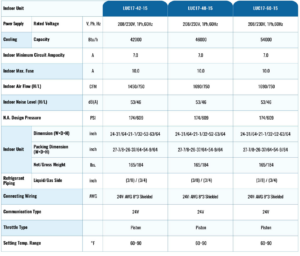

LUC17 SERIES SPECIFICATIONS

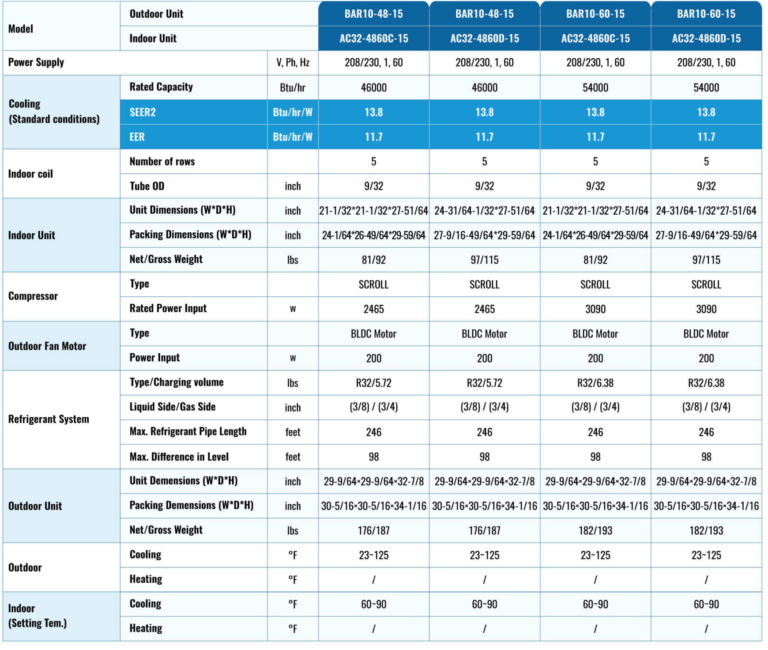

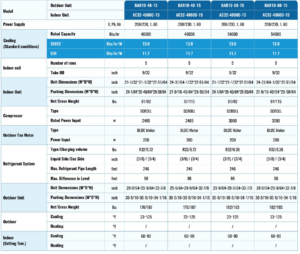

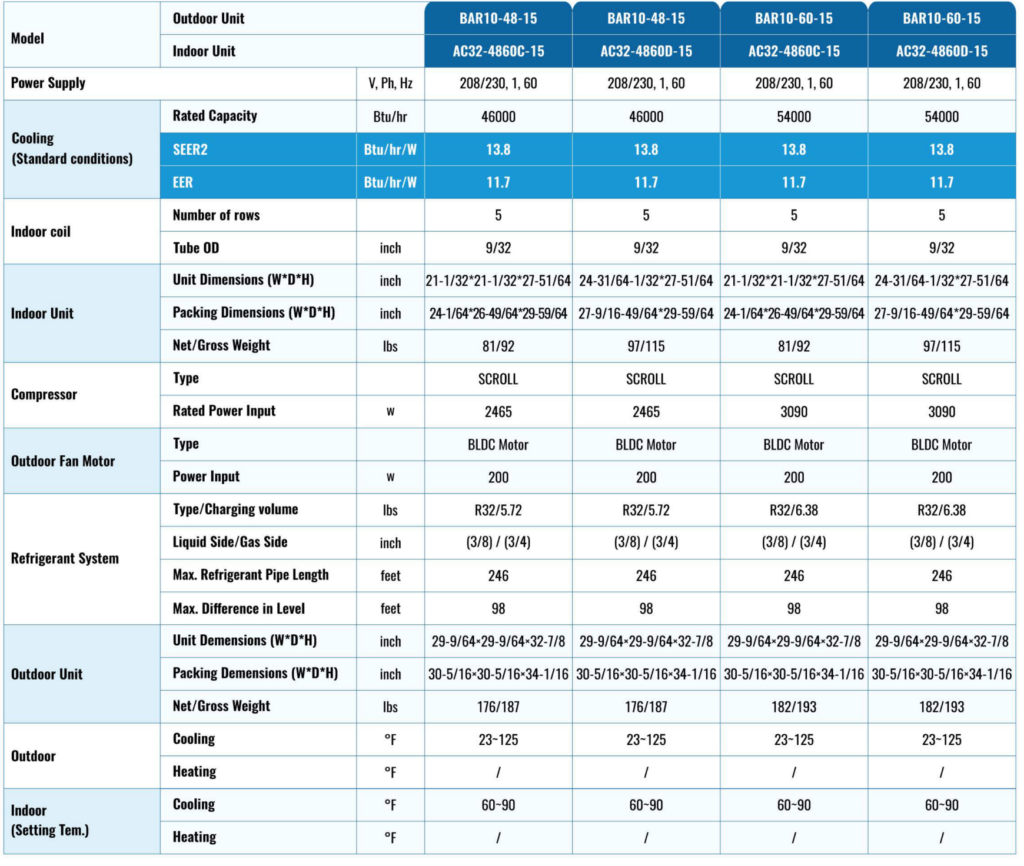

BAR10 + AC32 SERIES COMBINATION SPECIFICATIONS

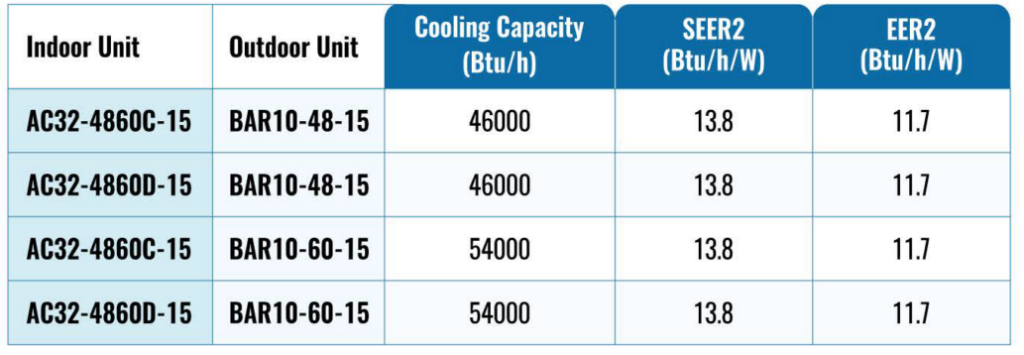

BAR10 + AC32 SERIES MATCHUP

CWM17 SERIES SPECIFICATIONS
