ORBIT SERIES APPLIED COMMERCIAL AIR C
VRF-19
R410A Logo

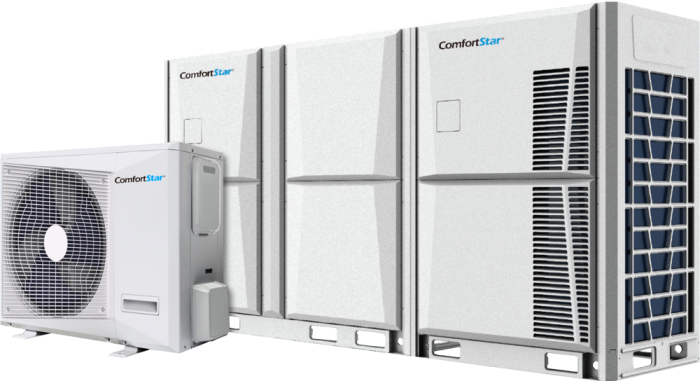

Variable Refrigerant Flow Systems

Powerful & Flexible Climate Control for Any Size Building | Maximum Capacity 96HP

Features:
  • Individual DC inverter system with capacity up to 32 HP.
  • Supports 64–100 indoor units (3-pin PCB compatible).
  • Vapor injection technology for low ambient performance.
  • Built-in oil pump and advanced oil balance design.
  • 2-stage sub-cooling increases efficiency up to 30°C drop.
  • High-efficiency DC brushless fan motors for low noise and energy savings.
  • Stepless DC motor control with high-precision pressure sensors.
  • Wide operating range: cooling up to 55°C, heating down to -30°C.
  • Maintains 85% capacity at -15°C thanks to EVI technology.
  • Full fresh air processor with ESP up to 220/300 Pa.
  • Heat Recovery Ventilator (HRV) available.
  • AHU connection kit supports third-party air handlers.
  • Max piping length 1000m; max height difference 110m.
  • Night-time quiet mode with adjustable scheduling.
  • Automatic or manual indoor unit addressing options.
  • Remote ON/OFF control, hotel card control ready.
  • Optional auto refrigerant charging with solenoid valve control.
  • Optional remote diagnostics and malfunction forecasting via internet.

CC-KPAA Series | One-Way Cassette

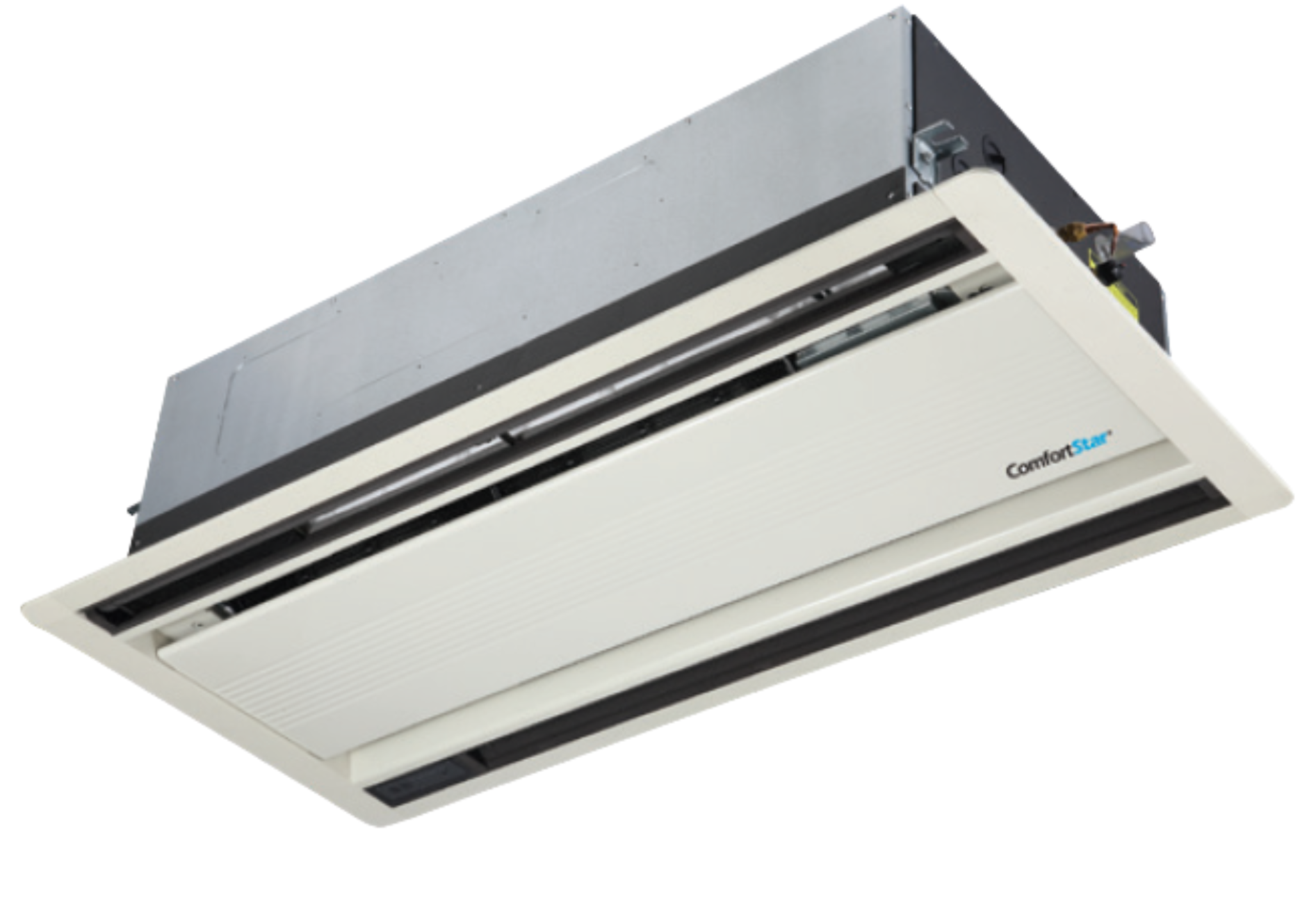

CC-WPAA Series | Two-Way Cassette

CC-TPAC Series | Four-Way Cassette (DC)

CC-TPAS Series | Compact Four-Way 360° Cassette (DC)

CC-HPA Series | Wall Mounted Unit (DC)

CC-FPA Series | Floor/Ceiling (DC)

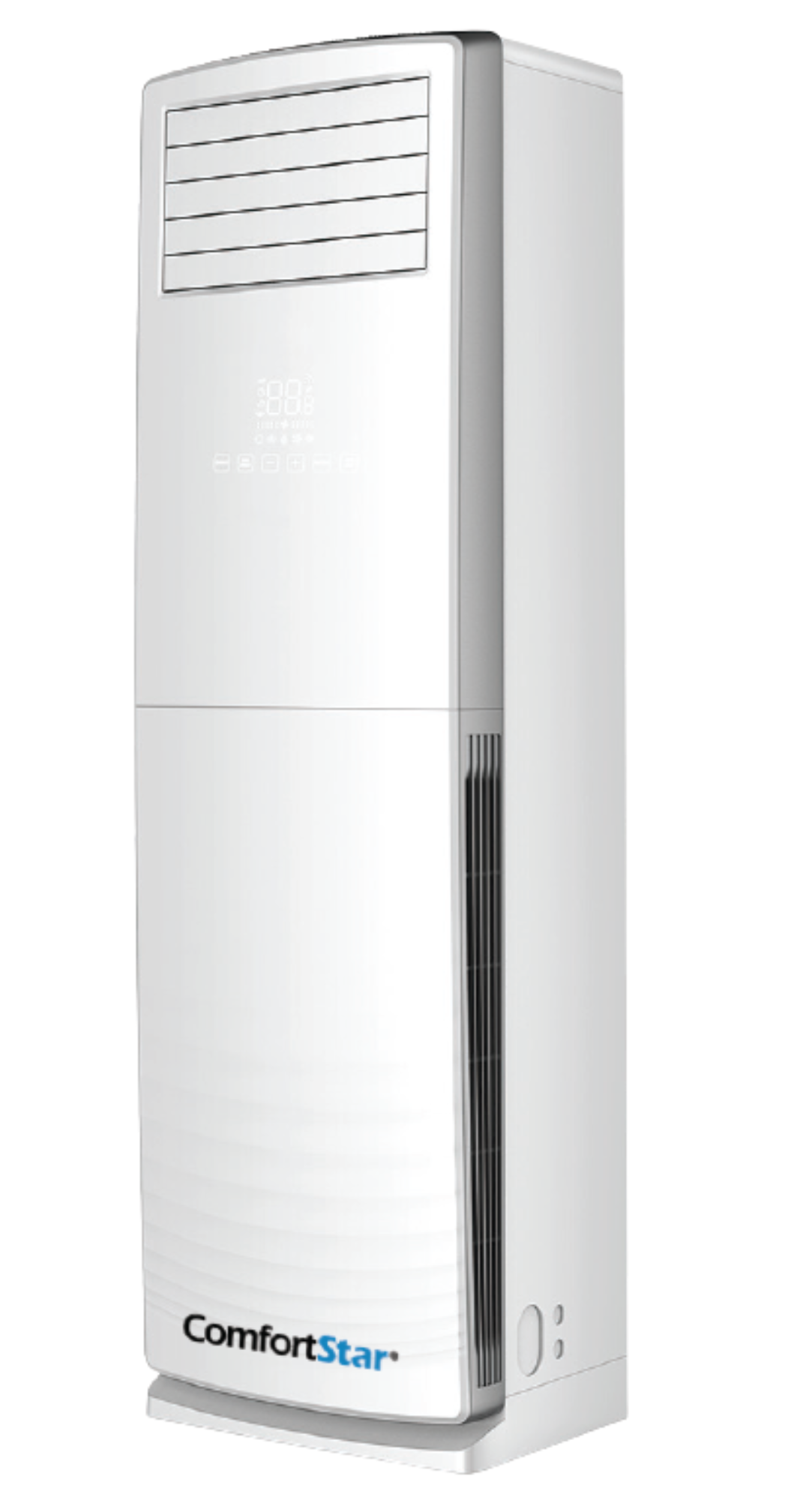

CC-FTA Series | Floor Standing

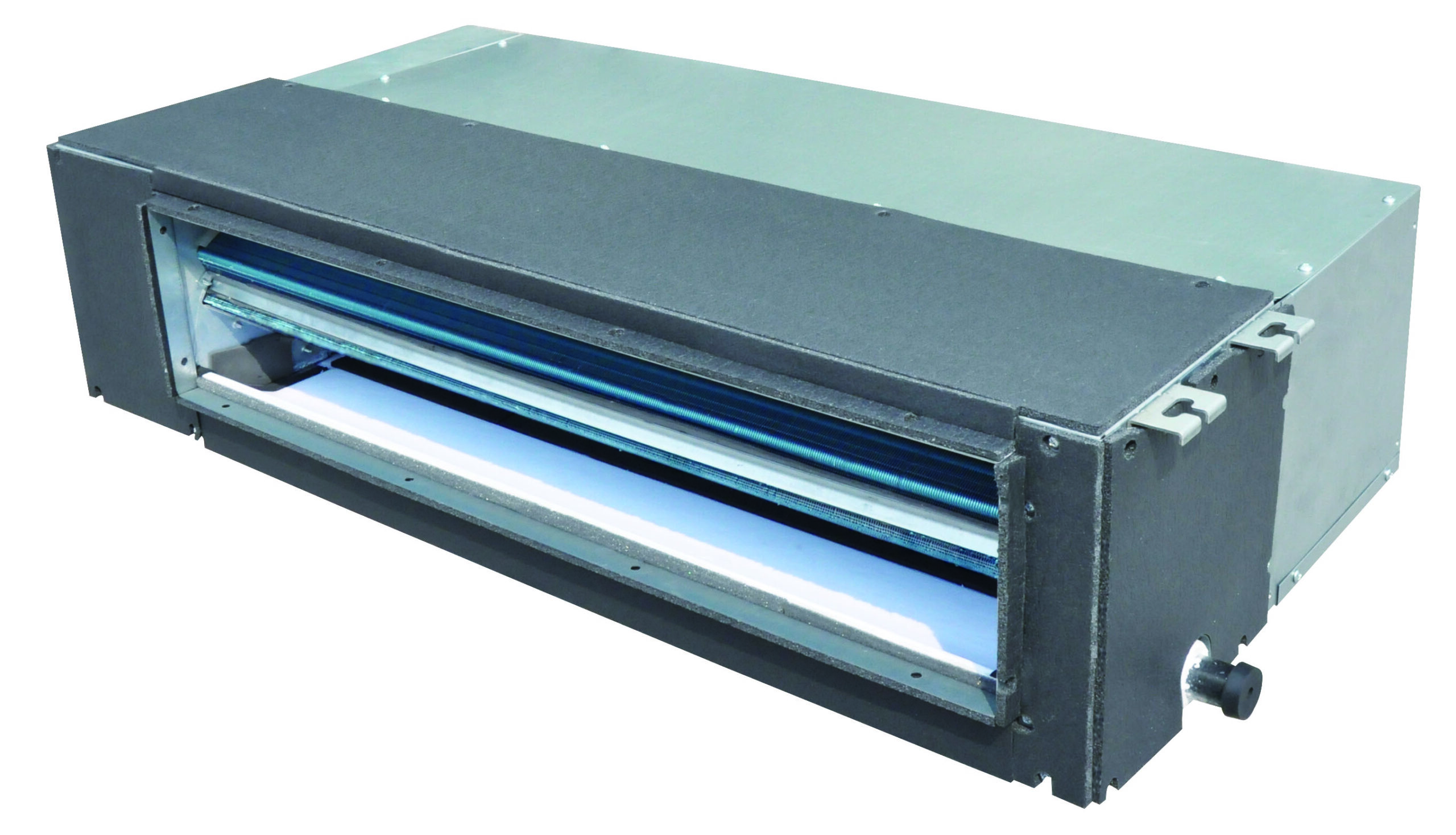

CC-CPAL Series | Short Ducted (DC)

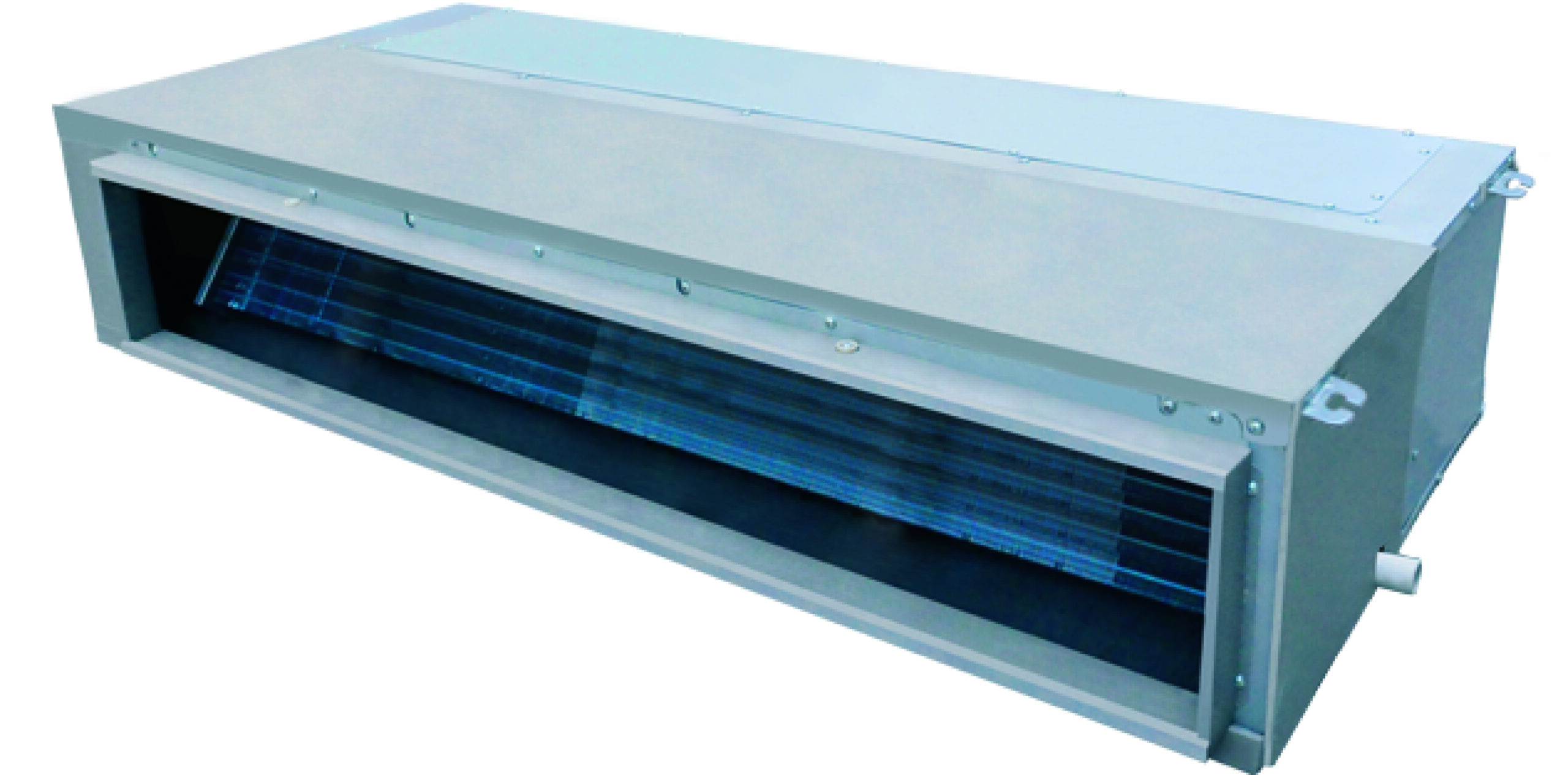

CC-CPAM Series | Medium Ducted (DC)

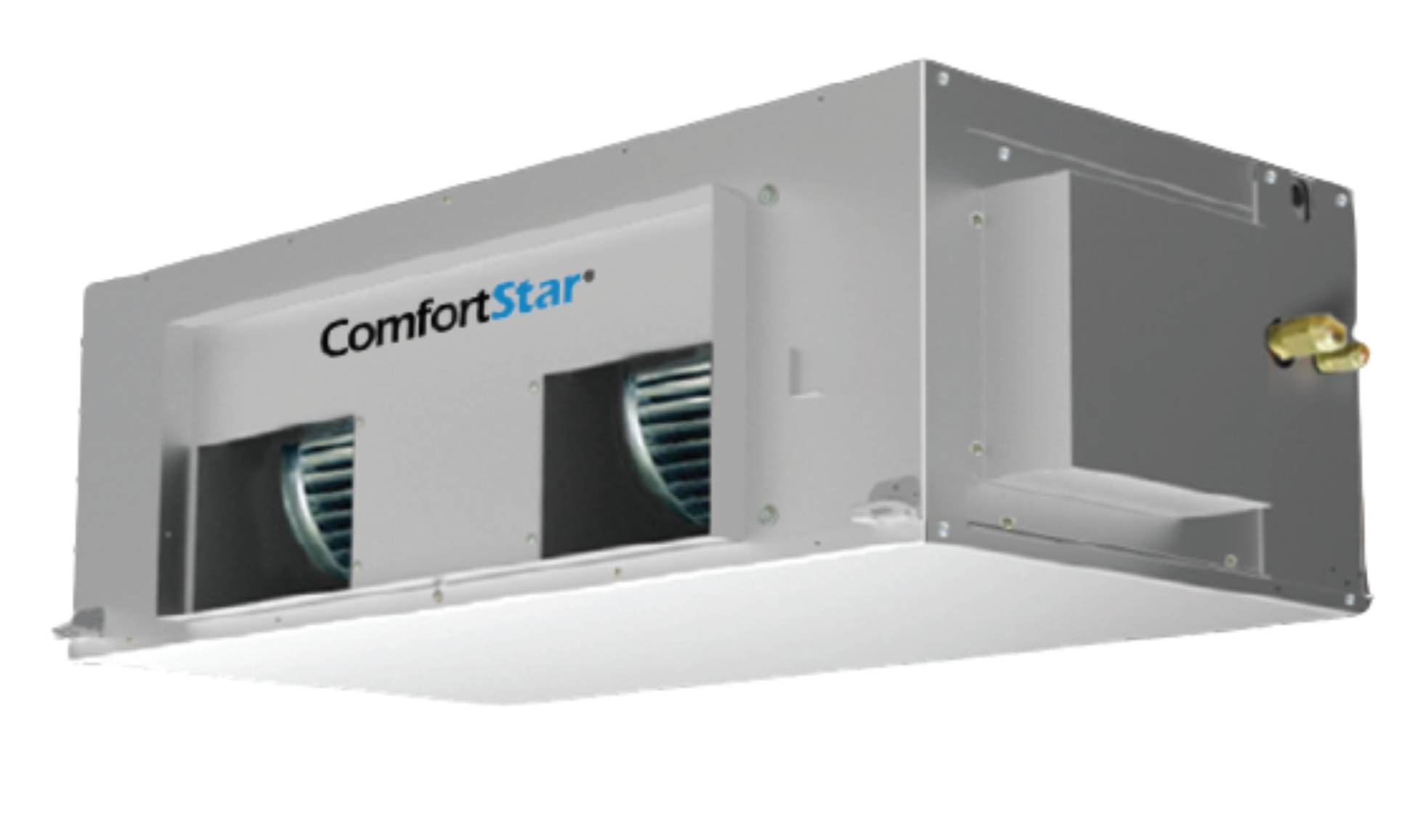

CC-CCAH Series | High ESP Ducted (AC)

CC-CPAH Series | High ESP Ducted (DC)

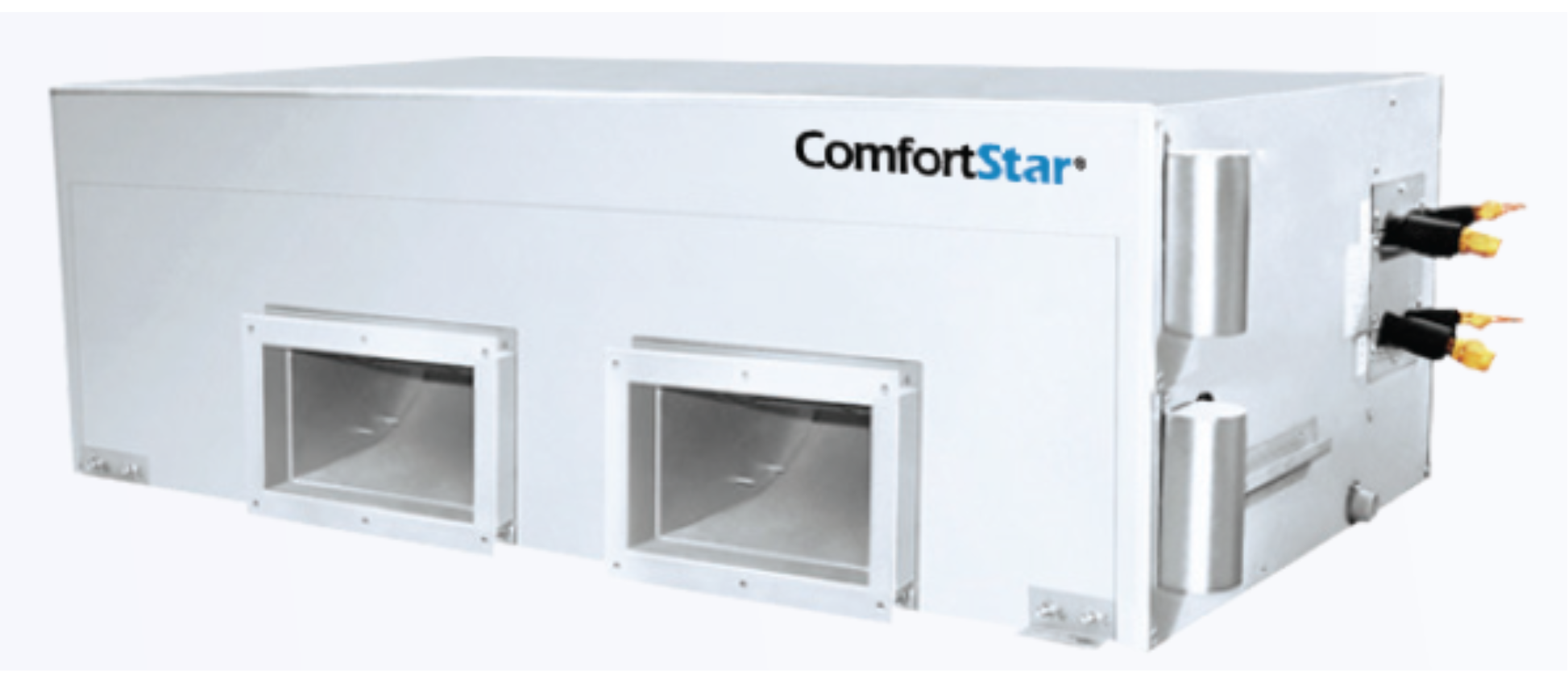

CCCFA Series | Full Fresh Air Processor

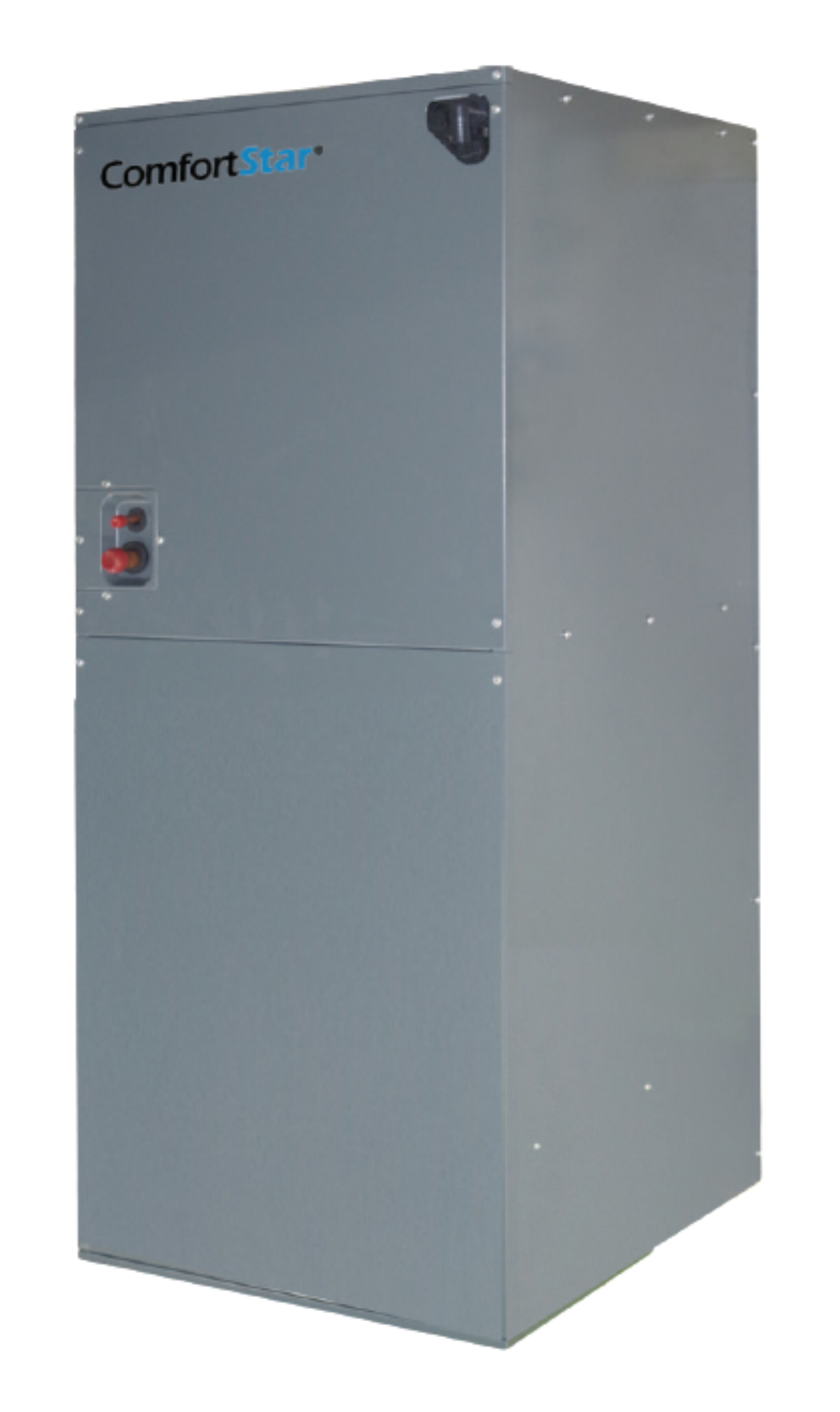

AHUAC Series | Ducted AHU Multi-Position

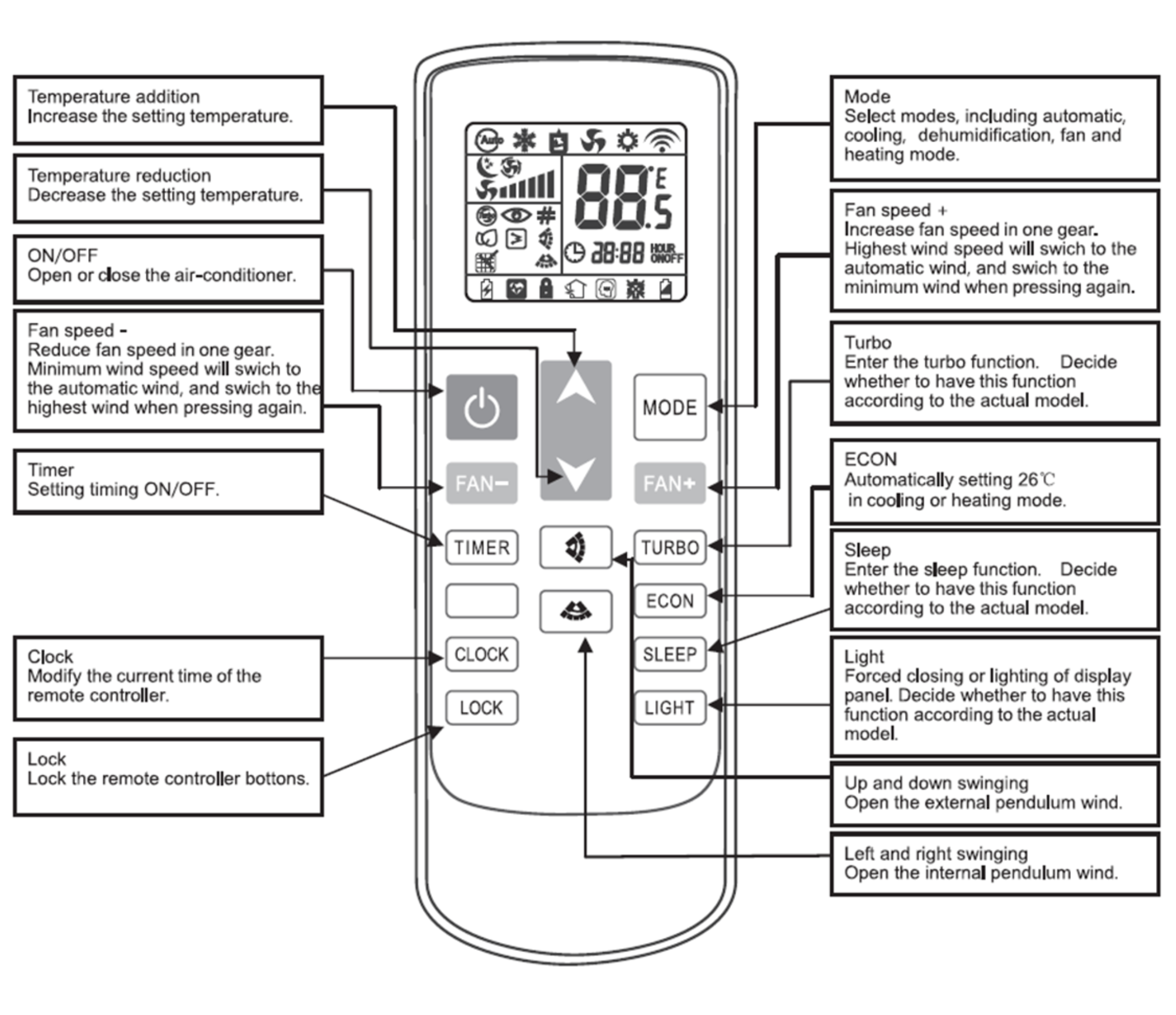

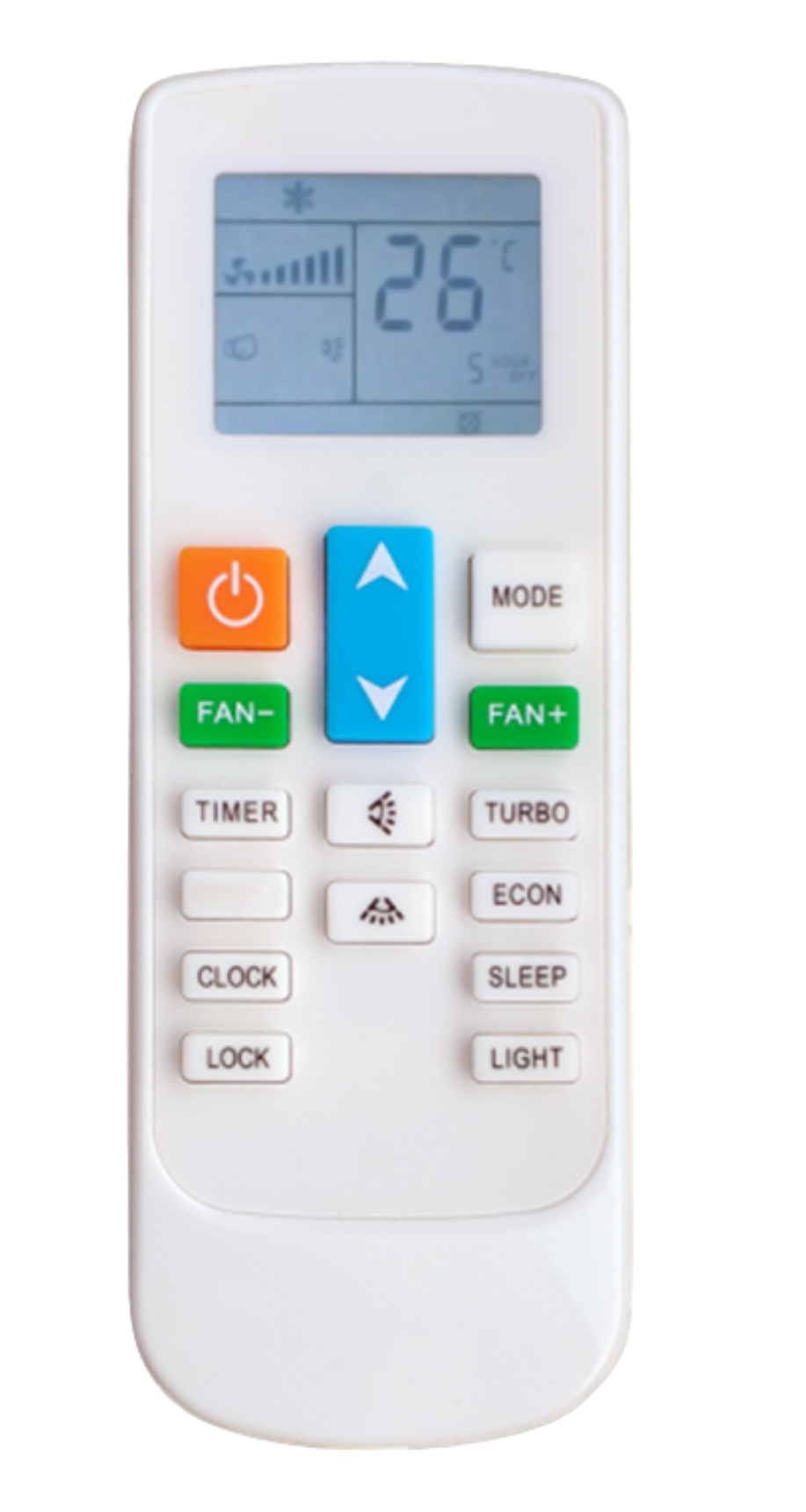

CCRC-02-1S | Standard Remote for Cassette & Floor/Ceiling Unit

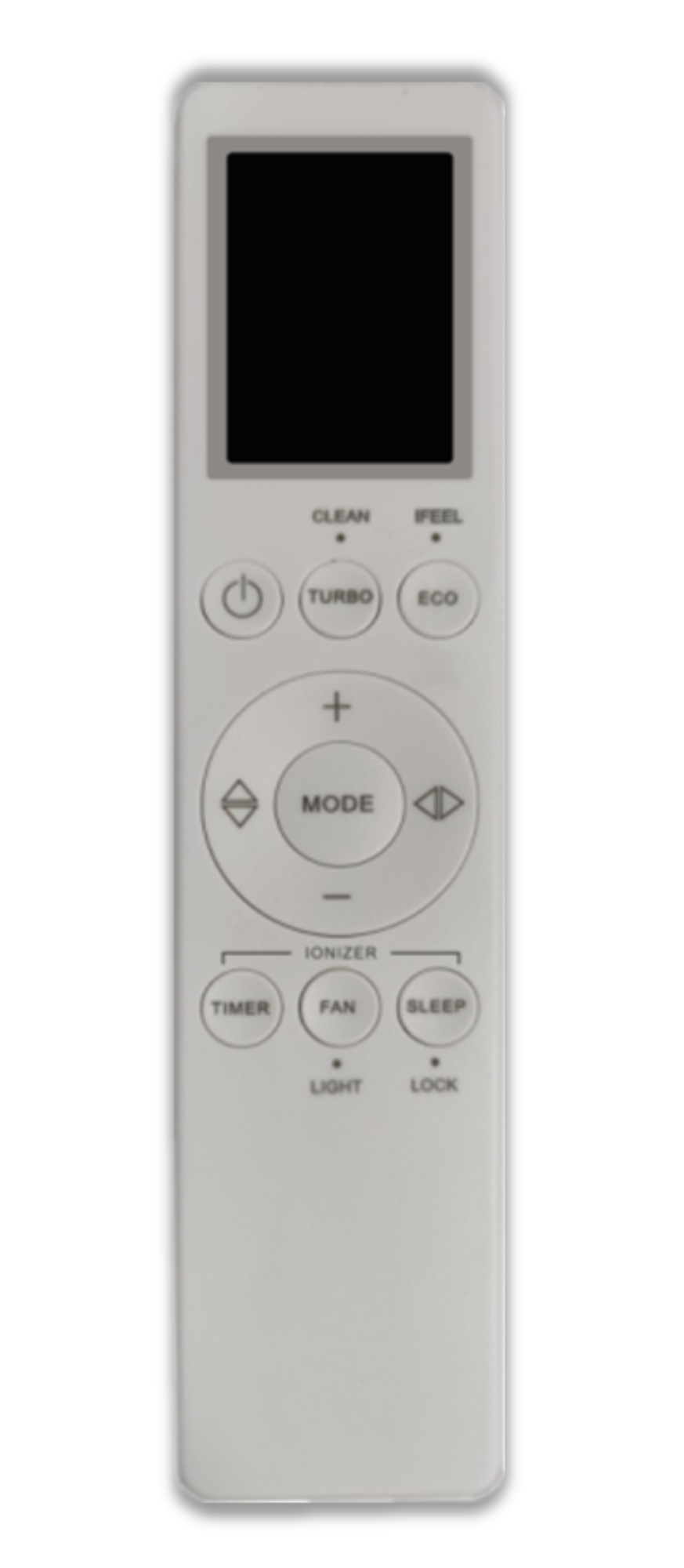

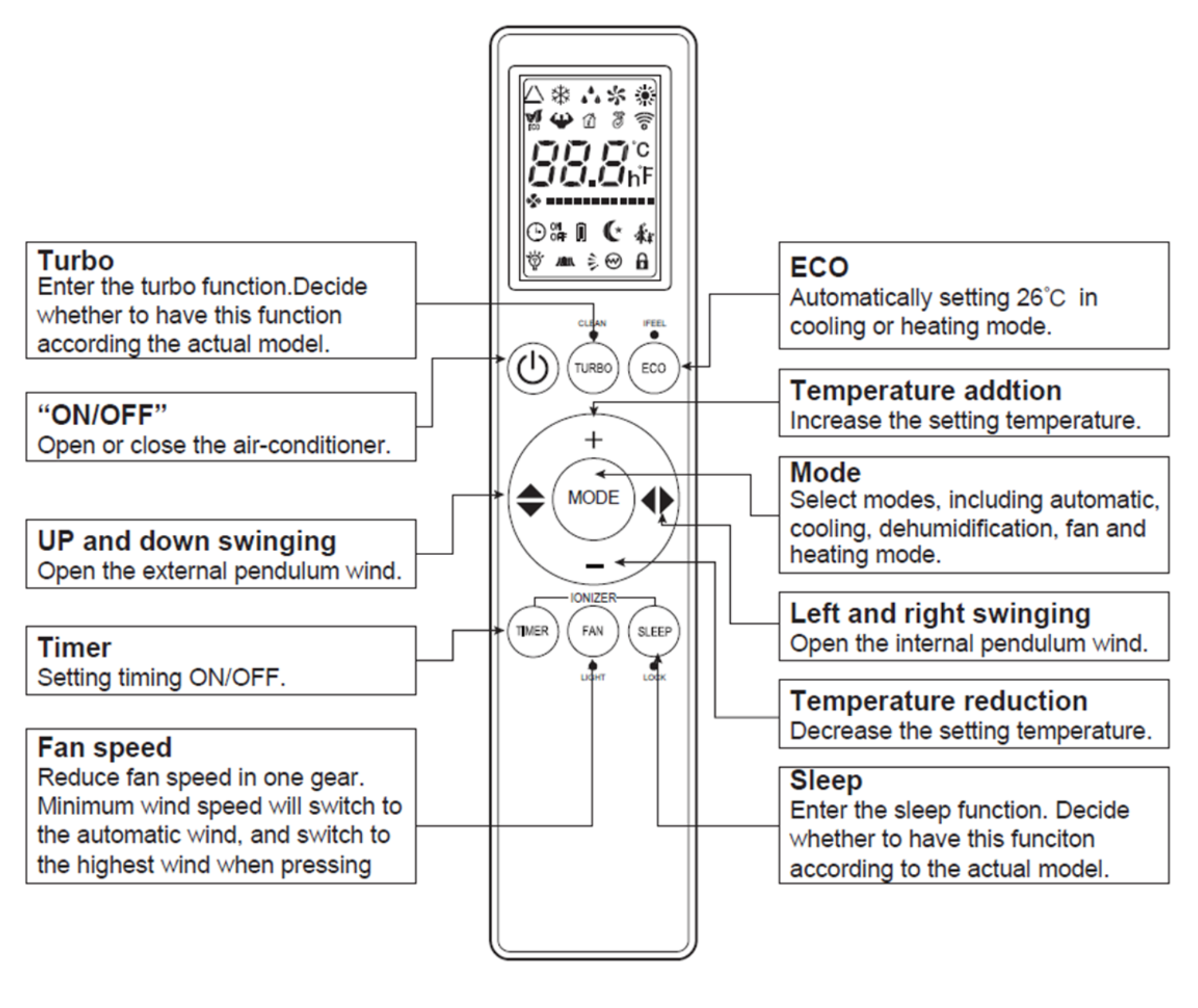

CCRC-P05-1S | Optional Remote Control

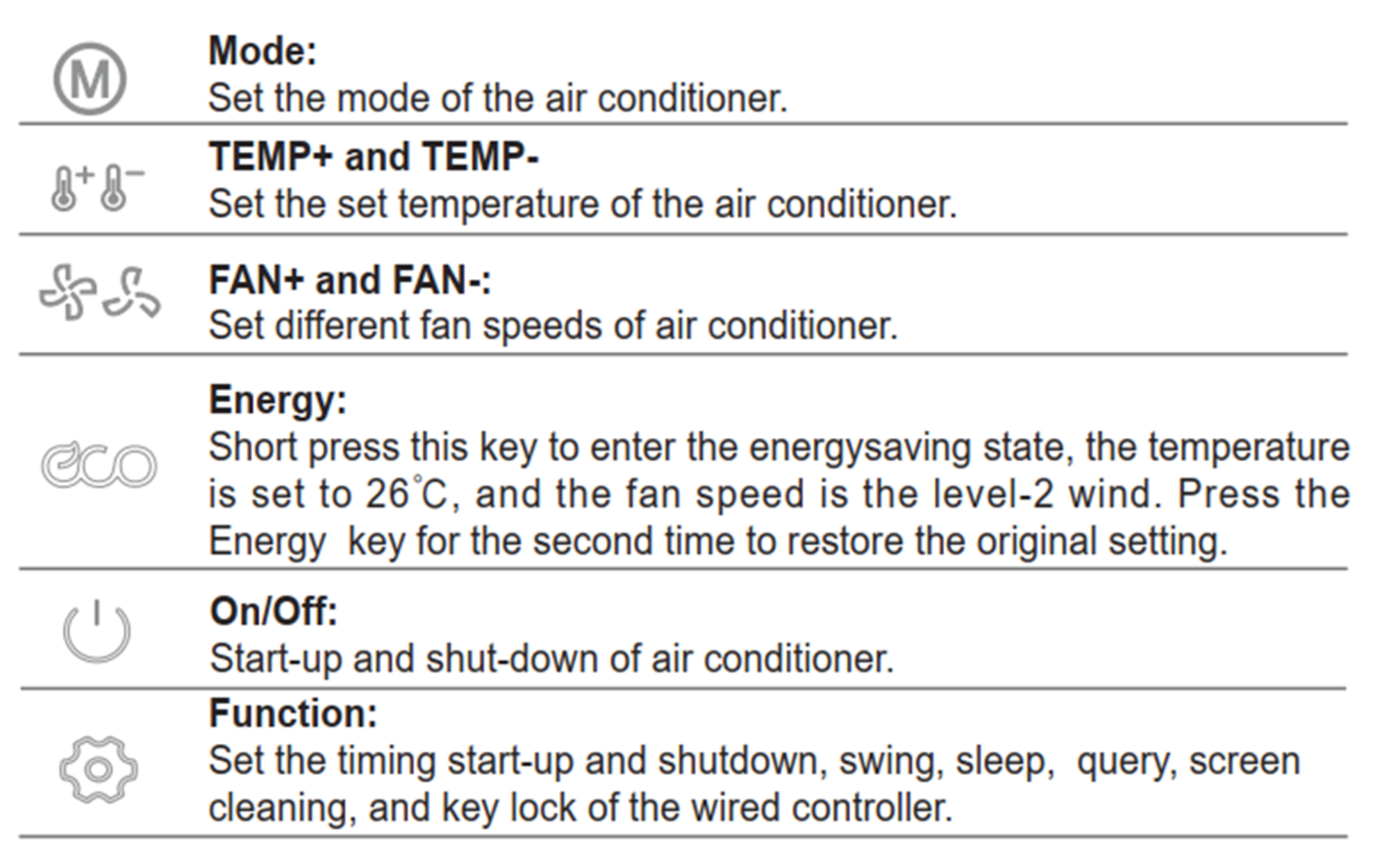

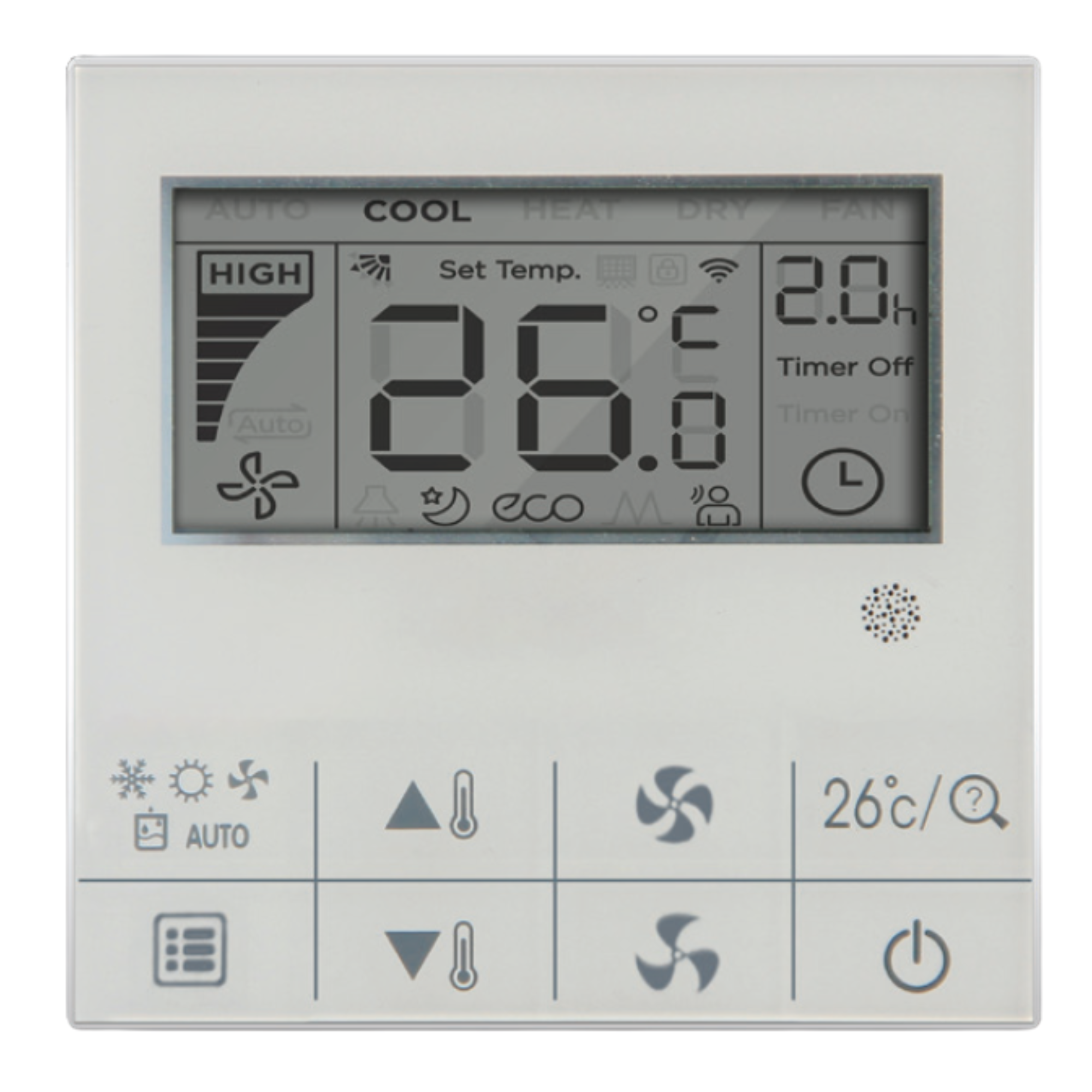

CCWC-05-1S | Standard Wired Control for Duct Unit

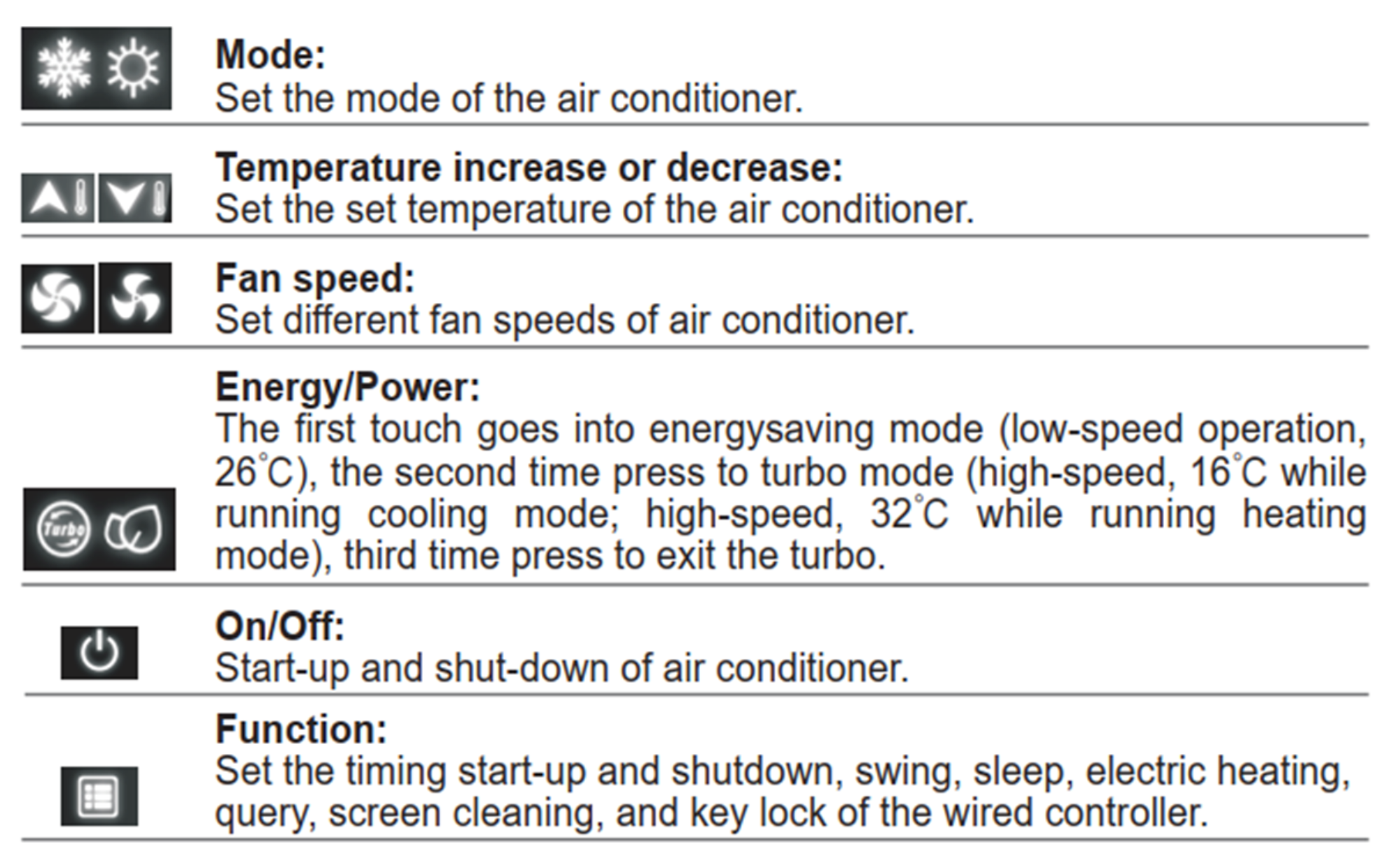

CCWC-09-WIFIT | Touch Screen Wired Control

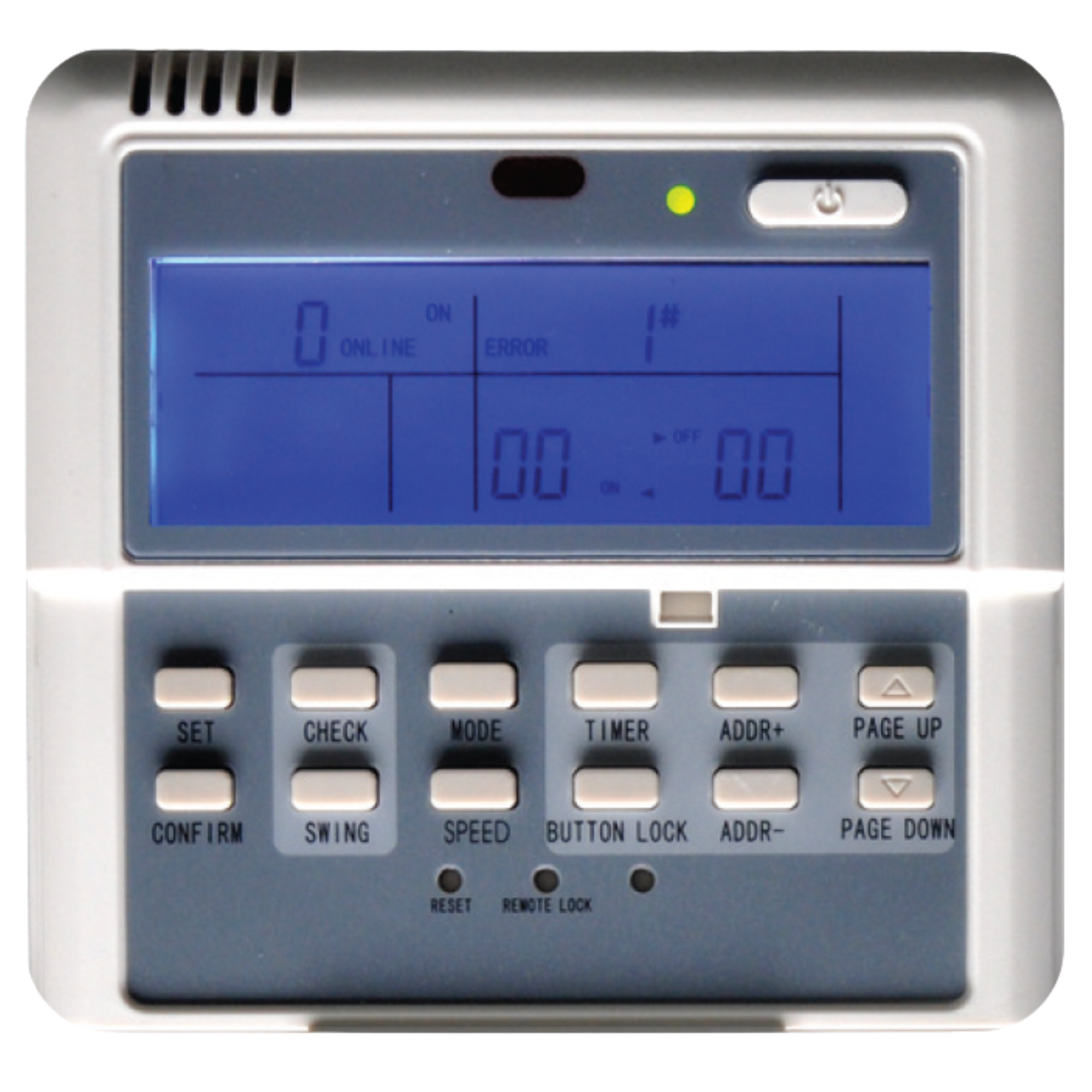

CCWC-18Z-C100 | Simple Centralized Control

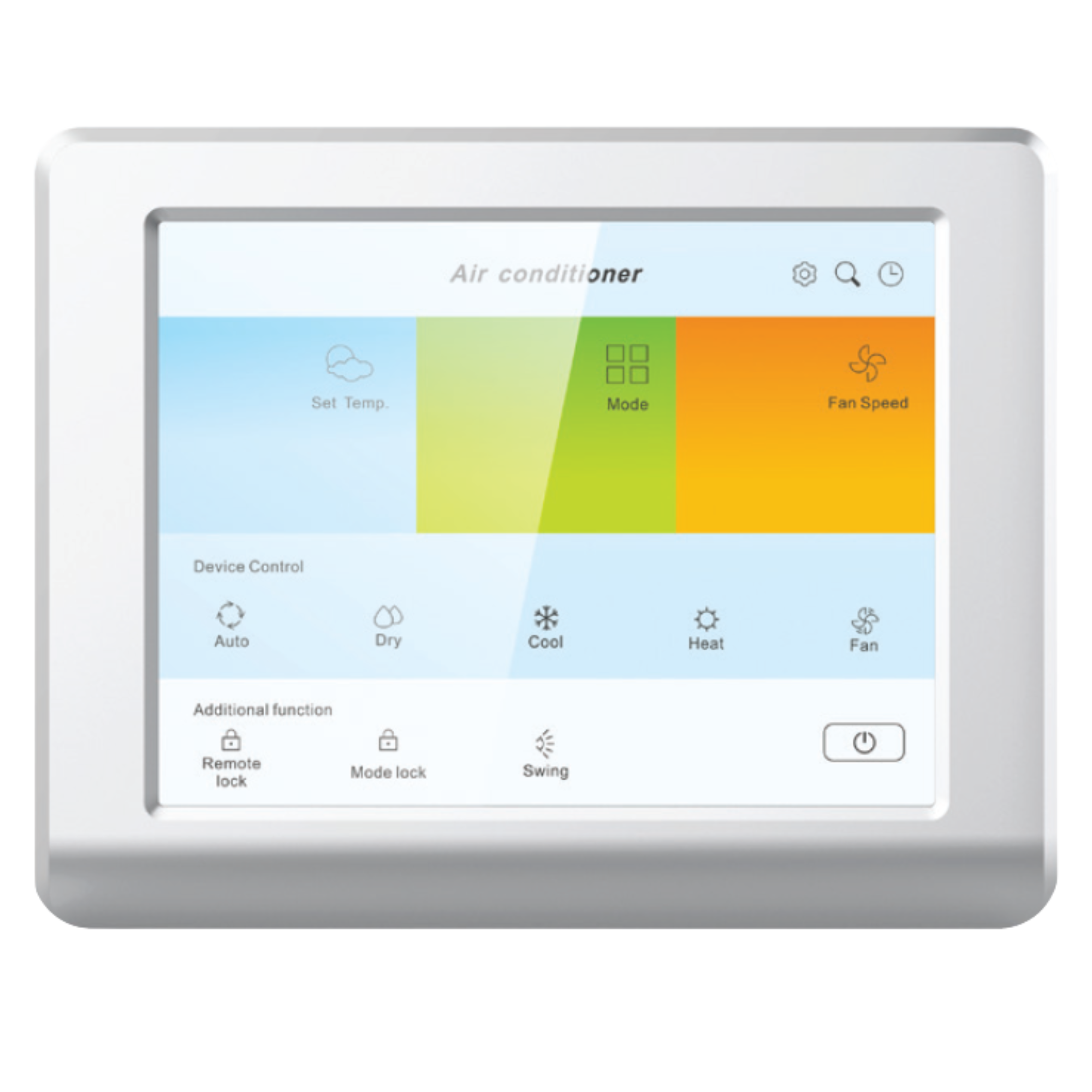

CCWC-18-C64WIFIT | Touch Screen Centralized Control

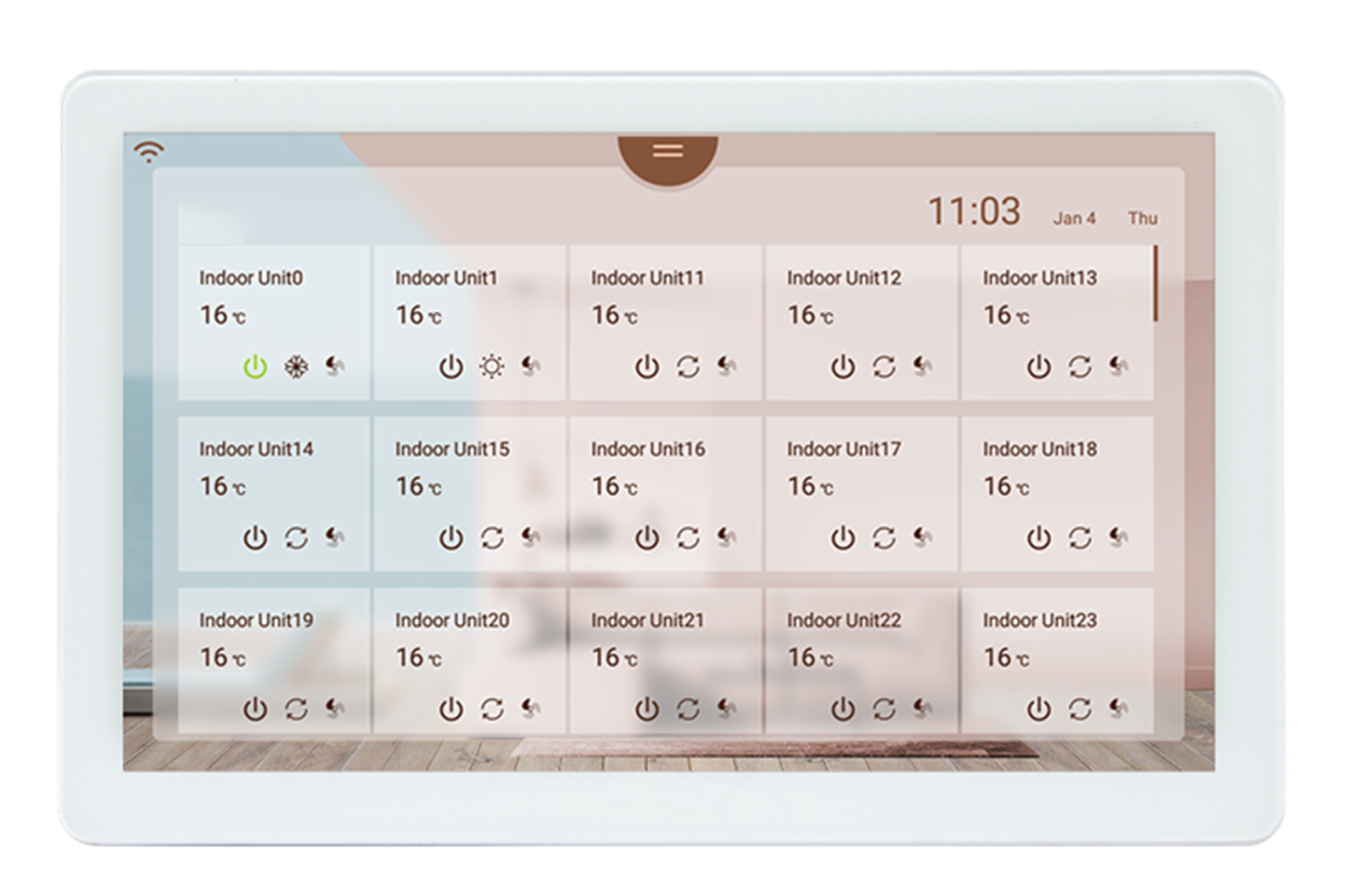

CCWC-100-WIFI | Wireless Wi-Fi Touch Screen Control

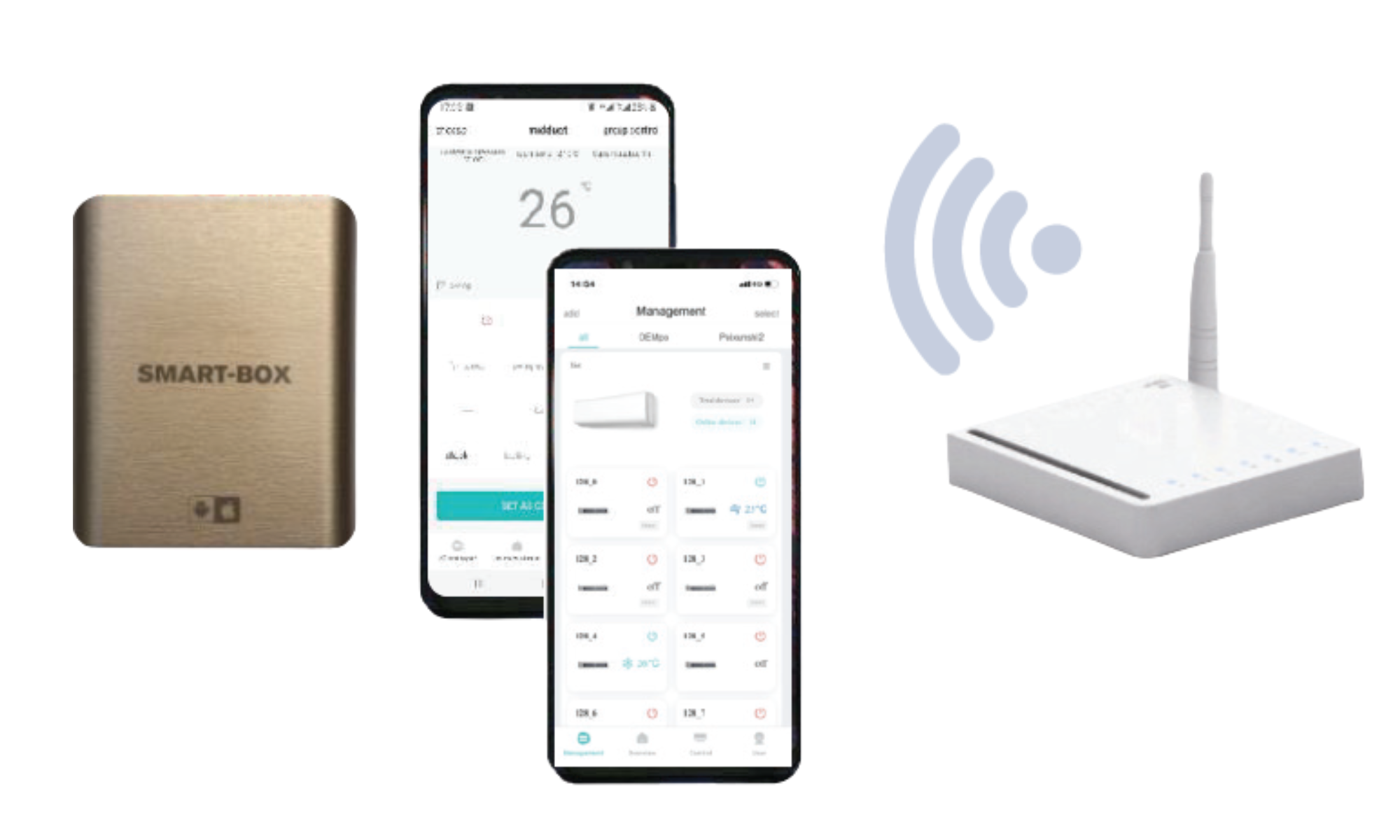

CCP-D181-01P | Smart Box Centralized Control APP

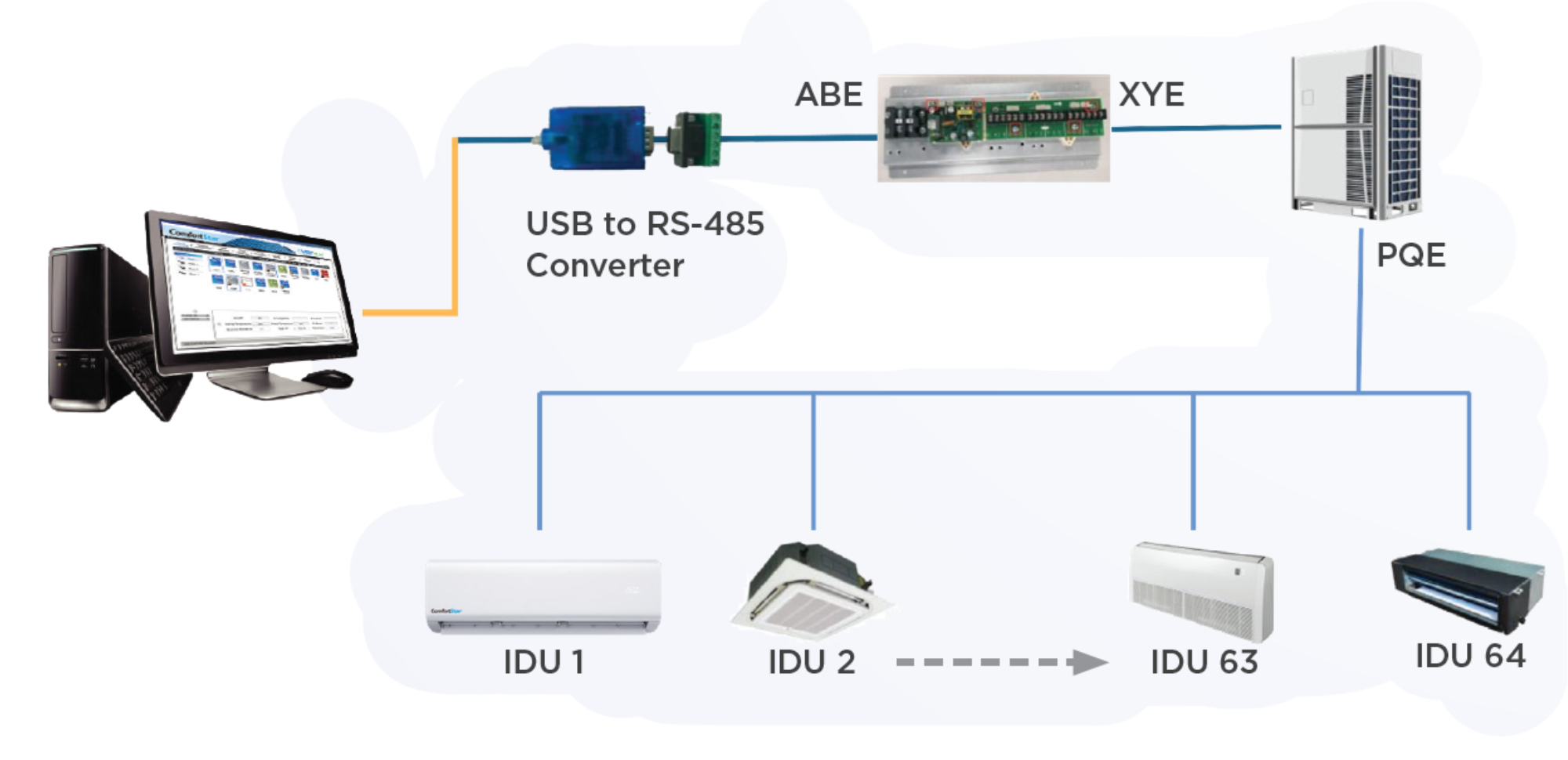

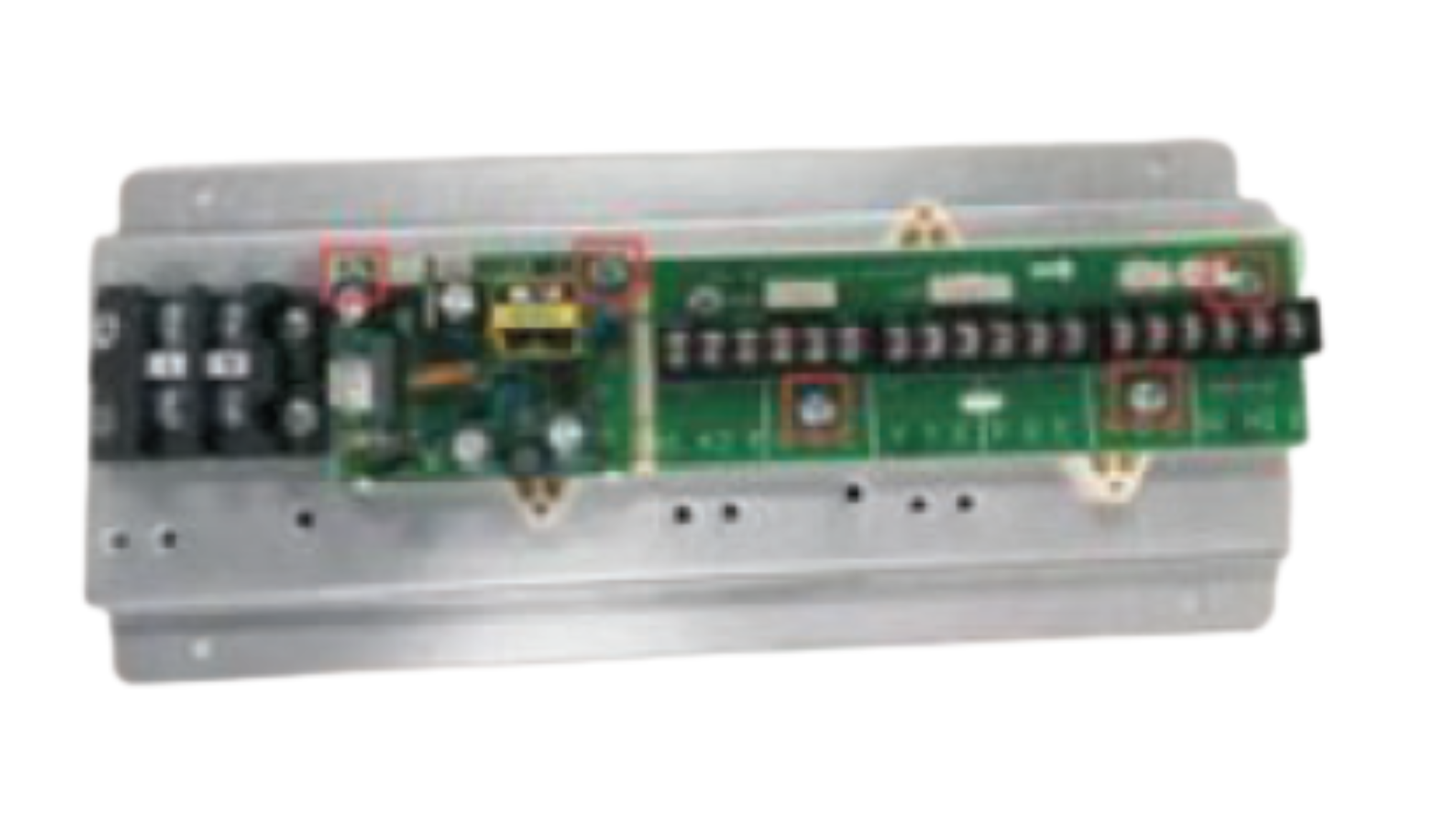

CC-LON-D166 | MODBUS Board Integration

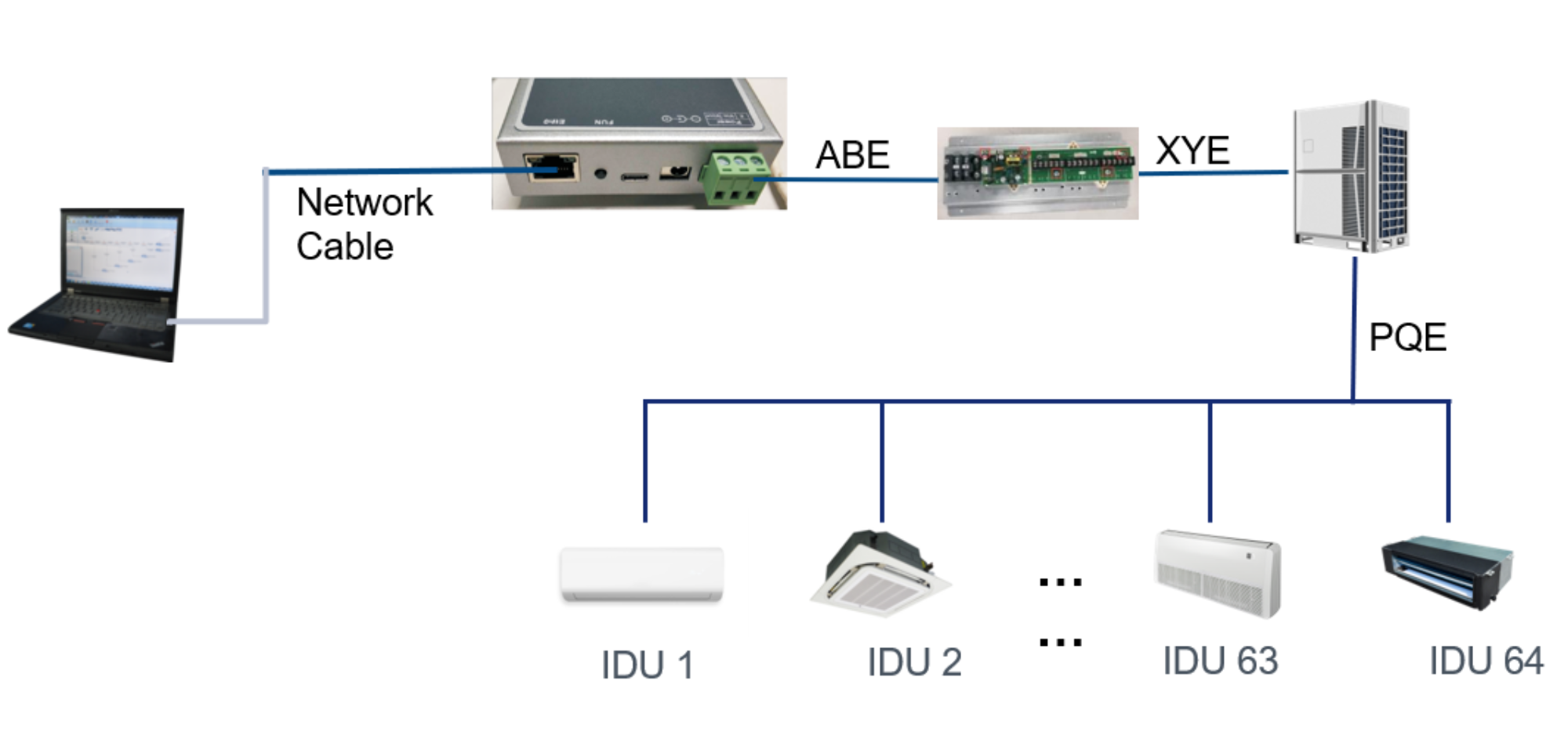

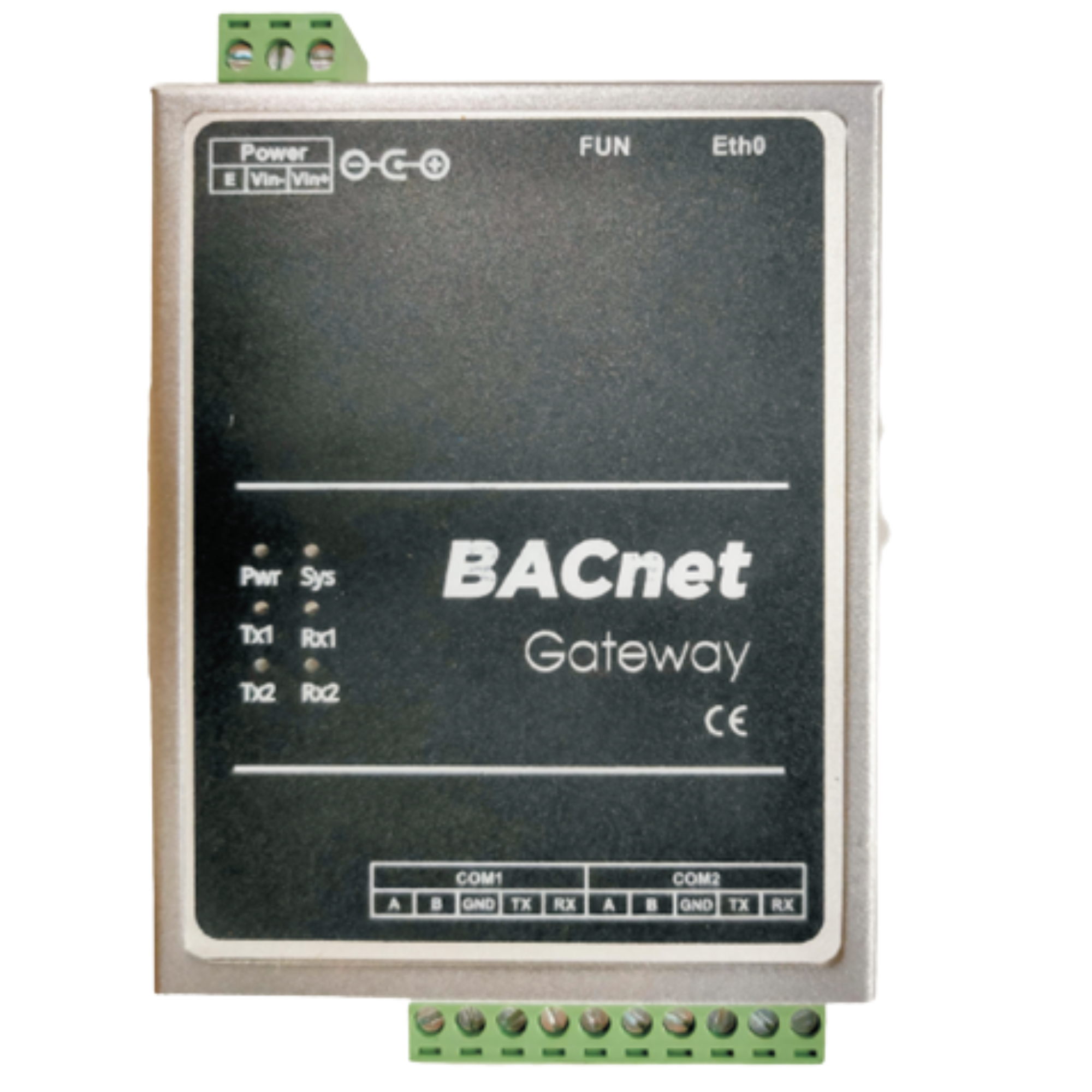

CCPBAC-D190-01P | BACnet Gateway for BMS Integration

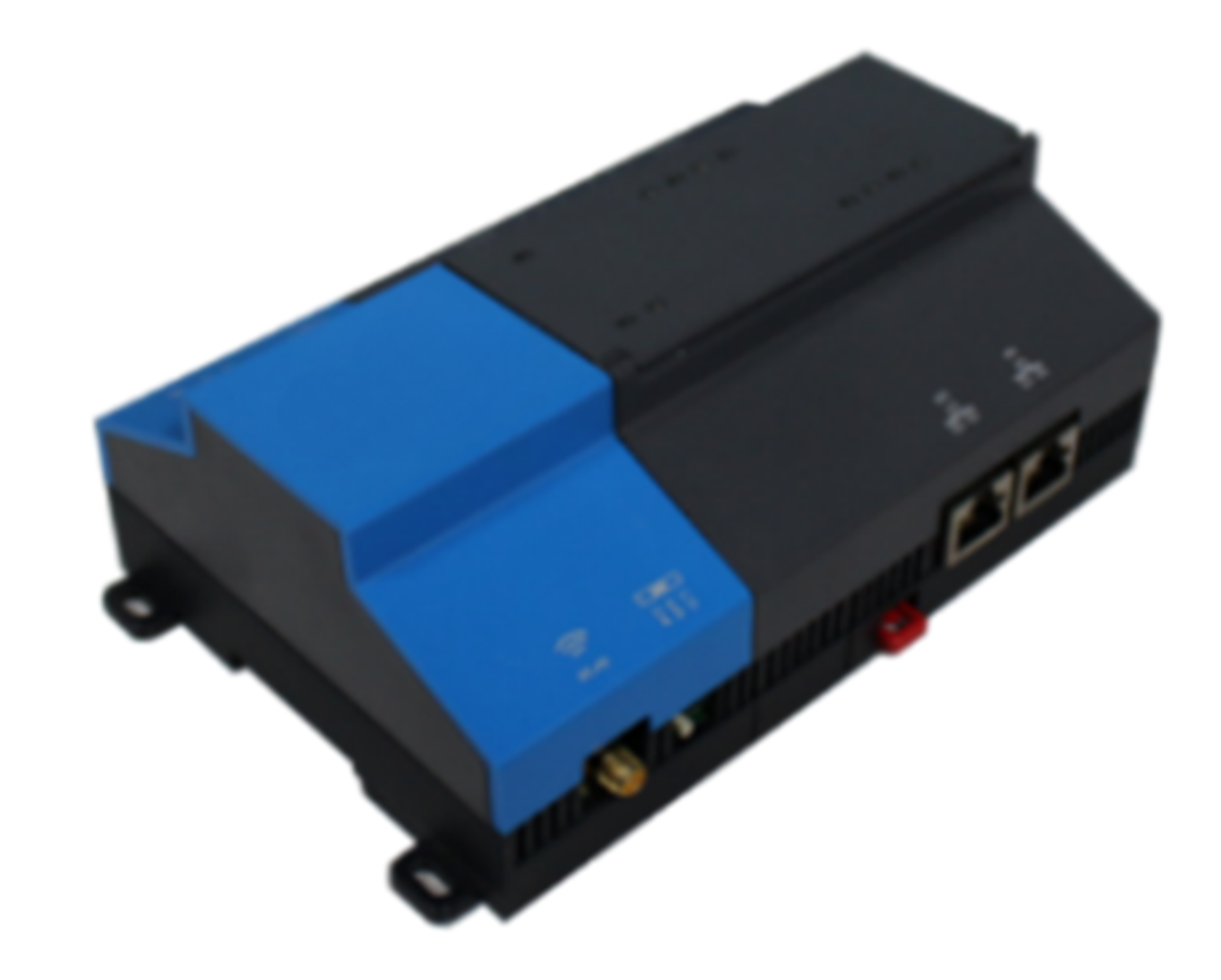

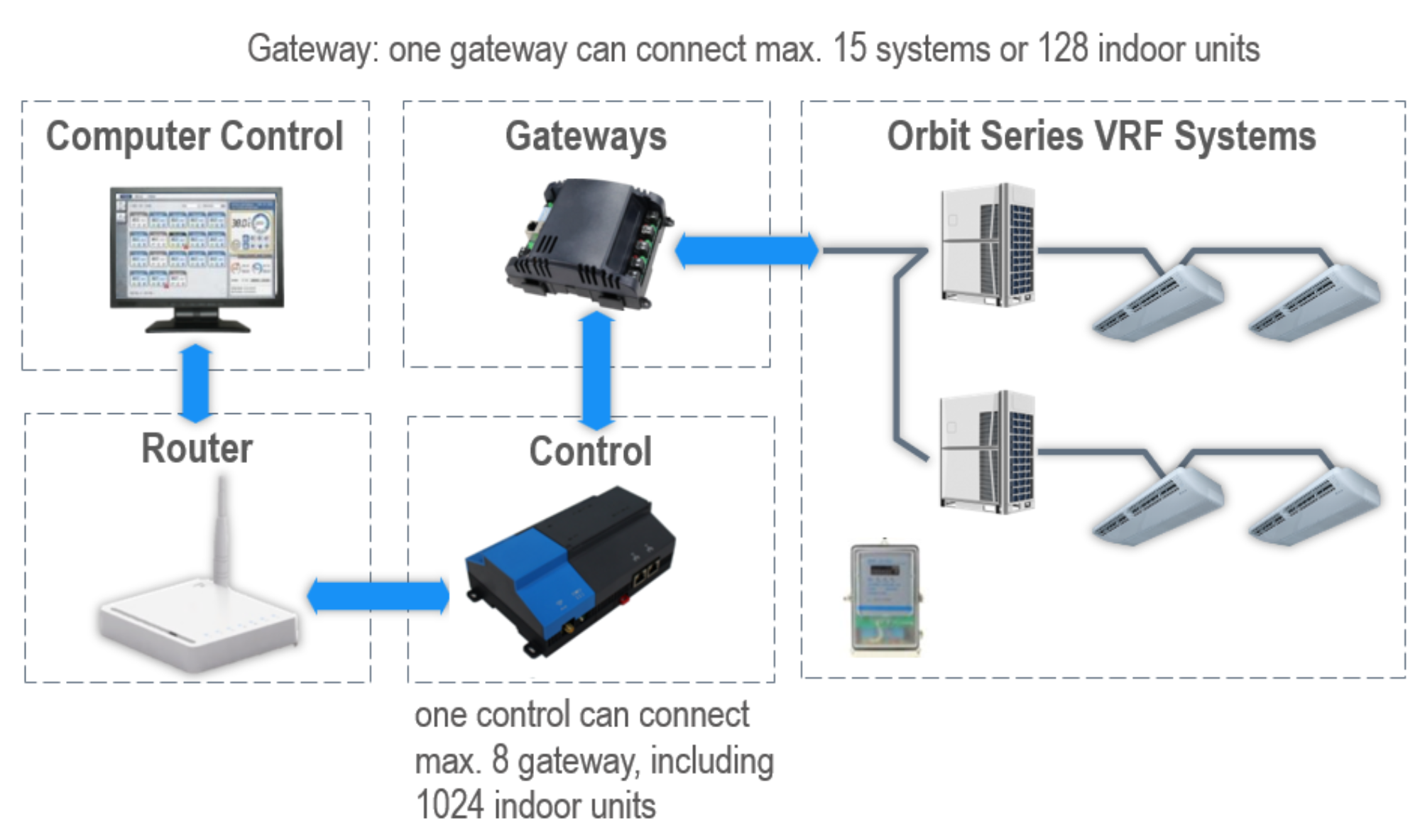

ORBIT NET | Energy Consumption Billing Central Control

CC-TCAC Series | Four-Way Cassette (AC)

CC-FCA Series | Floor/Ceiling (AC)

CC-TCAS Series | Compact Four-Way 360° Cassette (AC)

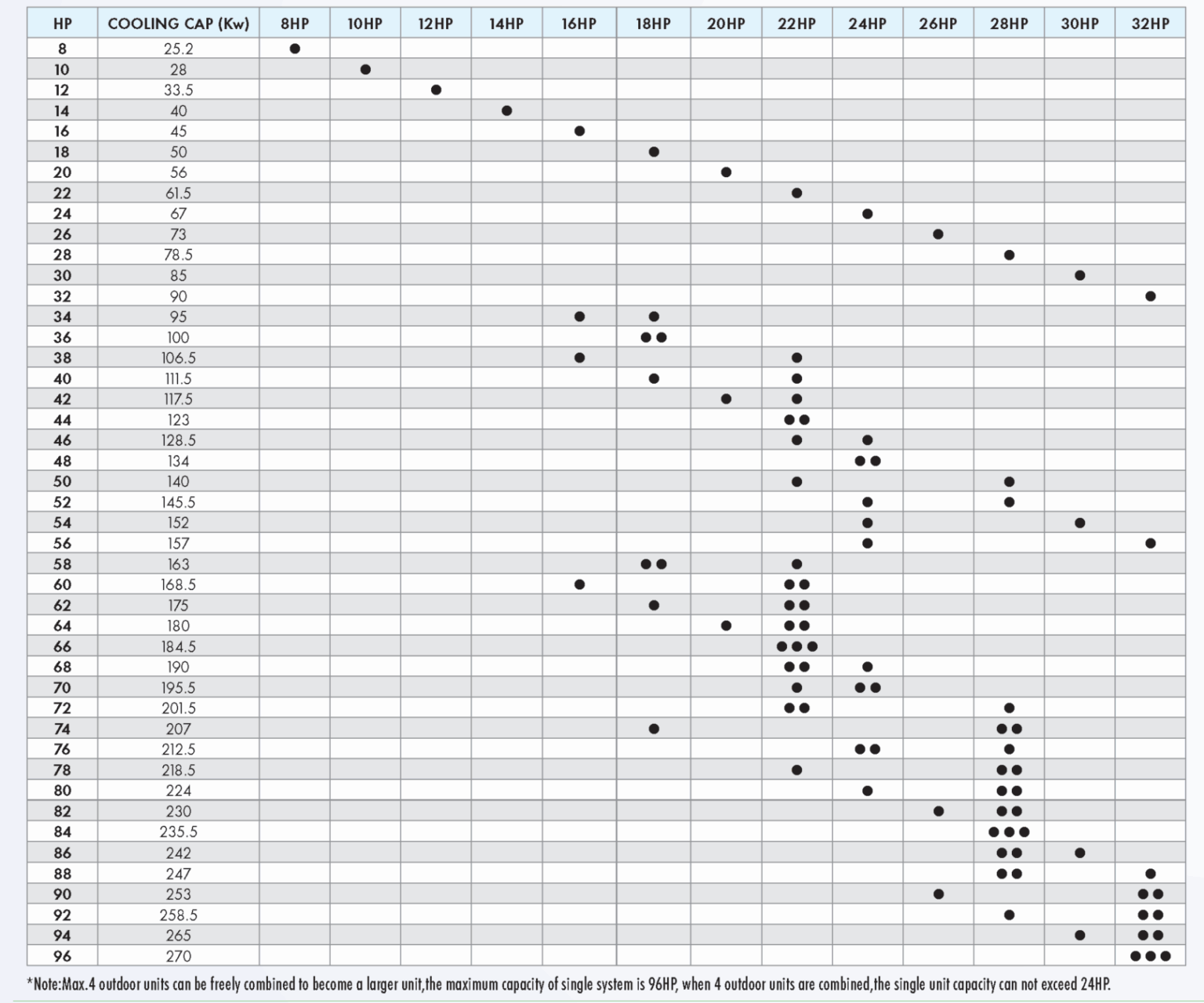

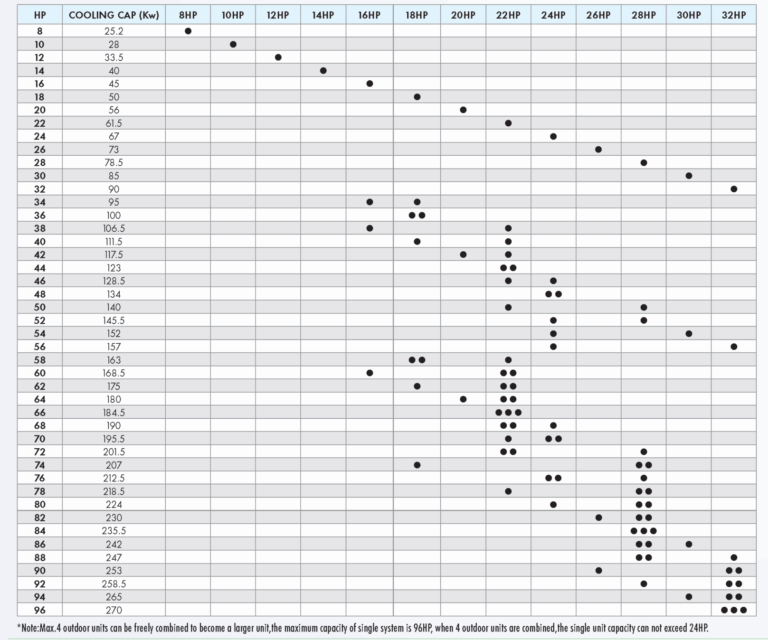

VRF Systems Combination Table

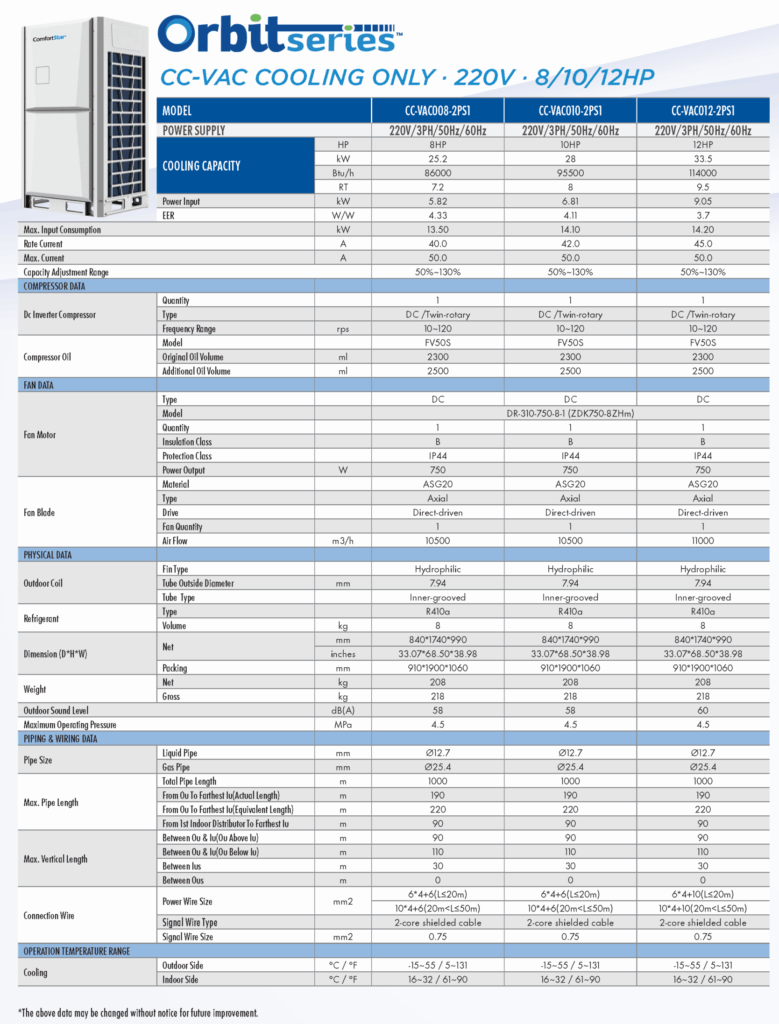

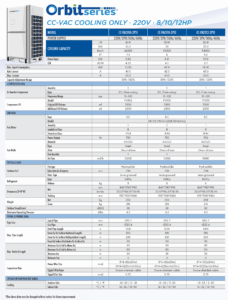

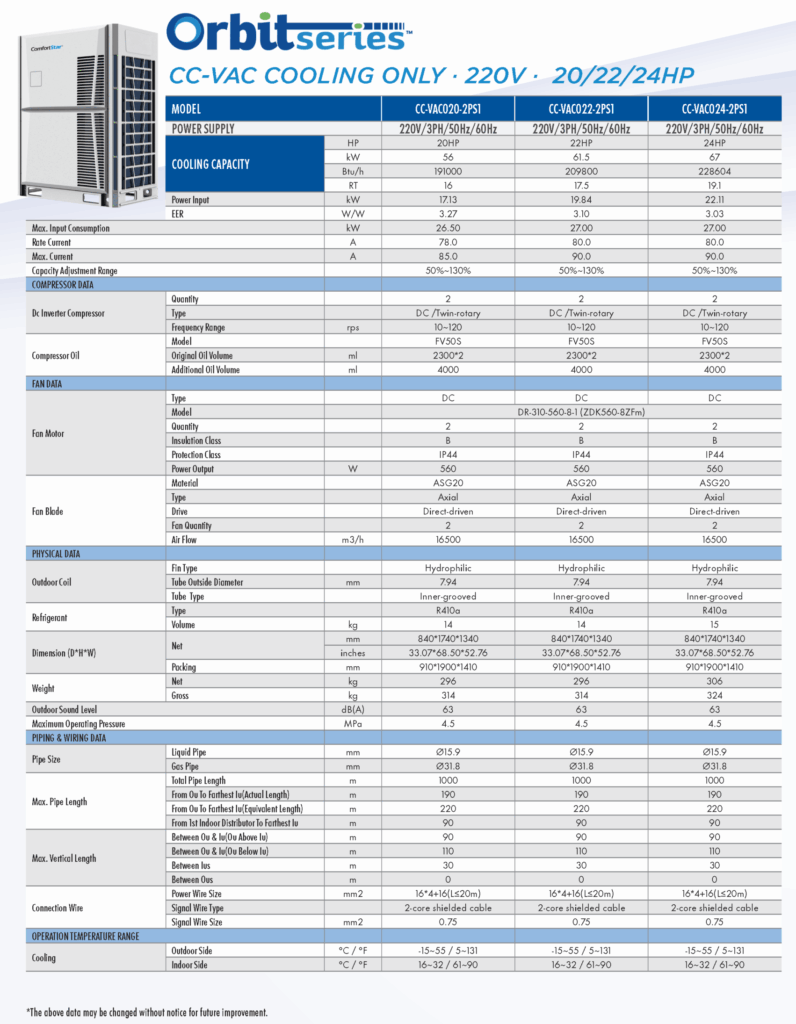

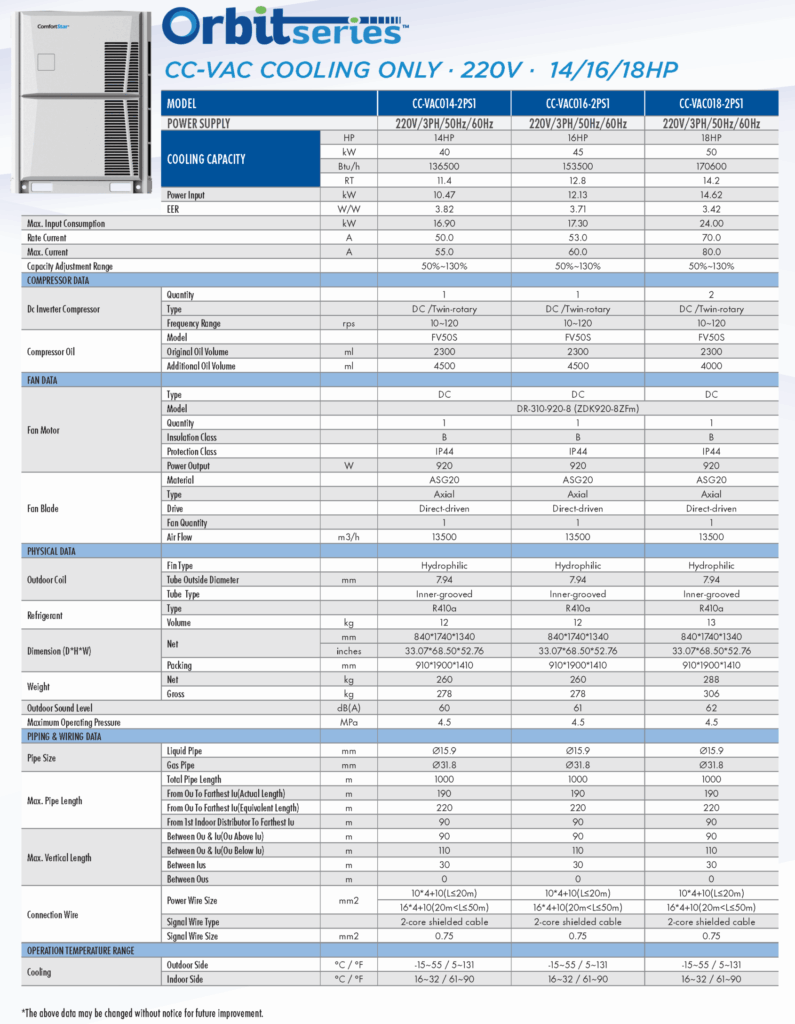

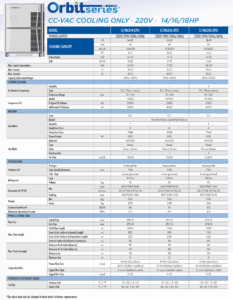

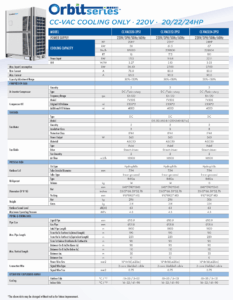

CC-VAC Series 220V Specifications

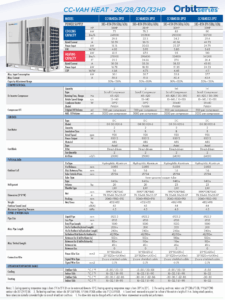

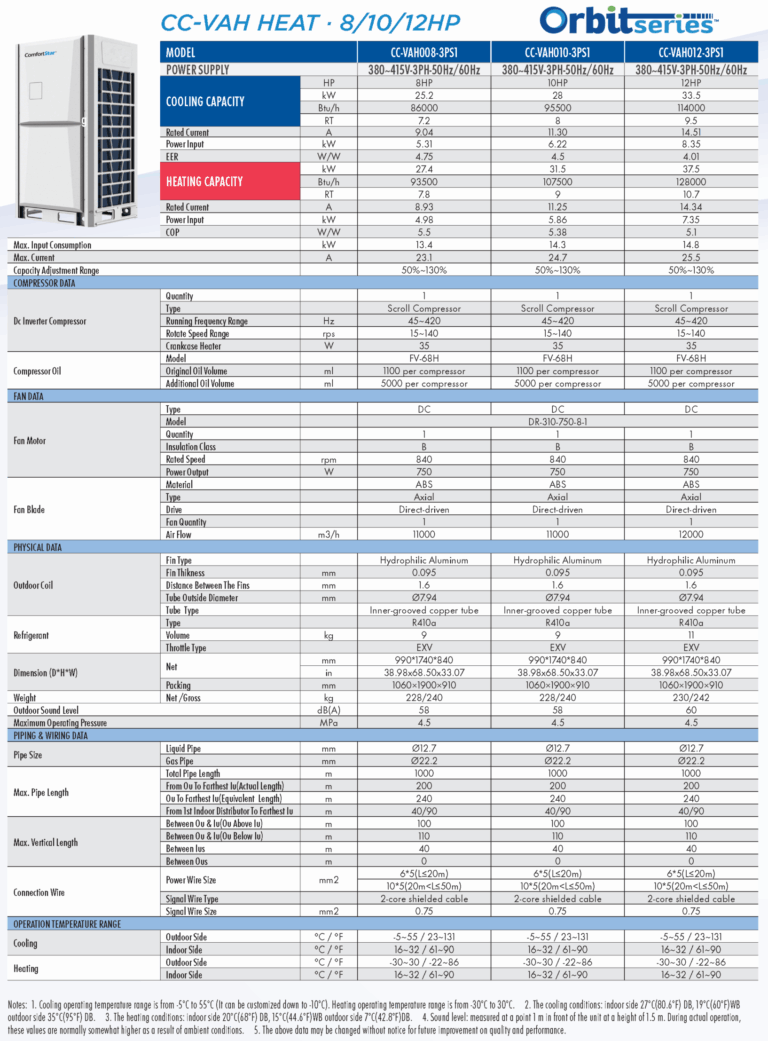

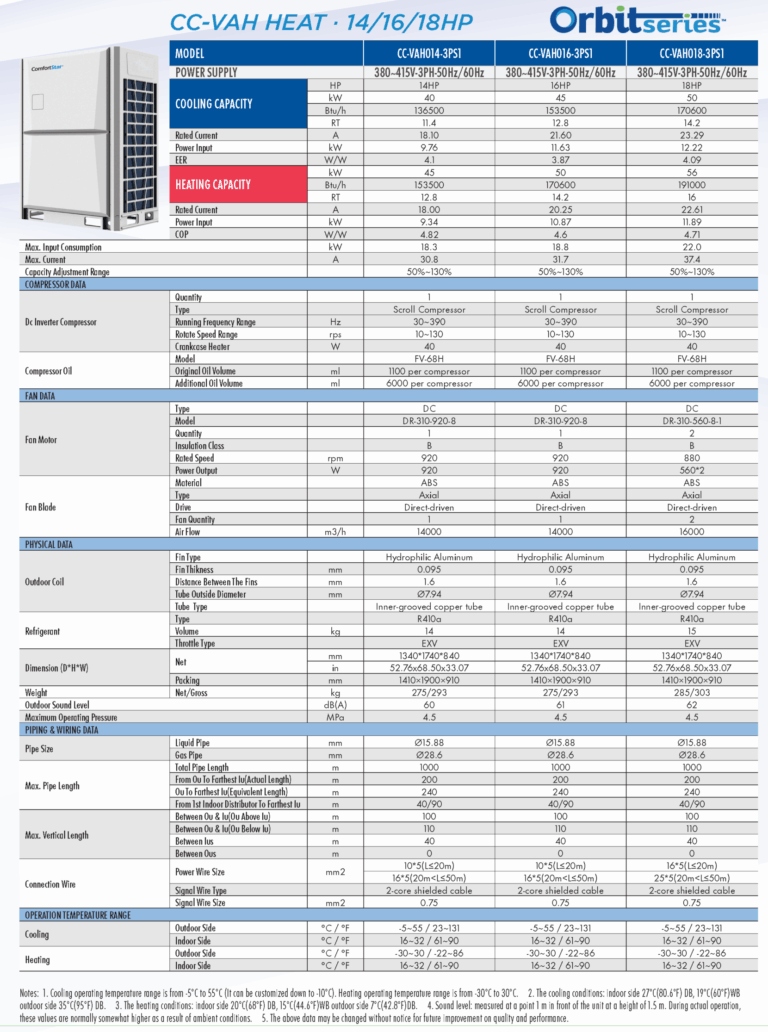

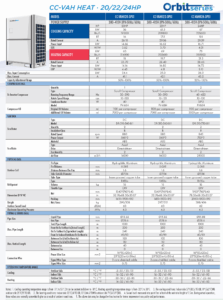

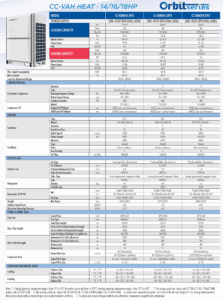

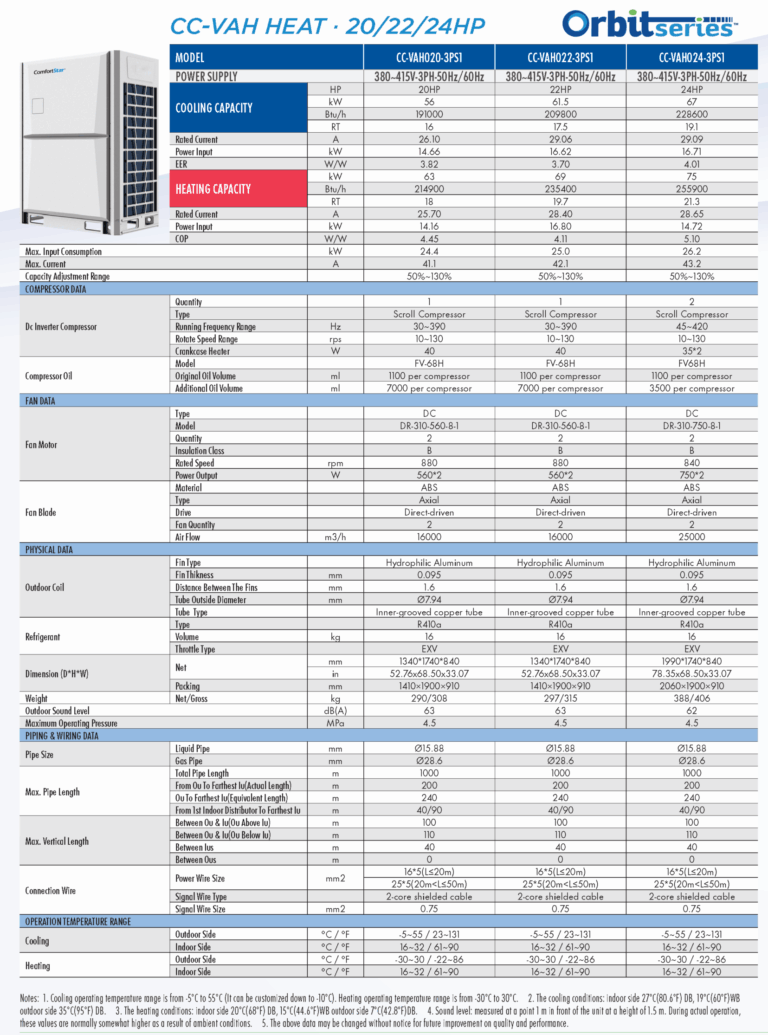

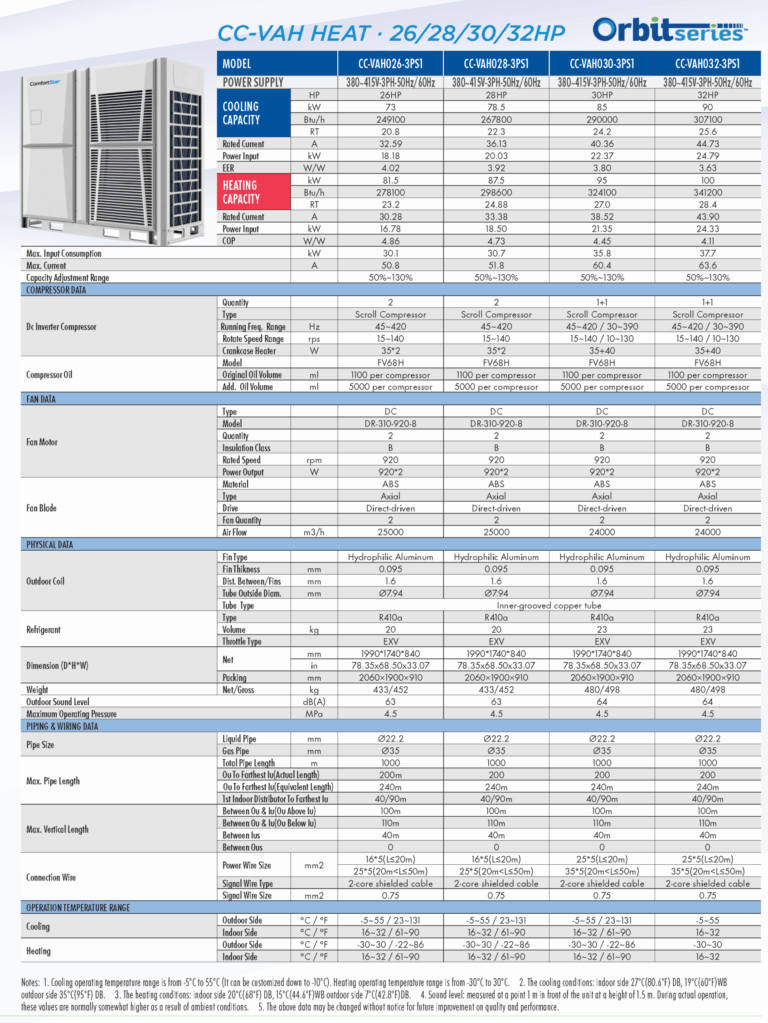

CC-VAH Series 380-415V Specifications

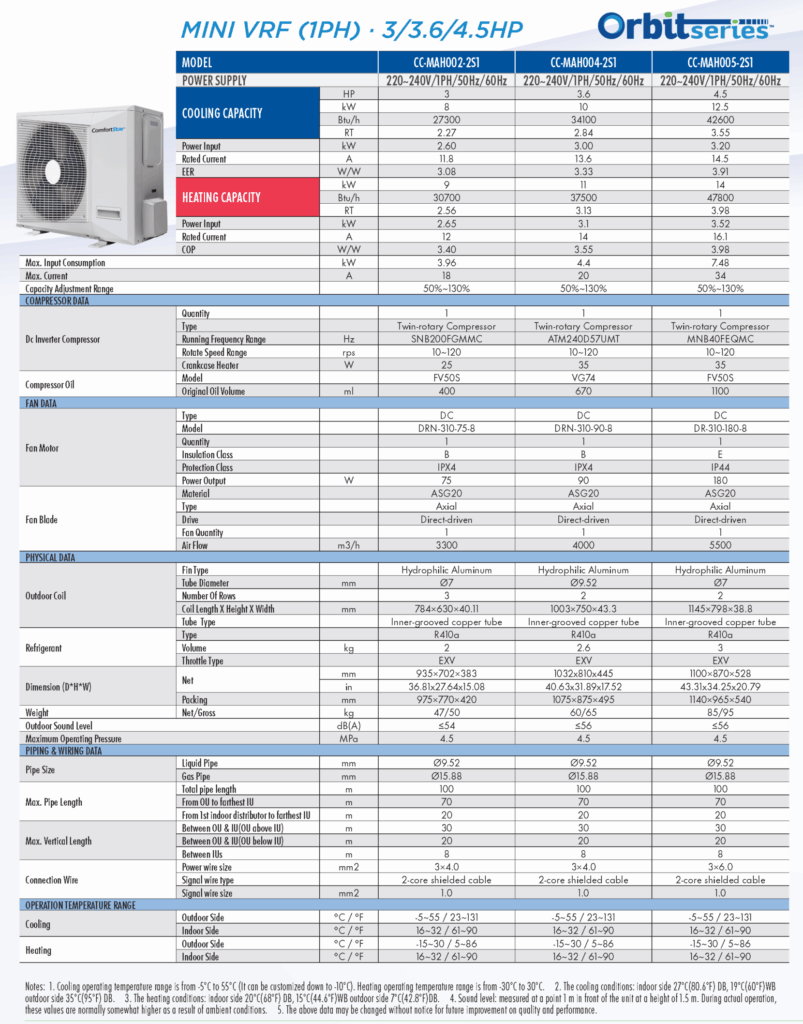

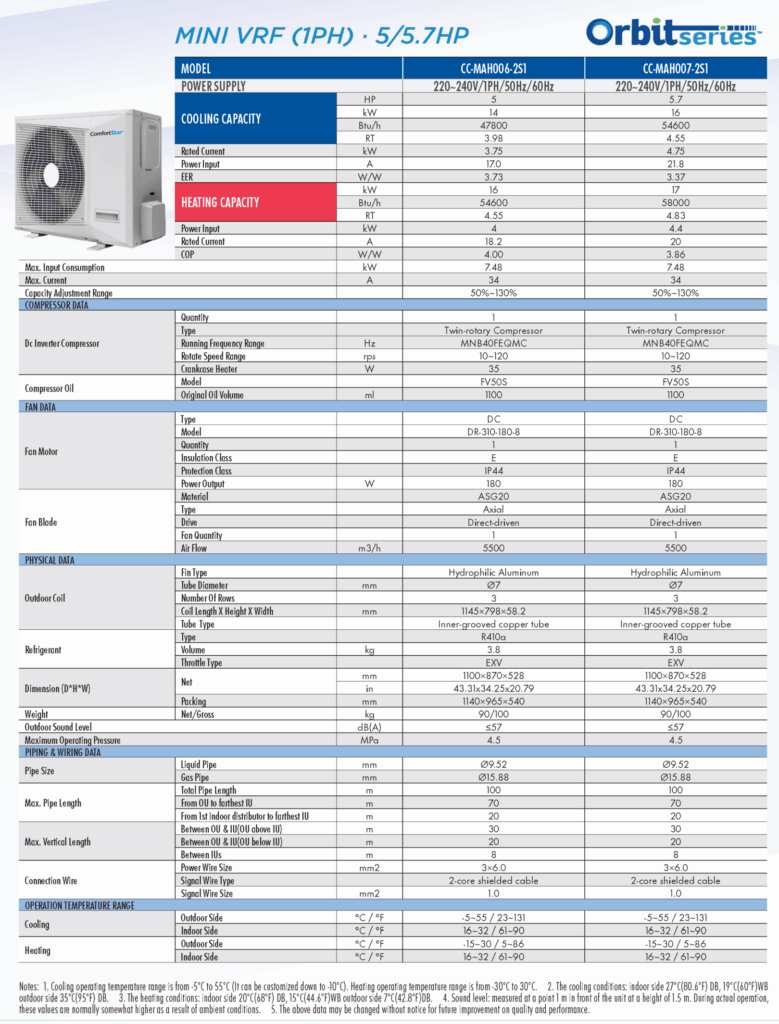

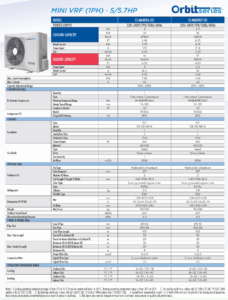

CC-MAH Series 220V Specifications

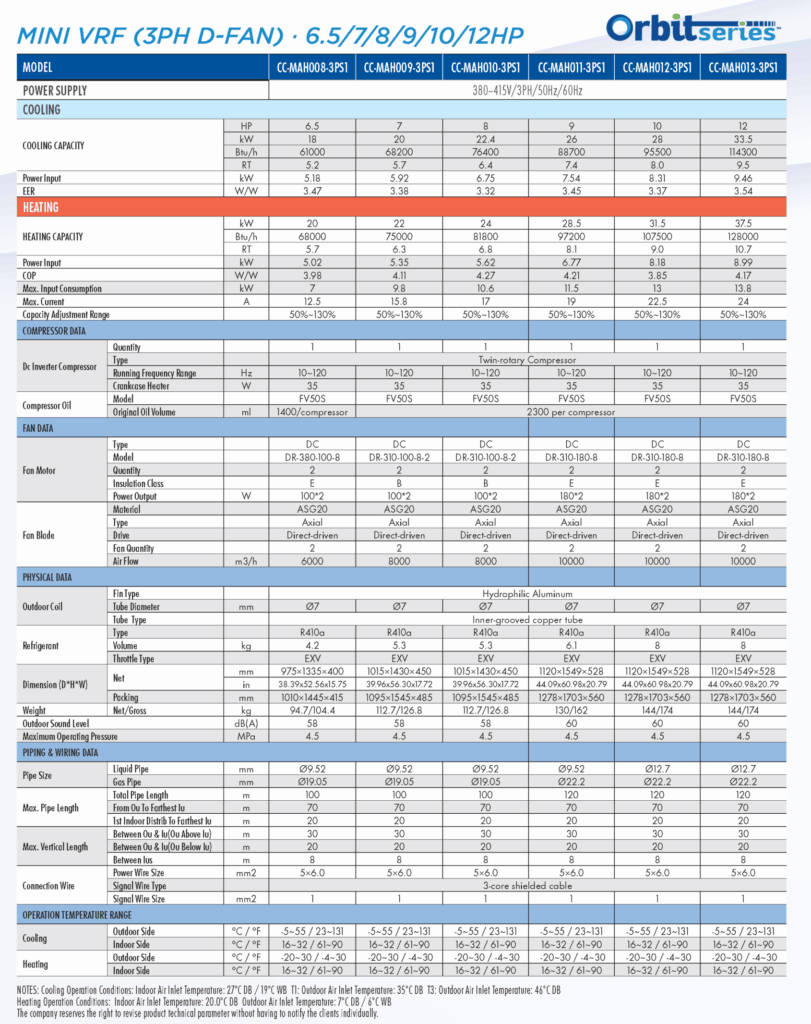

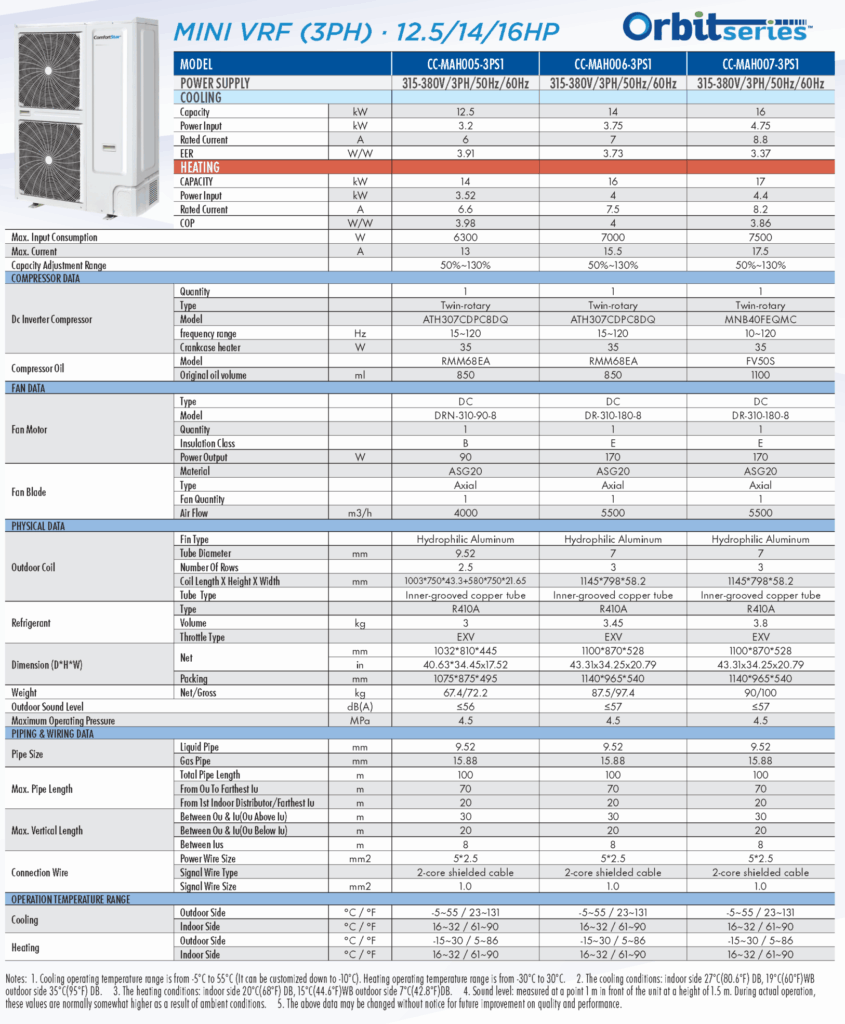

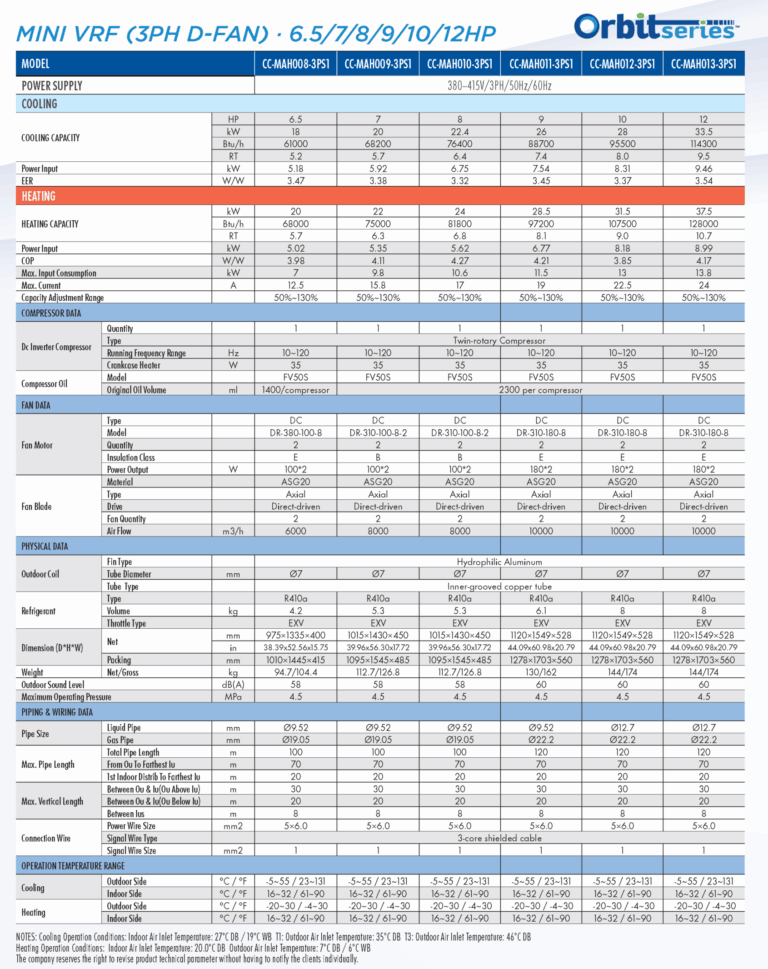

CC-MAH Series 380-415V Specifications

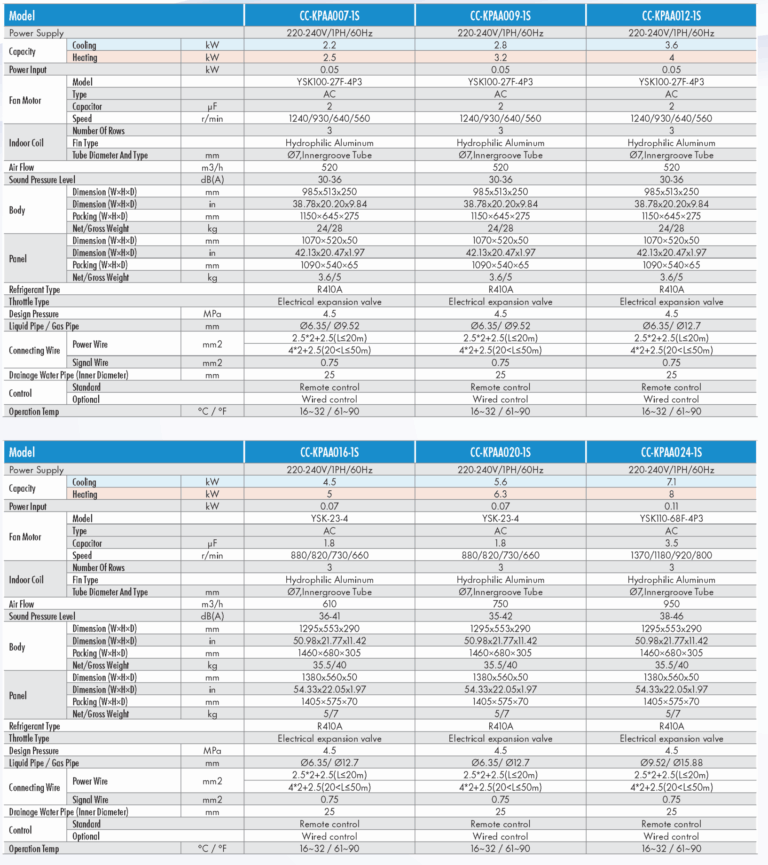

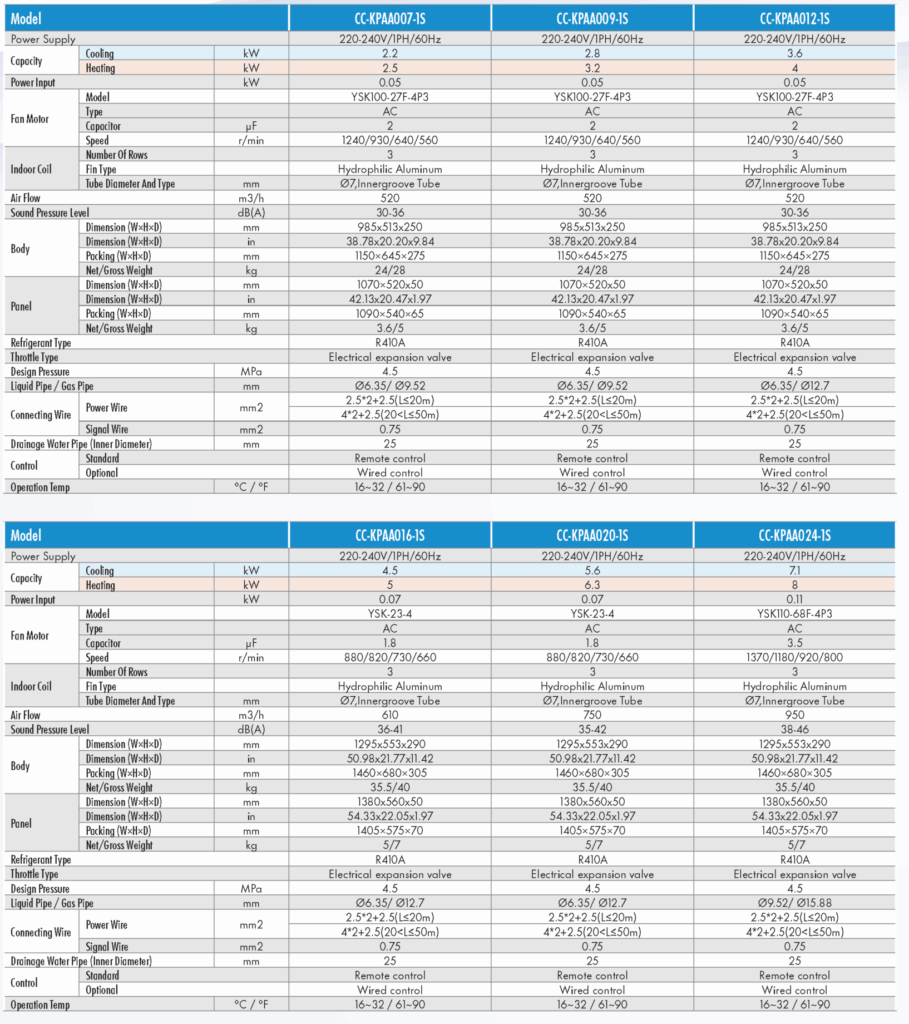

CC-KPAA Series Specifications

CC-WPAA Series Specifications

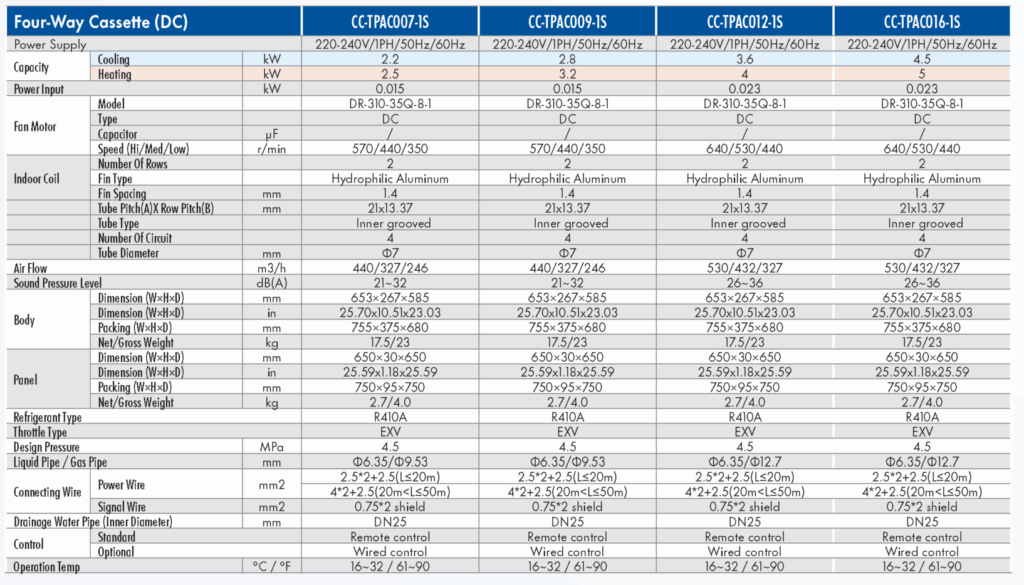

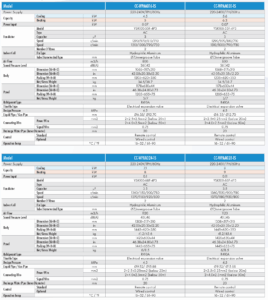

CC-TPAC Series (DC) Specifications

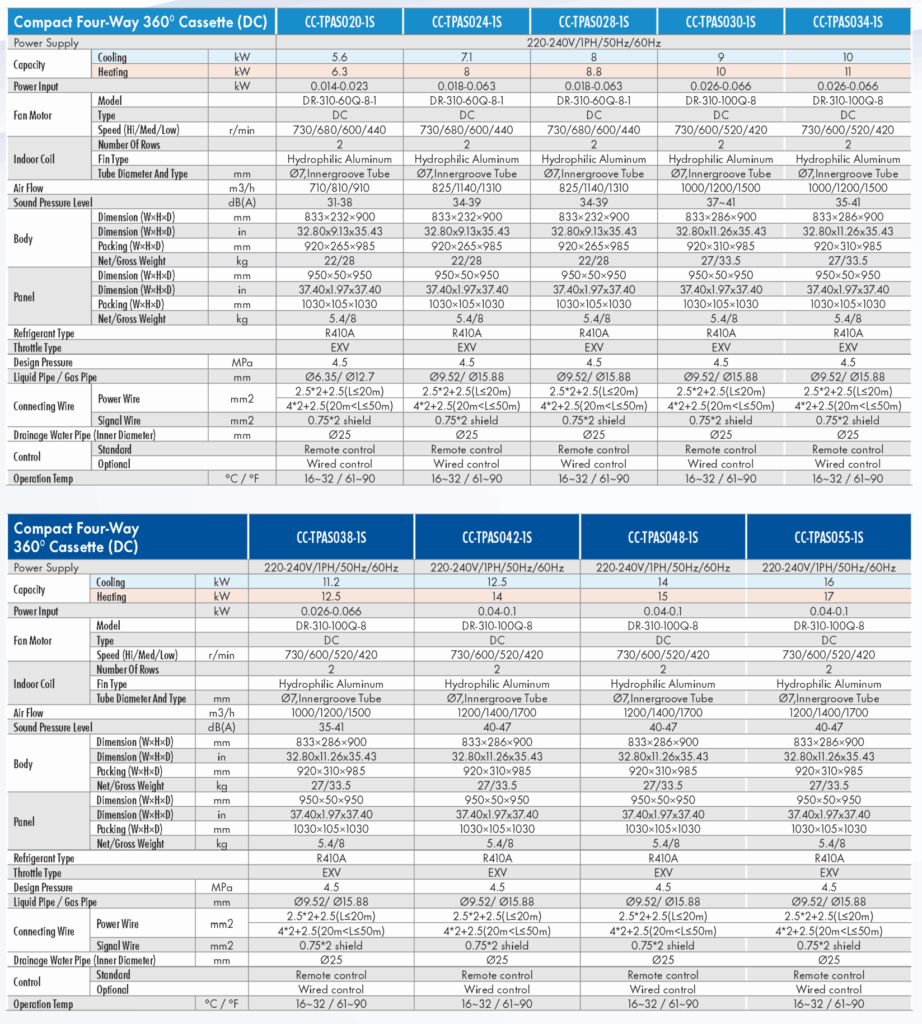

CC-TPAS Series (DC) Specifications

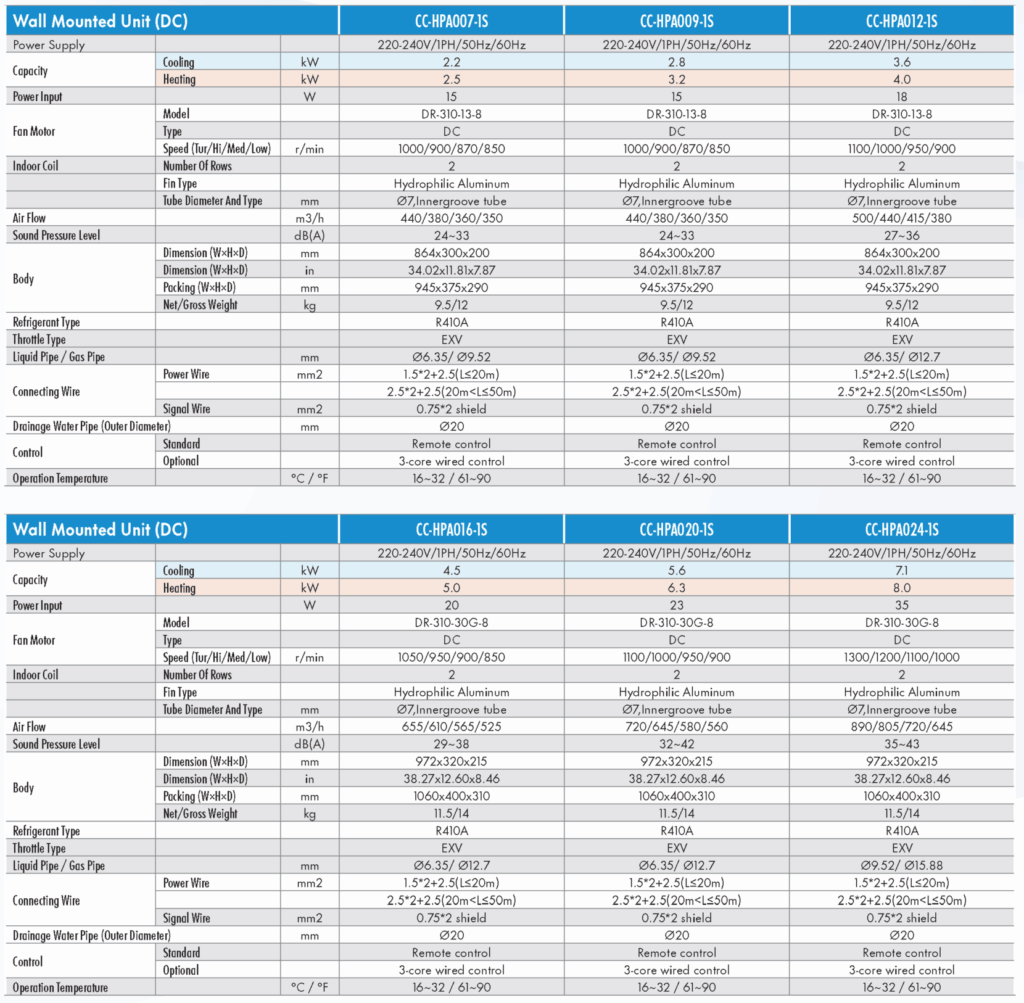

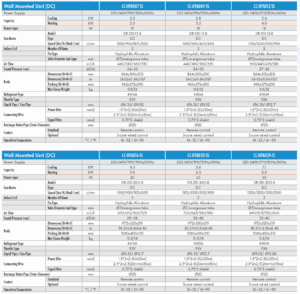

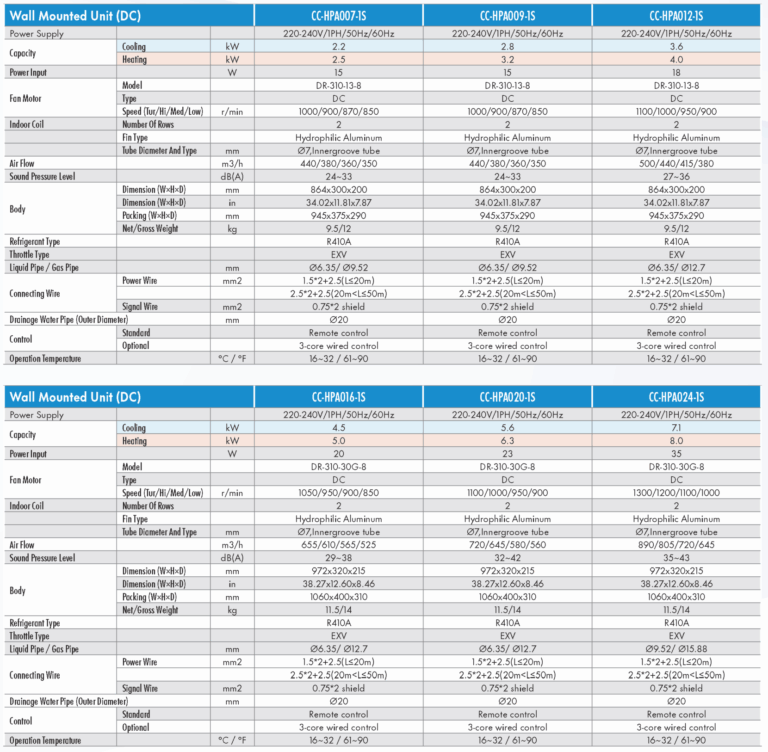

CC-HPA Series (DC) Specifications

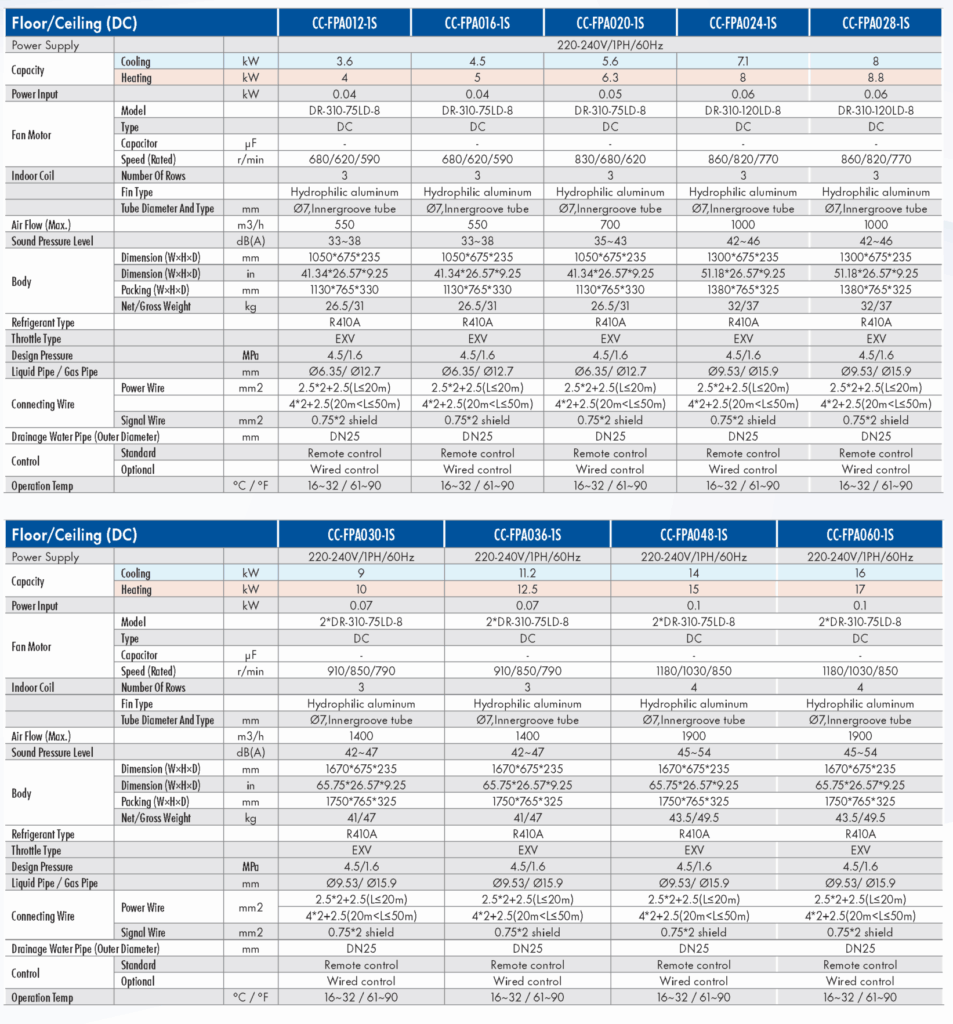

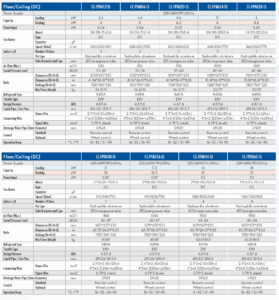

CC-FpA Series (dc) Specifications

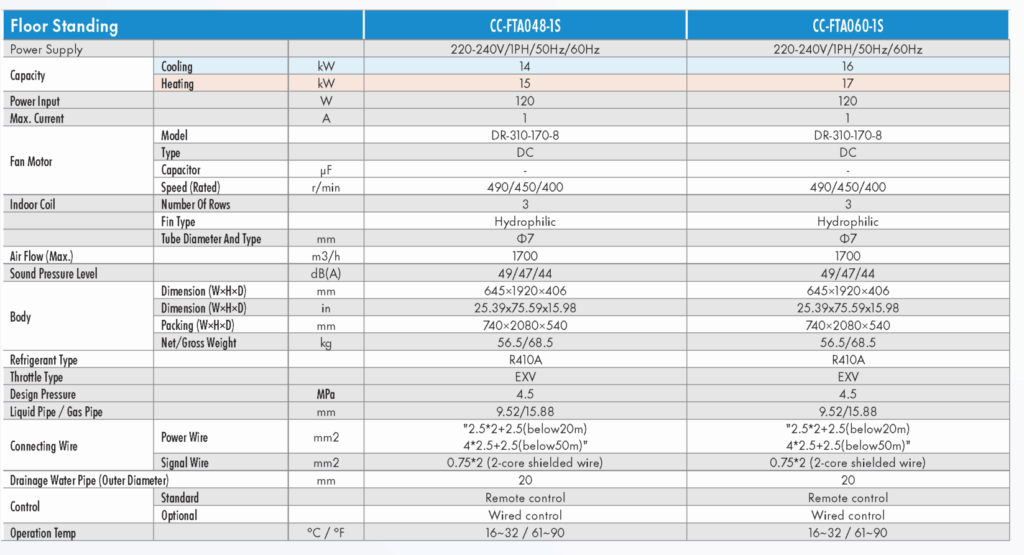

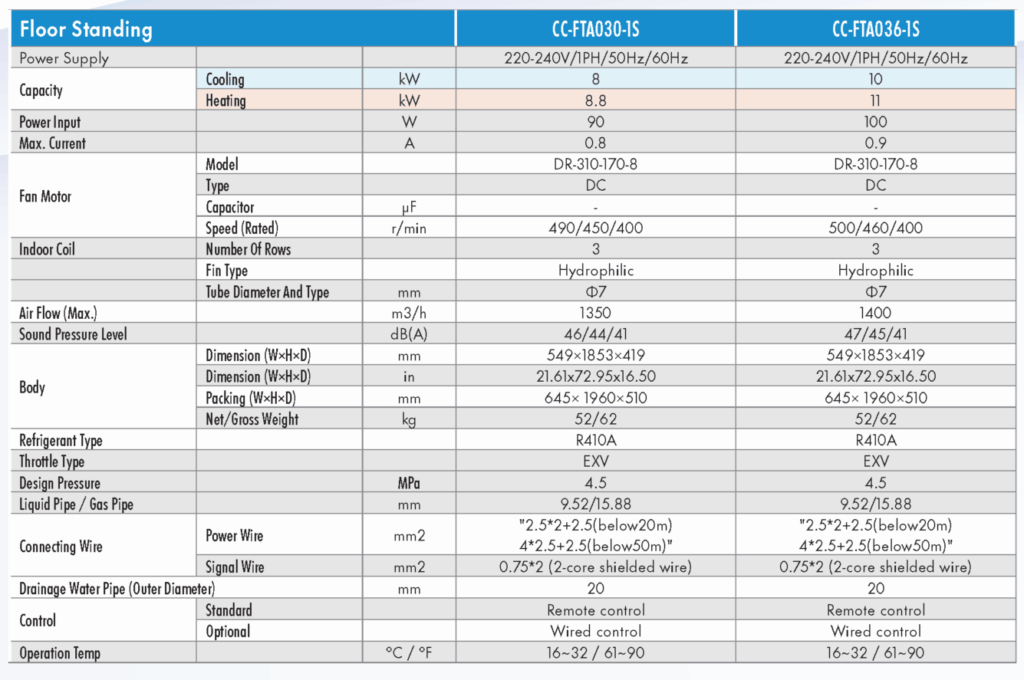

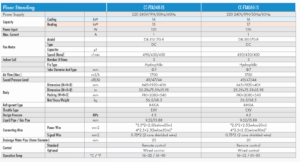

CC-FTA Series Specifications

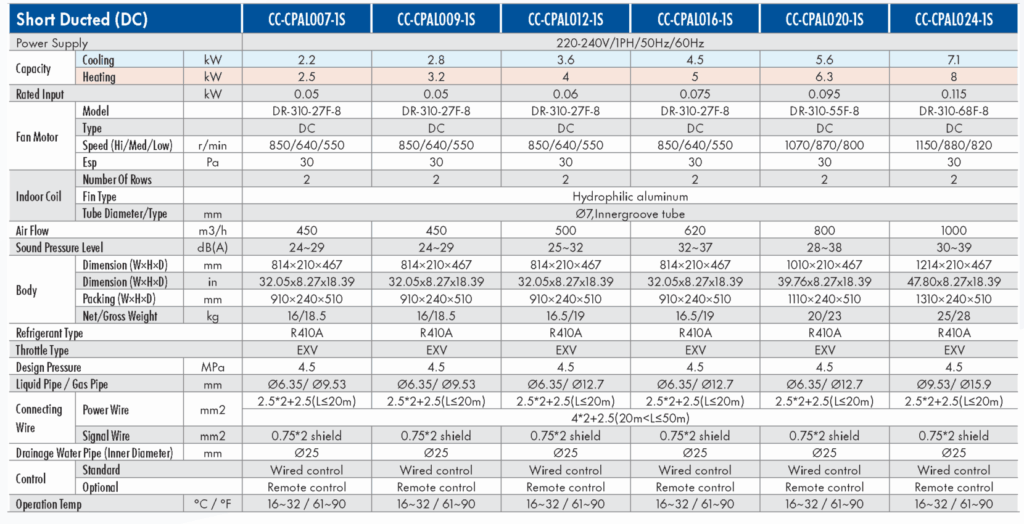

CC-CPAL Series Specifications

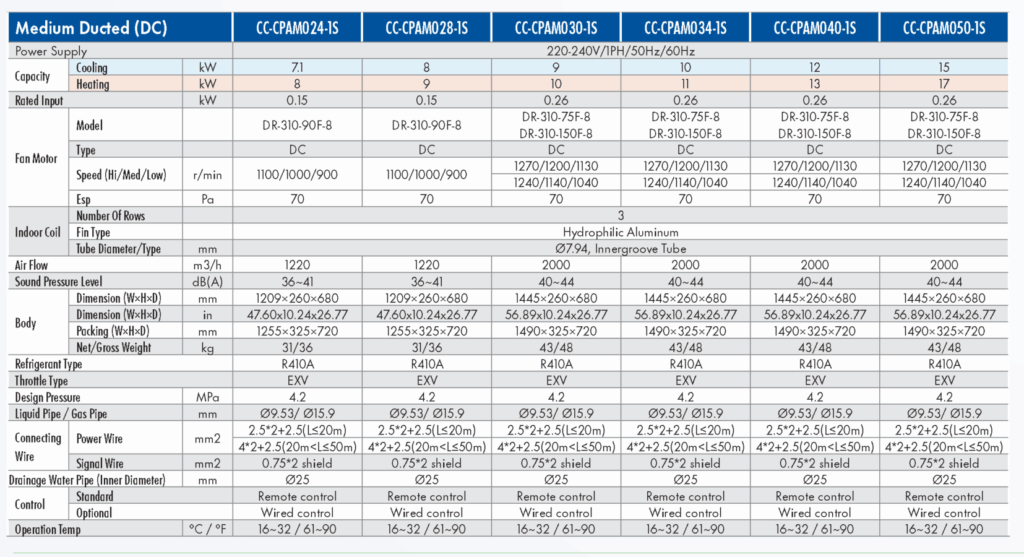

CC-CPAM Series Specifications

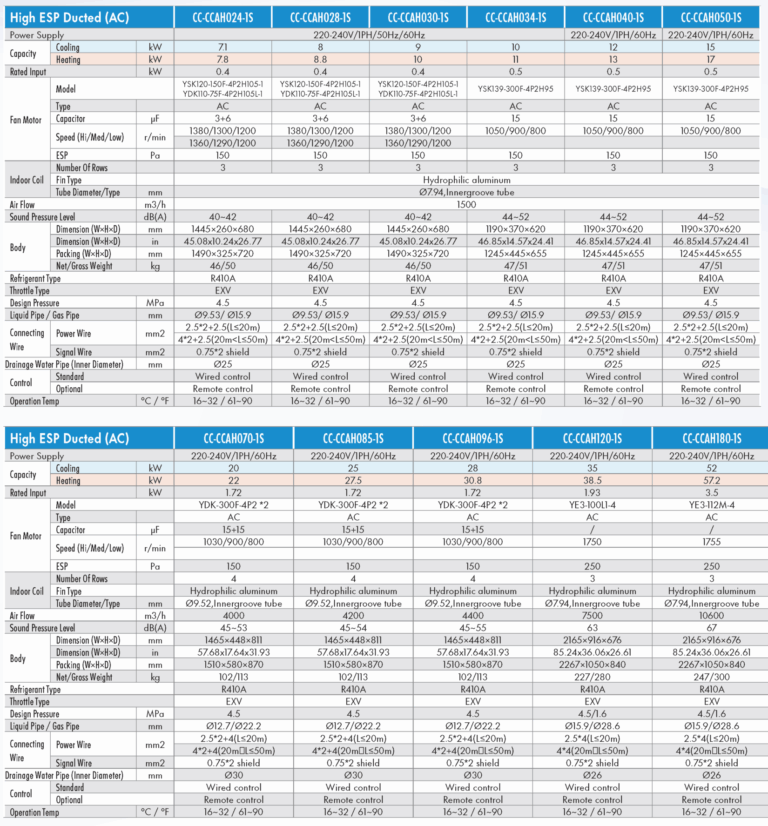

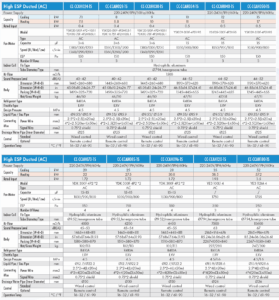

CC-CCAH Series Specifications

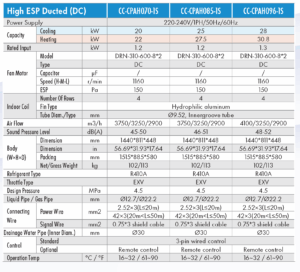

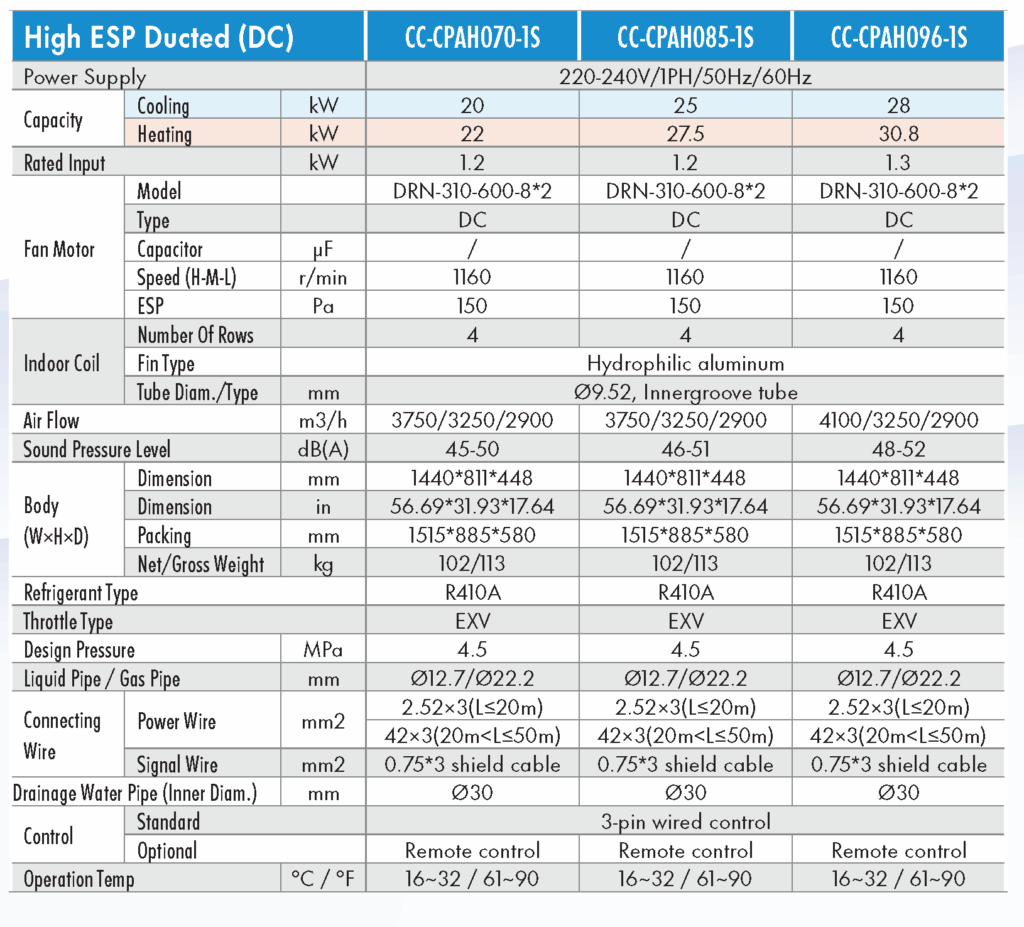

CC-CPAH Series Specifications

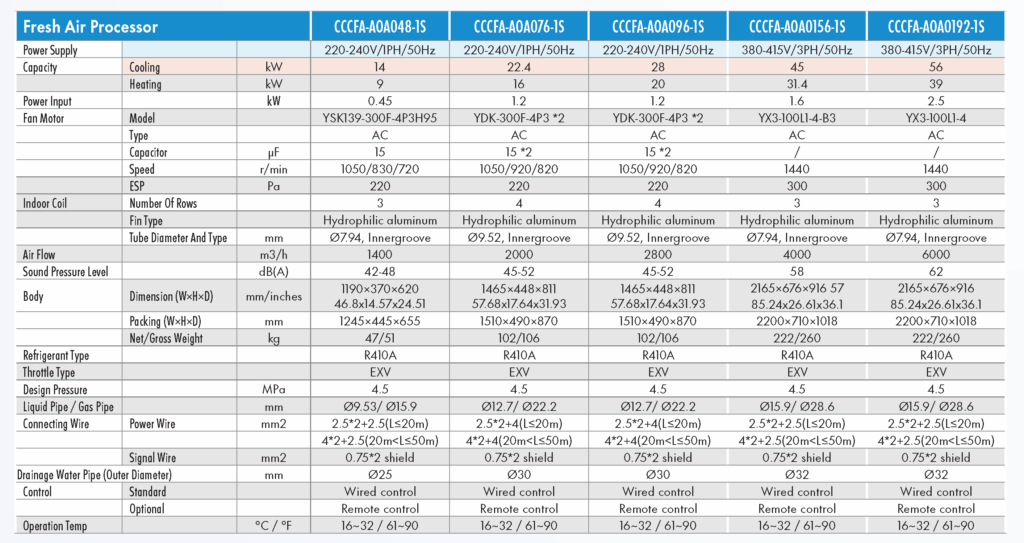

CCCFA Series Specifications

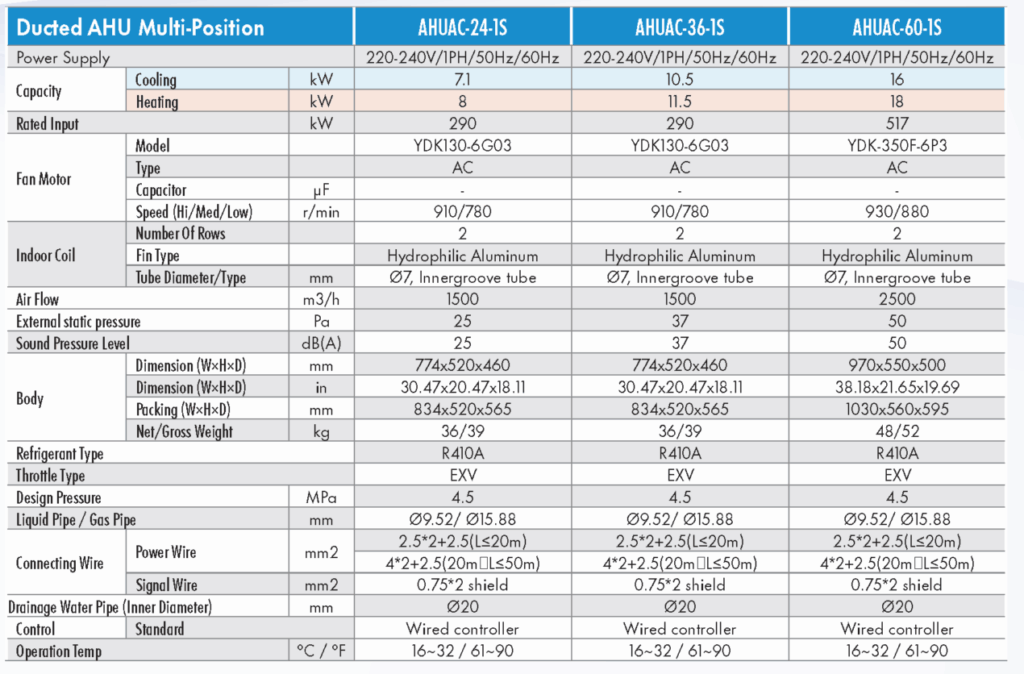

AHUAC Series Specifications

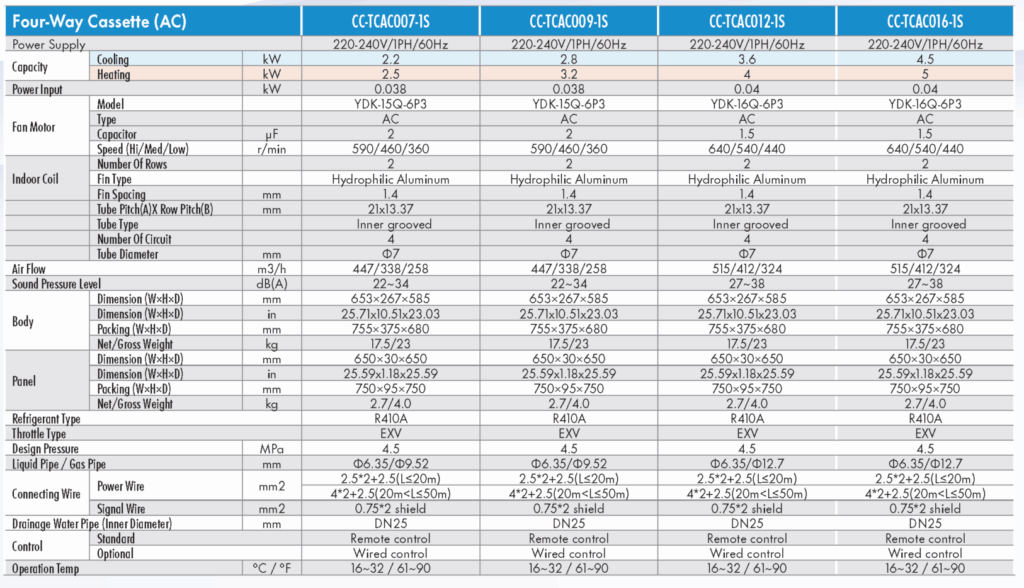

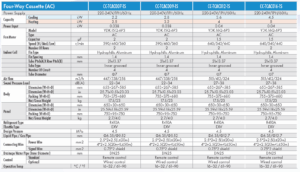

CC-TCAC Series (AC) Specifications

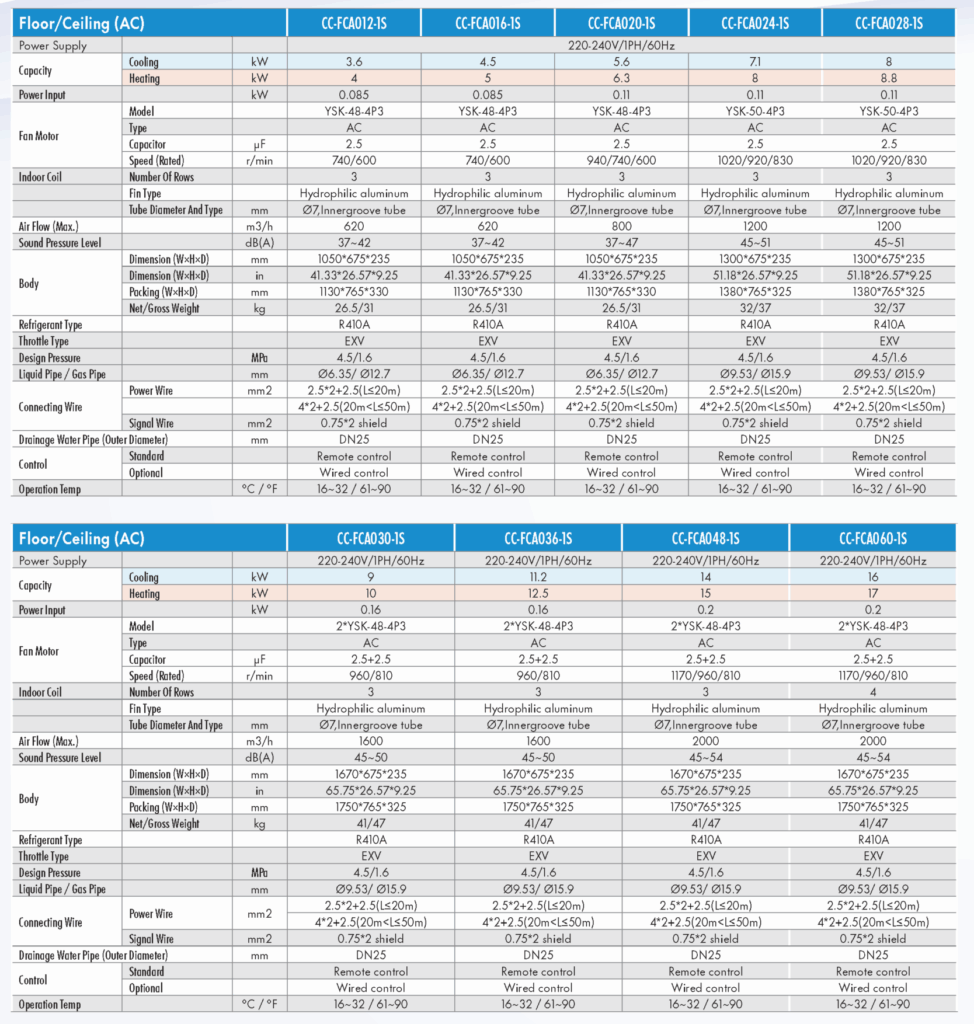

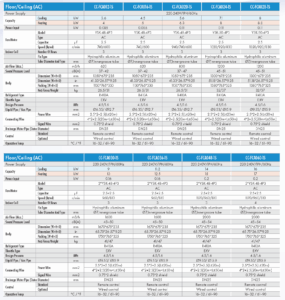

CC-FCA Series (AC) Specifications

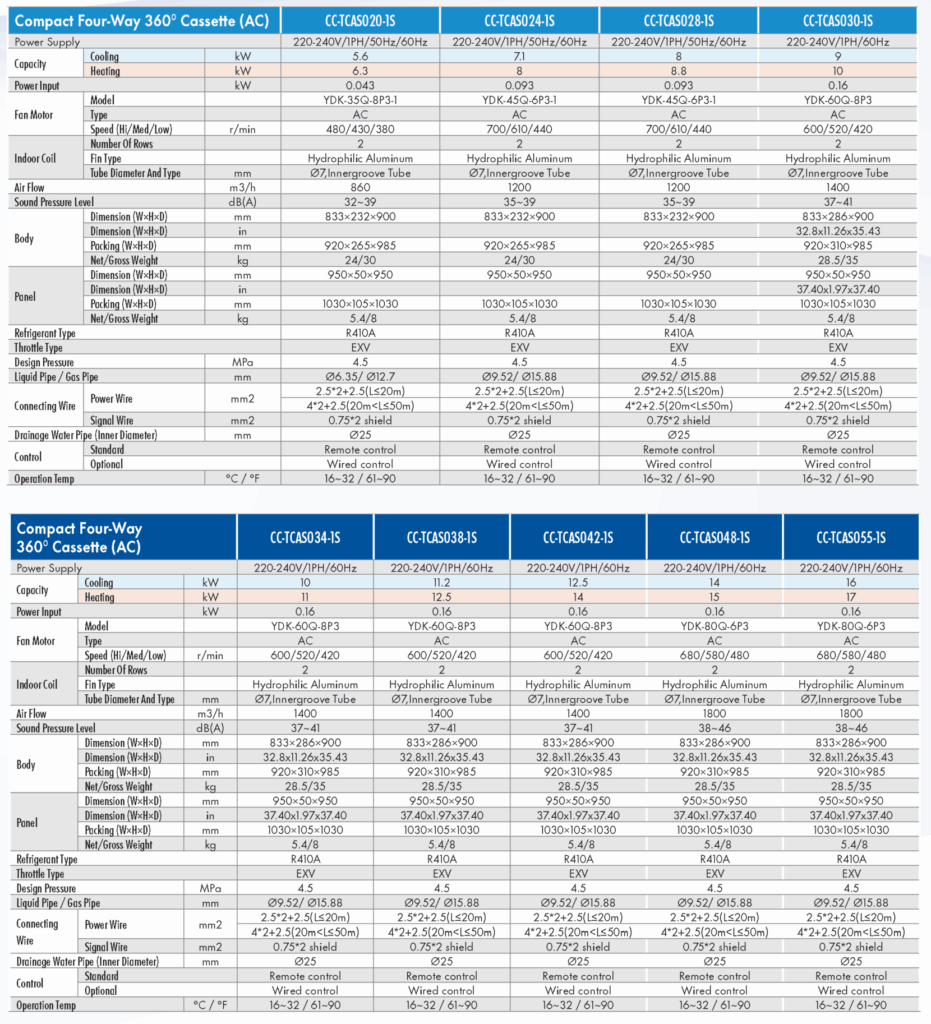

CC-TCAS Series (AC) Specifications
