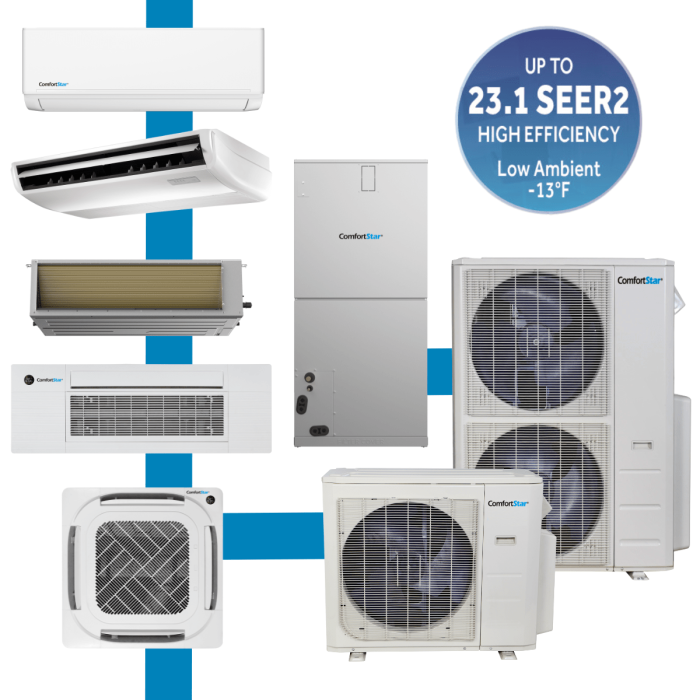

CMZ3 Multizone
Up to 23.1 SEER2
CMZ3 Multizone
Up to 23.1 SEER2
CMZ3 Platinum Multizone FEATURES
- Customization: Over 246 combinations for tailored HVAC systems.
- Zoning: Control up to 6+ zones independently for temperature preferences.
- Low Temperature Operation: Efficient performance in ambient temperatures down to -13°F.
- Wi-Fi Connectivity: Optional feature for remote control via smartphones or smart devices.
- Bypass Mode: Optimizes airflow between zones and the main unit.
- Interactive Display: User-friendly interface for easy access to settings and information.
- Self-Diagnosis: Automatically identifies and reports issues for streamlined maintenance.
- Energy Efficiency: High efficiency inverter technology adjusts compressor speed for lower bills.
- Variety of Indoor Units: Options include high wall mount, cassette, floor/ceiling, fan coil, and AHU for different space needs.
- Available Indoor Units:
High Wall Mount: Ideal for homes with limited floor space, offering efficient cooling and heating.
Cassette: Perfect for commercial spaces, providing discreet air distribution.
Floor/Ceiling: Versatile installation options that can fit various building designs.
Fan Coil: A cost-effective solution that allows for easy integration into existing systems.
AHU (Air Handling Unit): Delivers conditioned air to multiple zones, enhancing overall system efficiency.
- Large or Multileveled Homes: A multizone system can accommodate most or all of the rooms and spaces.
- Rooms With Different Needs: A multizone system allows these adjustments.
- Older Homes: A multizone system won’t be as invasive as running ducts through the walls since every room has its own unit.
- Mix and match evaporator units depending on capacity, with individual zoning for up to 6 zones!
CMZ3 Platinum Multizone Resources
CMZ3 Platinum Multizone Specifications
CMZ3 Platinum Multizone Combinations
CMZ3 Platinum Multizone Selection CHART
CMZ3 Platinum Multizone EFFICIENCY TABLE

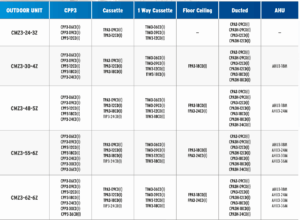

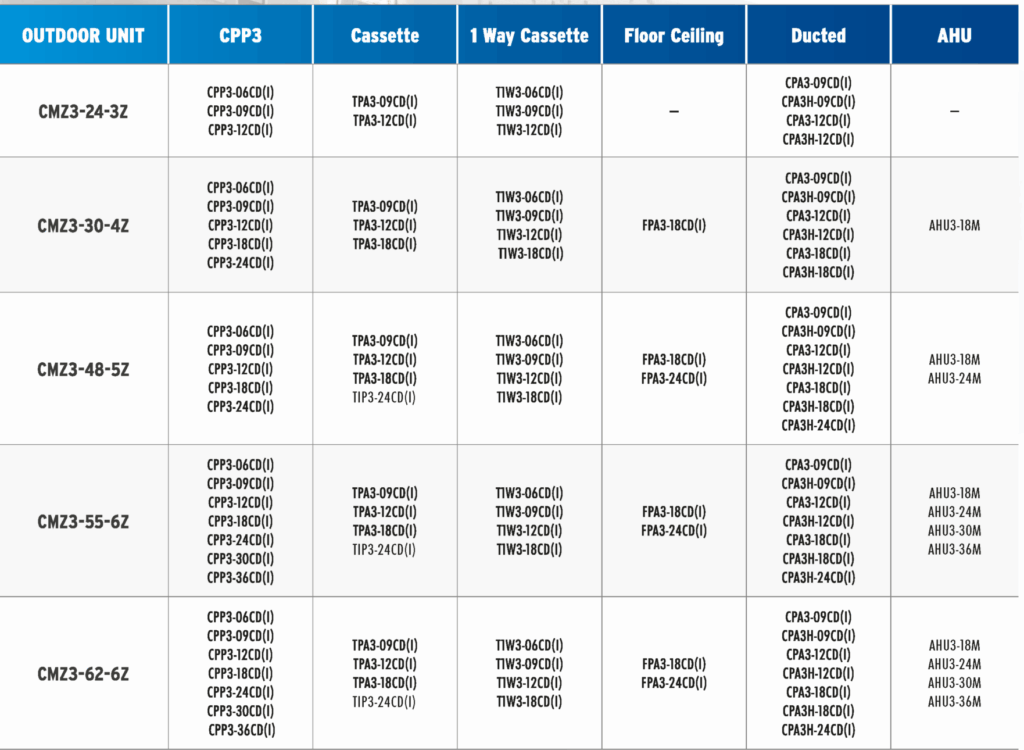

CMZ3 Platinum Multizone COMBINATION TABLE
Individual INDOOR UNITS for CMZ3 Platinum Multizone OUTDOOR units
CPP3 Platinum MULTIZONE
CPP3 Platinum MULTIZONE features
- Low Ambient Capability: Operates in temperatures as low as -22°F.
- Manual Power Switch: Turn unit ON/OFF via evaporator button.
- Interactive Display: Shows error and service codes, refrigerant leak detection, and auto defrost status.
- Refrigerant Leakage Detection Sensor
- 3 Directional Airflow: Ensures effective air distribution, reaching room corners.
- Controls: Optional wired controls and WiFi control with Cool Link.
CPP3 Platinum MULTIZONE Resources
CPP3 Platinum MULTIZONE specifications
TPA3 Platinum MultiZone
TPA3 Platinum MultiZone features
- Indoor Cassette
- Compact Design
- Refrigerant Leakage Detection Sensor
- Concealed Ceiling Unit
- Quiet Operation
- 360° Air Discharge
- Wireless Remote Control (standard)
- Programmable Wired Remote
- Wired Wall Remote (optional)
- Available Fresh Air Intake
- Humidity Sensor
- Wi-Fi Compatible
TPA3 Platinum MultiZone Resources
TPA3 Platinum MultiZone specifications
T1W3 Platinum MultiZone
T1W3 Platinum MultiZone features
- Indoor 1-Way Cassette
- Designed to Fit Between Both I-Joist Spacing And Traditional Joist Spacing
- Elevation Panel
- Refrigerant Leakage Detection Sensor
- Humidity Sensor
- Built-in Pump
- Built-in Circuit Breaker
- Fan Speed Stages: 1~100%
T1W3 Platinum MultiZone Resources

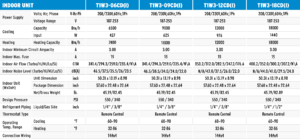

T1W3 Platinum Multizone specifications
FPA3 Platinum multizone
FPA3 Platinum multizone Features
- Indoor Floor/Ceiling
- 2 Style Installation
- 3D Airflow
- Refrigerant Leakage Detection Sensor
- Humidity Sensor
- 88” Display Tube
- Fan Speed Stages: 1~100%
FPA3 Platinum multizone Resources
FPA3 Platinum multizone specifications
CPA3/CPA3H Platinum Multizone
CPA3/CPA3H Platinum Multizone features
- Indoor Fan Coil
- Compatible With Both Horizontal And Vertical Installation (Optional)
- Static Pressure Setting Stages: 4
- Refrigerant Leakage Detection Sensor
- Constant Airflow
- Built-in Pump
- I-Clean
- Fan Speed Stages: 1~100%
CPA3/CPA3H Platinum Multizone Resources
CPA3/CPA3H Platinum MULTIZONE specifications
AHU3 Platinum MULTIZONE
AHU3 Platinum MULTIZONE features
- Indoor Air Handler
- Multi-position Installation: Horizontal (Left Or Right), Vertical (Up Or Down)
- Aluminum Coil
- Constant Air Flow System Up To 0.80 In. W.G.
- 1″ R4.2 Fiberglass Free Insulation Reduces Condensation And Boosts Efficiency (Optional)
- Optional Auxiliary Heat Kit Up To 25kw
- Easy Maintenance
- High Efficiency Up To 19.7 SEER2, 12.1 EER2, 9.8 HSPF2
- Chassis Heater And Crankcase Heater Equipped As Standard
AHU3 Platinum MULTIZONE Resources
AHU3 Platinum MULTIZONE specifications
