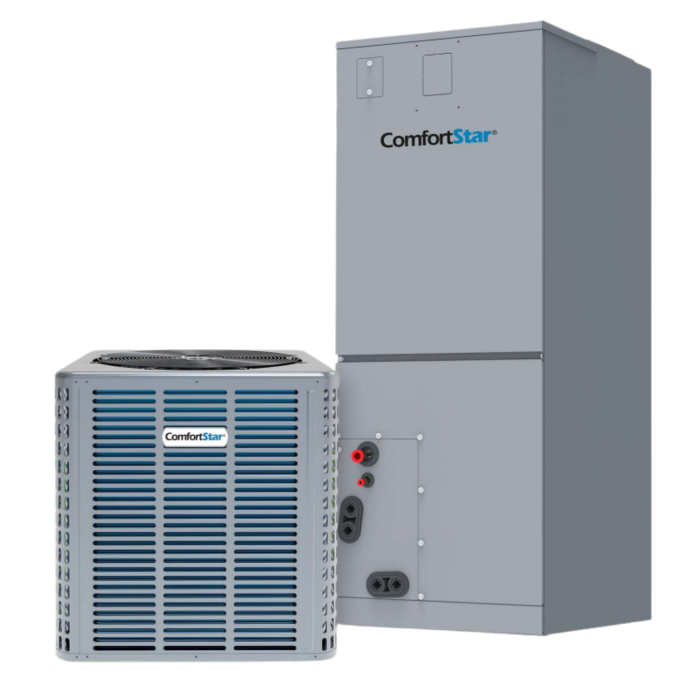

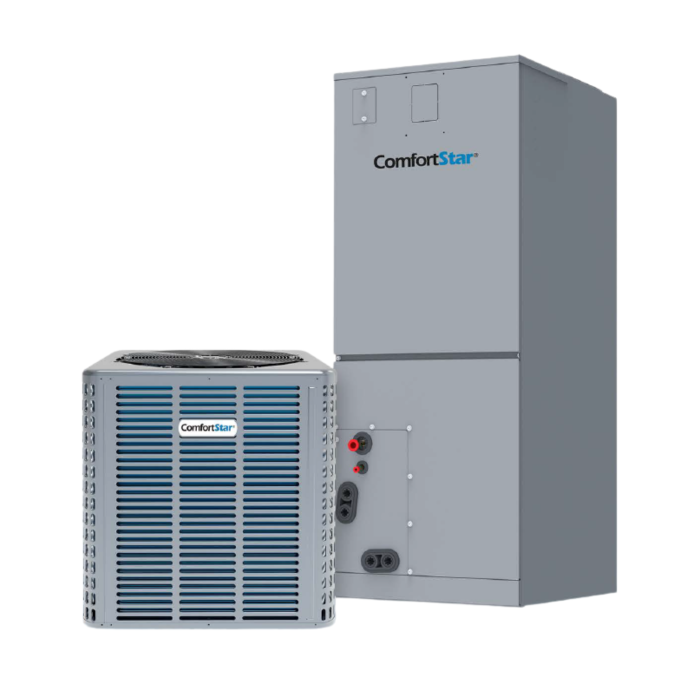

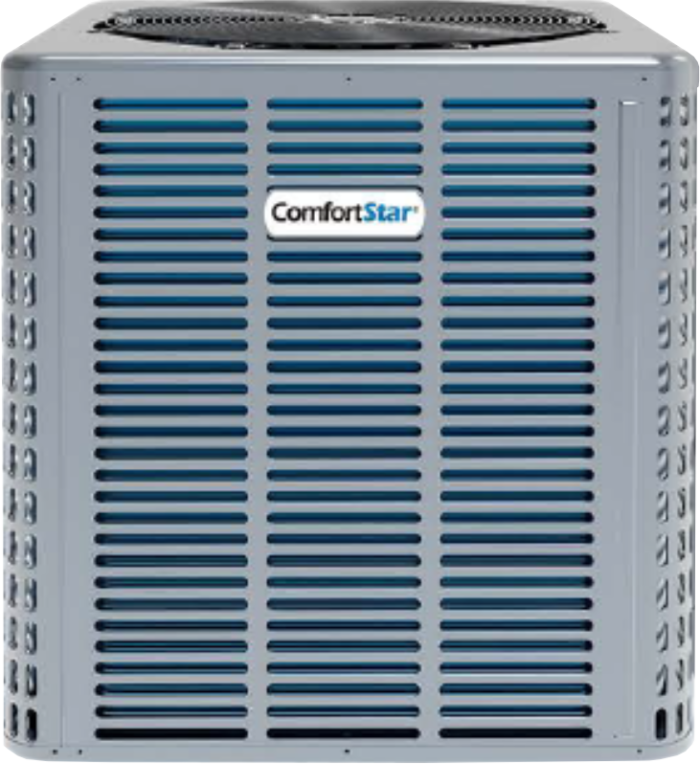

MRH32 Series

24 Volt Heat Pump Split System | Up to 19.7 SEER2

Features:

  • R32 Refrigerant – Eco-friendly, high-efficiency refrigerant with low Global Warming Potential (GWP).
  • Full DC Inverter System – Inverter rotary compressor, precision temperature sensor, and electronic expansion valve work together for accurate capacity control, faster response, and superior energy savings.
  • Low Ambient Operation to -13°F – Reliable heating performance in extreme cold conditions for year-round comfort.
  • High-Efficiency ECM / Brushless DC Fan Motor – Delivers quiet, stable airflow with reduced power consumption and extended service life.
  • Precise Temperature Control – Maintains consistent comfort with smooth modulation and low operating noise.
  • High Static Pressure Performance – Up to 0.8″ w.g. (200 Pa) for long duct runs and flexible installation options.
  • Long Duct Capability – Supports duct lengths up to 82 ft (25 m), ideal for larger or complex layouts.
  • Advanced Refrigerant Leak Detection & Protection – Real-time monitoring automatically shuts down the compressor if a leak is detected while keeping the indoor fan running to safely disperse refrigerant.
  • Refrigerant-Cooled Control Board (PCB) – Ensures stable operation in extreme outdoor temperatures and extends electronics lifespan.
  • Multiple Control Options – Compatible with 24V thermostats, wired controllers, and Wi-Fi smart control.
  • Whole-Home Comfort Solution – One system efficiently conditions multiple rooms through a centralized ducted design.

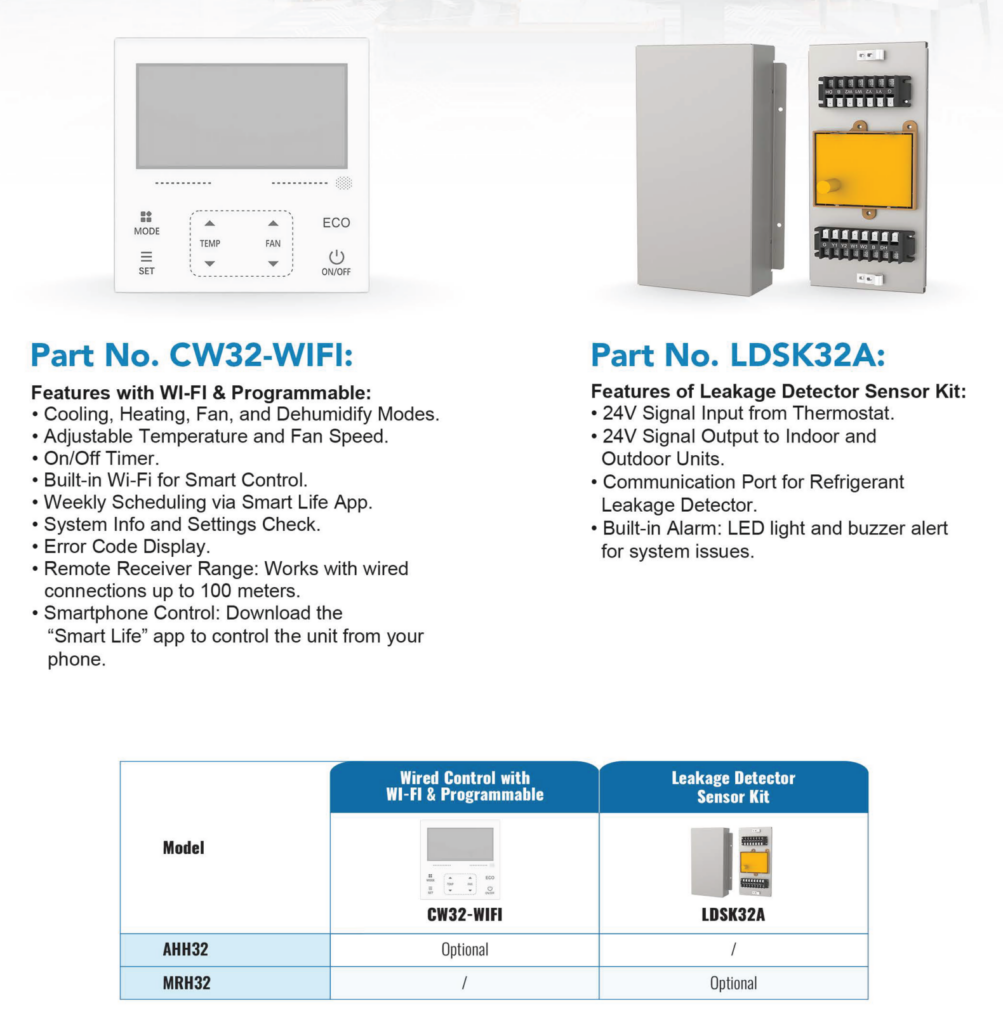

Star Pro mrh32 Series Thermostats & Controls

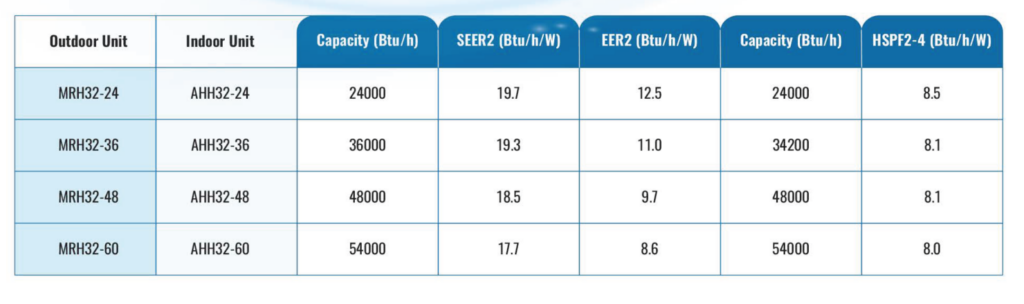

MRH32 Series + AHH32 SERIES MATCHUP

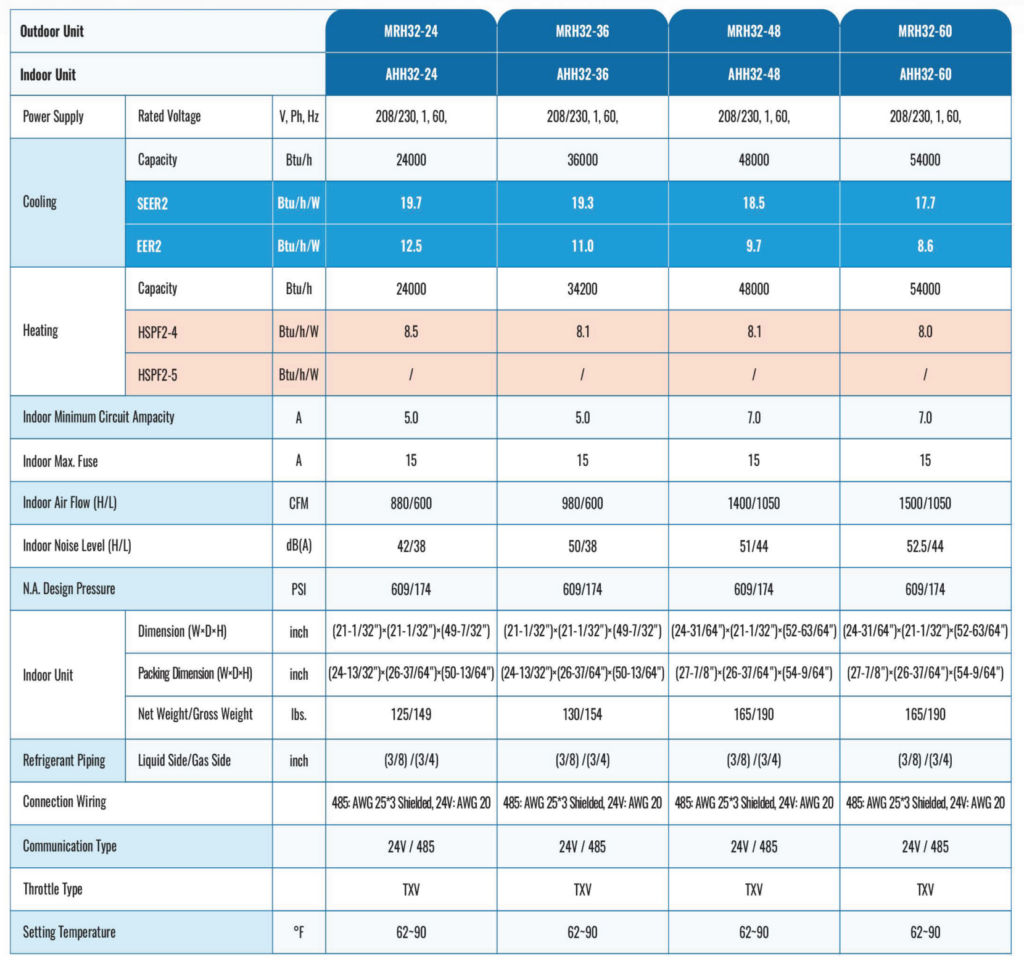

MRH32 + AHH32 SERIES COMBINATION SPECIFICATIONS

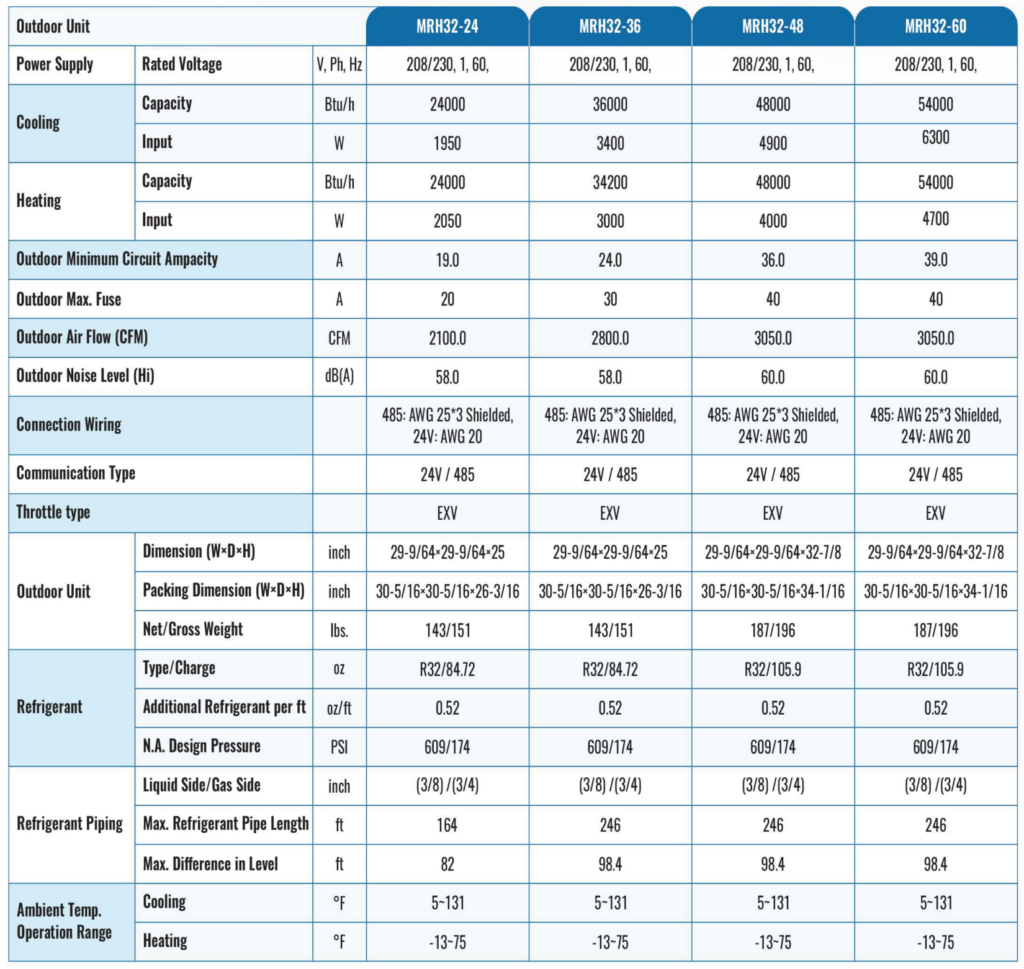

MRH32 SERIES Specifications

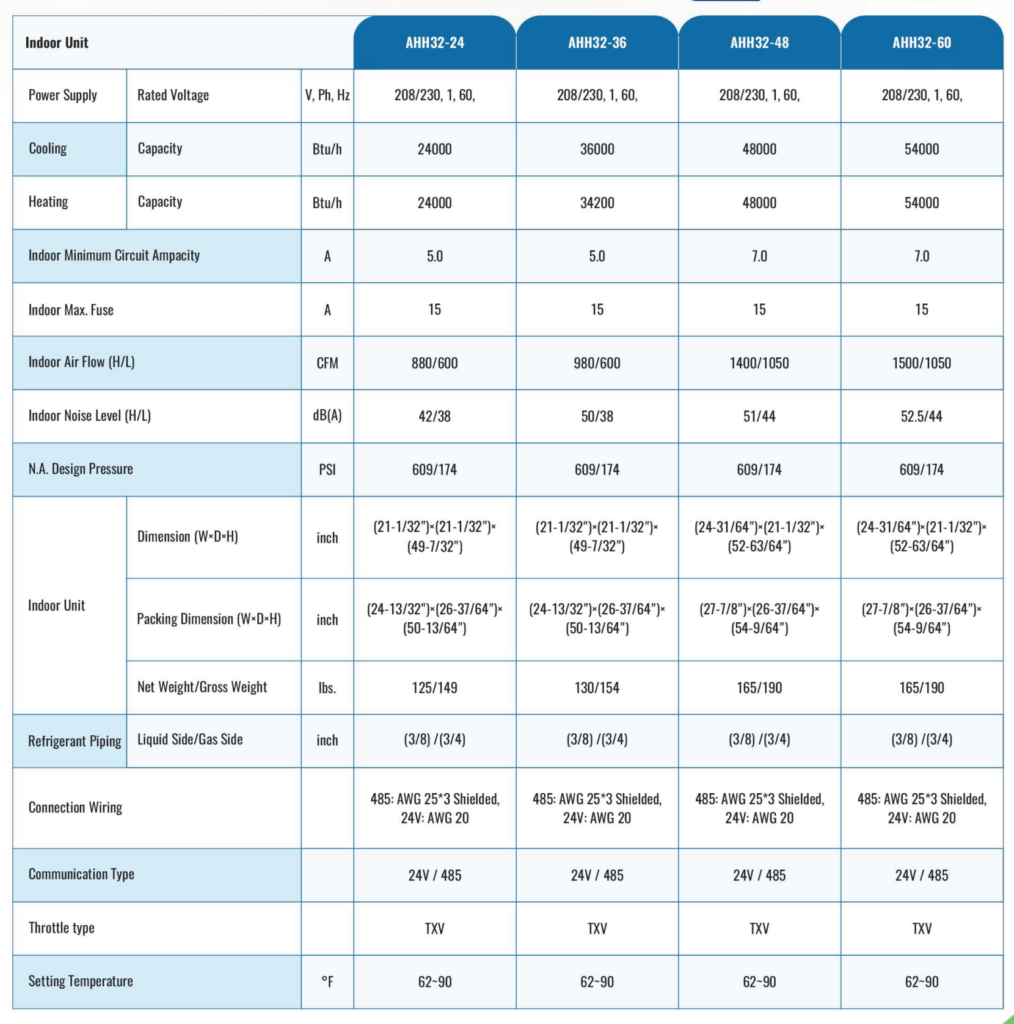

AHH32 SERIES Specifications
