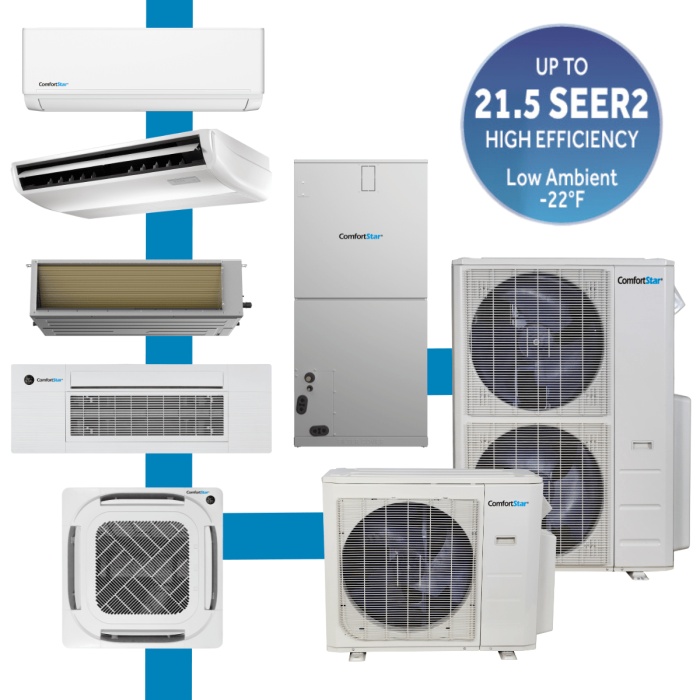

CVH3 Multizone

Up to 21.5 SEER2​

  • Large or Multileveled Homes: A multizone system can accommodate most or all of the rooms and spaces.
  • Rooms With Different Needs: A multizone system allows these adjustments.
  • Older Homes: A multizone system won’t be as invasive as running ducts through the walls since every room has its own unit.
  • Mix and match evaporator units depending on capacity, with individual zoning for up to 6 zones!

CVH3 Multizone

Up to 21.5 SEER2​

  • Large or Multileveled Homes: A multizone system can accommodate most or all of the rooms and spaces.
  • Rooms With Different Needs: A multizone system allows these adjustments.
  • Older Homes: A multizone system won’t be as invasive as running ducts through the walls since every room has its own unit.
  • Mix and match evaporator units depending on capacity, with individual zoning for up to 6 zones!

CVH3 hi-heat MULTIZONE FEATURES

  • Customization: Over 246 combinations for tailored HVAC systems.
  • Zoning: Control up to 6+ zones independently for temperature preferences.
  • Low Temperature Operation: Efficient performance in ambient temperatures down to -22°F.
  • Wi-Fi Connectivity: Optional feature for remote control via smartphones or smart devices.
  • Bypass Mode: Optimizes airflow between zones and the main unit.
  • Interactive Display: User-friendly interface for easy access to settings and information.
  • Self-Diagnosis: Automatically identifies and reports issues for streamlined maintenance.
  • Energy Efficiency: High efficiency inverter technology adjusts compressor speed for lower bills.
  • Variety of Indoor Units: Options include high wall mount, cassette, floor/ceiling, fan coil, and AHU for different space needs.
  • Available Indoor Units:
    High Wall Mount: Ideal for homes with limited floor space, offering efficient cooling and heating.
    Cassette: Perfect for commercial spaces, providing discreet air distribution.
    Floor/Ceiling: Versatile installation options that can fit various building designs.
    Fan Coil: A cost-effective solution that allows for easy integration into existing systems.
    AHU (Air Handling Unit): Delivers conditioned air to multiple zones, enhancing overall system efficiency.

CVH3 hi-heat MULTIZONE Resources

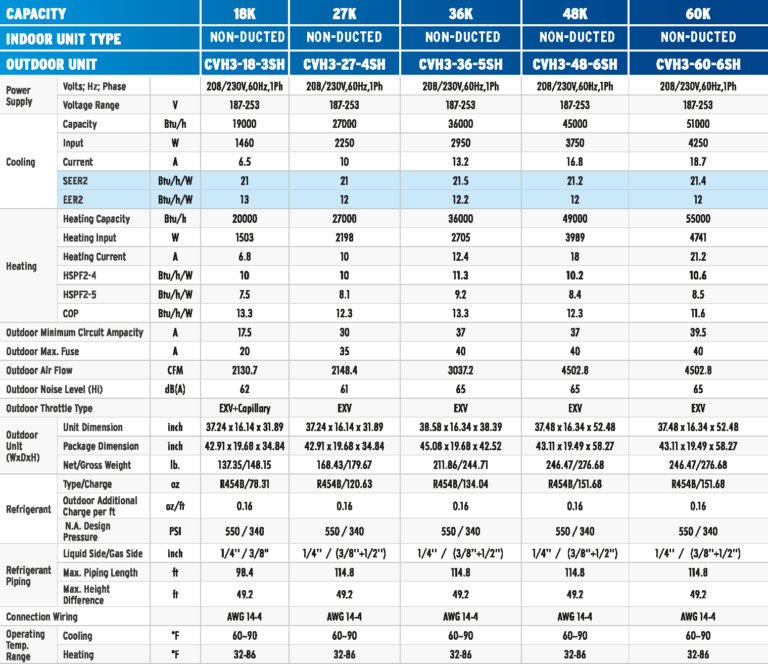

CVH3 hi-heat MULTIZONE Specifications

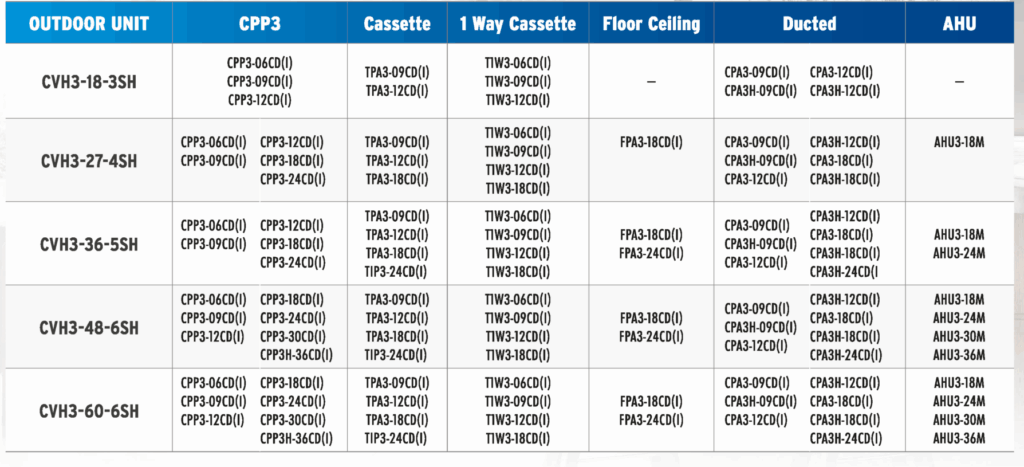

CVH3 HI-HEAT Multizone COMBINATIONS

CVH3 hi-heat Multizone SELECTION CHART

CVH3 hi-heat Multizone EFFICIENCY TABLE

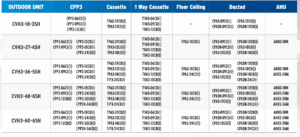

CVH3 HI-HEAT Multizone COMBINATION TABLE

Individual INDOOR UNITS for CVH3 HI-HEAT Multizone OUTDOOR units

CPP3 HI-HEAT MULTIZONE

CPP3 HI-HEAT MULTIZONE features

  • Low Ambient Capability: Operates in temperatures as low as -22°F.
  • Manual Power Switch: Turn unit ON/OFF via evaporator button.
  • Interactive Display: Shows error and service codes, refrigerant leak detection, and auto defrost status.
  • Refrigerant Leakage Detection  Sensor
  • 3 Directional Airflow: Ensures effective air distribution, reaching room corners.
  • Controls: Optional wired controls and WiFi control with Cool Link.

CPP3 HI-HEAT MULTIZONE Resources

CPP3 HI-HEAT MultiZone specifications

TPA3 HI-HEAT MultiZone

TPA3 HI-HEAT MultiZone features

  • Indoor Cassette
  • Compact Design
  • Refrigerant Leakage Detection Sensor
  • Concealed Ceiling Unit
  • Quiet Operation
  • 360° Air Discharge
  • Wireless Remote Control (standard)
  • Programmable Wired Remote
  • Wired Wall Remote (optional)
  • Available Fresh Air Intake
  • Humidity Sensor
  • Wi-Fi Compatible

TPA3 Platinum MultiZone​ Resources

TPA3 HI-HEAT MultiZone specifications

T1W3 HI-HEAT MultiZone

T1W3 HI-HEAT MultiZone features

  • Indoor 1-Way Cassette
  • Designed to Fit Between Both I-Joist Spacing And Traditional Joist Spacing
  • Elevation Panel
  • Refrigerant Leakage Detection Sensor
  • Humidity Sensor
  • Built-in Pump
  • Built-in Circuit Breaker
  • Fan Speed Stages: 1~100%

T1W3 HI-HEAT MultiZone Resources

T1W3 HI-HEAT Multizone specifications

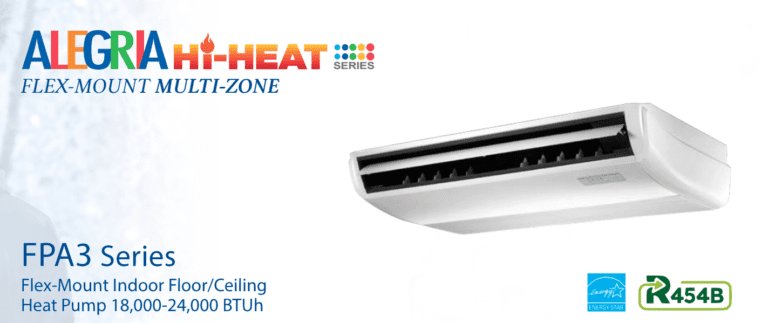

FPA3 HI-HEAT multizone

FPA3 HI-HEAT multizone Features

  • Indoor Floor/Ceiling
  • 2 Style Installation
  • 3D Airflow
  • Refrigerant Leakage Detection Sensor
  • Humidity Sensor
  • 88” Display Tube
  • Fan Speed Stages: 1~100%

FPA3 HI-HEAT multizone Resources

FPA3 HI-HEAT multizone specifications

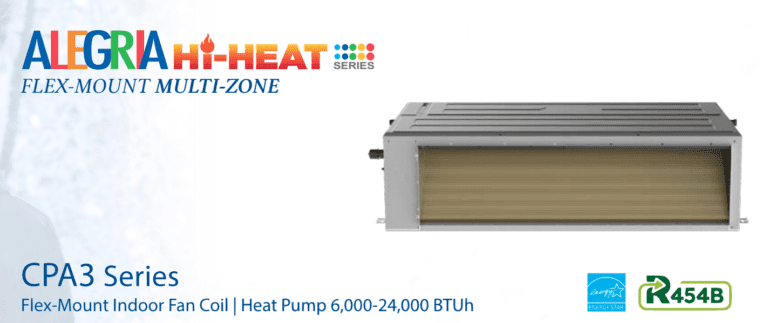

CPA3/CPA3H Hi-heat Multizone

CPA3/CPA3H Hi-heat Multizone features

  • Indoor Fan Coil
  • Compatible With Both Horizontal And Vertical Installation (Optional)
  • Static Pressure Setting Stages: 4
  • Refrigerant Leakage Detection Sensor
  • Constant Airflow
  • Built-in Pump
  • I-Clean
  • Fan Speed Stages: 1~100%

CPA3/CPA3H Hi-heat Multizone Resources

CPA3/CPA3H Hi-heat Multizone specifications

AHU3 hi-heat MULTIZONE

AHU3 hi-heat MULTIZONE features

  • Indoor Air Handler
  • Multi-position Installation: Horizontal (Left Or Right), Vertical (Up Or Down)
  • Aluminum Coil
  • Constant Air Flow System Up To 0.80 In. W.G.
  • 1″ R4.2 Fiberglass Free Insulation Reduces Condensation And Boosts Efficiency (Optional)
  • Optional Auxiliary Heat Kit Up To 25kw
  • Easy Maintenance
  • High Efficiency Up To 19.7 SEER2, 12.1 EER2, 9.8 HSPF2
  • Chassis Heater And Crankcase Heater Equipped As Standard

AHU3 hi-heat MULTIZONE Resources

AHU3 hi-heat MULTIZONE specifications
