Series

13 SEER

Condensing Unit • 60Hz

• MAH18CD
• MAH24CD
• MAH30CD
• MAH36CD

Product Quick Find

Search

Home » CANADA 2022 » MAH SEER13

Features:

• R410A chlorine-free refrigerant.
• Energy-efficient compressor.
• Internally protection against high temperature motor overload conditions.
• High quality condenser with inner-groove copper tube and aluminum fin.

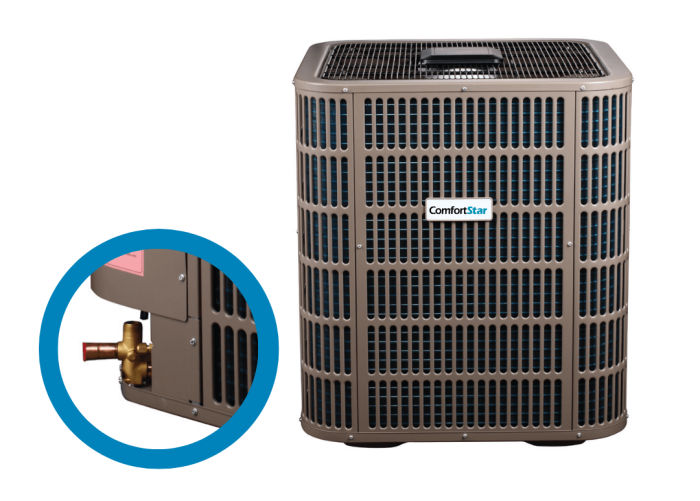

• Service valves with sweat connections and easy-access gauge ports.

Cabinet Features:

• Unique sound control top design.
• Compact design, easy installation and transportation.
• Powder-painted galvanized steel cabinet.
• Wire fan discharge grille.
• Steel louver coil guard.

Resources

Service & Installation Manual

MAH SHEER13 Service & Installation Manual

MAH SEER13 Spare Parts

• MAH18-410@22023016000454
• MAH24-410@22023016000323
• MAH30-410@22023016000456
• MAH36-410@22023016000956
• MAH42-410@22023016000496
• MAH48-410@22023016002974
• MAH60-410@22023016002975

MAH SEER13 Products Catalog

Products Catalog

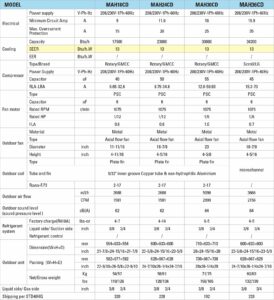

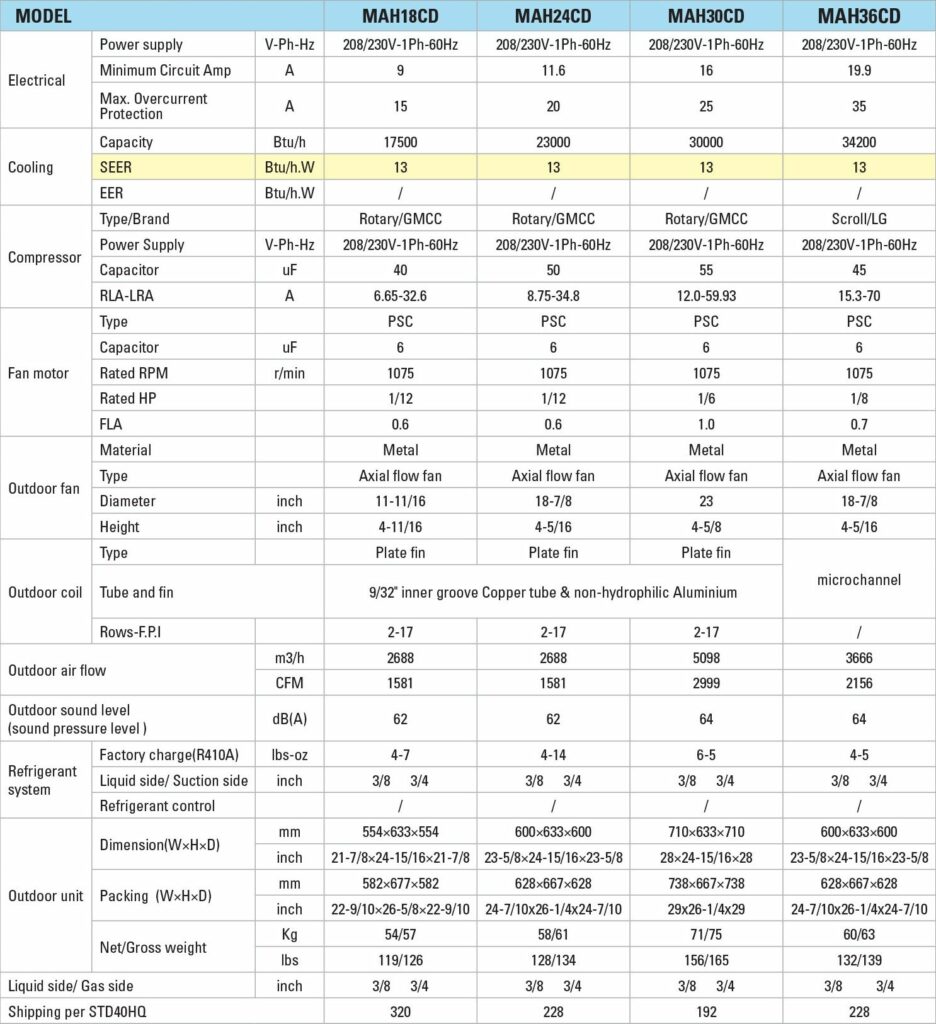

Click Here to View The Specs Expanded
