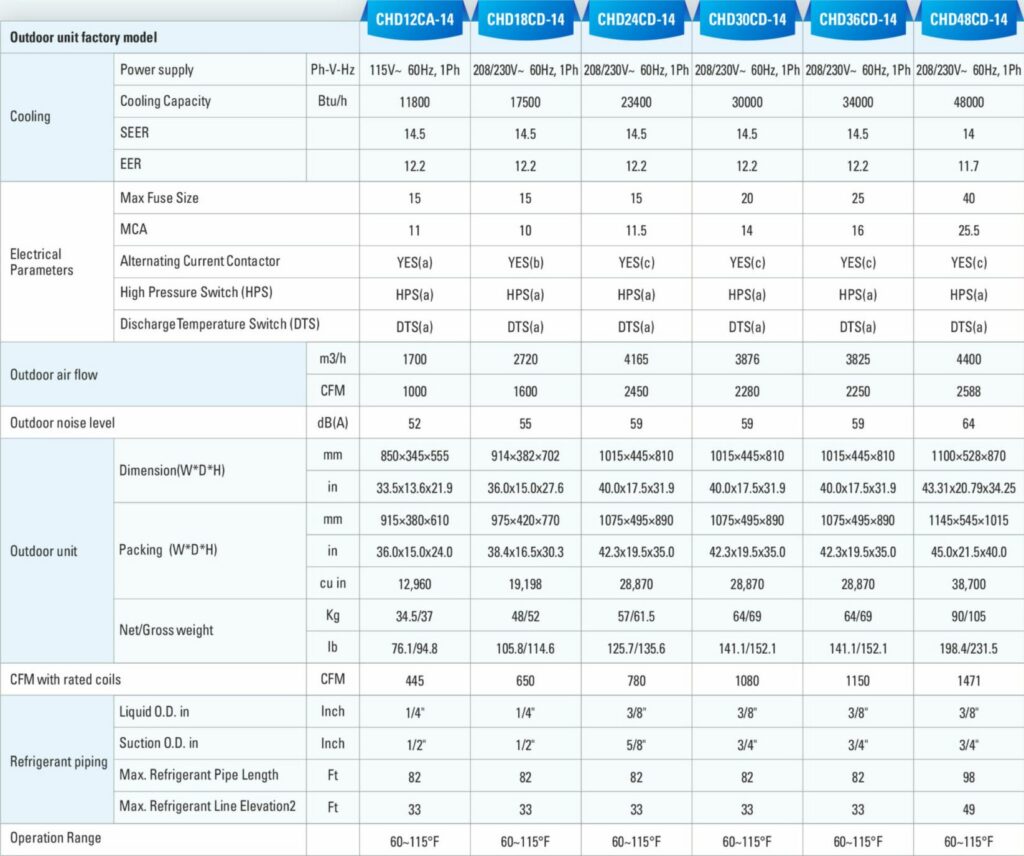

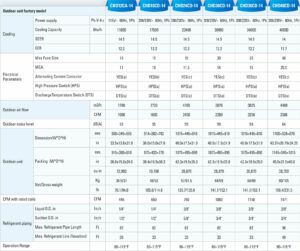

CHD-14

UP TO 14 SEER

24V low voltage communication connection is much safer than others and it is easier to connect to other brand indoor units.
Sensor T3(condenser pipe temperature): When open-circuit/short-circuit, compressor, fan motor and reverse valve will be OFF.
Discharge temperature protection.
High pressure protection.
In stand-by status, the compressor will not start in low pressure protection.
In 20mins, if 3 times protection occurs, it will restore after power cut-down.

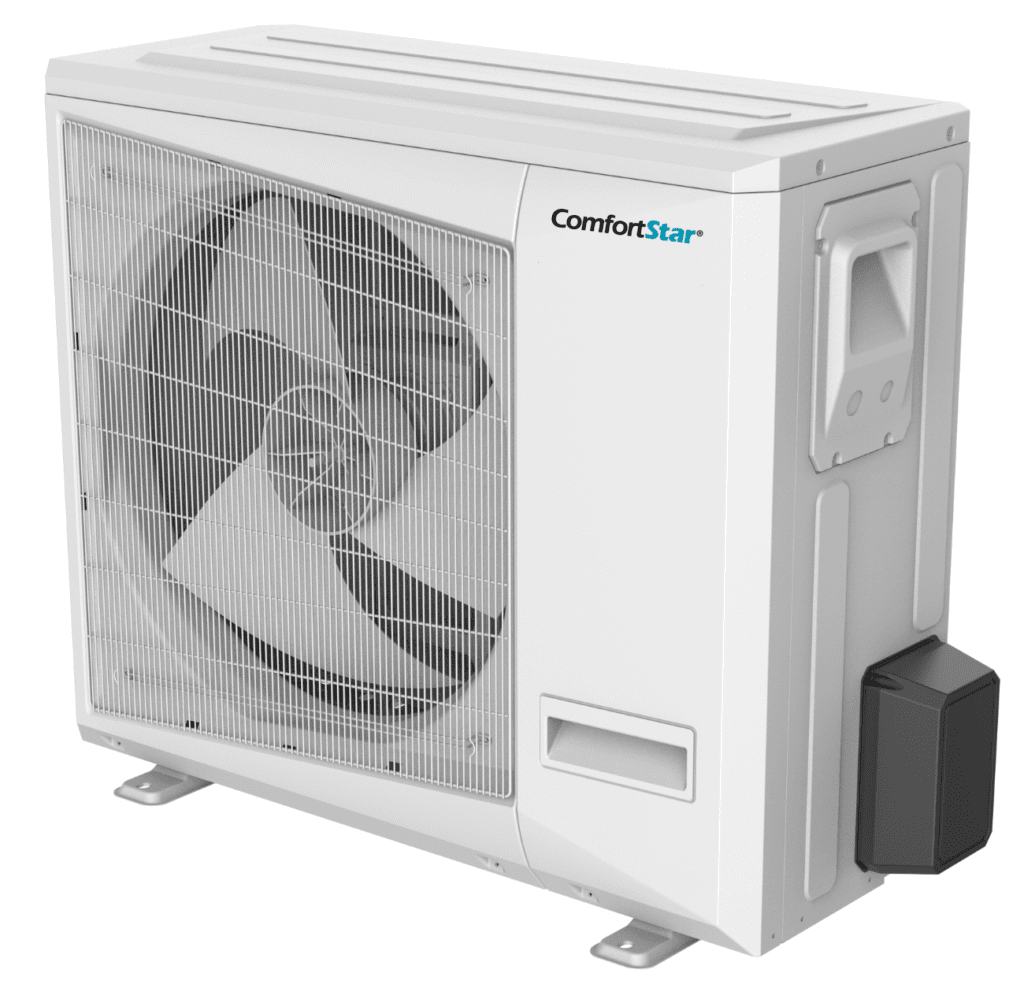

The condensing unit is designed to be compatible with a majority of main brands of household evaporator coils or air handlers.
New SEER 14 condensing unit adopts completely new cabinet appearance design with high market recognition and stronger structure.
The concealed stop valve design could protect the stop valve effectively from accidental operation.
