Single - Zone
Light Commercial

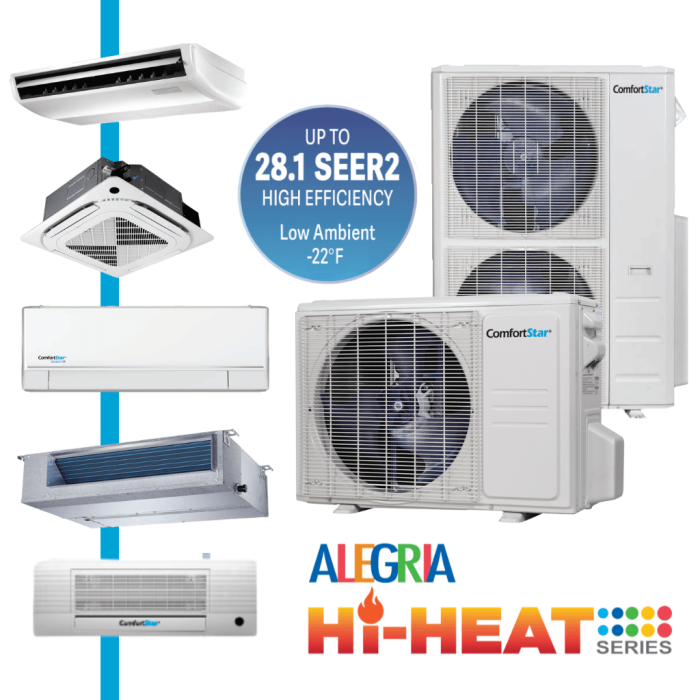

28.1 SEER High Efficiency

Hi-Heat Applications

• Office
• Retail
• Industrial
• Healthcare

• Compact Design
• Energy Efficient
• -22°F Low Ambient Temperature

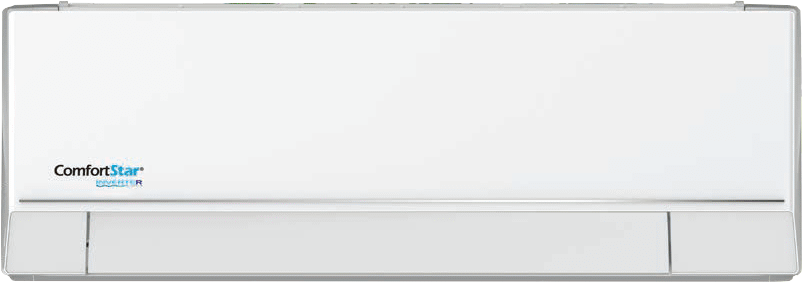

Hi-Heat Series FEATURES

Previous
Next

Platinum Expanded Features:

  • Wi-Fi Compatible (optional)
  • Auto Swing
  • Auto Defrost
  • 12-Speed Indoor Fan Speeds
  • Emergency Mode
  • Anti-Cold Air Function
  • Bypass Mode
  • Mute Operation
  • Refrigerant Leak Detection
  • Error Code
  • Manual Power Switch
  • Interactive display
  • Self-Diagnosis
  • 3-Directional Airflow
  • 2-Way Draining
  • Optional Wired Control

Resources

Hi-Heat Single Zone – Service Manual CHF(I) CHF(O)

Hi-Heat Light Commercial – Owners and Installation Manual

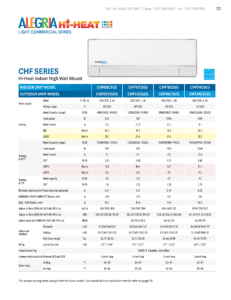

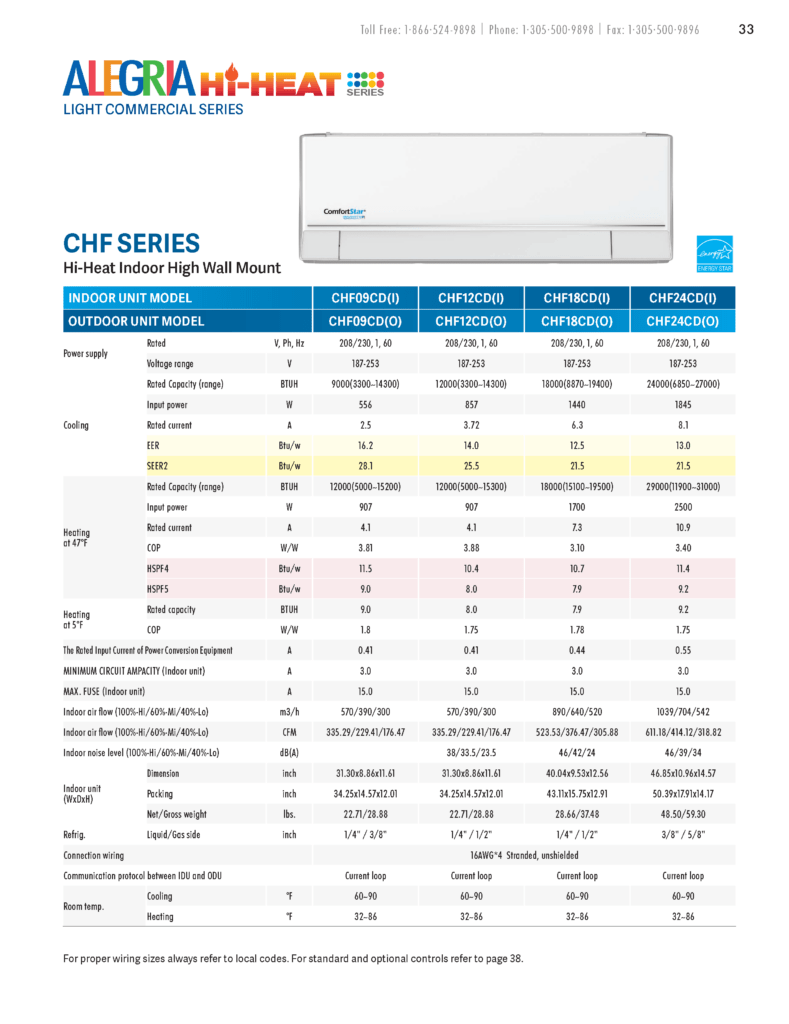

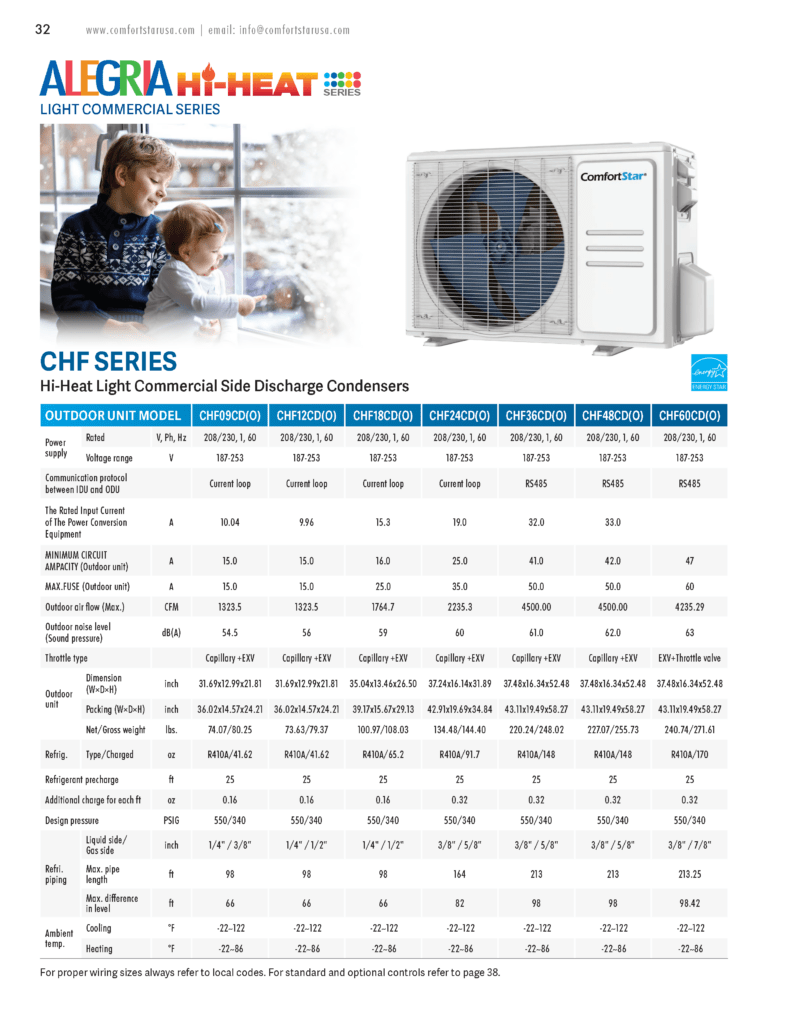

CHF – Performance Data

HI-HEAT Light Commercial Combinations

Platinum Expanded Features:

  •  Low Ambient: Capable of producing comfortable
  • Heating and cooling to outdoor ambient
    temperatures as low as -22°F.
  •  Manual Power Switch: Power unit ON/OFF
    using button located at the evaporator.
  • Interactive Display shows:
    – Error codes based on system failure.
    – Service codes if your filter needs cleaning.
    – Error code if refrigerant leak is detected.
    – When unit goes into auto defrost.
  •  Self-Diagnosis: Unit will shut down and go into
    protection mode if it detects abnormalities.
    The display will show an error code depending
    on the type of protection the unit is in.
  •  Bypass Mode: Unit will continue to operate if
    a non-critical component fails, such as a sensor.
  •  2-Way Draining Option: Ability to place drain hose
    on either left or right hand side of evaporator
    allows for flexible installation design.
  • 3 Directional Airflow: Air flow is directed so that
    it reaches more surface area including the corners
    of the room being conditioned.
  • Mute Operation: Silence from the Remote Control.
  • Follow Me Function: Remote Control has a
    sensor built in. In this mode, the unit will sense
    the temperature at the Remote Control instead
    of at the indoor unit for the set temperature.
  • Controls: Wired Controls (optional)
    WiFi Control – Cool Link installed in unit (optional)

Resources

CHF(I) – CHF(O) – Service Manual

CHF(I) – CHF(O) Owner’s Manual & Installation Manual

CHF – Performance Data

Previous
Next

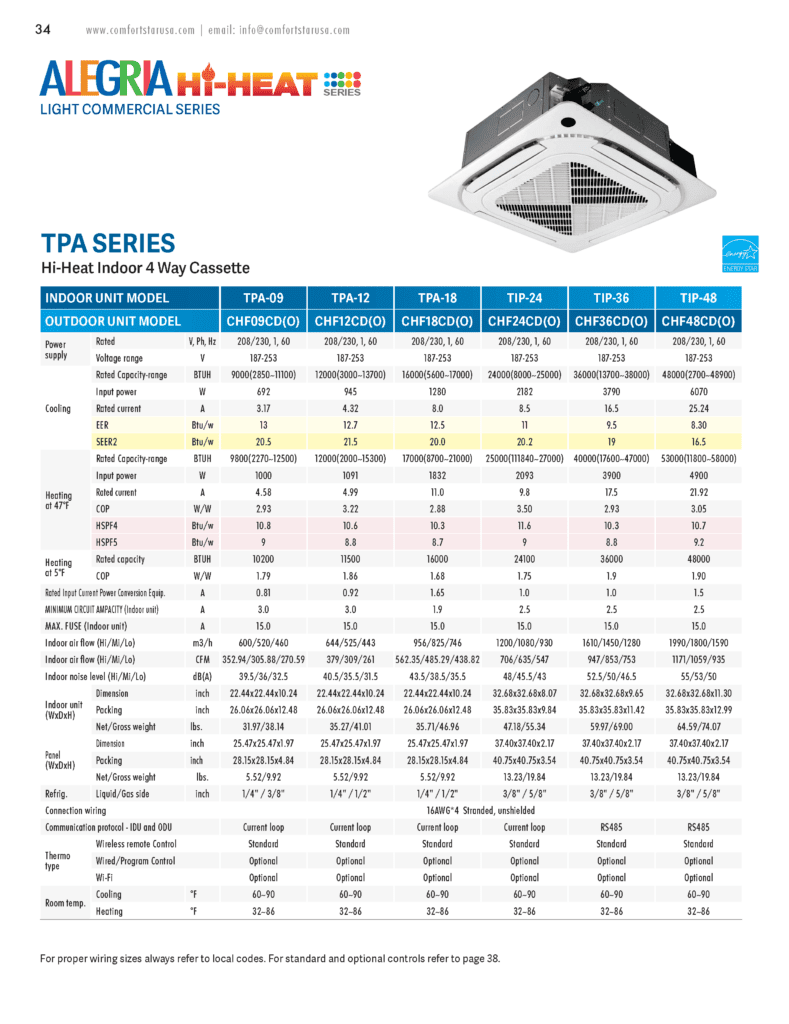

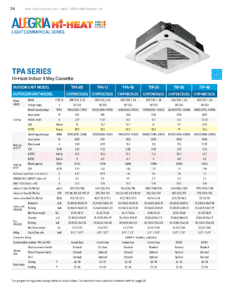

TIP/TPA Features:

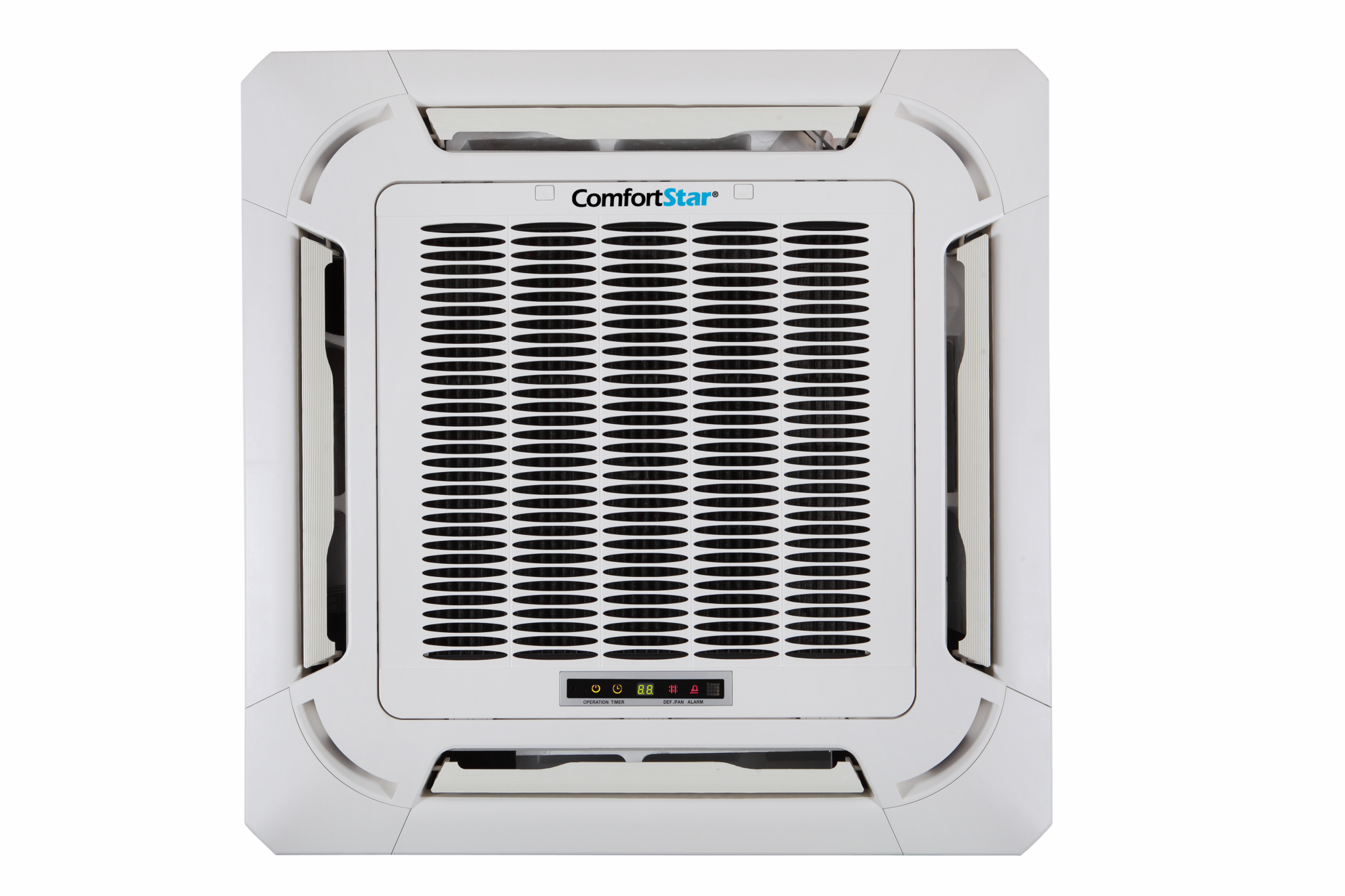

  • Indoor Cassette Type
  • Compact Design
  • Concealed Ceiling Unit
  • Quiet Operation
  • 360° Air Discharge
  • Wireless Remote Control (standard)
  • Programable Wired Remote
  • Wired Wall Remote (optional)
  • Available Fresh Air Intake
  • Integrated lift Pump (29” head)
  • Wi-Fi Compatible
  • Prominent defrosting procedure design and special base plate
    design bring excellent performance.

Resources

CPA TPA TIP FPA LC service Manual

TIP/TPA- Owners & Installation Manual

  • Cassette Panel for 9,12,18K
  • Cassette Panel for 24,36,48K
  • TIP24
  • TIP36
  • TIP48
  • TPA-09
  • TPA-12
  • TPA-18
  • TPA-24
  • TPA-36
  • TPA-36DU
  • TPA-48

    • Previous
    Next

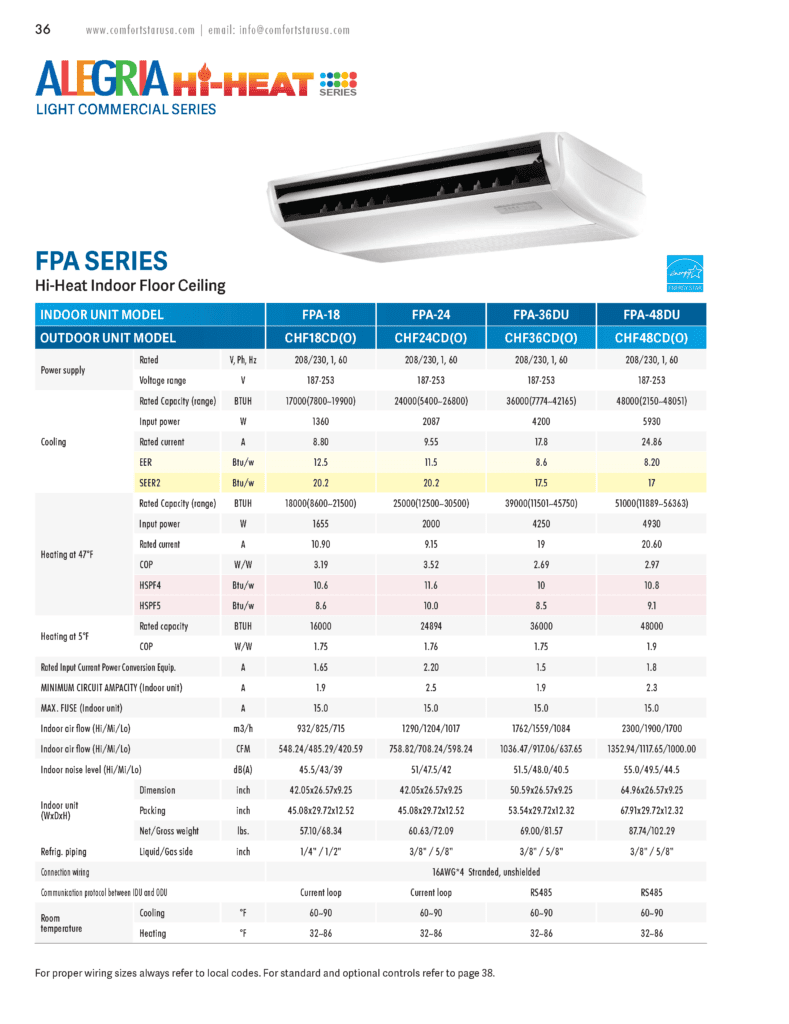

    FPA Features:

    • Indoor Floor/Ceiling Type
    • Flexible Design – Horizontal or Vertical Installation
    • Compact Design
    • Quiet Operation
    • Louver Swing Function to Disperse Air Flow
    • Wireless Remote Control (standard)
    • Wired Control (optional)

    Resources

    CPA TPA TIP FPA LC service Manual

    FPA-CHF Owners & Installation Manual

    Previous
    Next

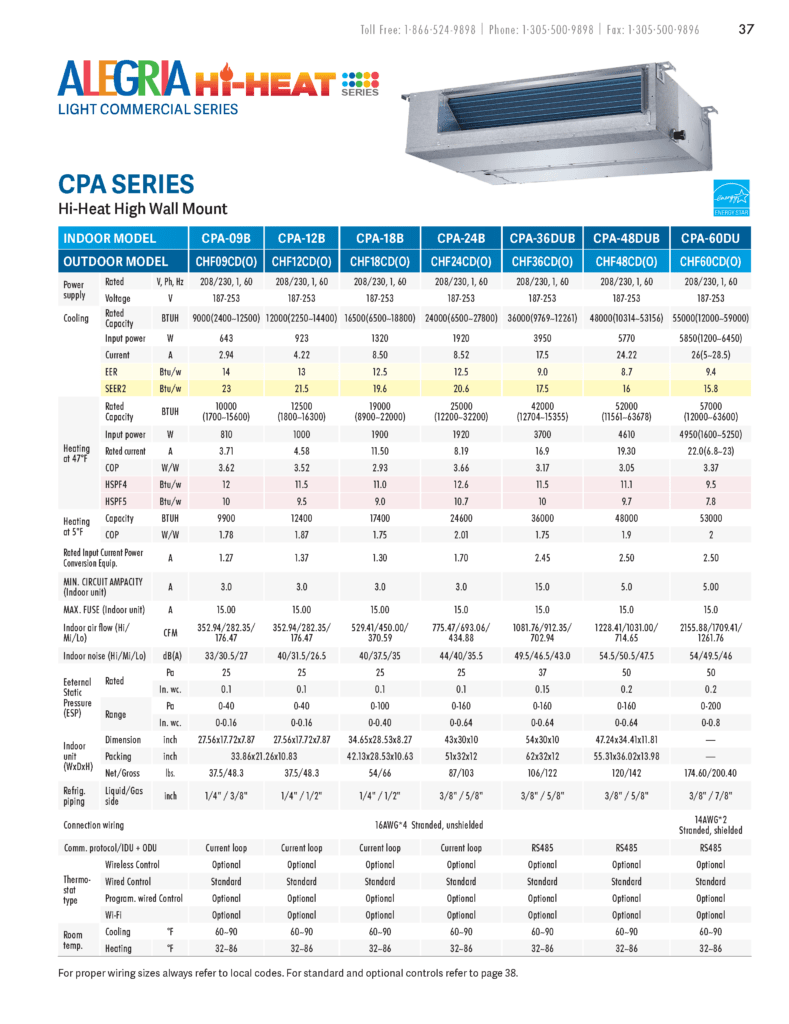

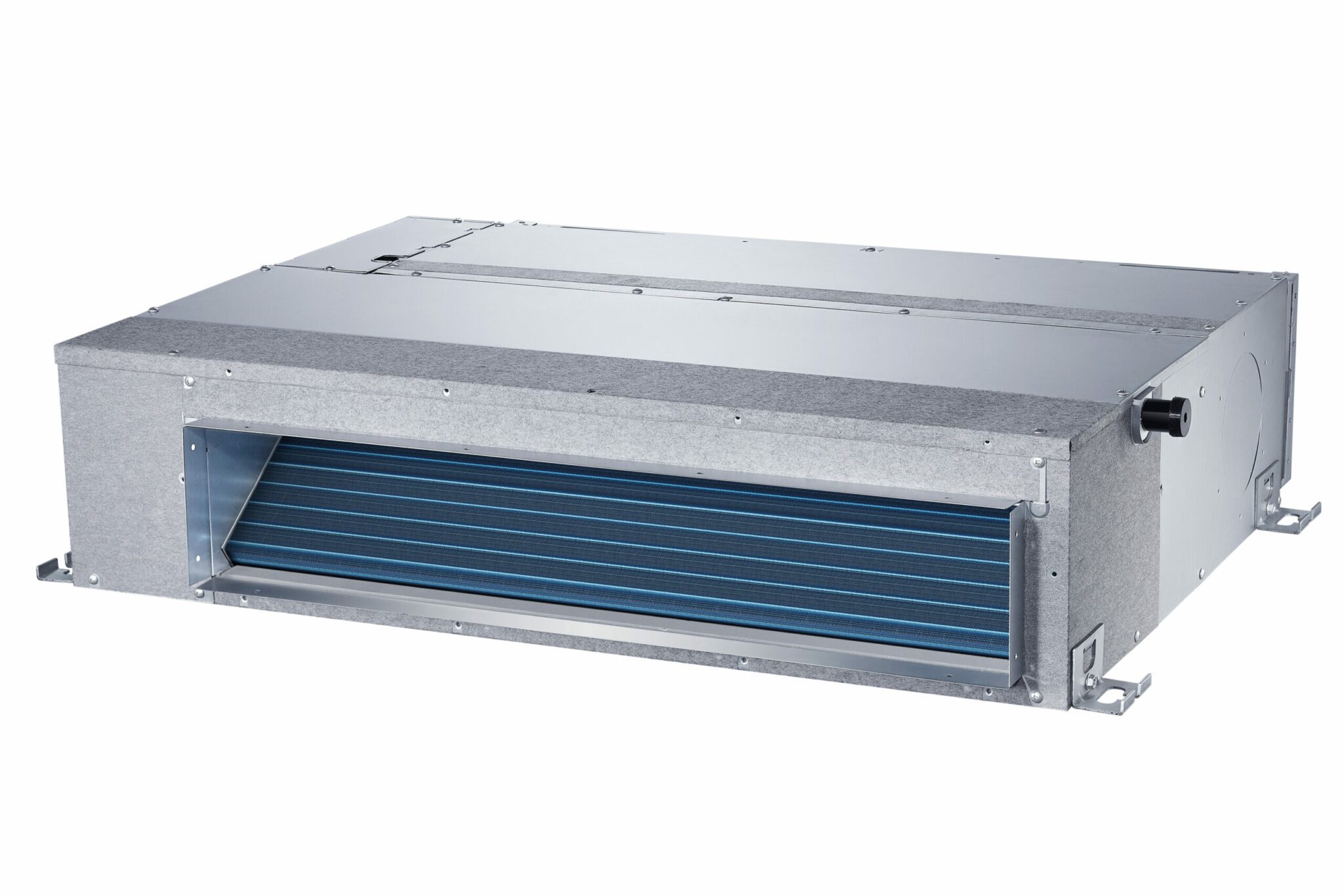

    CPA Features:

    Indoor Fan Coil Type

    • Compact Design

    • Quiet Operation

    • Wired Control (standard)

    • Available Fresh Air Intake

    Resources

    CPA TPA TIP FPA LC service Manual

    CPA – Owners & Installation Manual
