Click Here to View Product Catalog

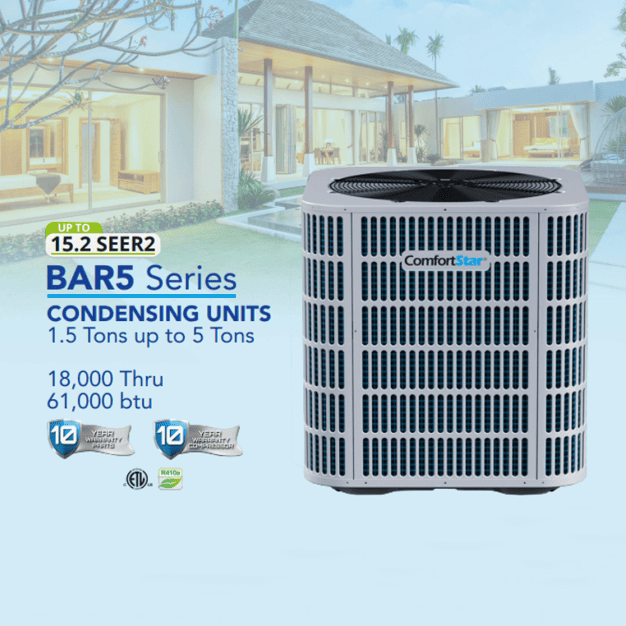

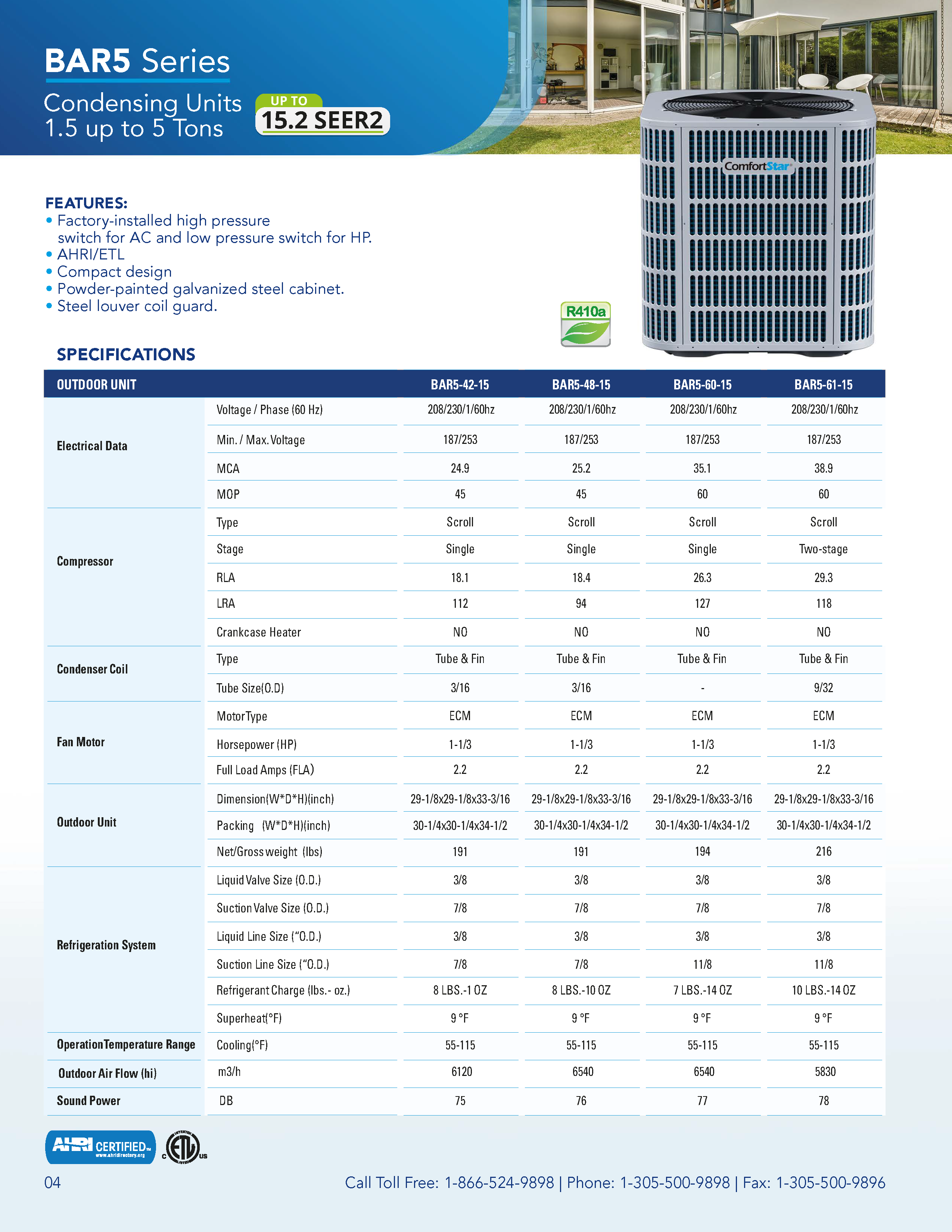

bar5

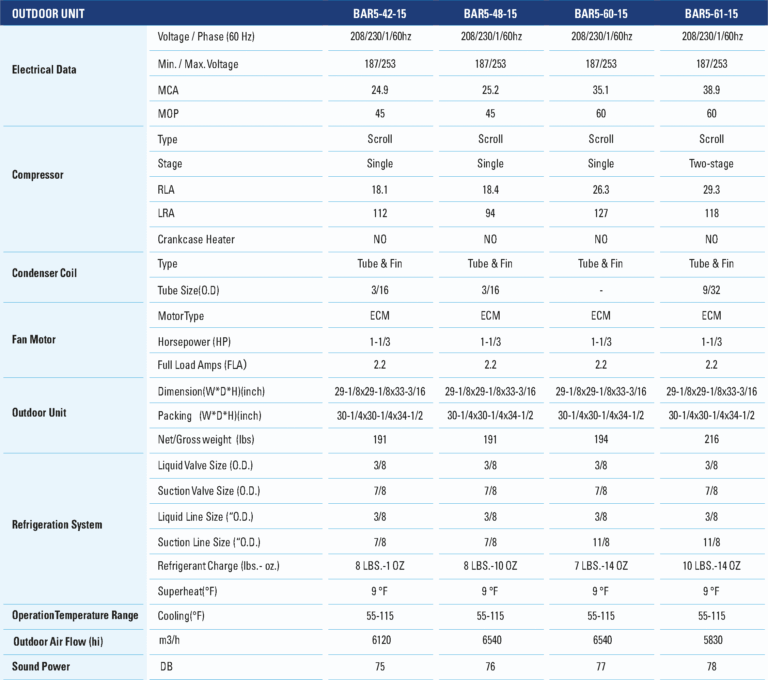

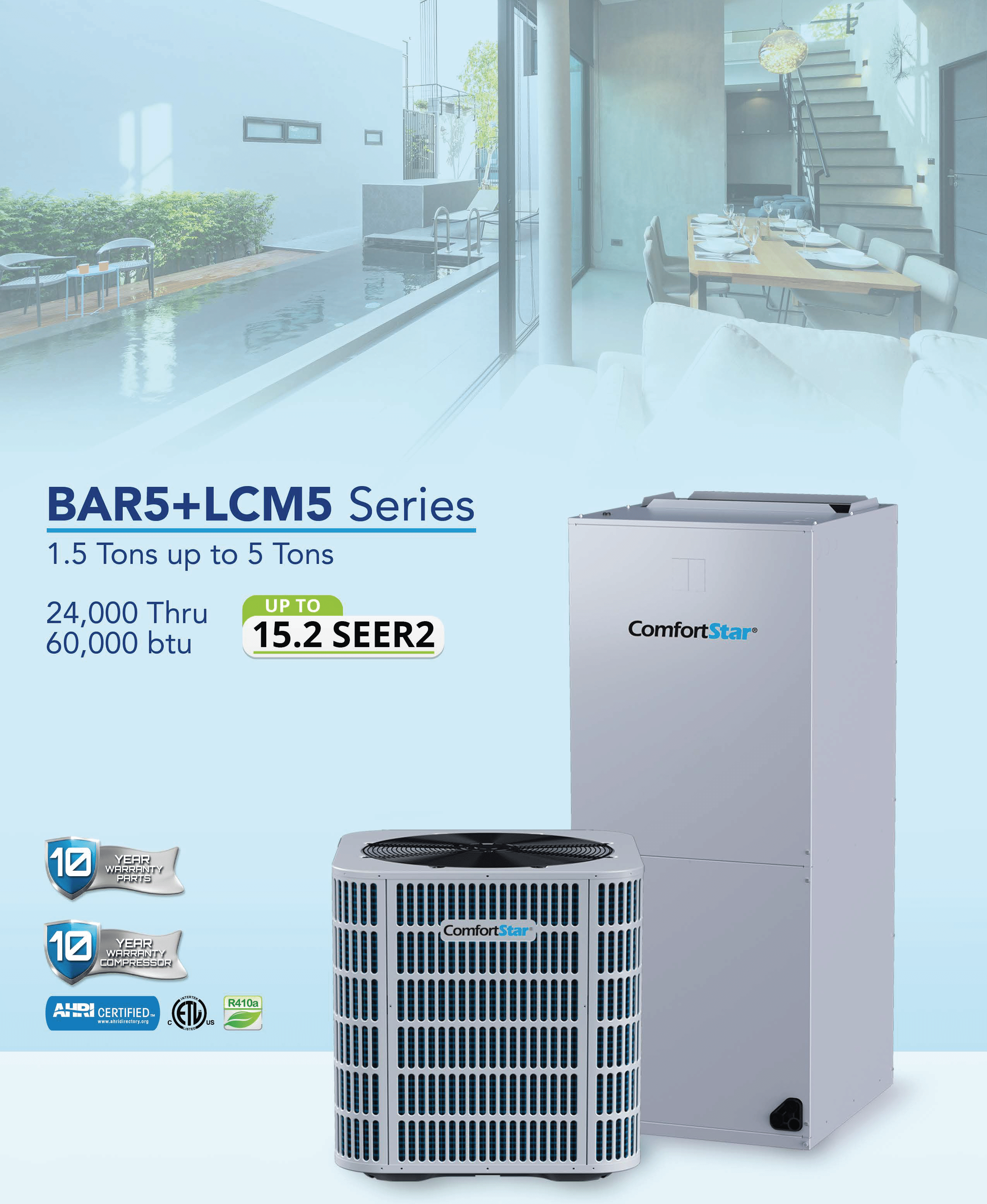

BAR5 Series | UP TO 15.2 SEER2
TOP DISCHARGE CONDENSING UNIT
Rotary Compressor
All ECM motor
Up to 15.2 SEER2
Cooling Capacity: 18 – 60kBtu/h
Home
»
RESIDENTIAL SERIES
»
BAR5
BAR5 Expanded Features:
R410A chlorine-free refrigerant.
Energy-efficient compressor.
Internally protection against high temperature motor overload conditions.
High quality condenser with inner-groove copper tube and aluminum fin.
Service valves with sweat connections and easy-access gauge ports.
Factory-installed high pressure switch for AC and low pressure switch for HP.
AHRI Listed (2023 SEER2) & ETL Certification.
Unique sound control top design.
Compact design, easy installation and transportation.
Powder-painted galvanized steel cabinet.
Wind load compliant per Florida Building Code – 2010.
Wire fan discharge grille.
Steel louver coil guard.
Resources
Installation Manual
BAR5 Installation Manual
Service Manual
BAR5 Service Manual
Spare Parts
BAR5 (24-15)
BAR5 (30-15)
BAR5 (36-15)
BAR5 (42-15)
BAR5 (48-15)
BAR5 (60-15)
BAR5 (61-15)
Submittals
BAR5 (18-15)
BAR5 (24-15)
BAR5 (30-15)
BAR5 (36-15)
BAR5 (42-15)
BAR5 (48-15)
BAR5 (60-15)
BAR5 (61-15)
Click Here to View Dimensions Expanded

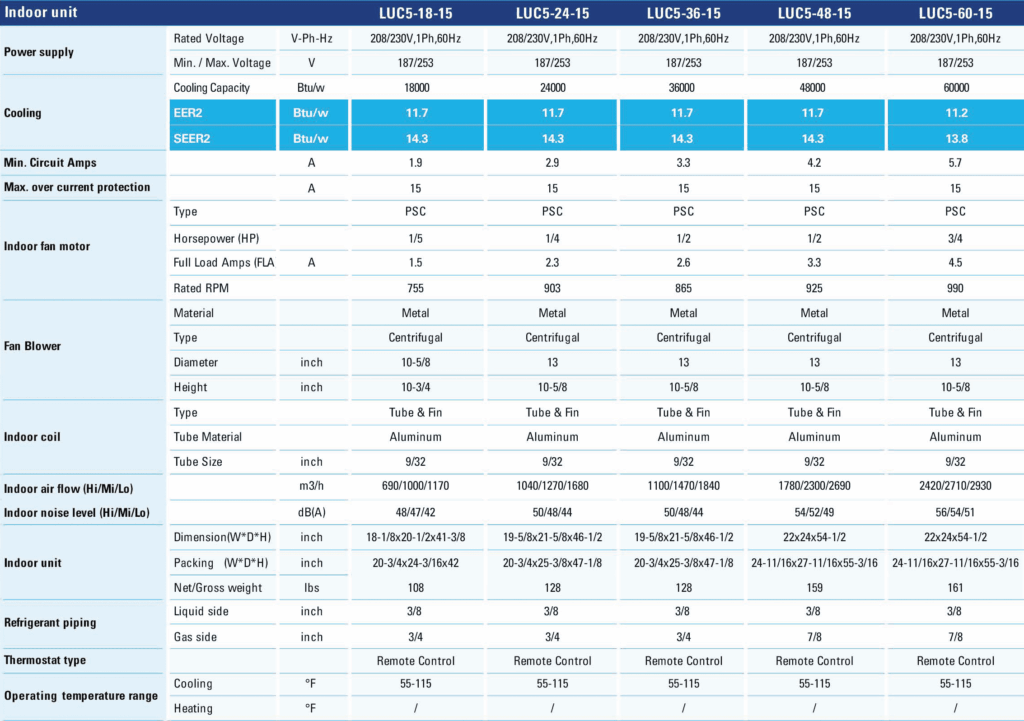

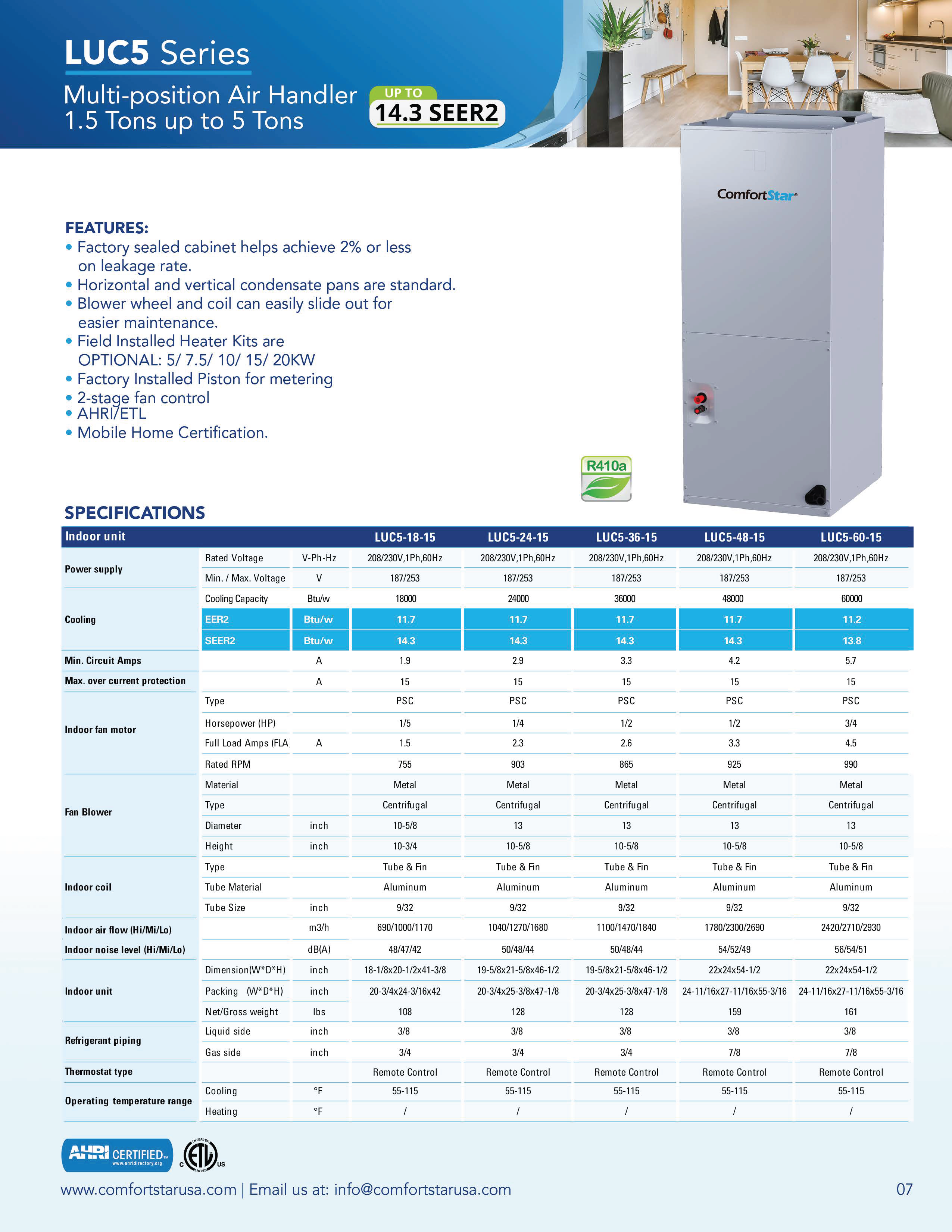

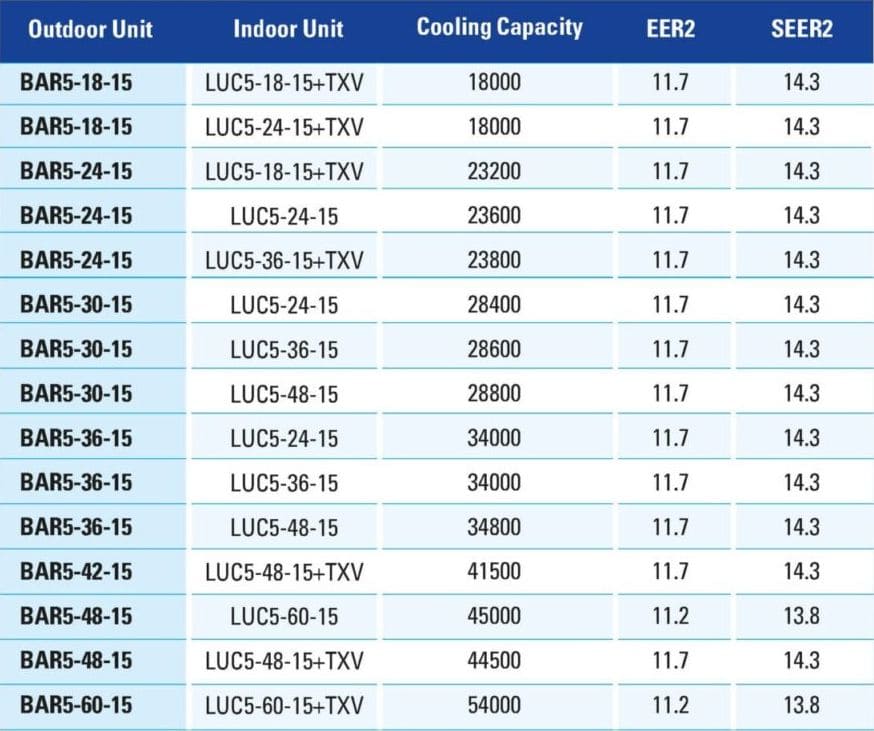

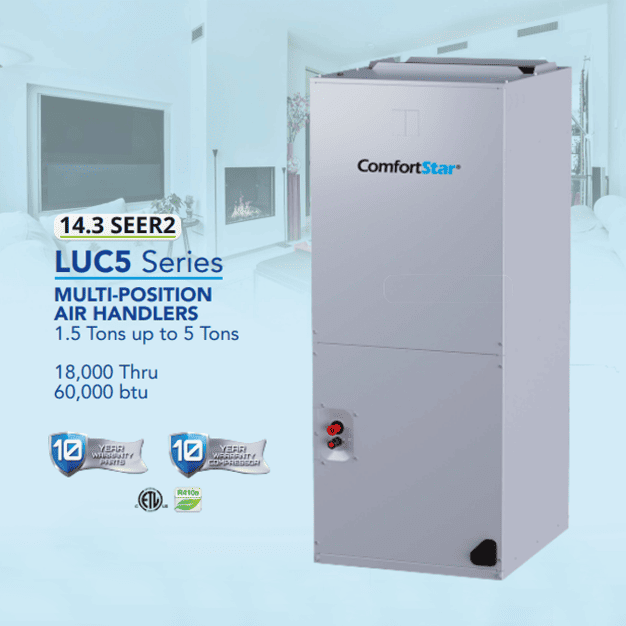

LUC5 Expanded Features:
Available for cooling and heat pump applications.
All-aluminum tubes & fins.
Common Factory-sealed cabinet certified to achieve 2% or less leakage rate at 1.0 inch water column.
Multi-position Installation.
Horizontal and vertical condensate drain pans standard.
Blower and coil easy slide out for ease of maintenance.
Field Installed heater kits are optional: 5/7.5/10/15/20kW.
AHRI Listed & ETL Certified.
Resources
Installation Manual
Installation Manual
Spare Parts
LUC5 (24-15)
LUC5 (36-15)
LUC5 (48-15)
LUC5 (60-15)
Submittals
LUC5 (18-15)
LUC5 (24-15)
LUC5 (36-15)
LUC5 (48-15)
LUC5 (60-15)

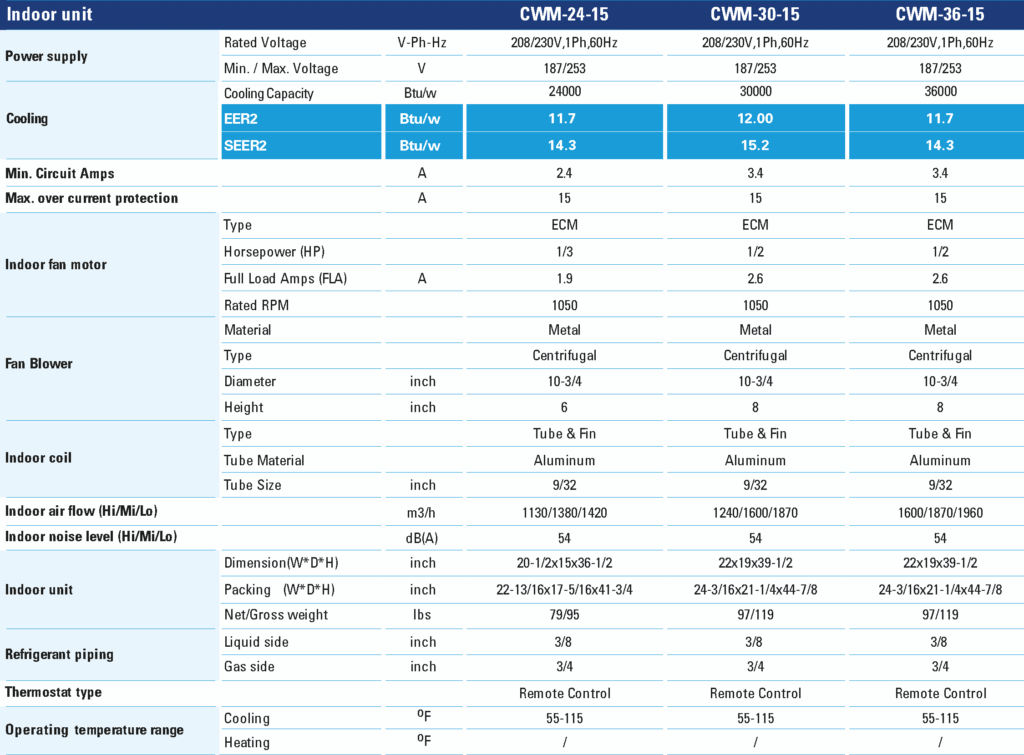

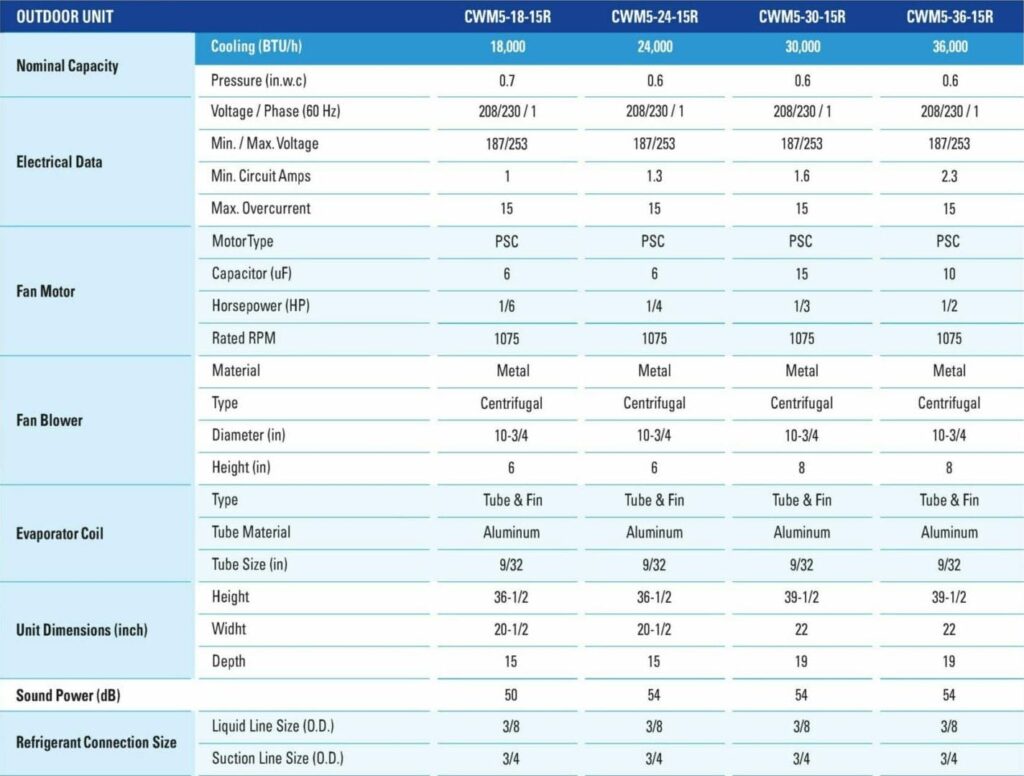

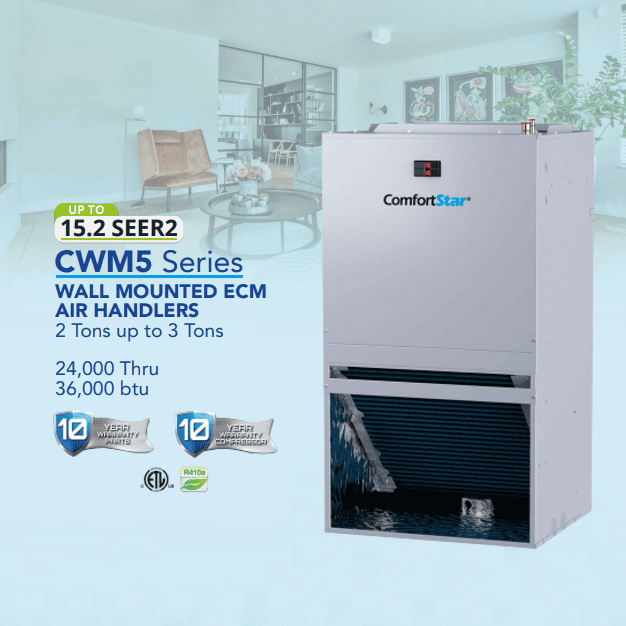

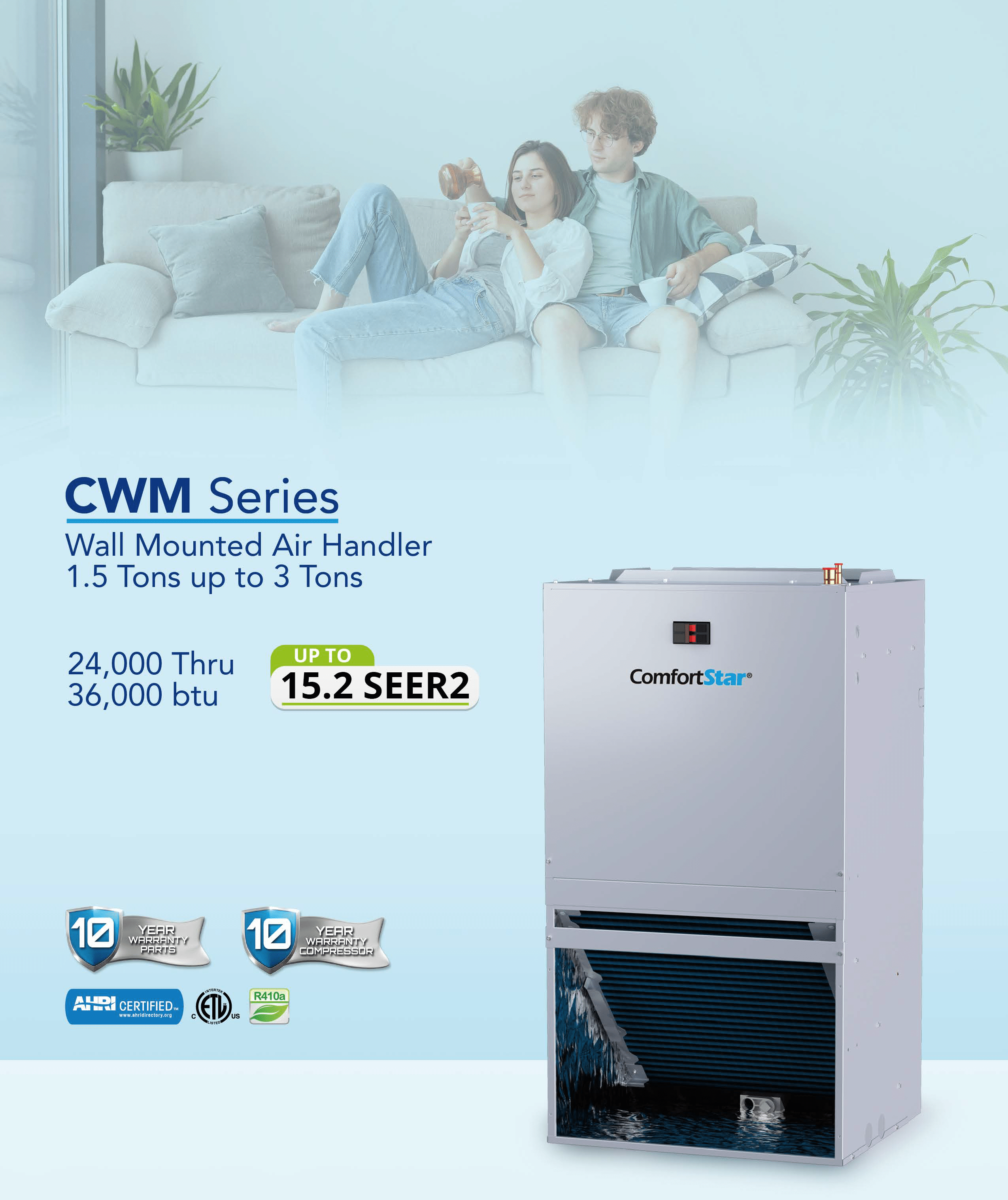

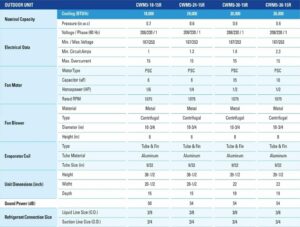

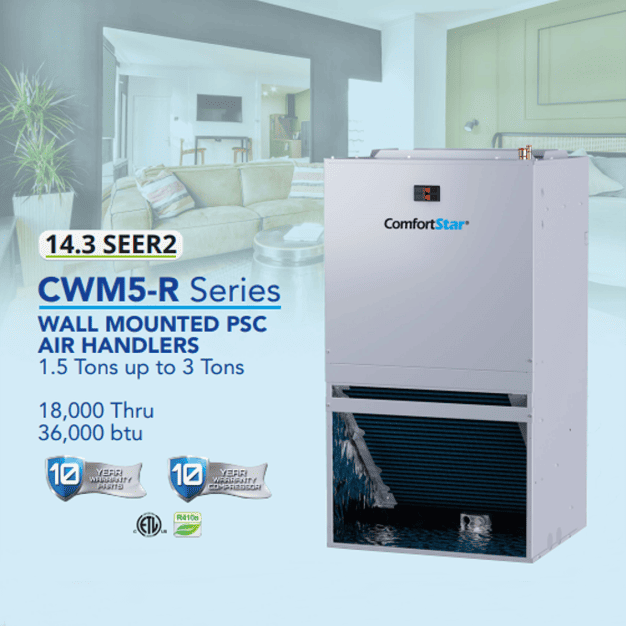

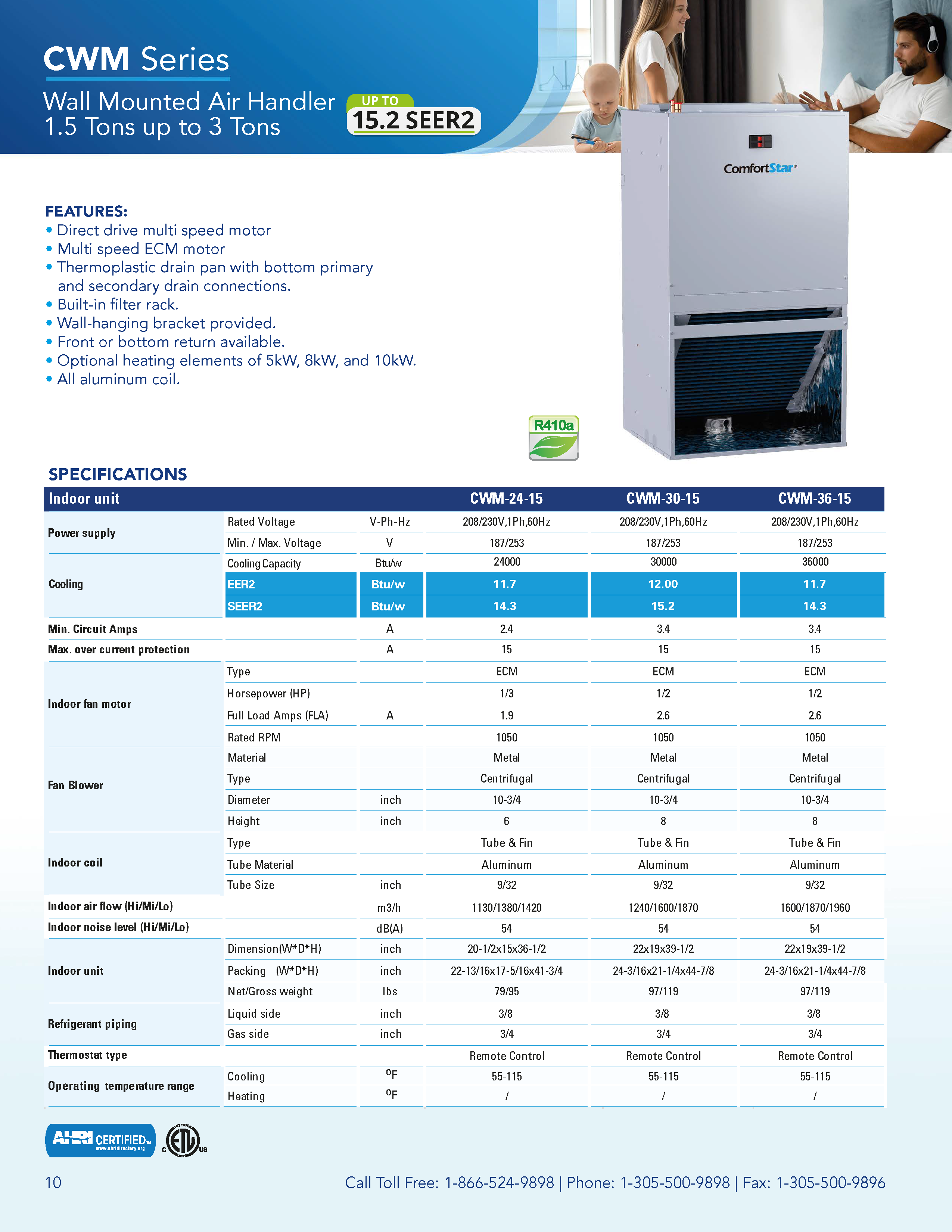

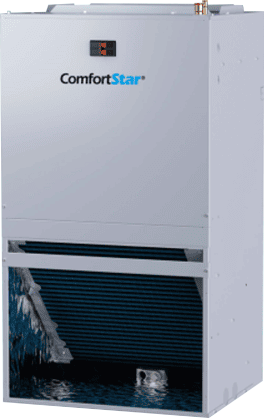

CWM5 Expanded Features:
Direct-drive, Multi-speed Motors Allow Air Volume Variation For Heating / Cooling.
Multi-speed Ecm Motor: Thermoplastic Drain Pan With Bottom Primary And Secondary Drain Connections.
Built-in Filter Rack.
Wall-hanging Bracket Provided.
Front Or Bottom Return Available.
Optional Heating Elements Of 5kw, 8kw, And 10kw.
All Aluminum Coil.
Resources
Installation Manual
Installation Manual
Spare Parts
CWM5 (24-15)
CWM5 (30-15)
CWM5 (36-15)
Submittals
CWM5 (24-15)
CWM5 (30-15)
CWM5 (36-15)

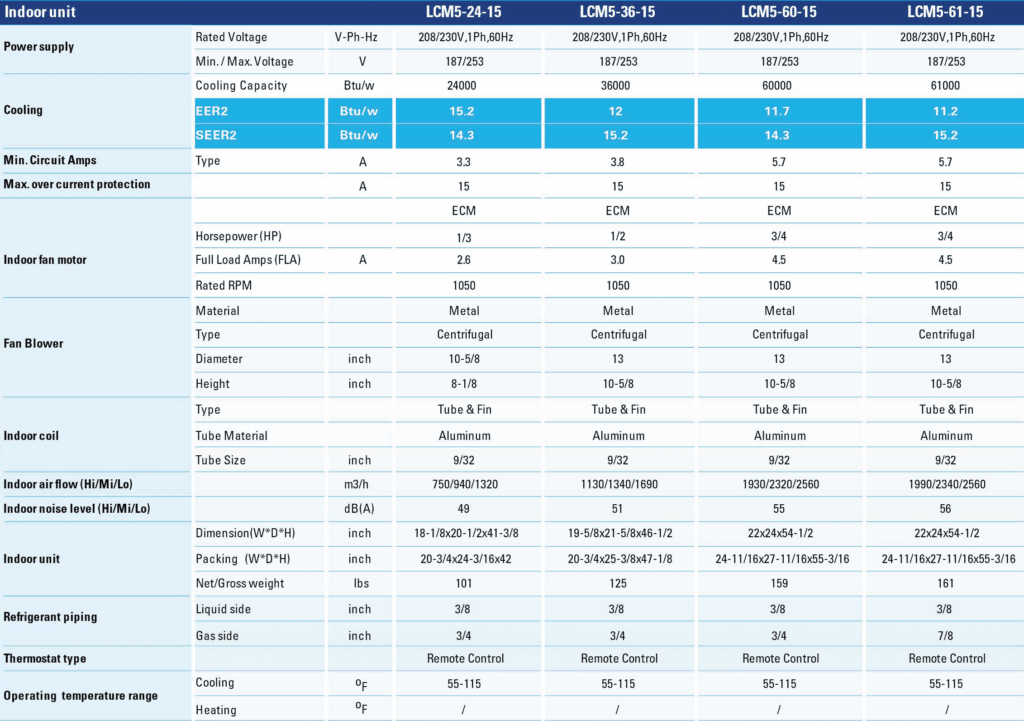

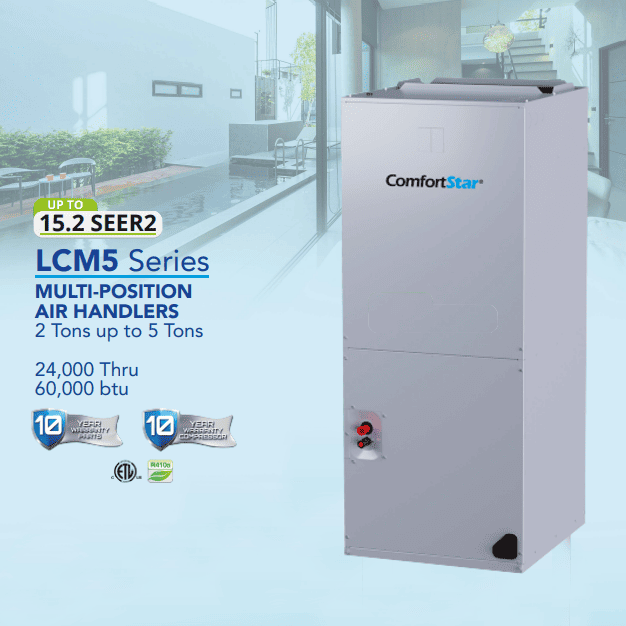

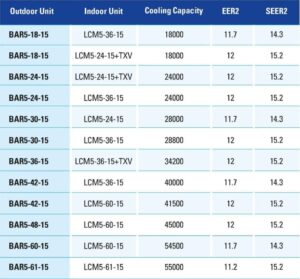

LCM5 Expanded Features:
Available for cooling and heat pump applications.
All-aluminum tubes & fins.
Common Factory-sealed cabinet achieve 2% or less leakage rate at 1.0 inch water column.
Multi-position Installation .
Horizontal and vertical condensate drain pans standard.
Blower and coil easy slide out for ease of maintenance.
Field Installed heater kits are optional: 5/7.5/10/15/20kW.
Multi-speed constant torque ECM blower motor (For LCM5 models).
Factory-installed Piston metering for
Cooling only model.
2-stage fan control and cold air prevention design (For special models).
AHRI Listed (2023 SEER2) & ETL Certification.
Mobile Home Certification.
Resources
Installation Manual
Installation Manual
Spare Parts
Spare Parts
Submittals
LCM5 (24-15)
LCM5 (36-15)
LCM5 (60-15)
LCM5 (61-15)
