SINGLE ZONE

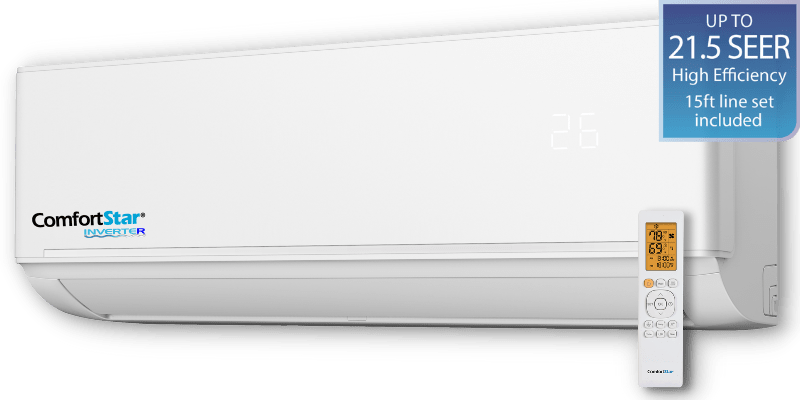

CGS High Wall Indoor Unit
CGS Condensing Outdoor Unit

Home » ALEGRIA GOLD

LOW AMBIENT: Capable of producing comfortable heating and cooling to outdoor ambient temperatures as low as 5°F.
MANUAL POWER SWITCH: Power unit ON/OFF using button located at the evaporator.
INTERACTIVE DISPLAY SHOWS: – Error codes based on system failure.
– Service codes if your filter needs cleaning.
– Error code if refrigerant leak is detected.
– When unit goes into auto defrost.
SELF-DIAGNOSIS: Unit will shut down and go into protection mode if it detects abnormalities. The display will show an error code.
BYPASS MODE: Unit will continue to operate if a non-critical component fails, such as a sensor.
2-WAY DRAINING OPTION: Ability to place drain hose on left or right hand side of evaporator allows for flexible installation.
3 DIRECTIONAL AIRFLOW: Air flow is directed so that it reaches more surface area including the corners of the room.
MUTE OPERATION: Silence from the Remote Control.
FOLLOW ME FUNCTION: Remote Control has a sensor built in. In this mode, the unit will sense the temperature at the Remote Control instead of at the indoor unit for the set temperature.
CONTROLS: Wired Controls and Wi-Fi Control – (optional).

Service Manual

Indoor Spare Parts

Outdoor Spare Parts

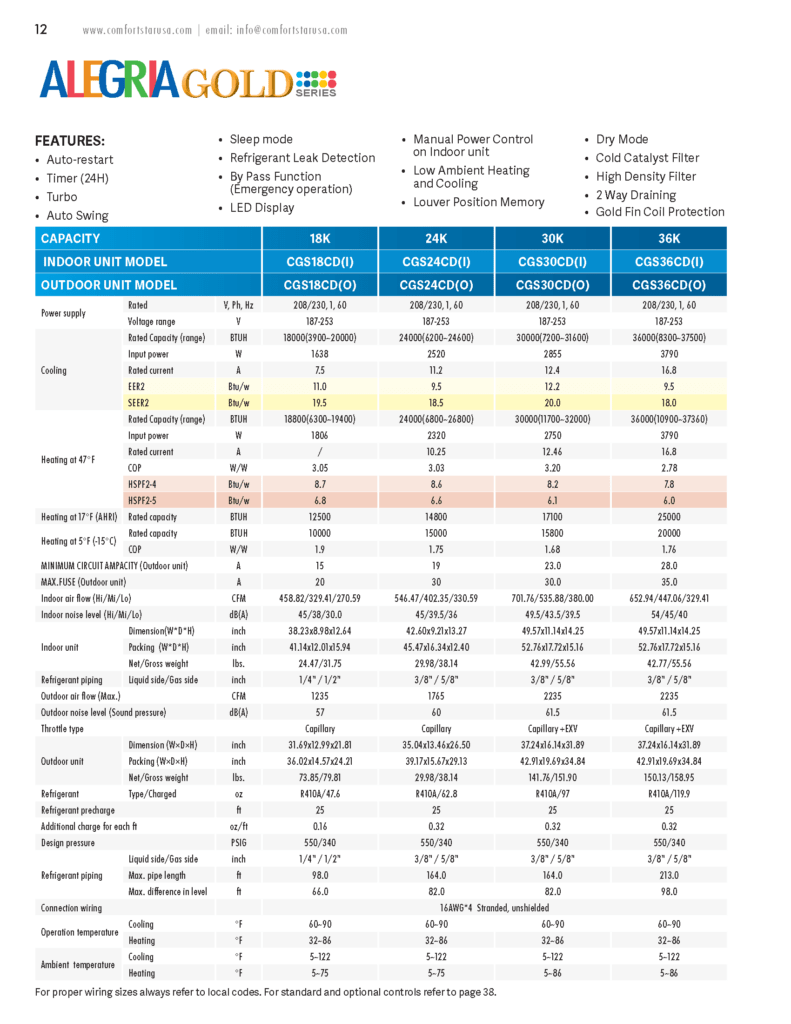

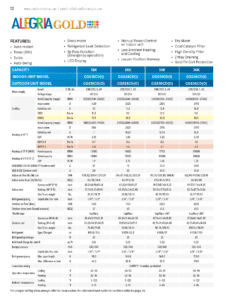

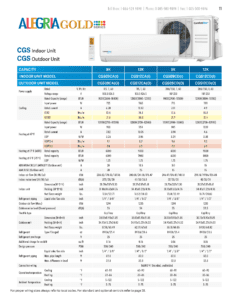

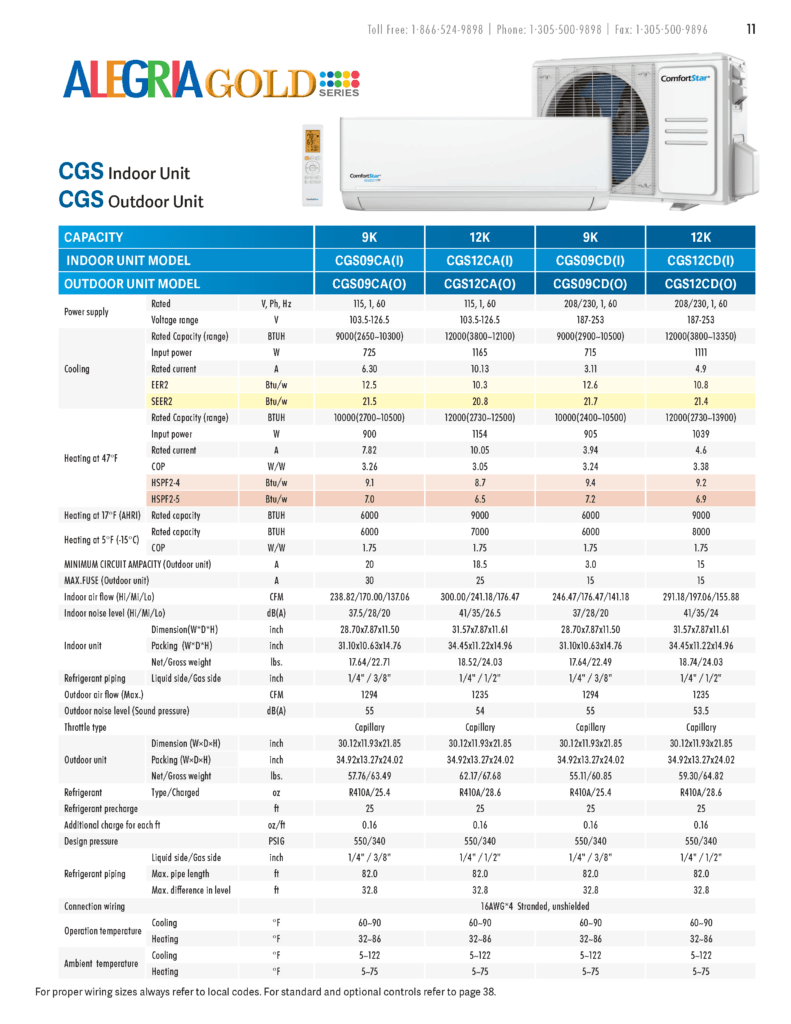

Performance Data

Submittals

AHRI Certificates
