THE easy fit

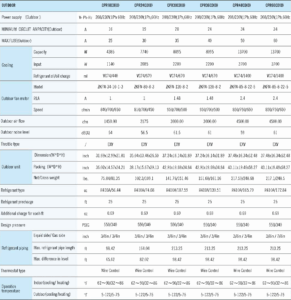

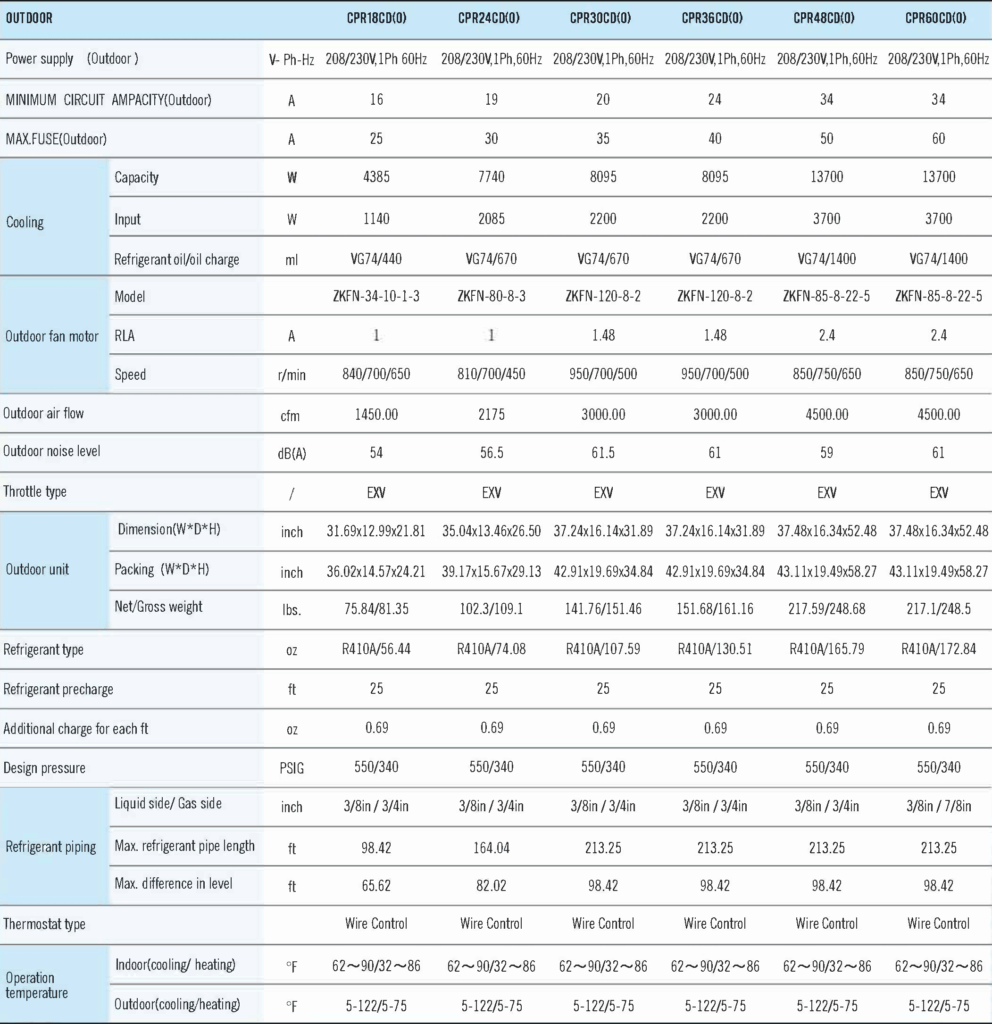

CPR Series | up to 17.3 SEER2
CENTRAL HEAT PUMP 24 VOLT SYSTEM
A smart HVAC system that won’t compromise comfort and connects to traditional ducted solutions.
Previous
Next
Home
»
RESIDENTIAL SERIES
»
THE EASY FIT – PLATINUM SERIES
Features:
Replaces EXISTING R410a Heat pump systems without the need to replace or modify existing line sets/ wires.
24 volt control allows this condensing unit to be connected to any indoor unit controlled by any Heat Pump Thermostat.
Inverter Compressor = much more reliable than a conventional type.
Sound level – As low as 56 DBA.
50% smaller footprint than a regular condensing unit.
Self diagnostic.
Gold fin protection.
Can be matched with a standard air handler and A coil.
Low ambient temperature 5F.
Copper + Gold fin aluminum.
Resources
Owner's Manual
CPR + CPH + AHU-SG2 Owner’s Manual
Service Manual
ComfortStar AHU-SG2 CPR Service Manual
Installation Manual
Air Handler Unit and Coil Installation Manual
Performance Data

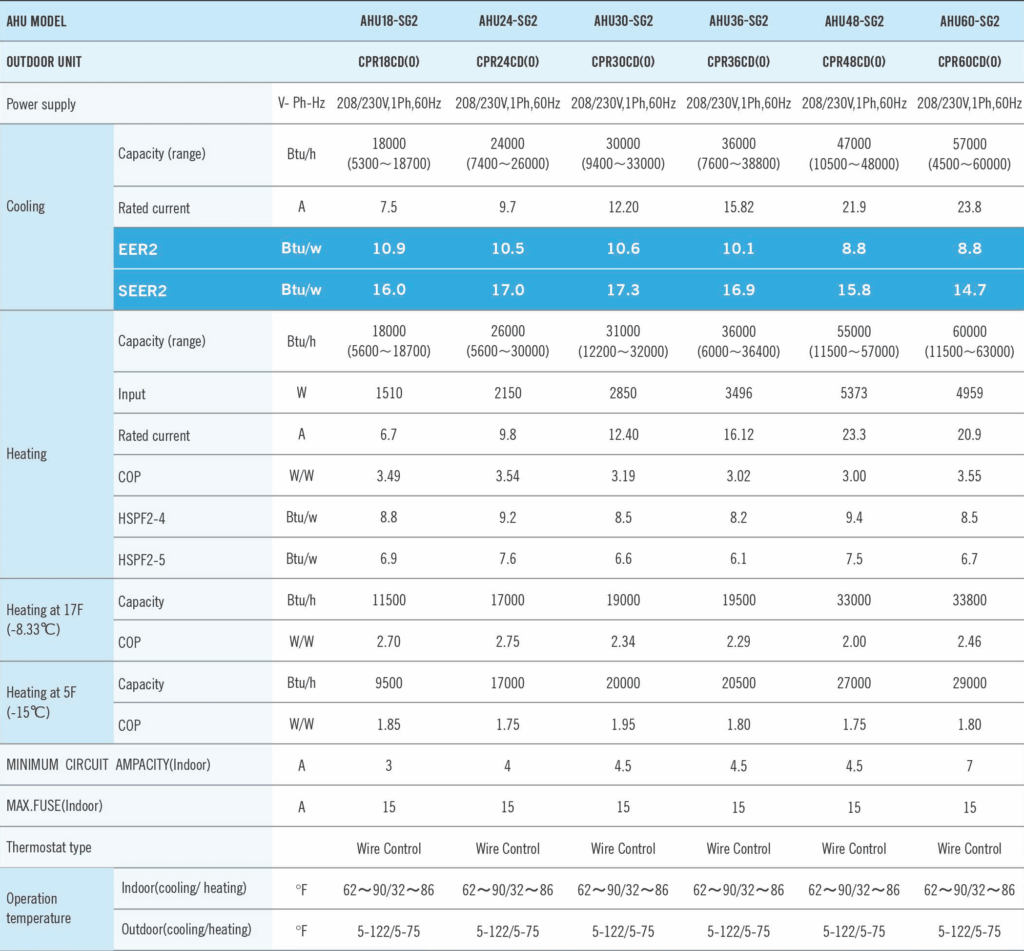

AHU + CPR Extended Performance
Spare Parts
CPR18CD
CPR24CD
CPR30CD
CPR36CD
CPR48CD
CPR60CD
Submittals
CPR Submittal 18K
CPR Submittal 24K
CPR Submittal 30K
CPR Submittal 36K
CPR Submittal 48K
CPR Submittal 60K

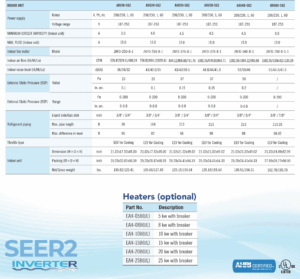

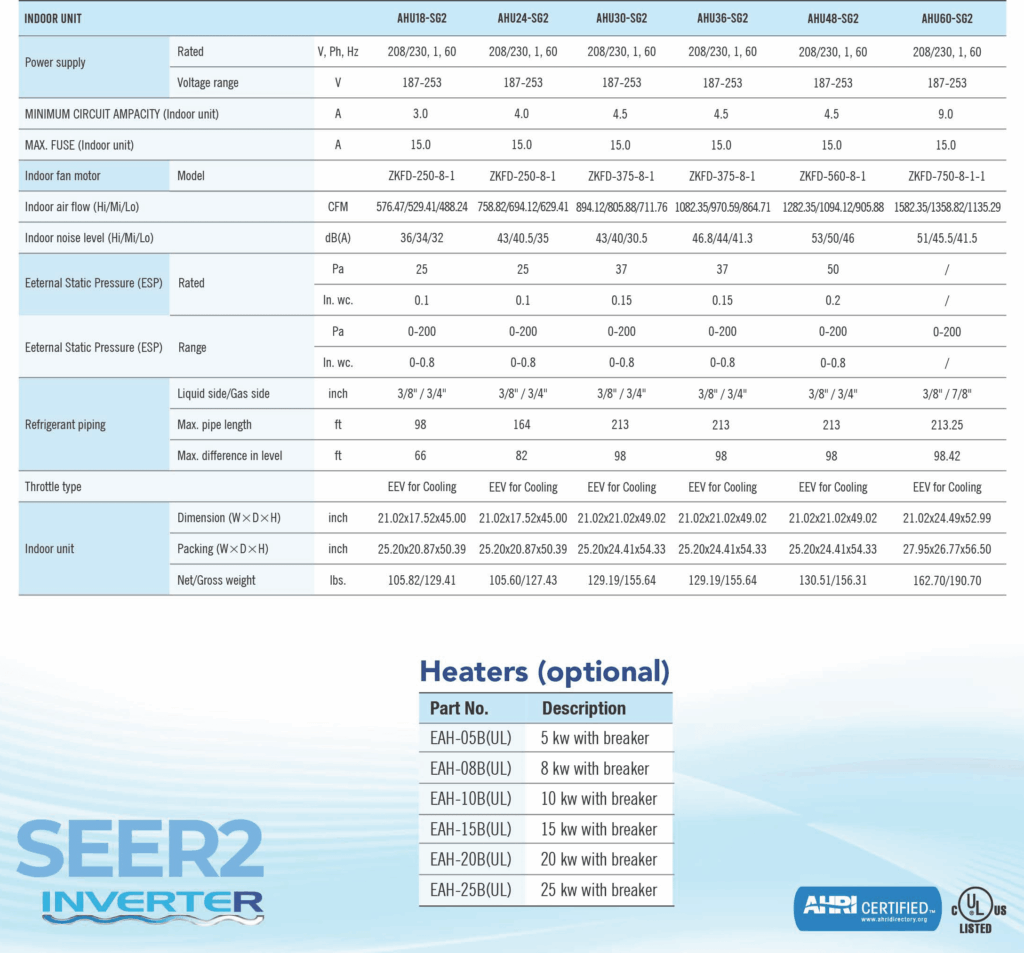

AIR HANDLER UNIT
(AHU-SG2 Series)
UNIVERSAL MULTIPOSITION SERIES AIR HANDLER
Features:
Multiposition
Upflow, Downflow, Horizontal left, Horizontal right.
Size:
very compact compared to any other BRAND.
Controls:
very versatile it can be controlled with: Any 24 volt thermostat Wifi.
Static pressure:
will adjust automatically.
Compatible with existing refrigerant line set, no need to insulate both lines.
Heating:
additional heating element kits from 5-20 kw, optional Auxiliary electric.
UV Light:
Has a dedicated wiring port.
Humidifier:
Has a dedicated wiring port.
Easy Maintenance.
Field installed heater Kits from 5 to 25 kw
Aluminum tubes and fins.
Quite due to inverter and DC motor
EEV Precise control.
Consistent Room Temperature.
Automatic Airflow Adjustment.
Easy Fault Code Checking.
Nitrogen Charge and Leakage Check Valve.
Compatible and keep your existing line, wire and thermostat.
Compatible with Comfortstar wireless remote controller, programmable wired controller, central controller, Wi-Fi controller, Remote On/Off.
Resources
Service Manual
ComfortStar AHU-SG2 CPR Service Manual
Installation Manual
Installation Manual for AHU-SG2
Spare Parts
AHU18-SG2
AHU24-SG2
AHU30-SG2
AHU36-SG2
AHU48-SG2
AHU60-SG2
Submittals
Submittal AHU18-SG2
Submittal AHU24-SG2
Submittal AHU30-SG2
Submittal AHU36-SG2
Submittal AHU48-SG2
Submittal AHU60-SG2
Control
Engineering Mode
AWC-7PA Wired Controller Installation and Owner’s Manual
Remote controller ARC-88B Owner’s Manual

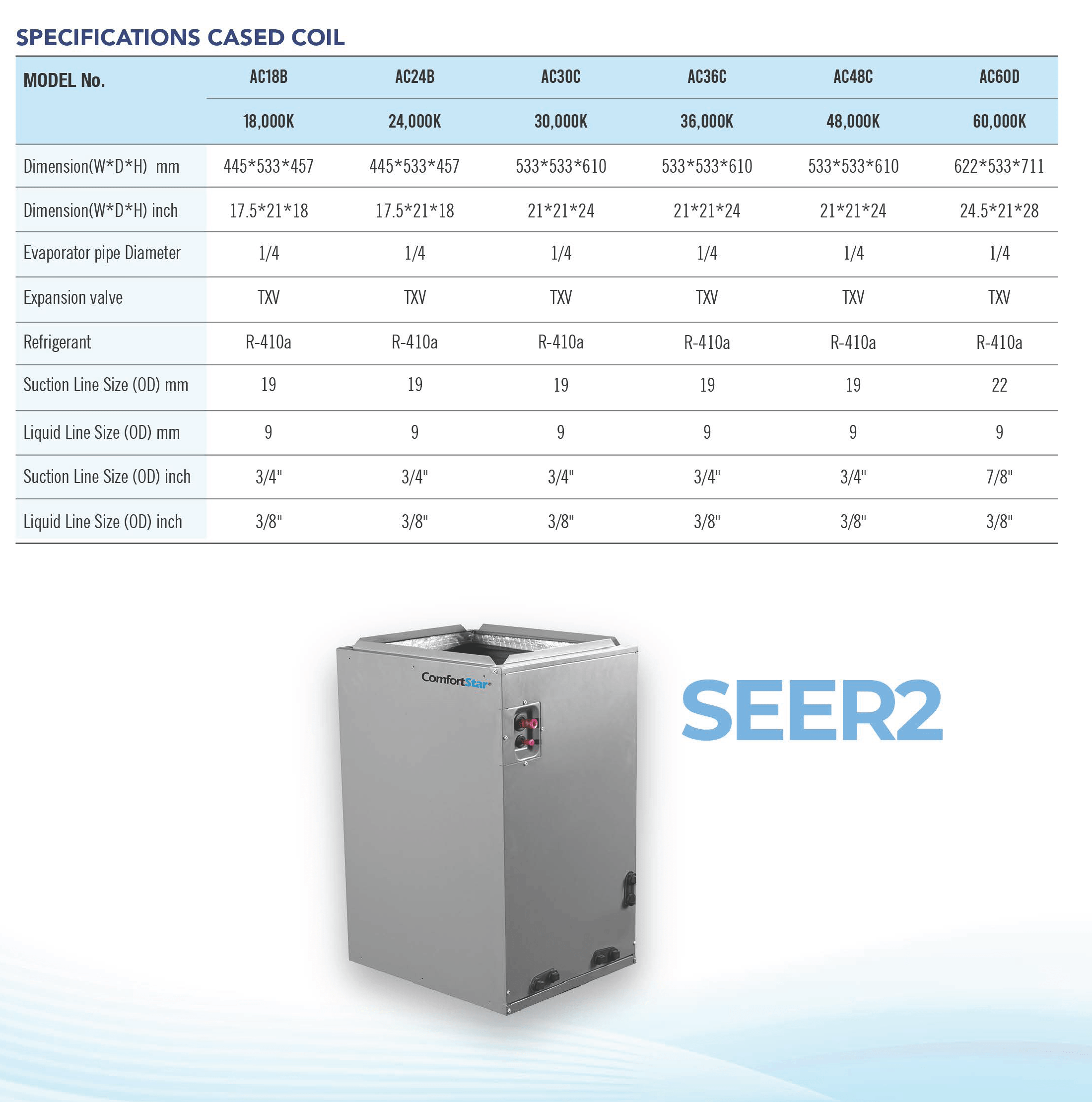

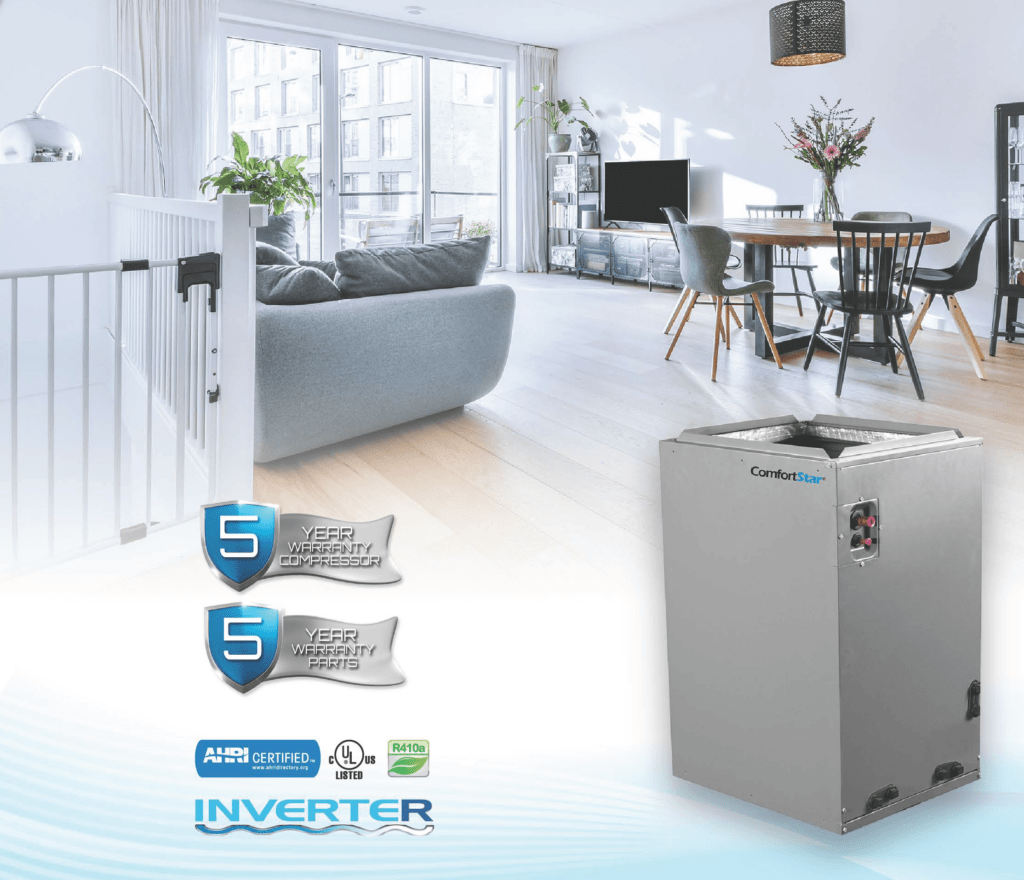

CASED COIL
CPR & CPH Series
CASED COILS COME IN STANDARD WIDTHS TO FIT MOST FURNACES
Resources
Installation Manual
AC-UAC Coil Installation Manual
Gas Furnace Installation Manual
Submittals
Heater EAH-10B(UL)
Heater EAH-15B(UL)
Heater EAH-20B(UL)
Heater EAH-25B(UL)
Heater EAH-03B(UL)
Heater EAH-05B(UL)
Heater EAH-08B(UL)
