Home / RESIDENTIAL SERIES / BAR4

bar4

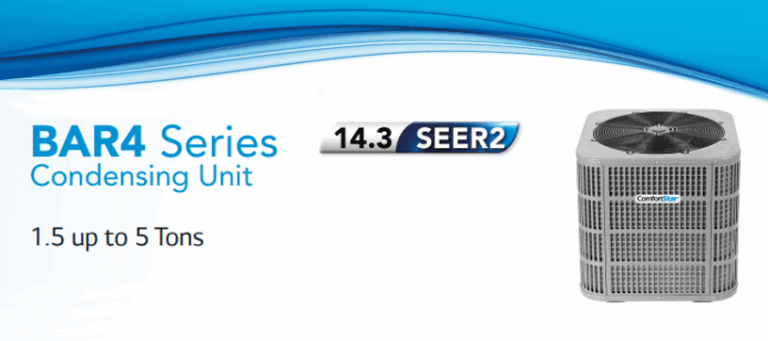

BAR4 Series | UP TO 14.3 SEER2

TOP DISCHARGE CONDENSING UNIT

ALL Scroll Compressor
DC fan motor

Up to 14.3 SEER2
Cooling Capacity: 18 – 60kBtu/h

indoor units

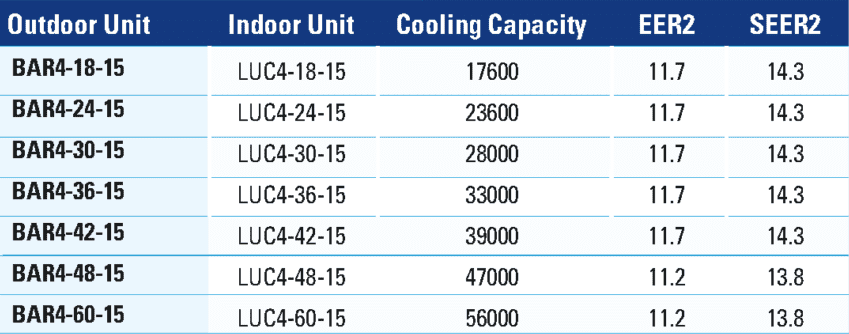

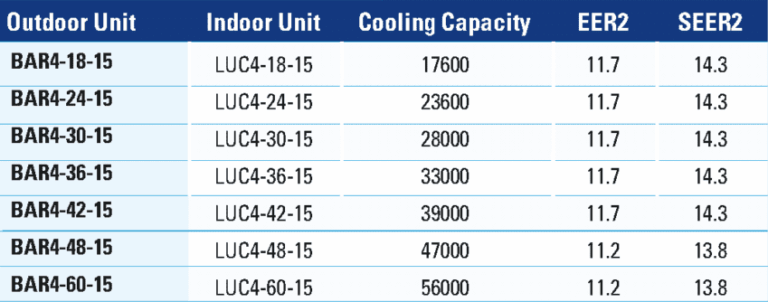

bar4 SERIES +
lUC4 SERIES

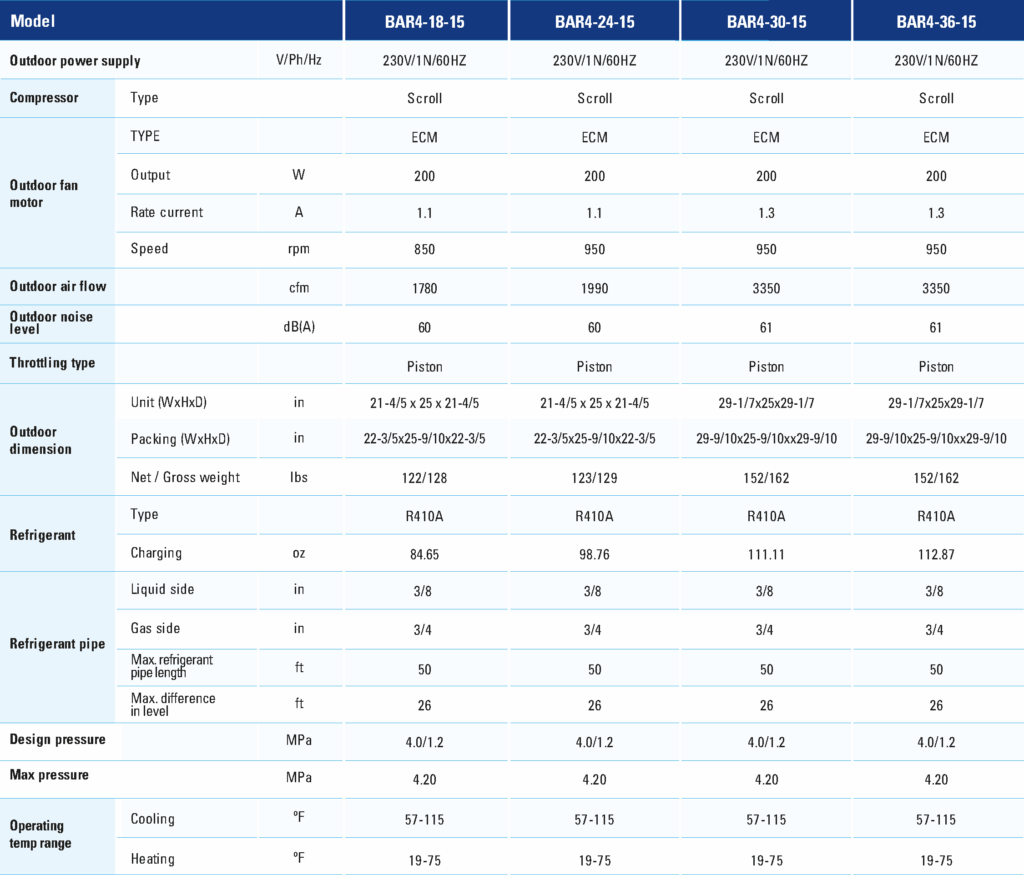

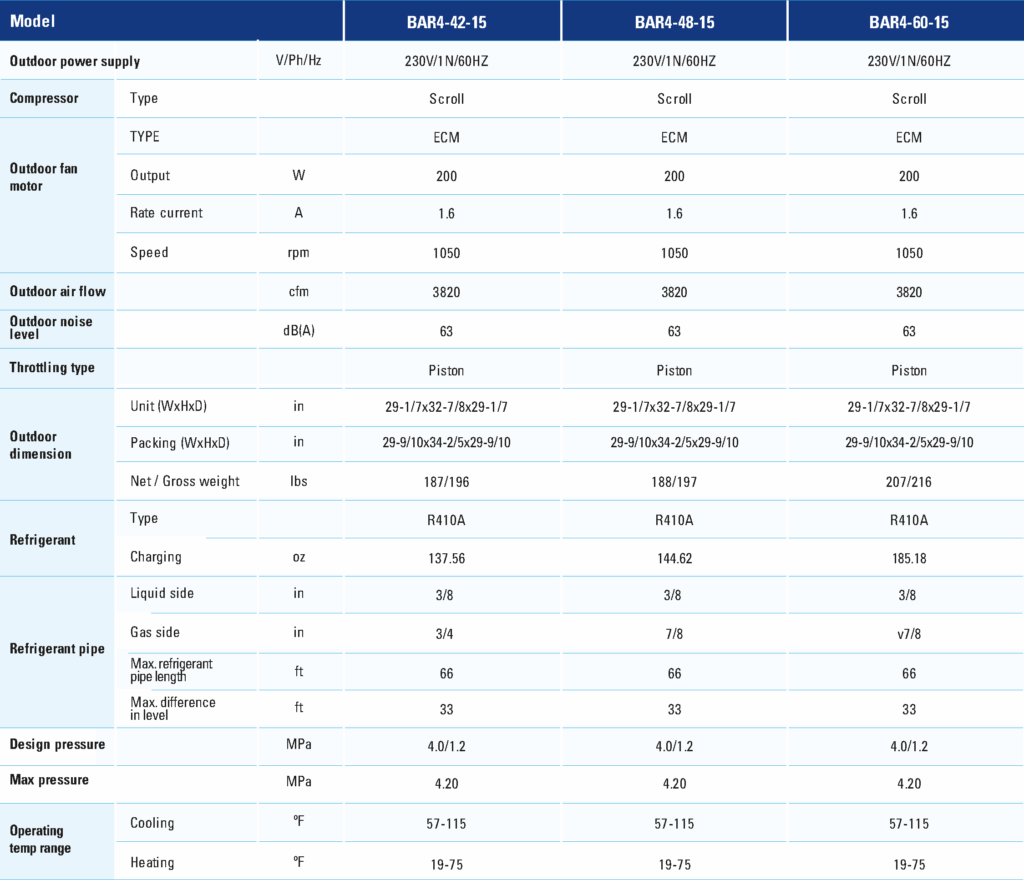

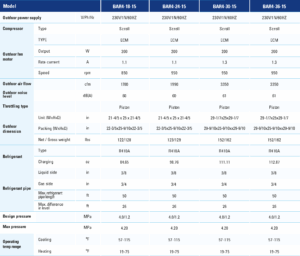

BAR4 Series Features

R410a environmentally friendly refrigerant.
DC Fan motor.
24V low voltage control.
Safe, reliable, and can be used with third-party IDUs.
Intelligent defrosting program.
Auto judge the defrosting time according to the system real requirement, reduce the heating loss by unnecessary defrosting and make the indoor side more comfortable.
Painted galvanized steel cabinet.
Two condenser guard grilles available.

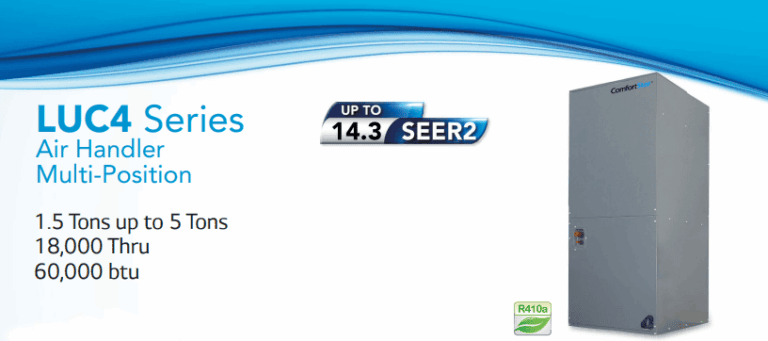

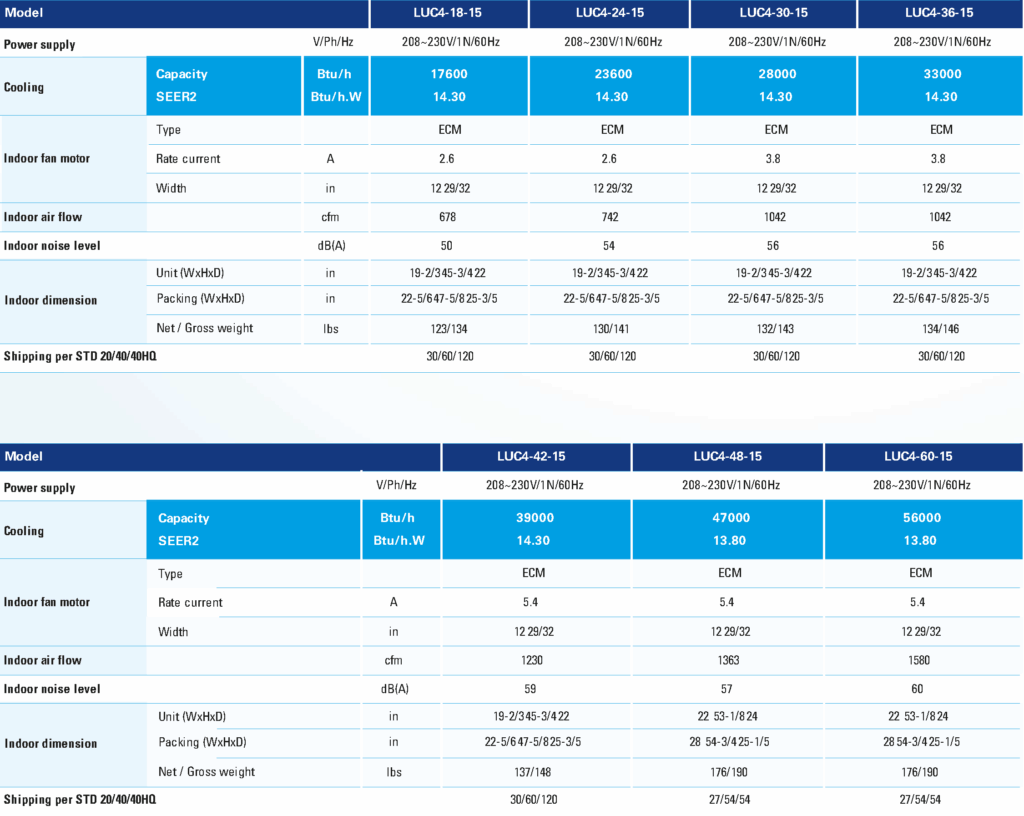

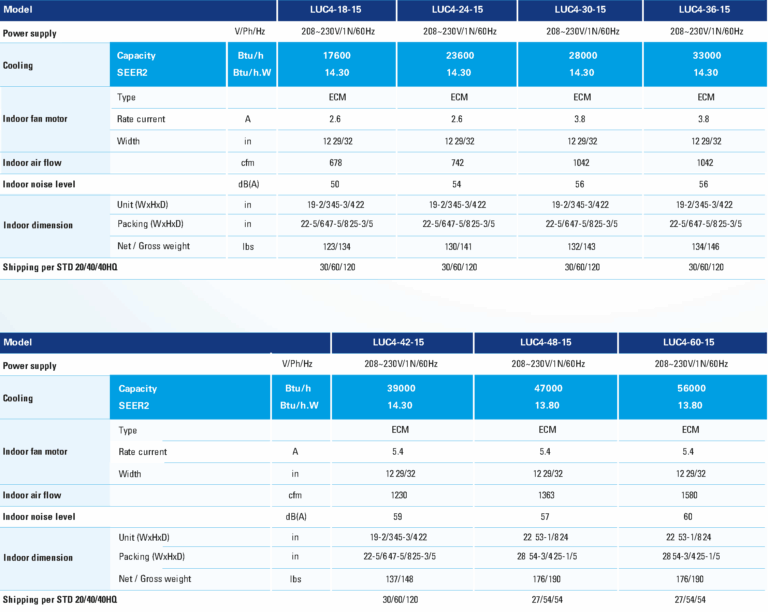

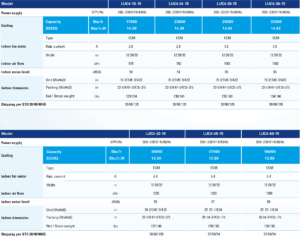

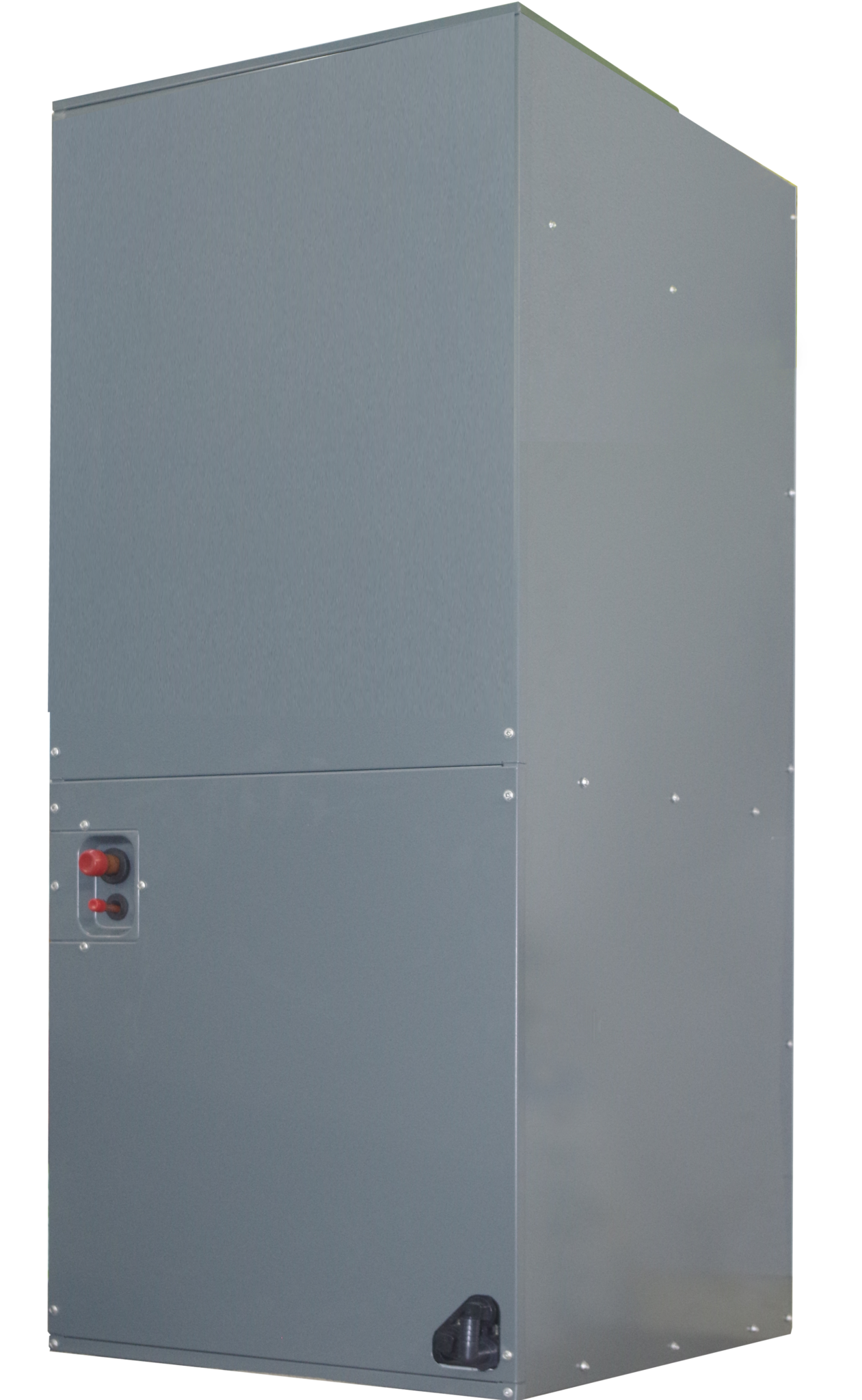

LUC4 Series Features

All-aluminum tubes & fins.
Factory sealed cabinet helps achieve 2% or less leakage rate.
Multi-position Installation .
Horizontal and vertical condensate drain pans standard.
AHRI / ETL.
Blower wheel and coil easily slide out for better maintenance.
Field Installed heater kits are optional: 5/7.5/10/15/20kW.
Multi-speed constant torque.
ECM blower motor.
Factory installed piston.
Mobile Home Certification.
It Can Connect Universal 24v
Transformer, Easy For After Service.
Electric Heater Which Equipped With Plug Can Connect To Main Board Directly.
Add Y2 Terminal For 2-stage Unit.
High and low Fan Speed Are Available.
Anti-cold Wind Function Is Available. (For Hp).
Add Dehumidify Terminal For Dh Function.

RESOURCES

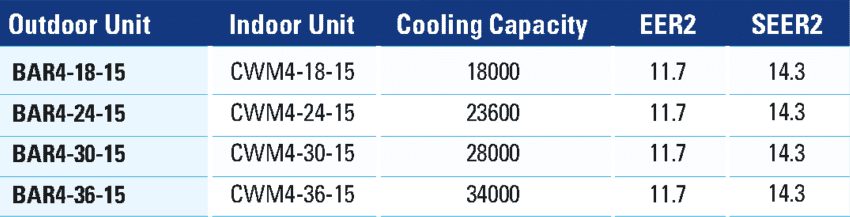

BAR4 SERIES +
CWM4 SERIES

BAR4 Series Features

R410a environmentally friendly refrigerant.
DC Fan motor.
24V low voltage control.
Safe, reliable, and can be used with third-party IDUs.
Intelligent defrosting program.
Auto judge the defrosting time according to the system real requirement, reduce the heating loss by unnecessary defrosting and make the indoor side more comfortable.
Painted galvanized steel cabinet.
Two condenser guard grilles available.

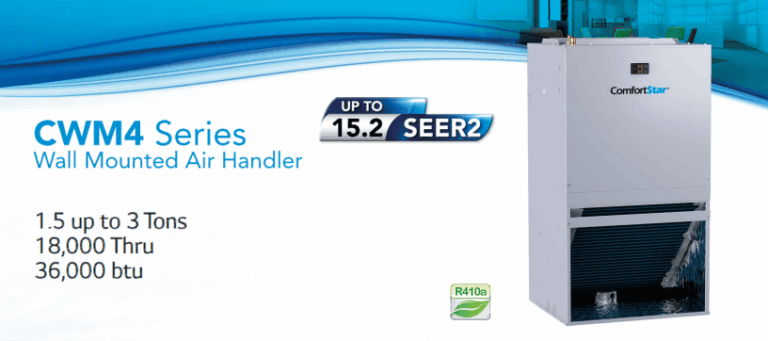

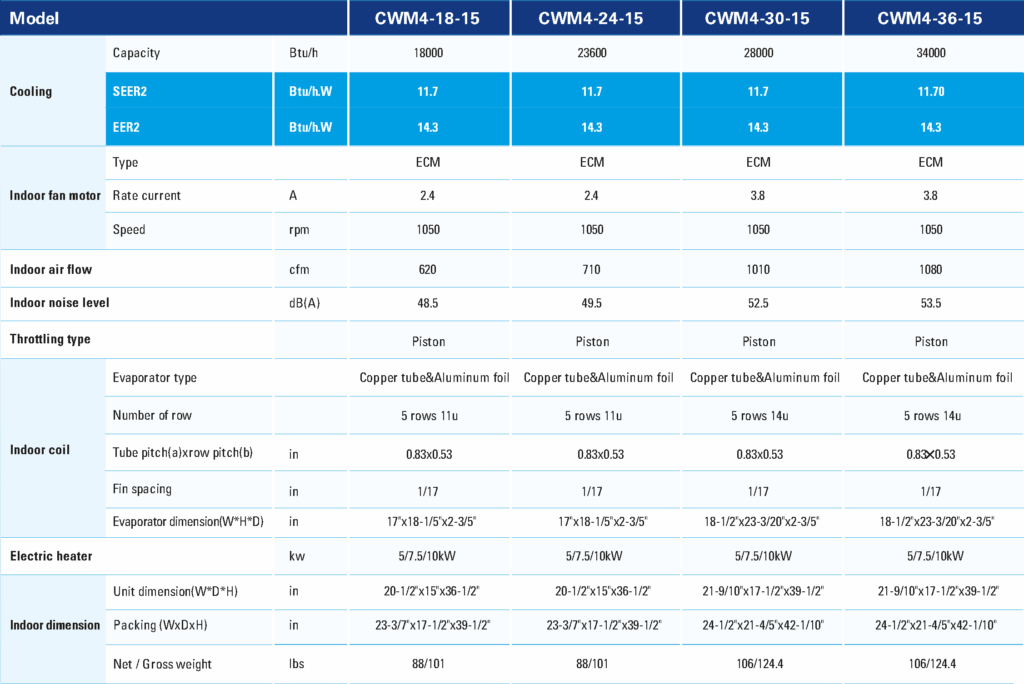

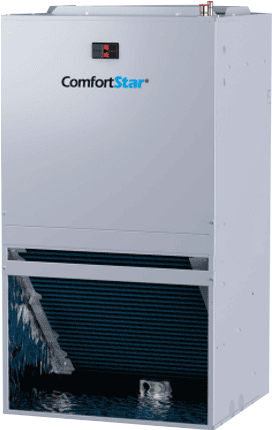

CWM4 Series Features

Multi-speed ECM motor.
Thermoplastic drain pan with bottom primary and secondary drain connections.
Built-in filter rack.
Wall-hanging bracket provided.
Front or bottom return available.
Optional heating elements of 5kW, 8kW, and 10kW.
All aluminum coil.
