Home
/
RESIDENTIAL SERIES
/
BAH4
Click Here to View the Product Catalog
baH4
BAH4 Series | UP TO 14.3 SEER2

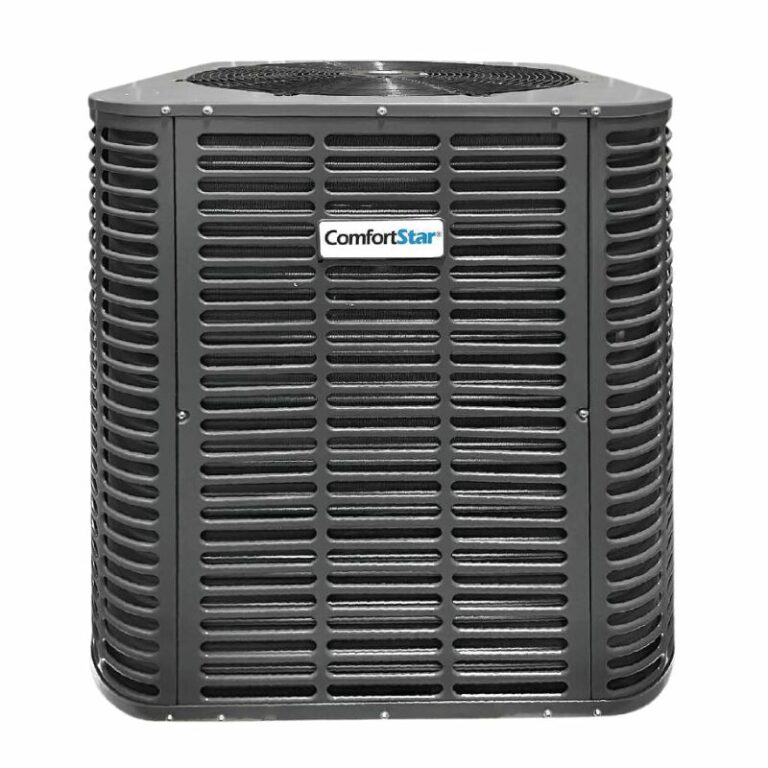

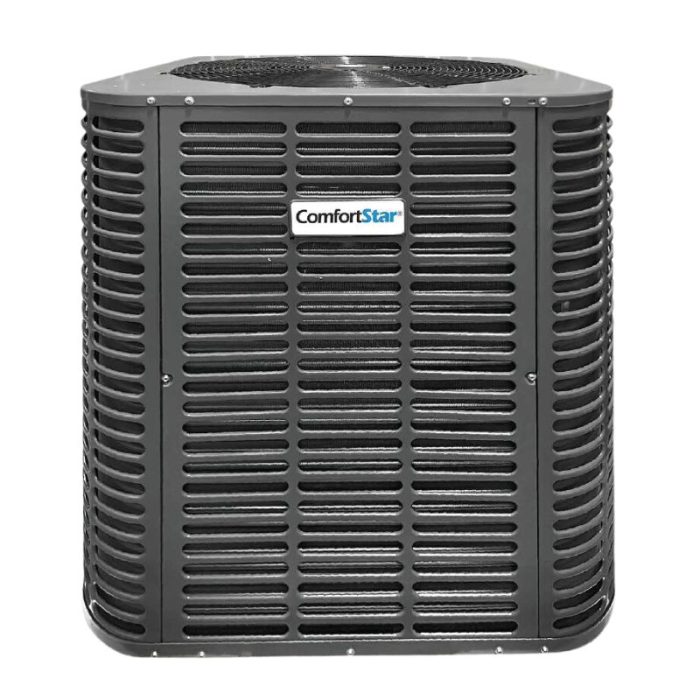

HEAT PUMP TOP DISCHARGE CONDENSING UNIT
Up to 14.3 SEER2
3 Speed DC fan motor
High Efficiency Scroll Compressor
Cooling Capacity: 18 – 48kBtu/h
indoor units
baH4 SERIES +
lUC4 SERIES

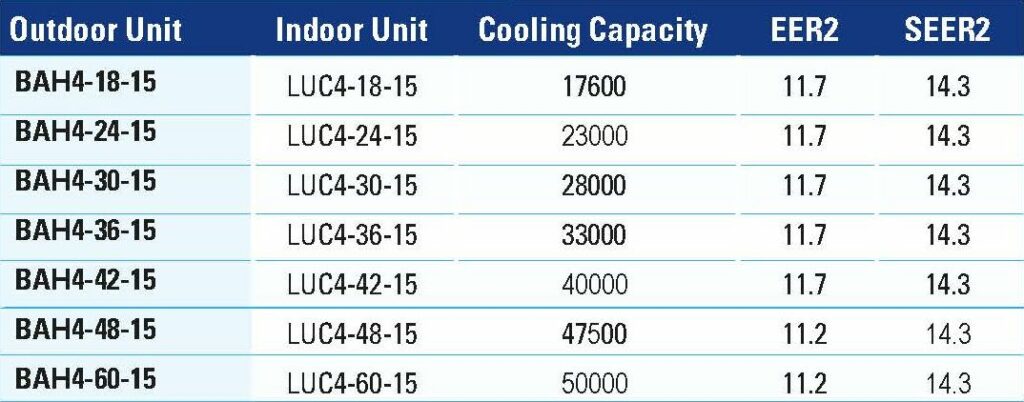

Matchup Table
BAH4 Series Specs
LUC4 Series Specs
BAH4 Series Features
Low pressure protection.
High pressure protection.
Cooling range: 57° F – 115° F.
Heating range: 19° F – 75° F.
High efficiency condenser with inner groove copper tube and aluminum fin.
High Efficiency scroll compressor.
R410a environmentally friendly refrigerant.
3 Speed De Fan Motor.
Powder painted galvanized steel cabinet.
LUC4 Series Features
All-aluminum tubes & fins.
Factory sealed cabinet helps achieve 2% or less leakage rate.
Multi-position Installation .
Horizontal and vertical condensate drain pans standard.
AHRI / ETL.
Blower wheel and coil easily slide out for better maintenance.
Field Installed heater kits are optional: 5/7.5/10/15/20kW.
Multi-speed constant torque.
ECM blower motor.
Factory installed piston.
Mobile Home Certification.
It Can Connect Universal 24v
Transformer, Easy For After Service.
Electric Heater Which Equipped With Plug Can Connect To Main Board Directly.
Add Y2 Terminal For 2-stage Unit.
High and low Fan Speed Are Available.
Anti-cold Wind Function Is Available. (For Hp).
Add Dehumidify Terminal For Dh Function.
RESOURCES
Service Manual
BAH4 Service Manual
Outdoor Spare Parts
BAH4-18-15
BAH4-24-15
BAH4-30-15
BAH4-36-15
BAH4-42-15
BAH4-48-15
Submittals
BAH4-18-15
BAH4-24-15
BAH4-30-15
BAH4-36-15
BAH4-42-15
BAH4-48-15
LUC4 (18-15)
LUC4 (24-15)
LUC4 (30-15)
LUC4 (36-15)
LUC4 (42-15)
LUC4 (48-15)
LUC4 (60-15)
Warranty Guide
BAH4 Series Warranty Letter
Owner's & Installation Manuals
BAH4 Installation Manual
Installation Manual
Indoor Spare Parts
LUC4 (18-15)
LUC4 (24-15)
LUC4 (30-15)
LUC4 (36-15)
LUC4 (42-15)
LUC4 (48-15)
LUC4 (60-15)
AHRI Certificates
BAH4-18-LUC4-18
BAH4-24-LUC4-24
BAH4-30-LUC4-30
BAH4-36-LUC4-36
BAH4-42-LUC4-42
BAH4-48-LUC4-48
BAH4-60-LUC4-60
BAH4 SERIES +
CWM4 SERIES

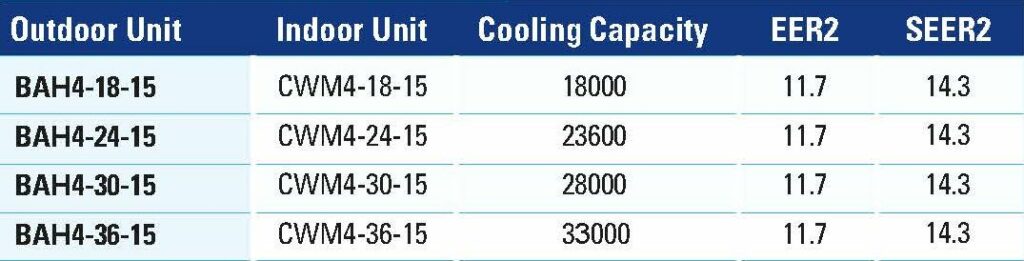

Matchup Table
BAH4 Series Specs
CWM4 Series Specs
BAH4 Series Features
Low pressure protection.
High pressure protection.
Cooling range: 57° F – 115° F.
Heating range: 19° F – 75° F.
High efficiency condenser with inner groove copper tube and aluminum fin.
High Efficiency scroll compressor.
R410a environmentally friendly refrigerant.
3 Speed De Fan Motor.
Powder painted galvanized steel cabinet.
CWM4 Series Features
Multi-speed ECM motor.
Thermoplastic drain pan with bottom primary and secondary drain connections.
Built-in filter rack.
Wall-hanging bracket provided.
Front or bottom return available.
Optional heating elements of 5kW, 8kW, and 10kW.
All aluminum coil.
RESOURCES
Service Manual
BAH4 Service Manual
Outdoor Spare Parts
BAH4-18-15
BAH4-24-15
BAH4-30-15
BAH4-36-15
BAH4-42-15
BAH4-48-15
Submittals
BAH4-18-15
BAH4-24-15
BAH4-30-15
BAH4-36-15
BAH4-42-15
BAH4-48-15
CWM4-18-15
CWM4-24-15
CWM4-30-15
CWM4-36-15
Warranty Guide
BAH4 Series Warranty Letter
Owner's & Installation Manuals
BAH4 Installation Manual
Installation Manual
Indoor Spare Parts
CWM4-18-15
CWM4-24-15
CWM4-30-15
CWM4-36-15
AHRI Certificates
BAH4-18-CWM4-18
BAH4-24-CWM4-24
BAH4-30-CWM4-30
BAH4-36-CWM4-36

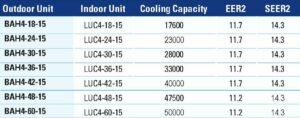

BAR4 Series + LUC4 SERIES mATCHUP
BAH4 series Specifications
LUC4 series Specifications
BAH4 Series + CWM4 SERIES mATCHUP
CWM4 series Specifications
