bah6 Series

Heat Pump Top Discharge Condensing Unit | UP TO 14.3 SEER2​

bar6 Series

Cooling Only Top Discharge Condensing Unit | up to 14.3 seer2

BAh6 series FEATURES

  • Environmentally friendly R454B refrigerant with a low Global Warming Potential value.
  • Compressor designed for energy efficiency.
  • Premium condenser featuring inner groove copper tube and aluminum fin.
  • Service valves with sweat connections and convenient gauge ports.
  • AHRI certified and ETL listed.
  • The compact design enables easy installation, clearance, durability, and maneuverability.
  • Features a powder-painted galvanized steel cabinet chassis.

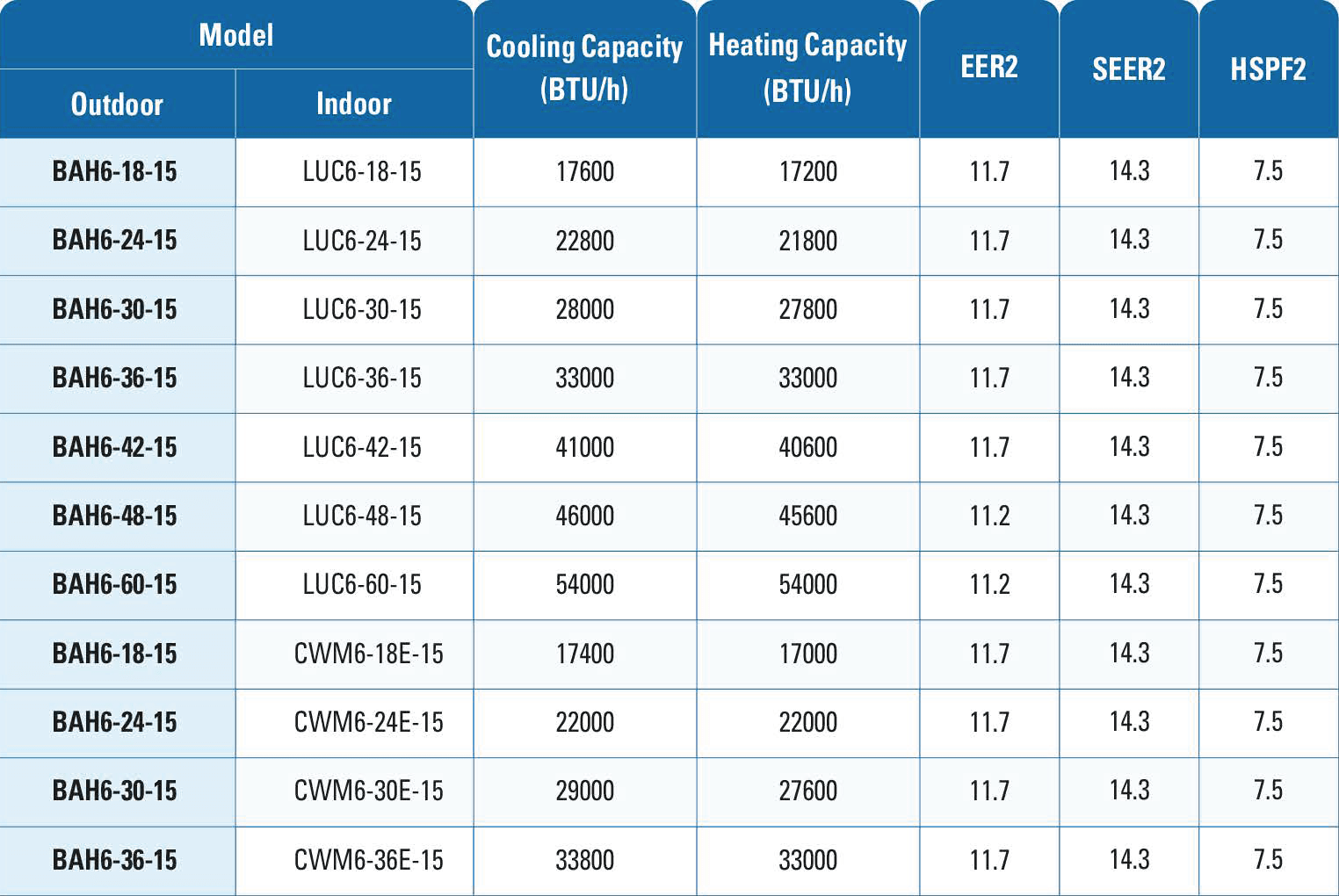

BAH6 Match up tables

bah6 series RESOURCES

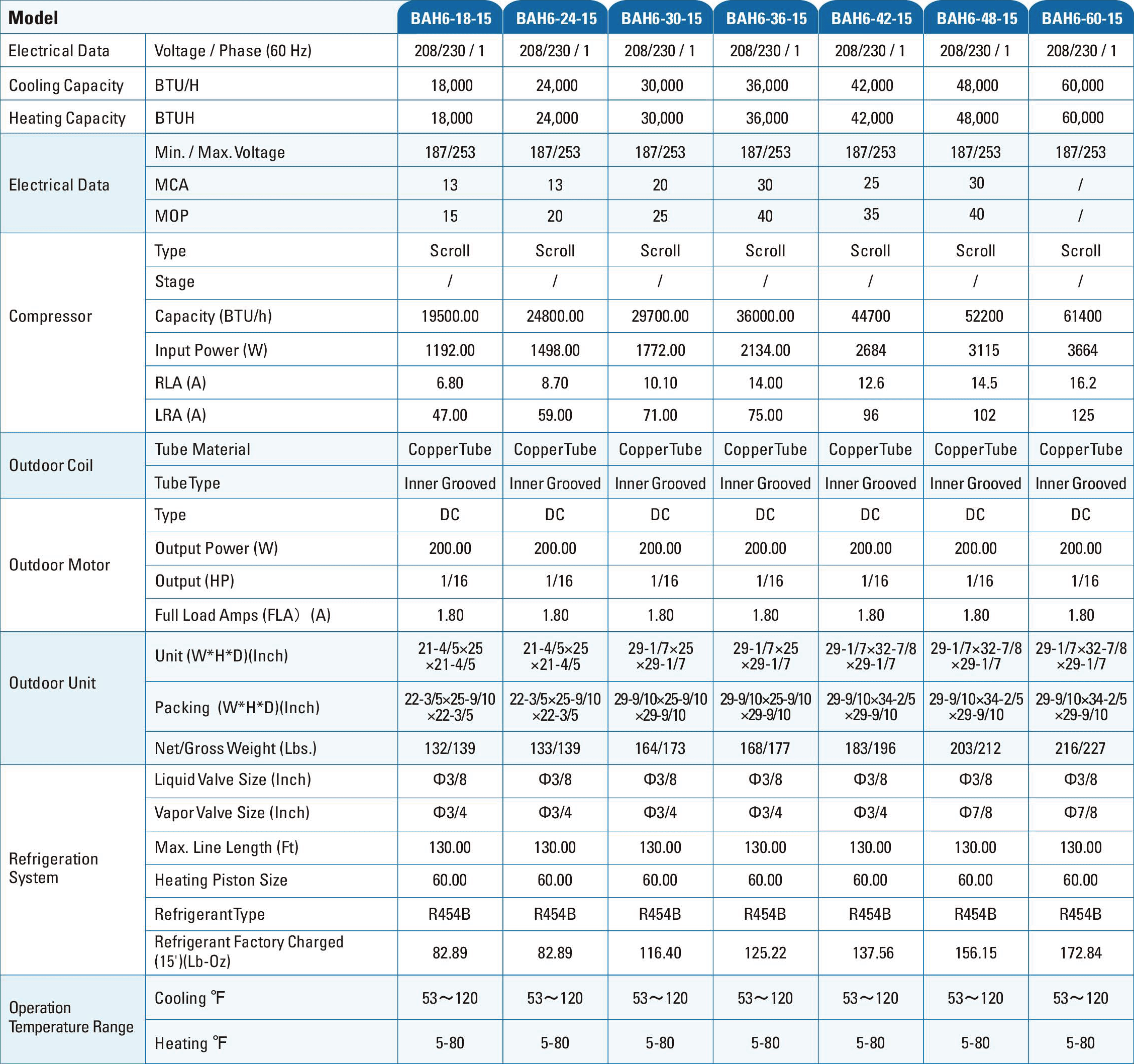

BAh6 SERIES Specifications

INDIVIDUAL INDOOR UNITS for BAH6 SERIES OUTDOOR UNITS

LUC6
CWM6

LUC6 SERIES

LUC6 SERIES fEATURES

  • Copper tubes & aluminum fins.
  • Factory sealed cabinet helps achieve 2% or less leakage rate – Multi-position Installation.
  • Horizontal and vertical condensate drain pans standard.
  • AHRI / ETL Certified.
  • Blower wheel and coil easily slide out for better maintenance
  • Field Installed heater kits are optional: 5/7 .5/10/15/20kW. Multi-speed constant torque ECM blower motor.
  • Factory installed piston metering.
  • Mobile Home Certification.

LUC6 SERIES RESOURCES

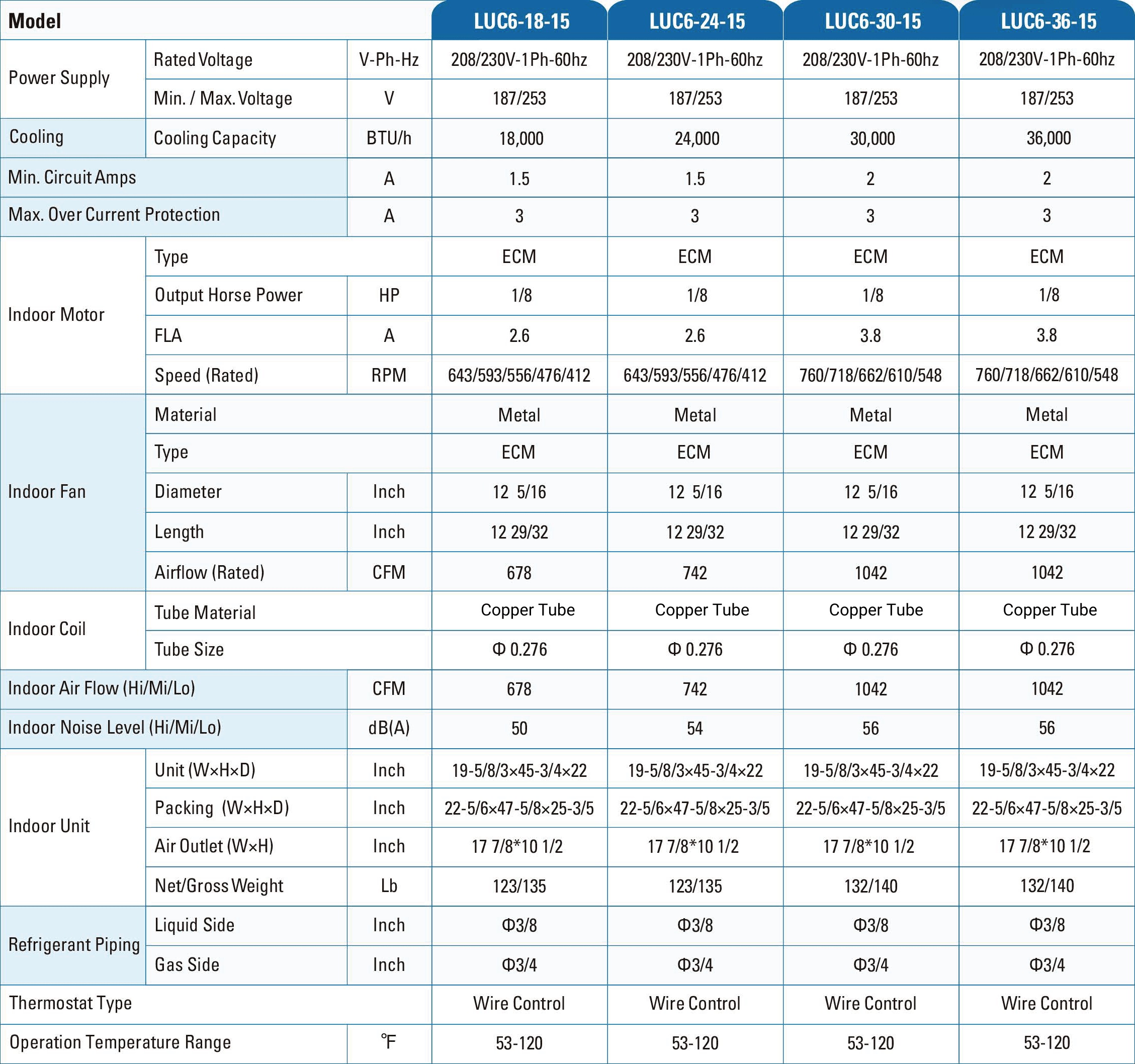

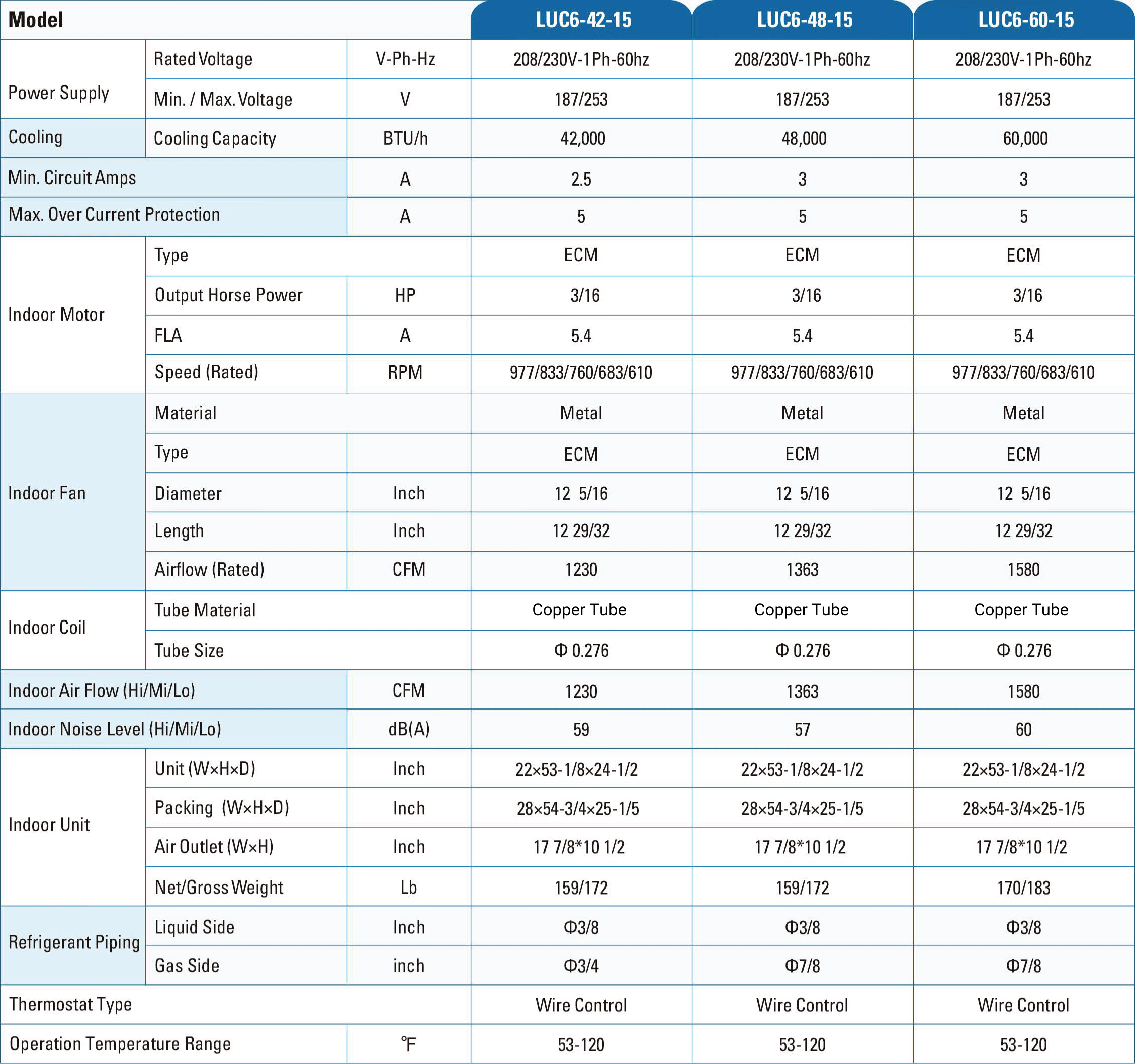

LUC6 SERIES Specifications

CWM6 SERIES

cwm6 series fEATURES

  • Front or bottom air return: Remove the cross brace when converting the cabinet to a bottom return.
  • Wall or stud mounting installation.
  • Factory Standard Front Return: Convertible to Bottom Return by removing the base pan panel to the front side.
  • Suitable for CO and HP condenser unit.
  • Operates quietly.
  • Auxiliary heaters are available in Skw, 7.Skw, and 10kw options.
  • Equipped with an ECM constant torque motor.
  • Features copper tube and aluminum fin coils.
  • Comes with a factory-installed piston metering device.
  • Metal cabinet with foil face insulation.
  • Standard thermostat functionality.
  • Compact design.
  • Includes a refrigerant leak sensor.

cwm6 Series RESOURCES6

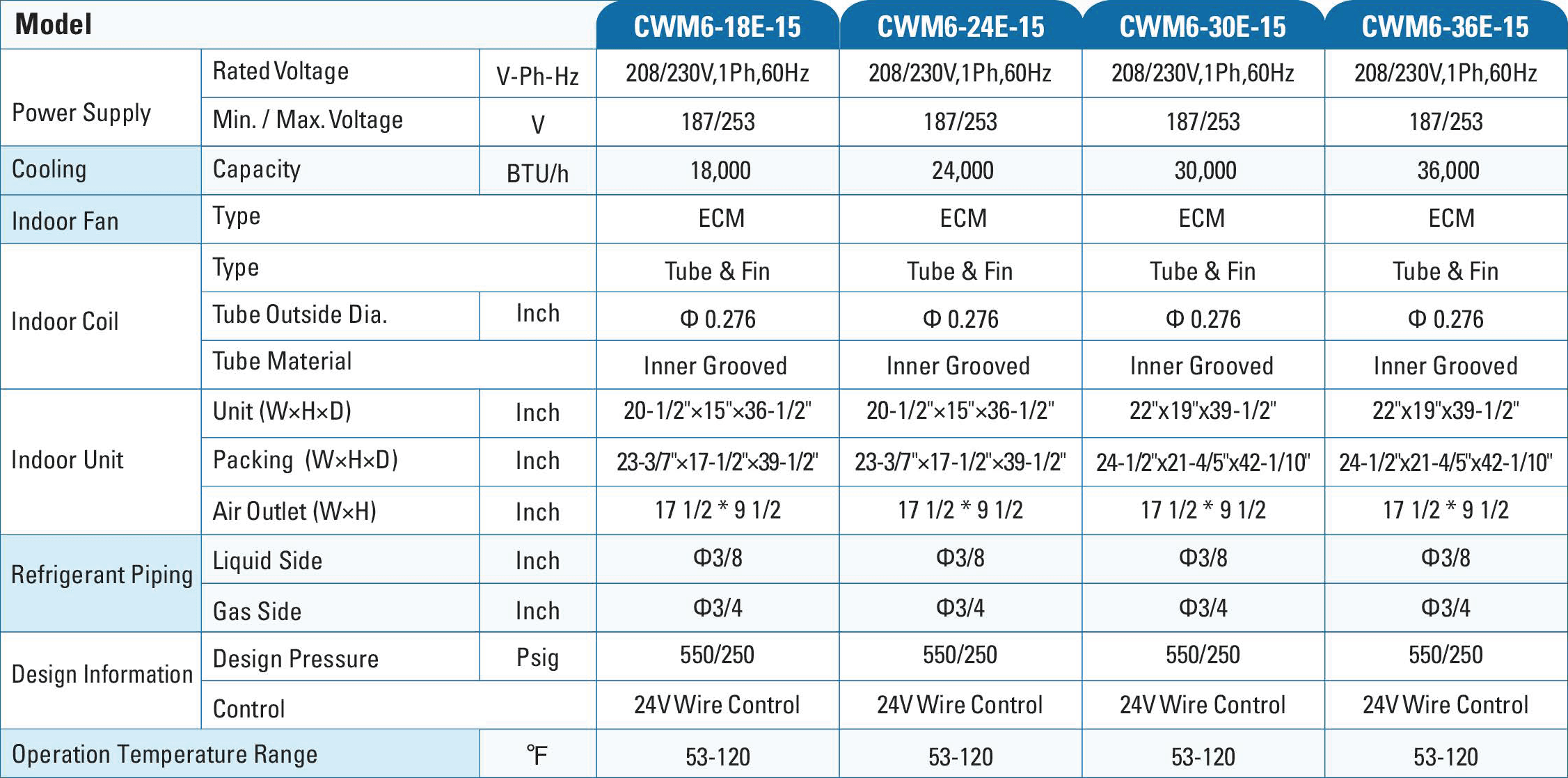

CWM6 series Specifications
