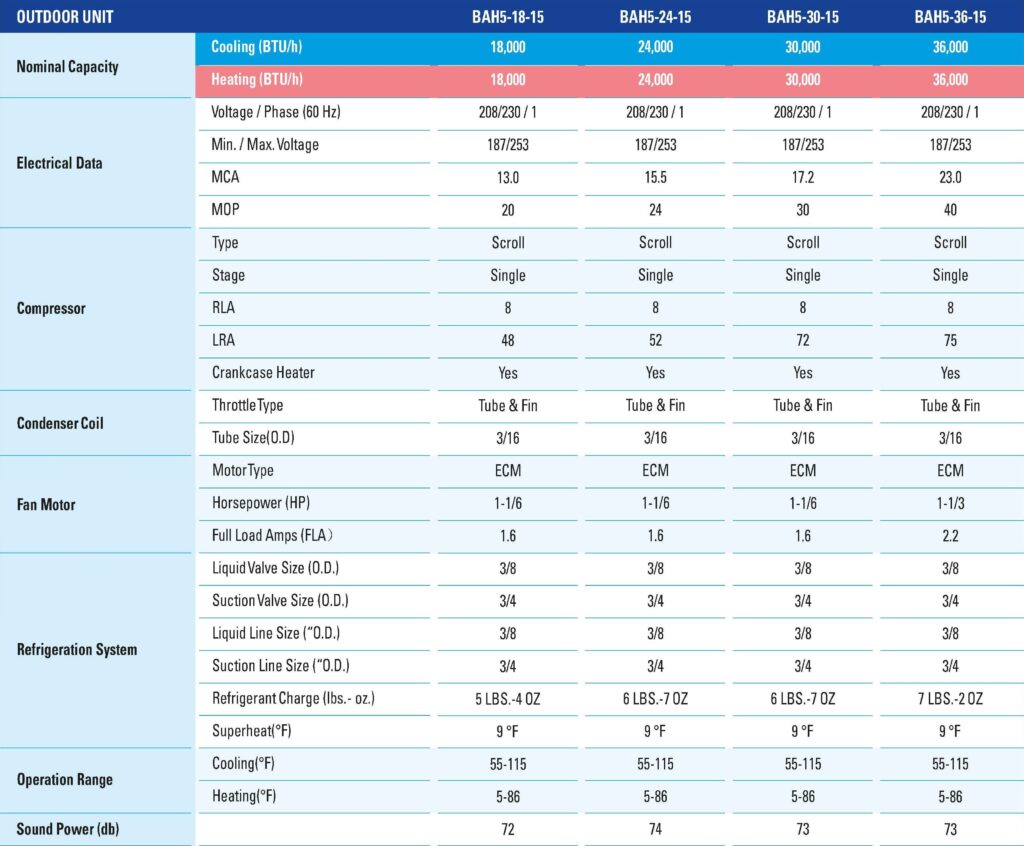

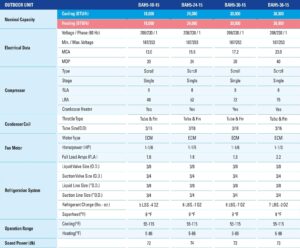

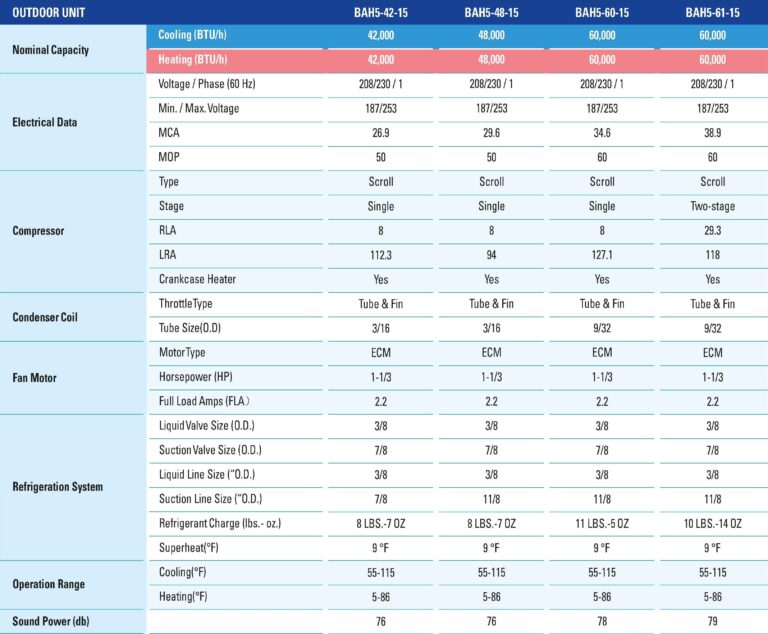

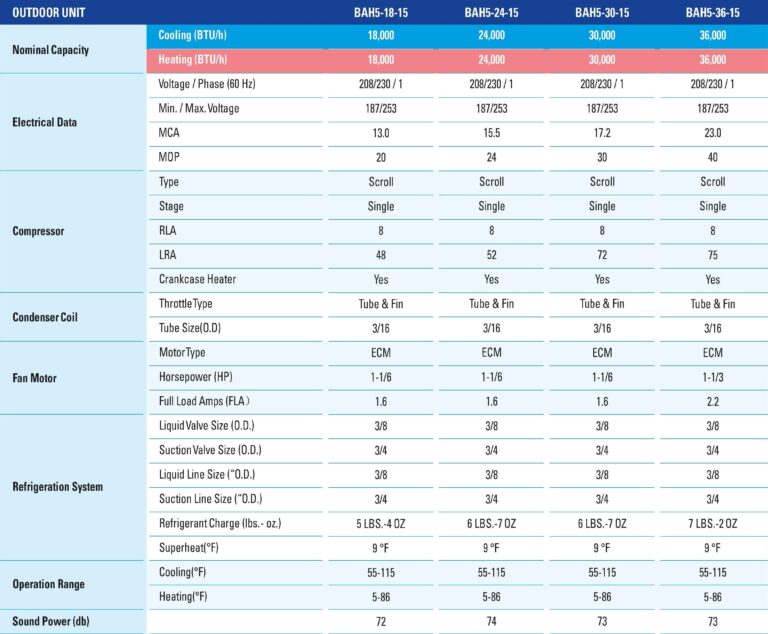

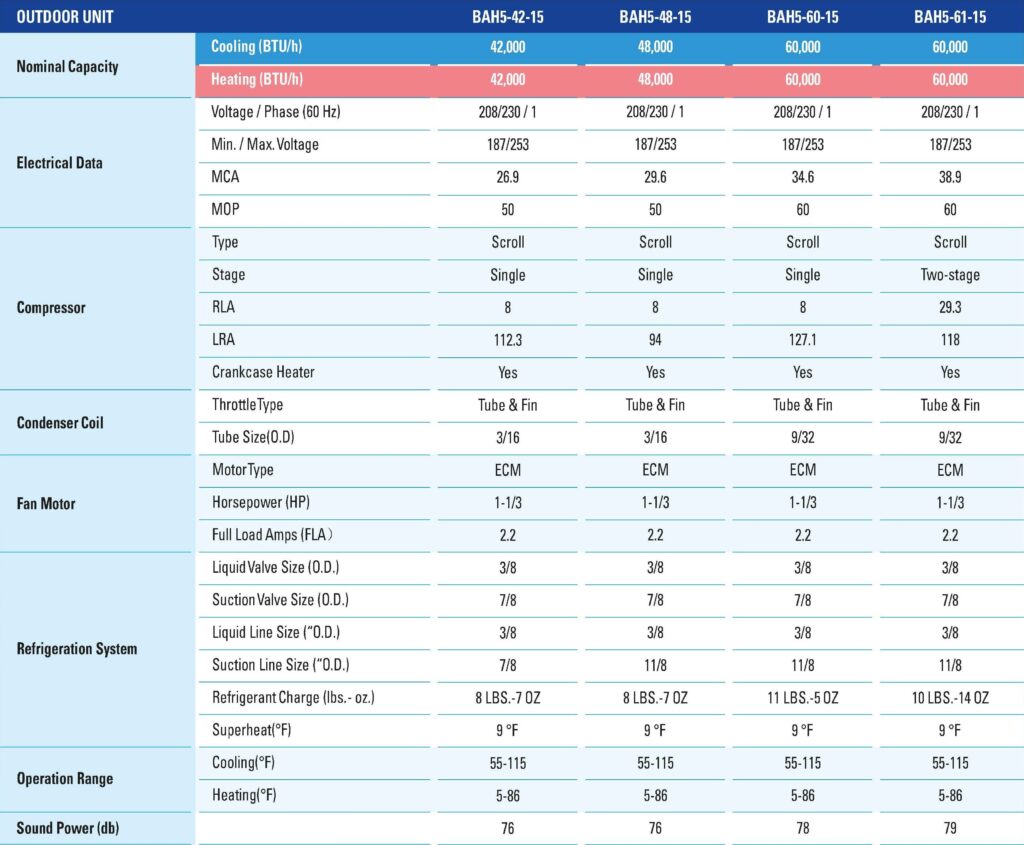

baH5

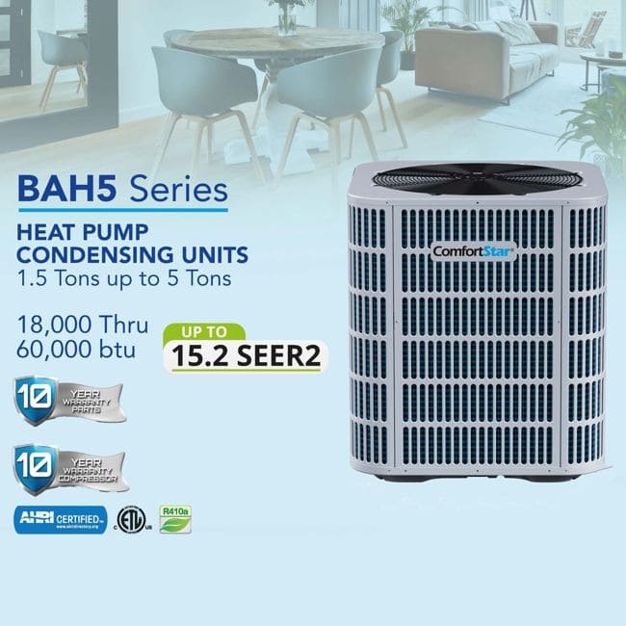

BAH5 Series | UP TO 15.2 SEER2
HEAT PUMP TOP DISCHARGE CONDENSING UNIT
- Rotary Compressor
- Compact Design
- Up to 15.2 SEER2
- Cooling Capacity: 18 – 60kBtu/h
BAH5 Expanded Features:
- R410A chlorine-free refrigerant.
- Energy-efficient compressor.
- Internally protection against high temperature motor overload conditions.
- High quality condenser with inner-groove copper tube and aluminum fin.
- Service valves with sweat connections and easy-access gauge ports.
- Factory-installed high pressure switch for AC and low pressure switch for HP.
- AHRI Listed (SEER2) & ETL Certification.
- Optional drier filter as accessory.
- Compact design, easy installation and transportation.
- Powder-painted galvanized steel cabinet.
- Wire fan discharge grille.
- Steel louver coil guard.
Resources

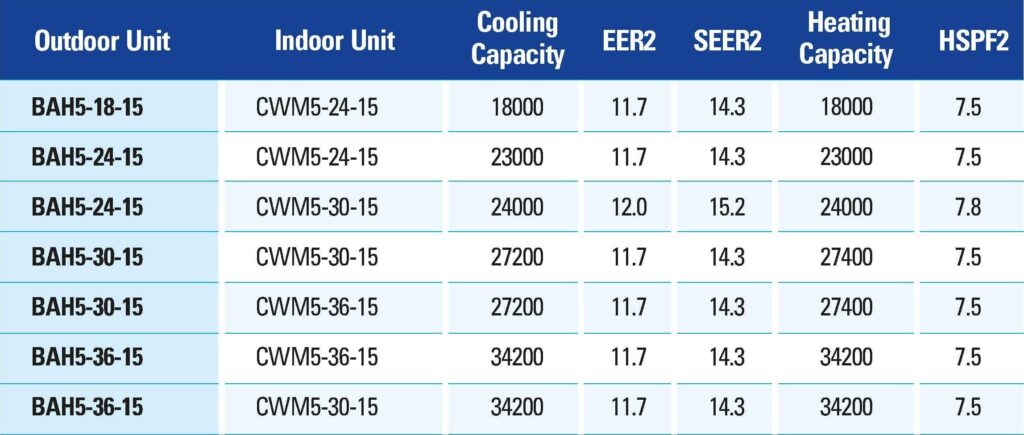

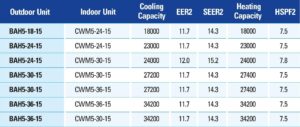

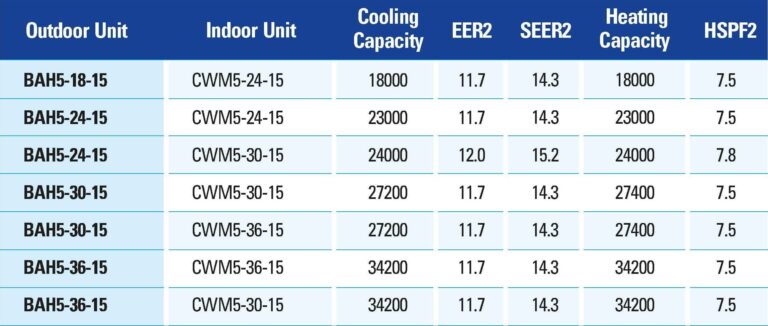

CWM5 Expanded Features:
- Direct-drive, Multi-speed Motors Allow Air Volume Variation For Heating / Cooling.
- Multi-speed ECM Motor.
- Thermoplastic Drain Pan With Bottom Primary And Secondary Drain Connections.
- Built-in Filter Rack.
- Wall-hanging Bracket Provided.
- Front Or Bottom Return Available.
- Optional Heating Elements Of 5kw, 8kw, And 10kw.
- All Aluminum Coil.
Resources

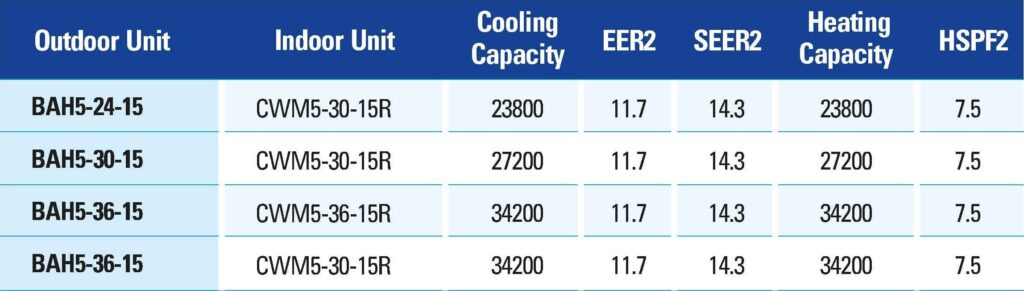

CWM5-R Expanded Features:
- Direct-drive, Multi-speed Motors Allow Air Volume Variation For Heating / Cooling.
- Multi-speed PSC Motor.
- Thermoplastic Drain Pan With Bottom Primary And Secondary Drain Connections.
- Built-in Filter Rack.
- Wall-hanging Bracket Provided.
- Front Or Bottom Return Available.
- Optional Heating Elements Of 5kw, 8kw, And 10kw.
- All Aluminum Coil.

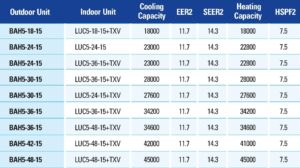

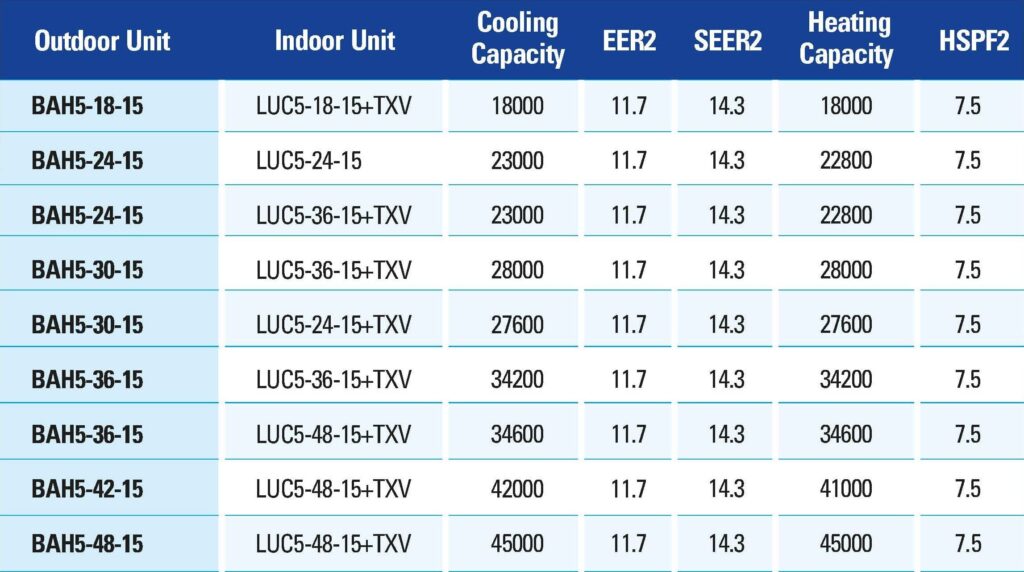

LUC5 Expanded Features:
- Available for cooling and heat pump applications.
- All-aluminum tubes & fins.
- Factory-sealed cabinet certified to achieve 2% or less leakage rate at 1.0 inch water column.
- Multi-position Installation.
- Horizontal and vertical condensate drain pans are standard.
- Blower wheel and coil easy slide out for ease of maintenance.
- Field Installed heater kits are optional: 5/7.5/10/15/20kW.
- AHRI Listed & ETL Certified.
- Mobile Home Certification.
Resources

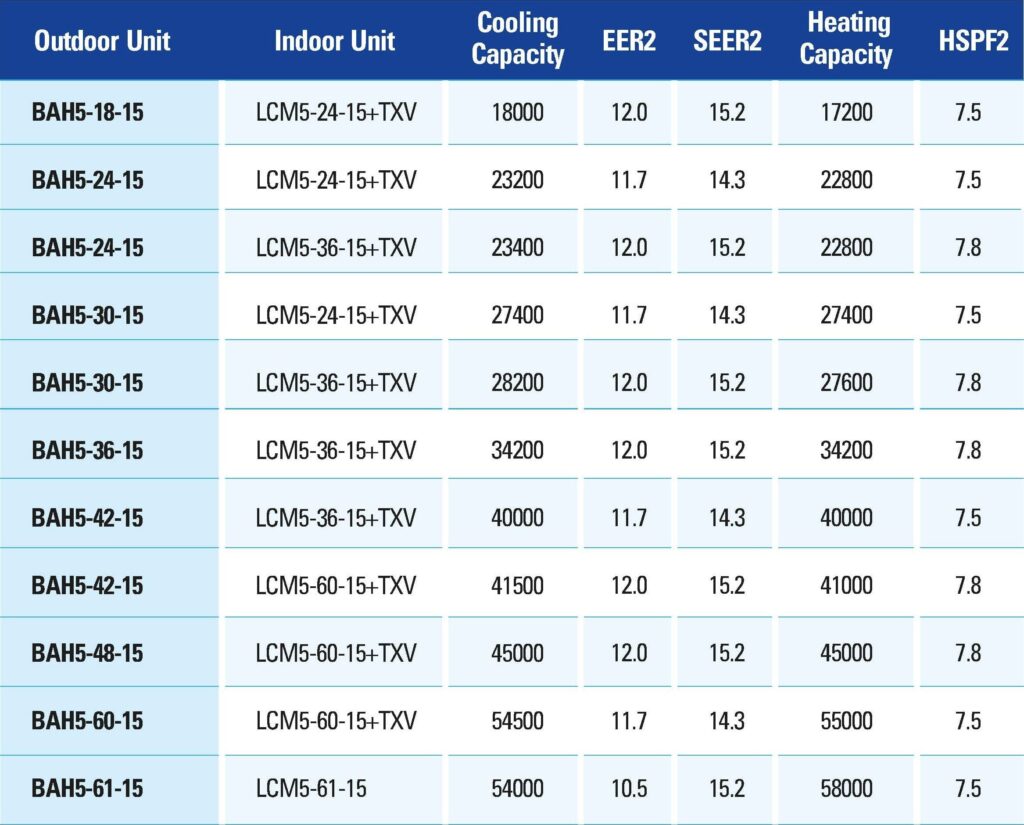

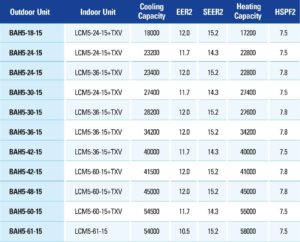

LCM5 Expanded Features:
- Available for cooling and heat pump applications.
- All-aluminum tubes & fins.
- Common Factory-sealed cabinet achieve 2% or less leakage rate at 1.0 inch water column.
- Multi-position Installation .
- Horizontal and vertical condensate drain pans standard.
- Blower and coil easy slide out for ease of maintenance.
- Field Installed heater kits are optional: 5/7.5/10/15/20kW.
- Multi-speed constant torque ECM blower motor (For LCM5 models).
- Factory-installed Piston metering for
- Cooling only model.
- 2-stage fan control and cold air prevention design (For special models).
- AHRI Listed (2023 SEER2) & ETL Certification.
- Mobile Home Certification.
Resources

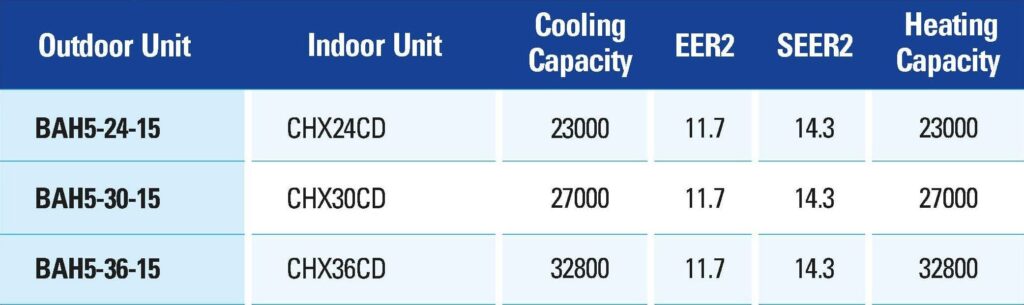

CHX(CD) Expanded Features:
- Our cabinets are built for durability and corrosion resistance, ensuring reliability. They not only prevent energy loss but also effectively eliminate condensation.
- All-Aluminum coil provides excellent heat transfer and efficiency.
- It is more durable in contrast to traditional copper coils, it is more resilient and has a lower likelihood of refrigerant leakage into the atmosphere.
- The integrated drain pan, crafted from rust-resistant material, features a unique design with a gentle slope to effectively eliminate standing water.
- The Variable Speed Blower motor enables gradual startup and shutdown, leading to reduced energy consumption. This results in improved air quality and a consistently comfortable temperature. Additionally, it possesses the ability to minimize sound for a quiet operation while saving energy.
- Blower compartment.
- Exquisite design-Super slim appearance and compact structure will save installation space.
