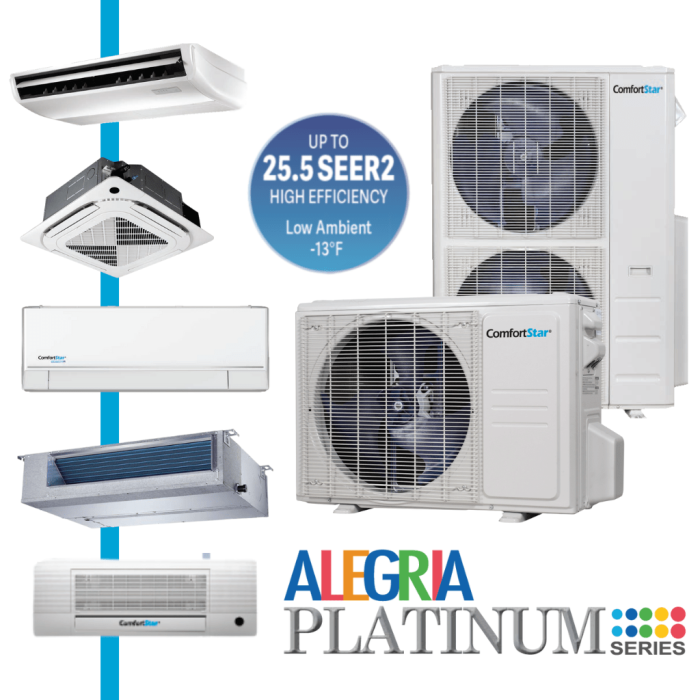

Light Commercial
25.5 SEER2 High Efficiency
PLATINUM Applications
- Restaurants
- Clinics
- Industrial Warehouses
- Healthcare Facilities
- Lounges
- Banks
- Schools
- Grocery Stores
- Hotels
- Offices
- Shopping Malls
CZP platinum Series FEATURES
Previous
Next
Platinum Expanded Features:
- Up To 25.5 SEER2
- All Indoor Units Wi-fi Compatible
- -13 °F Low Ambient Temperature

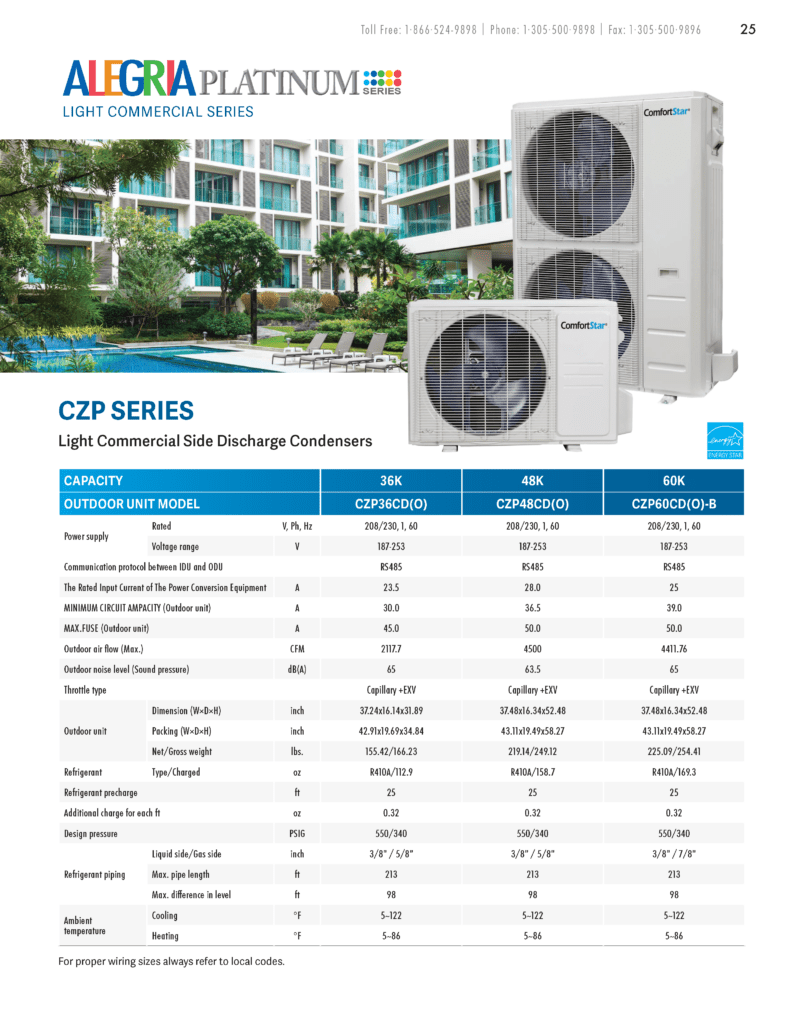

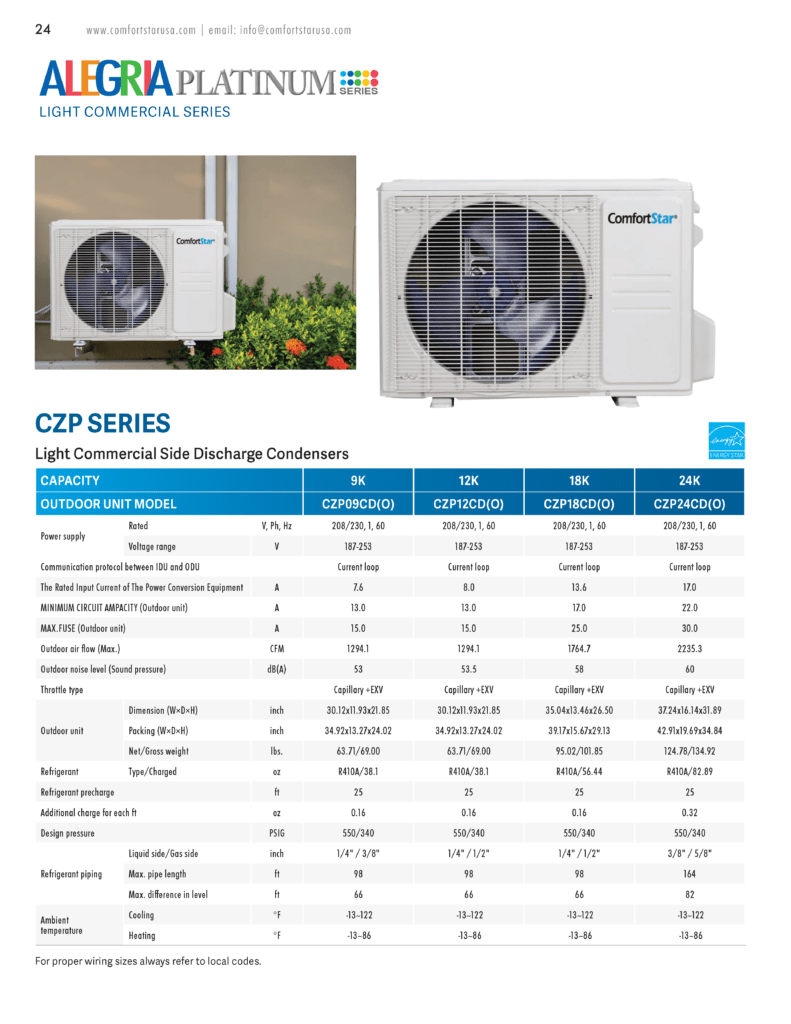

- Light Commercial Condenser Single Zone Heat Pump
- R410a System
- Gold Fin Protection
- Horizontal Discharge Condensing
- Units To Save Installation Space
- Self Diagnosis Error Codes
- Ul & Csa Certified For Safety
- Ahri Listed For Efficiency
- Available Indoor Units:

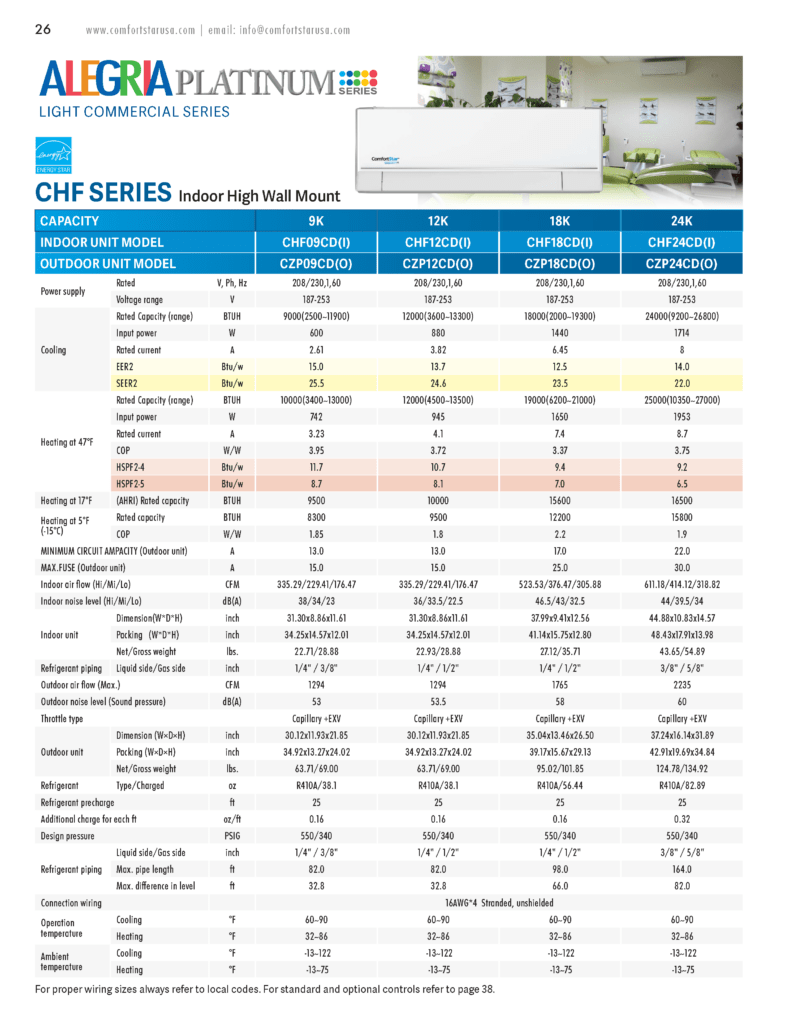

- High Wall Mount
- Cassette
- Floor/Ceiling
- Fan Coil
- AHU
Resources

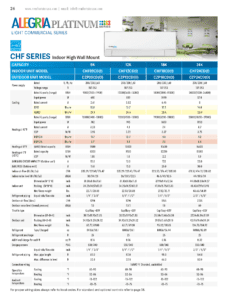

- CHF09CAI-CZP09CAO
- CHF09CDI-CZP09CDO
- CHF12CDI-CZP12CDO
- CHF18CDI-CZPCD18O
- CHF24CDI-CZP24CDO
- CPA-18B+CZP18CD(O)
- CPA-24B+CZP24CD(O)
- CPA-36DUB+CZP36CD(O)
- CPA-48DUB+CZP48CD(O)
- CPA-60DU+CZP60CD(O)-B
- CPA-09B+CZP09CD(O)
- CPA-12B+CZP12CD(O)
- FPA-36DU(I)+CZP36CD(O)
- FPA-48DU(I)+CZP48CD(O)
- FPA-60DU(I)+CZP60CD(O)
- FPA-18+CZP18CD(O)
- FPA-24+CZP24CD(O)
- TPA-09+CZP09CD(O)
- TPA-12+CZP12CD(O)
- TPA-18+CZP18CD(O)
- TIP-24+CZP24CD(O)
- TIP-36+CZP36CD(O)
- TIP-48+CZP48CD(O)

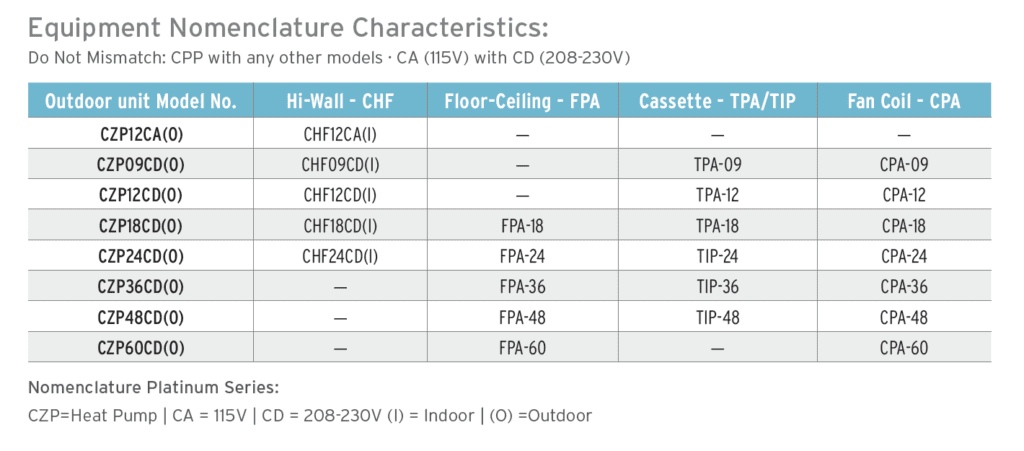

Platinum Light Commercial Combinations
Platinum Expanded Features:
- Low Ambient: Capable of producing comfortable
- Heating and cooling to outdoor ambient temperatures as low as -13°F.
- Manual Power Switch: Power unit ON/OFF using button located at the evaporator.
- Interactive Display shows:
- Error codes based on system failure.
- Service codes if your filter needs cleaning.
- Error code if refrigerant leak is detected.
- When unit goes into auto defrost.
- Self-Diagnosis: Unit will shut down and go into protection mode if it detects abnormalities. The display will show an error code depending on the type of protection the unit is in.
- Bypass Mode: Unit will continue to operate if a non-critical component fails, such as a sensor.
- 2-Way Draining Option: Ability to place drain hose on either left or right hand side of evaporator allows for flexible installation design.
- 3 Directional Airflow: Air flow is directed so that it reaches more surface area including the corners of the room being conditioned.
- Mute Operation: Silence from the Remote Control.
- Follow Me Function: Remote Control has a sensor built in. In this mode, the unit will sense the temperature at the Remote Control instead of at the indoor unit for the set temperature.
- Controls: Wired Controls (optional)
- WiFi Control: Cool Link installed in unit (optional)
Resources
Previous
Next

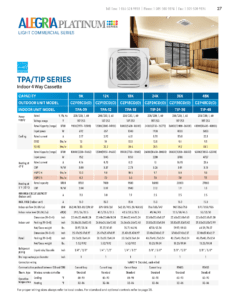

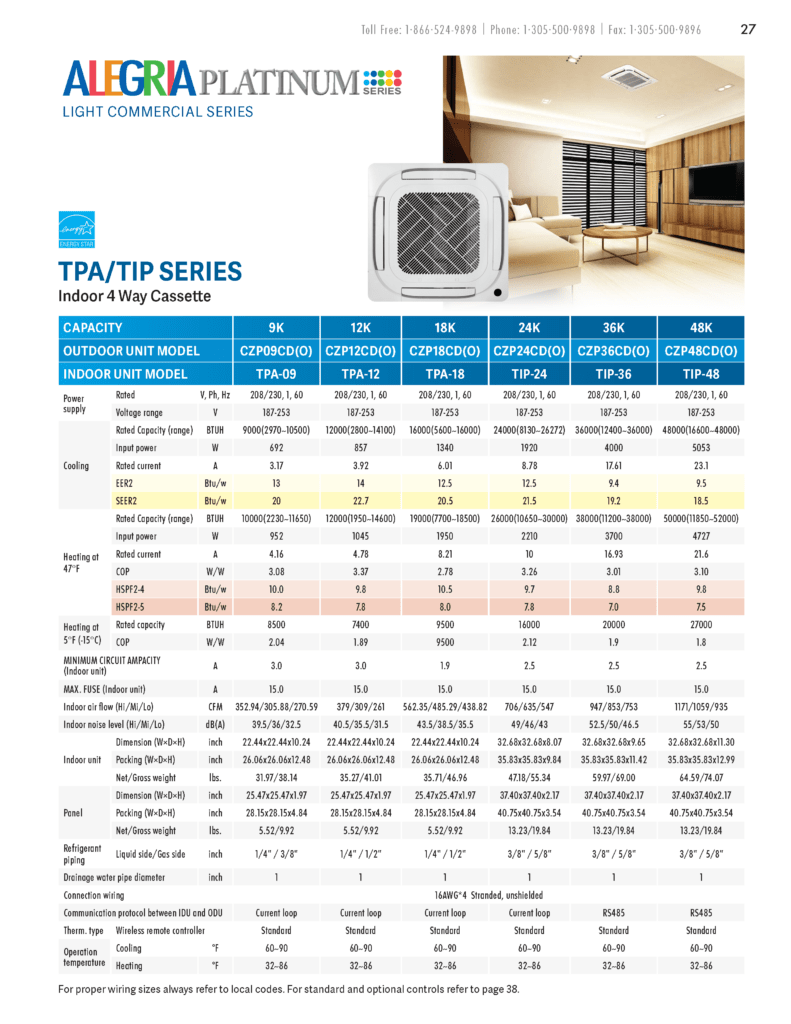

TIP - TPA Expanded Features:
- Indoor Cassette Type
- Compact Design
- Concealed Ceiling Unit
- Quiet Operation
- 360° Air Discharge
- Wireless Remote Control (standard)
- Programable Wired Remote
- Wired Wall Remote (optional)
- Available Fresh Air Intake
- Integrated lift Pump (29” head)
- Wi-Fi Compatible
Resources
Previous
Next

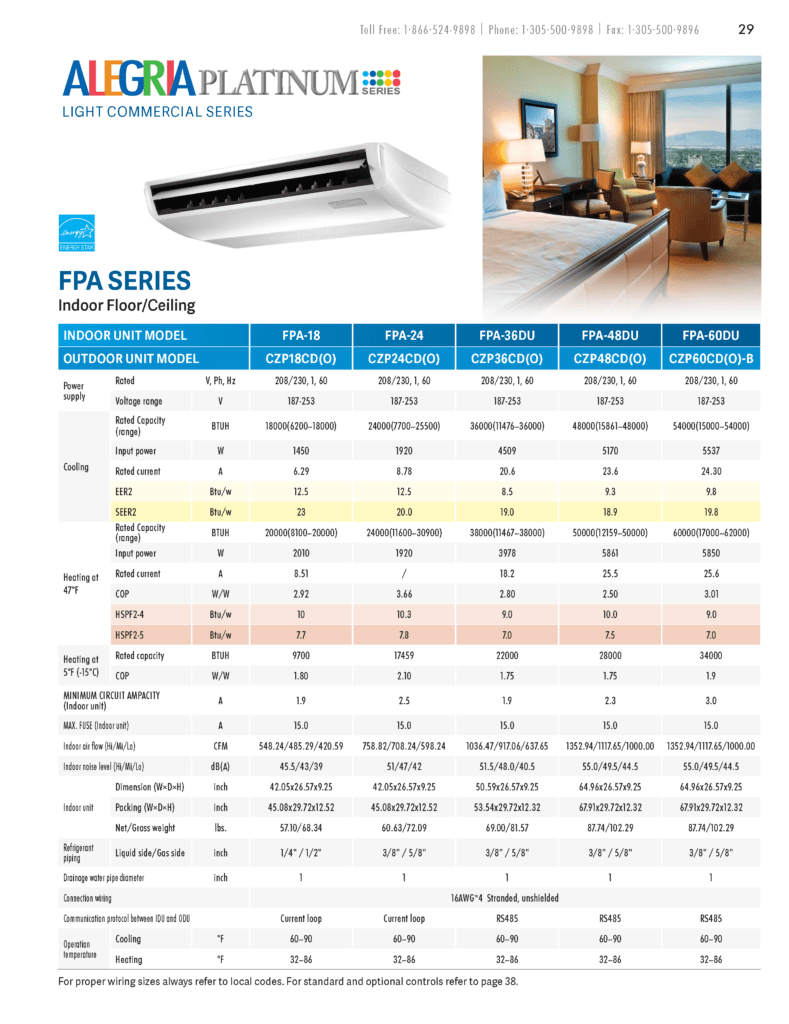

FPA Features:
- Indoor Floor/Ceiling Type
- Flexible Design – Horizontal or Vertical Installation
- Compact Design
- Quiet Operation
- Louver Swing Function to Disperse Air Flow
- Wireless Remote Control (standard)
- Wired Control (optional)
Resources
Previous
Next

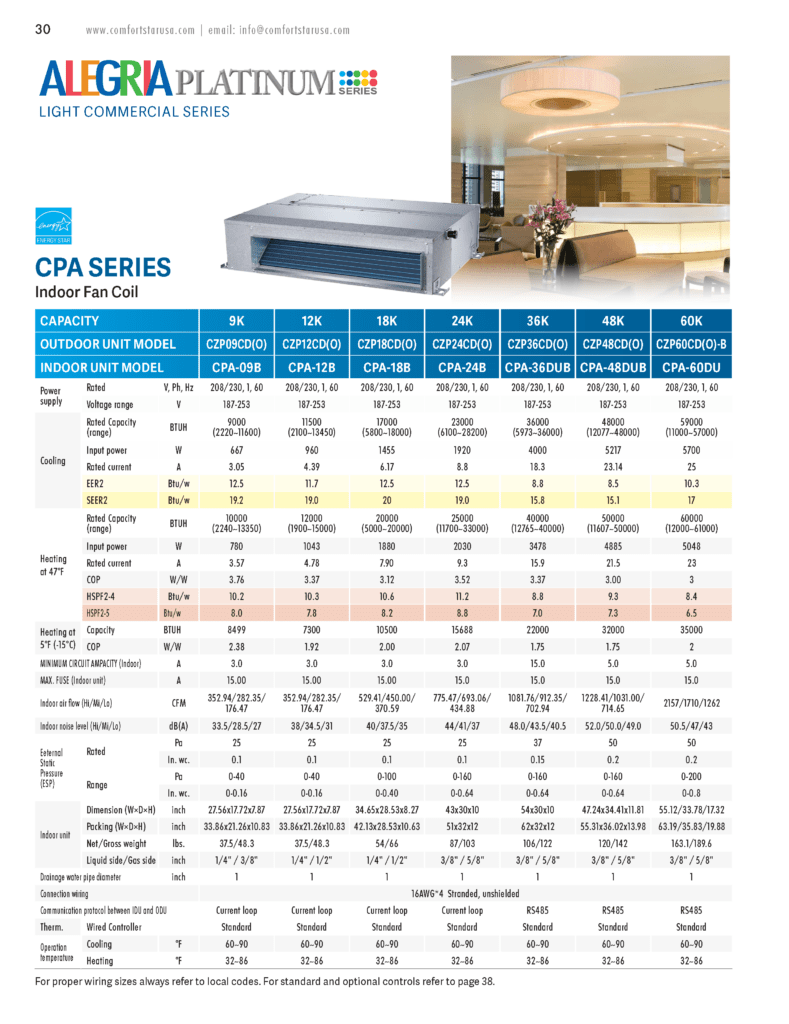

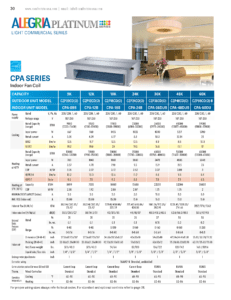

CPA Features:
- Indoor Fan Coil Type
- Compact Design
- Quiet Operation
- Wired Control (standard)
- Available Fresh Air Intake
Resources
T1W for Hi-Heat Light Commercial:
T1W Features:
- Indoor 1 way Cassette
• Compact Hidden Design
• Concealed Ceiling Unit
• 360° Air Discharge
• Quiet Operation
• Wired Control (standard)
• WI-FI Compatible (optional)
• Easy Install
