bar7
BAR7 Series | 14.3 & 15.2 SEER2
COOLING ONLY TOP DISCHARGE CONDENSING UNIT
- Rotary Compressor
- All ECM motor
- 1.5 up to 5 Tons
- Capacity: 18,000 – 60,000 Btu/h
BAR7 Expanded Features:
- Environmentally friendly R454B refrigerant
with a low Global Warming Potential value. - Compressor designed for energy efficiency.
- Features thermal overload protection.
- Service valves with sweat connections and convenient gauge ports.
- Includes factory-installed high-pressure switch.
- AHRI certified and ETL listed.
- Includes a filter drier.
- The compact design enables easy installation, clearance, durability, and maneuverability.
- Features a powder-painted galvanized steel cabinet chassis.
- Protective steel louvered coil guard and a steel wire axial fan guard.
- An ECM fan motor paired with a uniquely designed fan blade ensures smooth airflow and quieter operation.
LUC7 Expanded Features:
- A-shaped coil design for high heat-transfer
efficiency and low static-pressure drop. - Foil-faced insulation included to prevent
energy loss within the cabinet. - Factory-sealed cabinet certified to maintain a 2% or lower air leakage rate at 1.0 inch water column.
- Multi-stage blower with Speed Control to adapt to varying capacity needs.
- Flexible 4-position installation options: Upflow, Horizontal Right, Downflow, Horizontal Left.
- Standard horizontal/vertical condensate drain pans with primary and secondary condensate fittings.
- Field-installable electric heater kits in 5, 7.5, 10, 15, and 20 kW capacities available as add-ons, with multiple electrical entry points.
- Dual front panel, volute, and coil with slide track, TXV with threaded connection for simplified maintenance.
- Integrated filter rack with toolless door access for easy filter replacement.
- Copper evaporator connection designed for easy brazing.
- TXV system designed for simple piston replacement.
- Long-lasting all-aluminum heat exchanger enhances product durability.
- The R454B refrigerant sensor comes pre-installed, allowing the unit to be compatible with a wider range of room types and applications.
LCM7 Expanded Features:
- A-shaped coil design for high heat-transfer efficiency and low static-pressure drop.
- Foil-faced insulation in the cabinet to prevent energy loss.
- Factory-sealed cabinet certified for 2% or less air leakage rate.
- Multi-stage blower Speed Control to match varying capacity needs.
- Multi-speed constant-torque ECM motor for enhanced performance.
- Versatile 4-position installation options: Upflow, Horizontal Right, Downflow, Horizontal Left.
- Includes horizontal and vertical condensate drain pans with primary and secondary fittings.
- Field-installable electric heater kits available in 5, 7.5, 10, 15, 20 kW.
- Multiple electrical entry points for flexibility.
- Dual front panel, volute, coil with slide track, TXV with threaded connection for easy maintenance.
- Integrated filter rack with toolless door access.
- Easy-to-braze copper evaporator connection.
- TXV designed for easy piston replacement.
- All-aluminum heat exchanger for extended product life.
- Advanced internal welding process to minimize corrosion risks.
- AHRI and ETL certifications.
- Polymer condensate drain pan with UVC inhibitor for prolonged durability.
- Fully-insulated cabinet design for optimal performance.

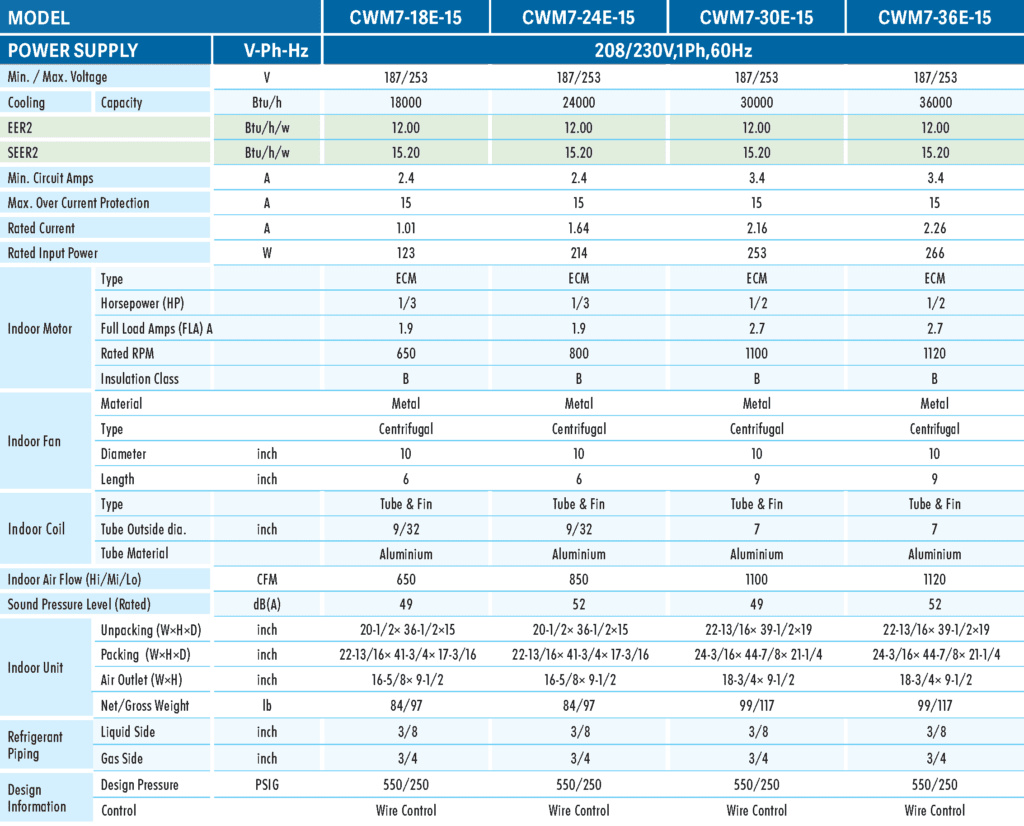

CWM7 Expanded Features:
- Direct-drive, multi-speed motors for adjusting air volume during heating or cooling.
– Multi-speed ECM motor
– Multi-speed PSC motor - Includes a thermoplastic drain pan with primary and secondary drain connections at the bottom.
- Equipped with a built-in filter rack.
- Includes a wall-hanging bracket.
- Offers the option of front or bottom return.
- Optional heating elements available in 5kW, 7.5kW, and 10kW.
- Features an all-aluminum coil.
- AHRI listed and ETL listed.
- Configured with an R454B refrigerant sensor for safe operation.
- Factory-installed R454B refrigerant sensor to provide additional room for installation.
CHX7 Expanded Features:
- The durable, corrosion-resistant cabinet helps reduce energy loss and minimize condensation.
- An all-aluminum coil offers superior heat transfer, efficiency, durability, and a lower risk of leakage compared to traditional copper coils.
- The integrated drain pan, constructed from rust-resistant materials, features a gently sloped design to prevent water from pooling.
- A variable speed blower motor ensures gradual startup and shutdown, reducing energy consumption, enhancing air quality, and maintaining consistent temperatures.
- The blower compartment minimizes sound for quiet operation and energy savings.
- With its super slim appearance and compact structure, the unit boasts an exquisite design that saves installation space.
